LT311AJ8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LT311AJ8

LT311AJ8: DescriptionComparator; CategoryAnalog mixed-signal IC Amplifier circuit; File Size532KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LT311AJ8 Overview

Comparator

LT311AJ8 Parametric

Parameter Name	Attribute value
Maker	ADI
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.15 µA
Maximum bias current (IIB) at 25C	0.1 µA
Maximum input offset voltage	2000 µV
JESD-30 code	R-CDIP-T8
length	10.287 mm
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output type	OPEN-COLLECTOR
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Nominal response time	200 ns
Maximum seat height	5.08 mm
Maximum slew rate	4 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

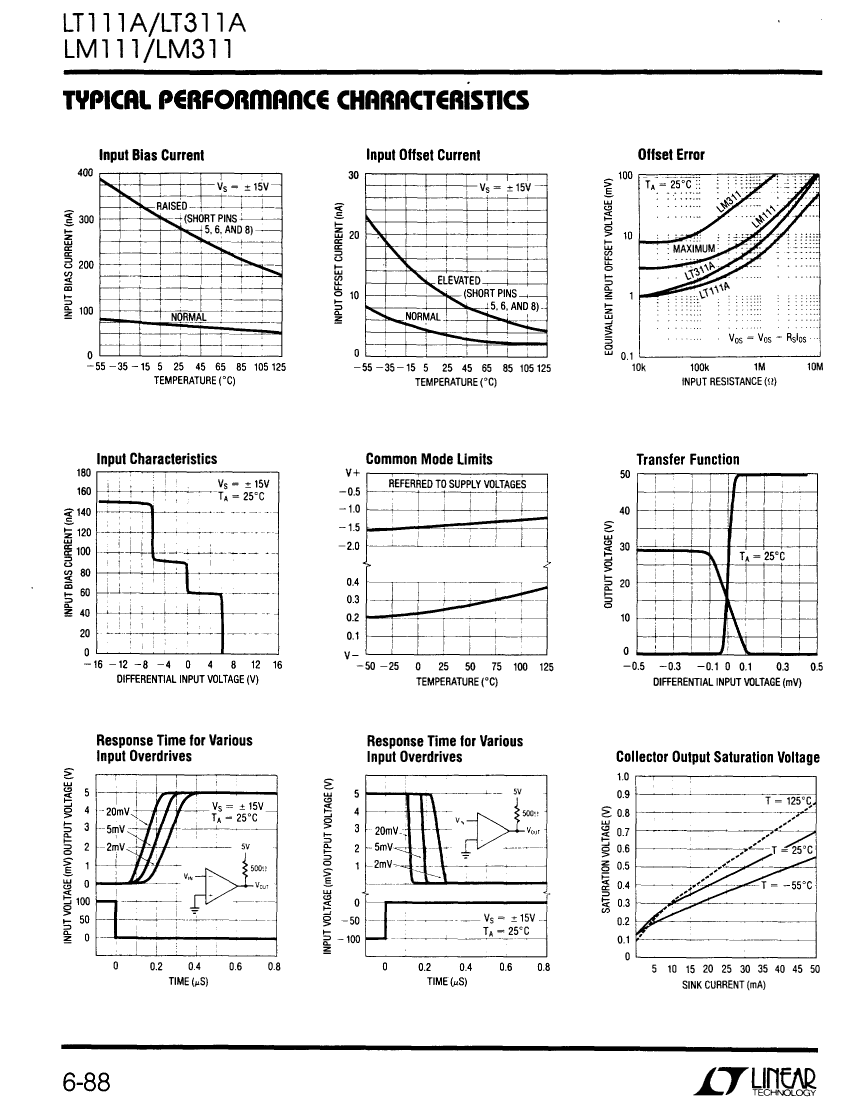

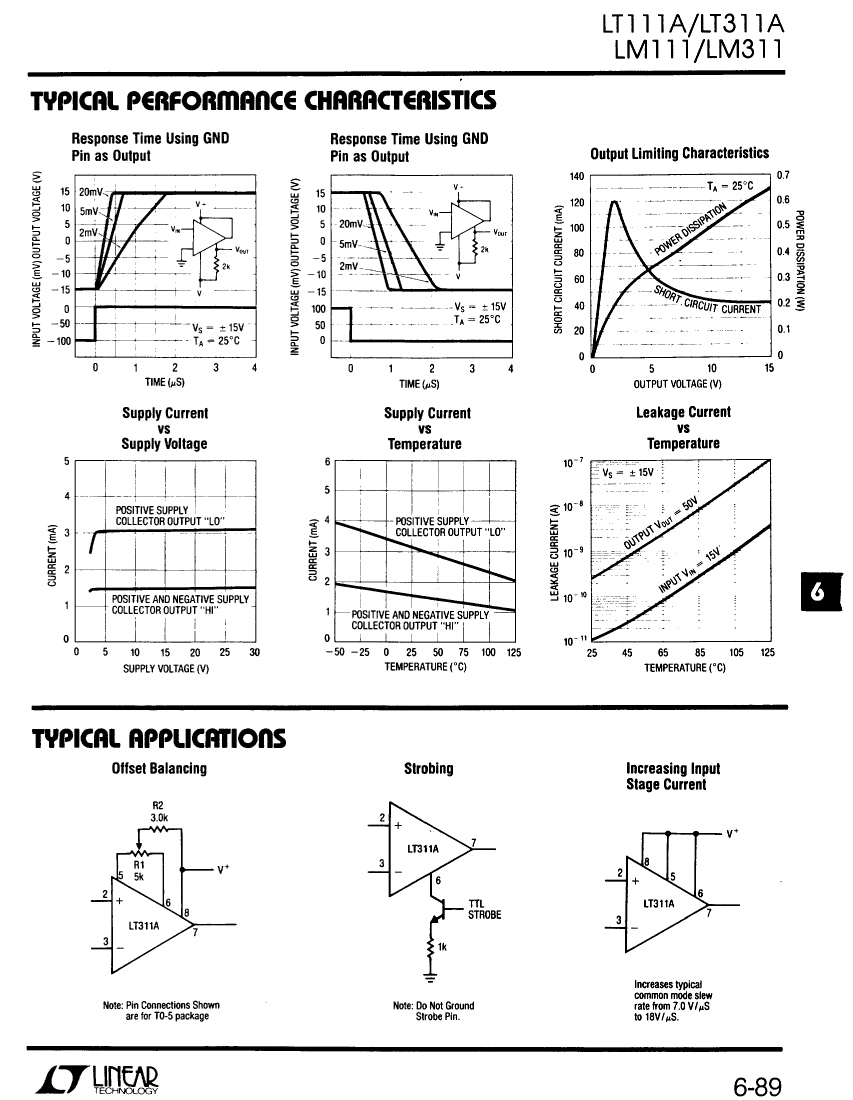

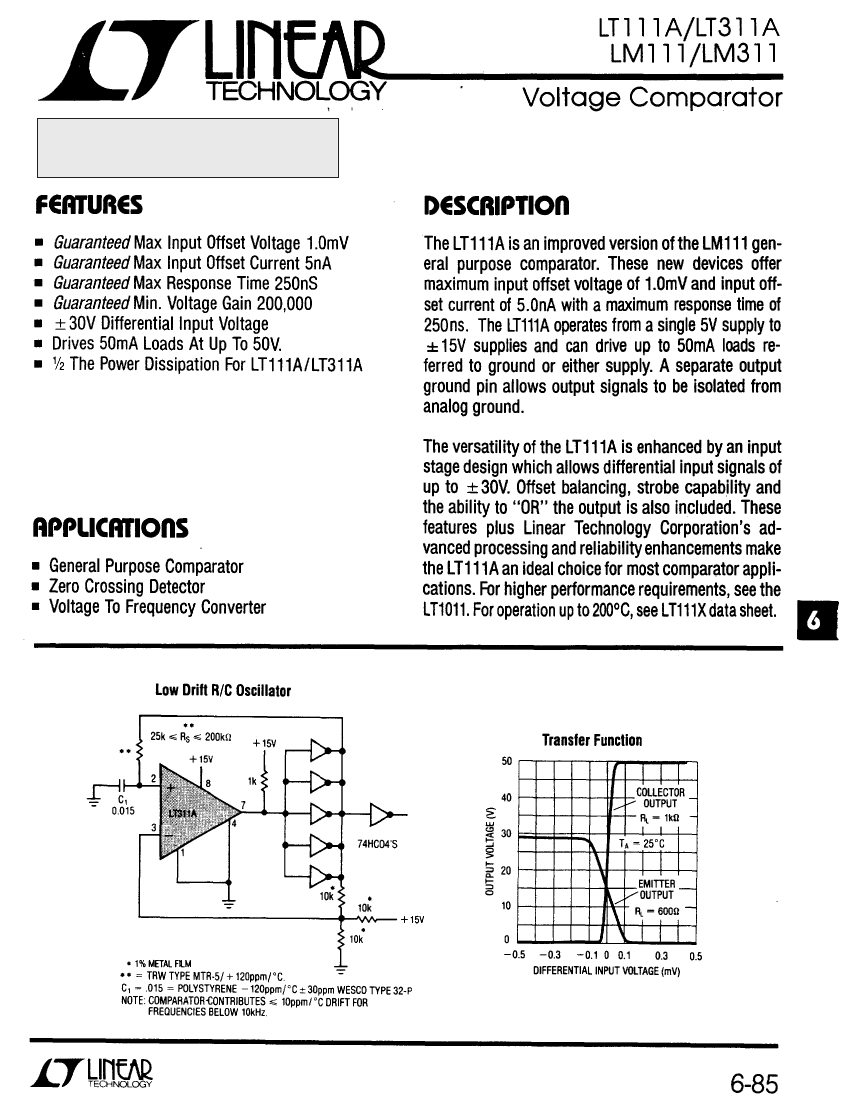

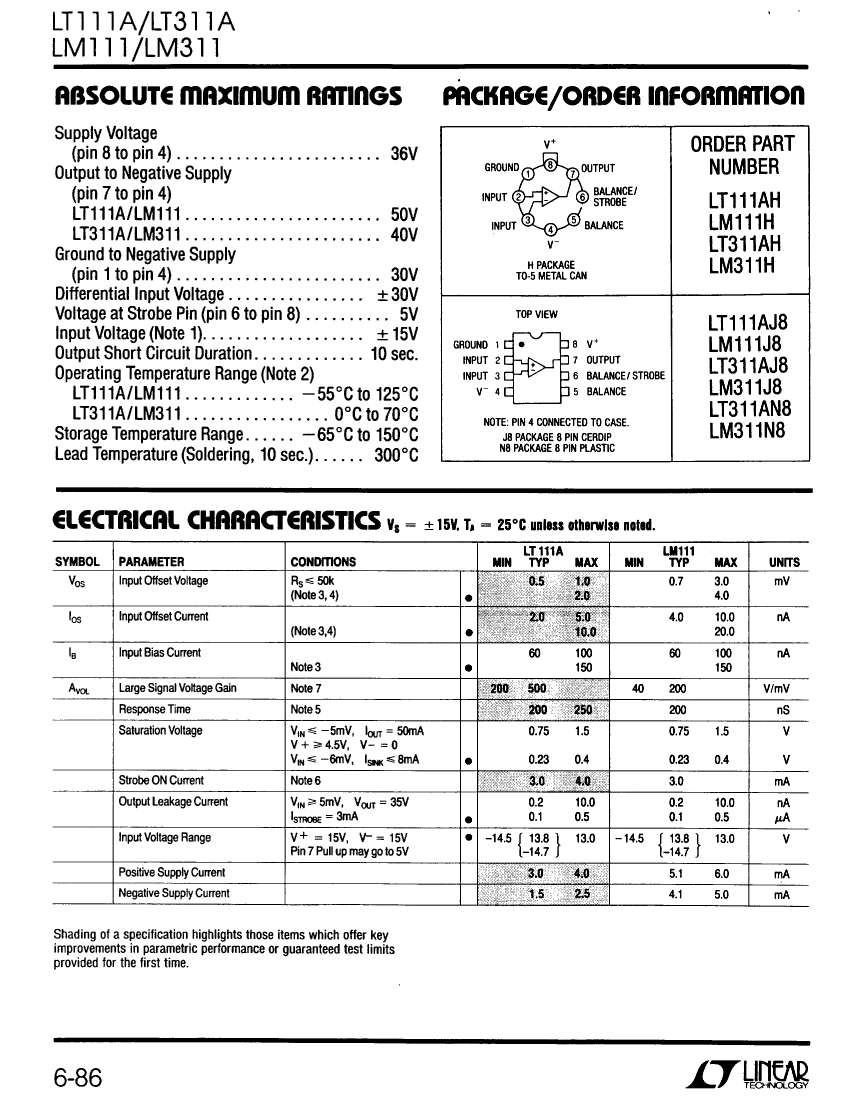

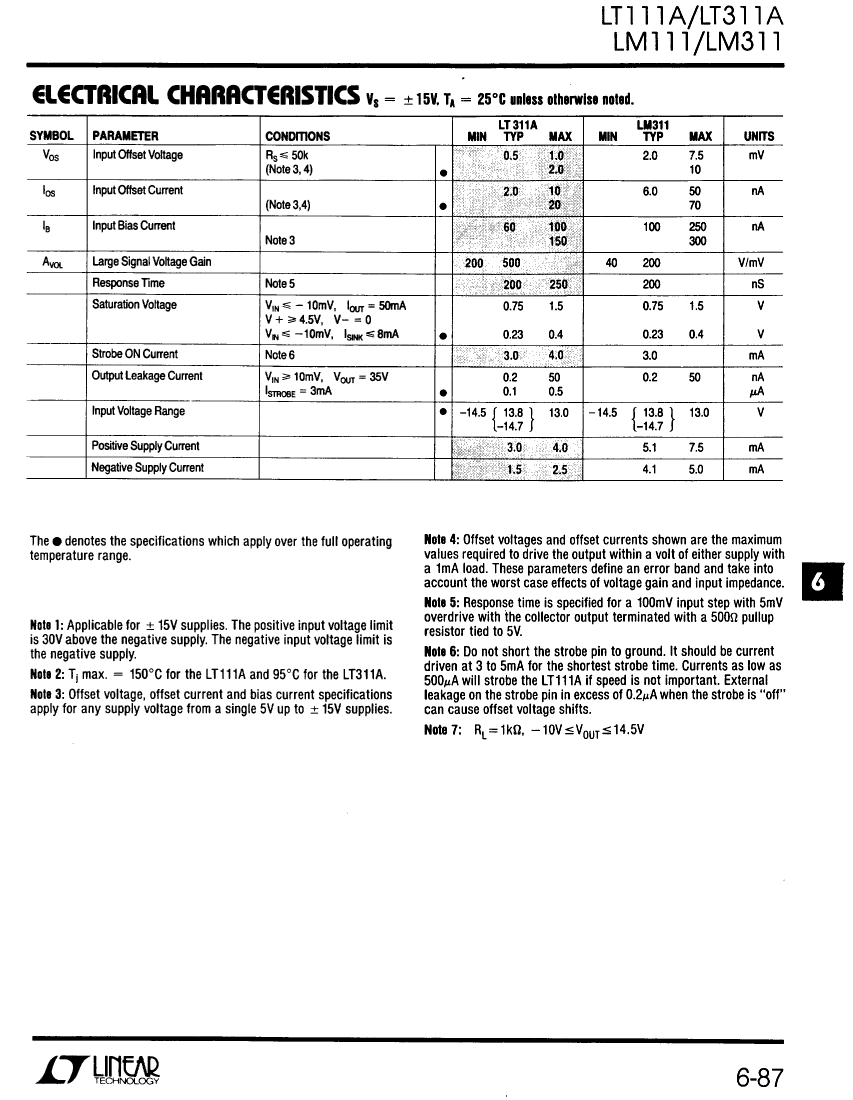

Preview

Download Datasheet

View All

Contact Linear Technology for Potential Replacement

FOR INFORMATION PURPOSES ONLY

OBSOLETE:

LT311AJ8 Related Products

	LT311AJ8	LM311N8	LM311J8	LM311H	LT111AJ8	LM111J8	LM111H	LT311AN8	LT311AH	LT111AH
Description	Comparator	Comparator	Comparator	Comparator	Comparator	Comparator	Comparator	Comparator	Comparator	Comparator
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	, CAN8,.2	DIP, DIP8,.3	DIP, DIP8,.3	, CAN8,.2	DIP, DIP8,.3	, CAN8,.2	, CAN8,.2
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknown
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.15 µA	0.3 µA	0.3 µA	0.3 µA	0.15 µA	0.15 µA	0.15 µA	0.15 µA	0.15 µA	0.15 µA
Maximum bias current (IIB) at 25C	0.1 µA	0.25 µA	0.25 µA	0.25 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA
Maximum input offset voltage	2000 µV	10000 µV	10000 µV	10000 µV	2000 µV	4000 µV	4000 µV	2000 µV	2000 µV	2000 µV
JESD-30 code	R-CDIP-T8	R-PDIP-T8	R-CDIP-T8	O-MBCY-W8	R-CDIP-T8	R-CDIP-T8	O-MBCY-W8	R-PDIP-T8	O-MBCY-W8	O-MBCY-W8
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	125 °C	125 °C	125 °C	70 °C	70 °C	125 °C
Output type	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	METAL	CERAMIC	CERAMIC	METAL	PLASTIC/EPOXY	METAL	METAL
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	CAN8,.2	DIP8,.3	DIP8,.3	CAN8,.2	DIP8,.3	CAN8,.2	CAN8,.2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	ROUND	ROUND
Package form	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL	IN-LINE	IN-LINE	CYLINDRICAL	IN-LINE	CYLINDRICAL	CYLINDRICAL
Nominal response time	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns
Maximum slew rate	4 mA	7.5 mA	7.5 mA	7.5 mA	4 mA	6 mA	6 mA	4 mA	4 mA	4 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	WIRE	THROUGH-HOLE	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE	WIRE
Terminal location	DUAL	DUAL	DUAL	BOTTOM	DUAL	DUAL	BOTTOM	DUAL	BOTTOM	BOTTOM
Maker	ADI	-	ADI	-	ADI	ADI	ADI	ADI	ADI	ADI
length	10.287 mm	10.16 mm	10.287 mm	-	10.287 mm	10.287 mm	-	10.16 mm	-	-
encapsulated code	DIP	DIP	DIP	-	DIP	DIP	-	DIP	-	-
Maximum seat height	5.08 mm	3.937 mm	5.08 mm	-	5.08 mm	5.08 mm	-	3.937 mm	-	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	-	2.54 mm	-	-
width	7.62 mm	7.62 mm	7.62 mm	-	7.62 mm	7.62 mm	-	7.62 mm	-	-
