Verpackt in Gurtverpackung
Anforderungsstufe 1
Tape on Reel Packaging
Performance Level 1
Kontaktbereich vergoldet
Verpackungseinheit: 280 Stück
Mating Area gold plating
Packaging unit: 280 pcs
Anschlussbereich verzinnt 4-6 µm
Terminal Area 4-6 µm tin plating
52,75
39 x 1,27 = 49,53
1,27
1,27
Koplanarität der Anschlüsse
≤
0,1 mm
Coplanarity Area of Termination
≤
0,1 mm
3,25
1,8
7,2
330
Abspulrichtung -
Reel off Direction
a1
0,75
-0,05
9,1
a40
51,75
55,88
a1
53,95
±0,03
1,5
-0,03
4,2
3,25
4
±0,1
5
8,25
17
53,55
Ansaughaube
hood
5
Leiterplatten-Layout Vorschlag für SMT
PCB-Layout Proposal for SMT
53,95
±0,03
39 x 1,27 = 49,53
2,21
±0,03
72
16
1,27
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
BA 8-03 - Standard Bauhöhe
type 8-03 - Standard Assembly Height
Information:
Tolerances
All Dimensions
in mm
Scale
3:1
0,3
1,2
0,8
1,6
-0,03
a1
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
d
Index
08.07.2013
Date
2,2
1,1
7,6
5,5
Designation
Subject to modification without
prior notice.
Drawing will not be updated.

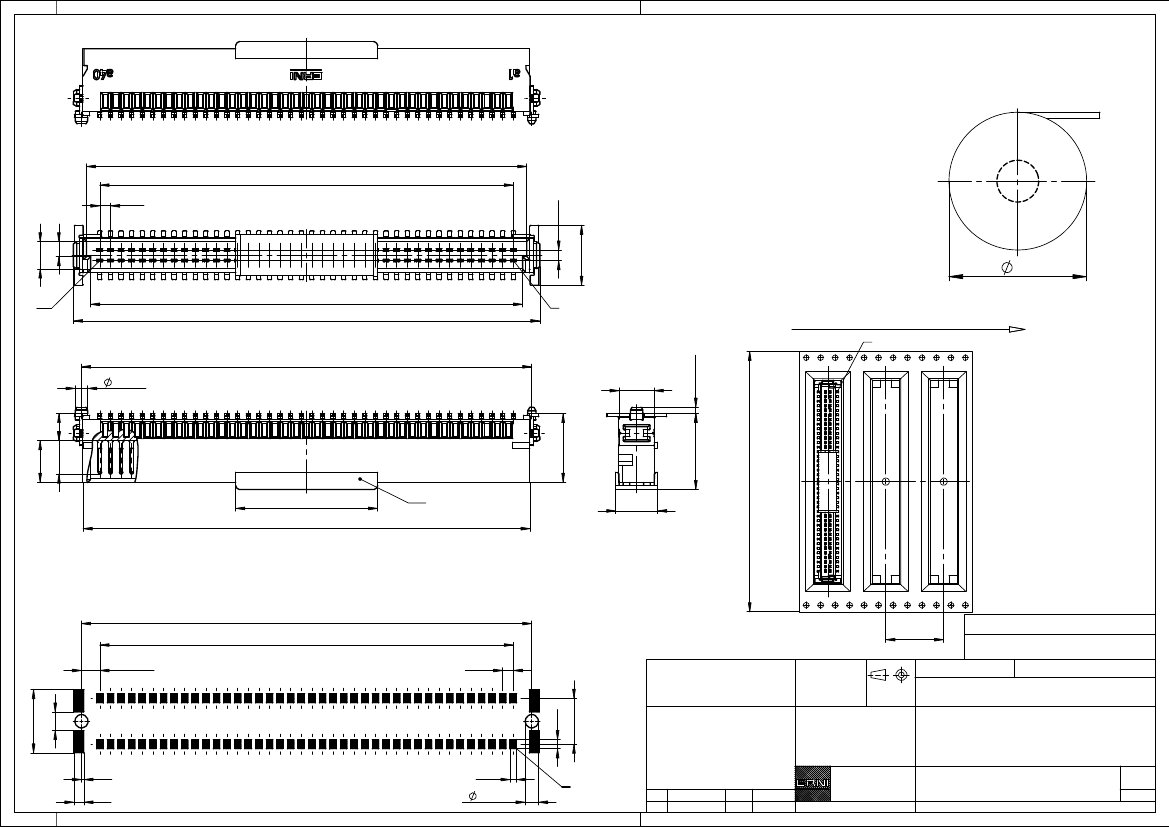

Messerl. SMC-Q 80-SMD-BA8-03
Male SMC-Q 80-SMD-type8-03
www.ERNI.com
Class
244858
SMCQ
I
A3
