254589 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 254589

254589: DescriptionMesserl. SMC-Q 32-SMD-BA8-13; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

254589 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	254589	-	-	View	Buy Now

254589 Overview

Messerl. SMC-Q 32-SMD-BA8-13

254589 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
Samacsys Descripti	Board to Board & Mezzanine Connectors 32P VERT MALE SMT
Other features	LOW PROFILE
Board mount options	PEG
body width	0.276 inch
subject depth	0.266 inch
body length	1 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	254589
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	32

Preview

Download Datasheet

View All

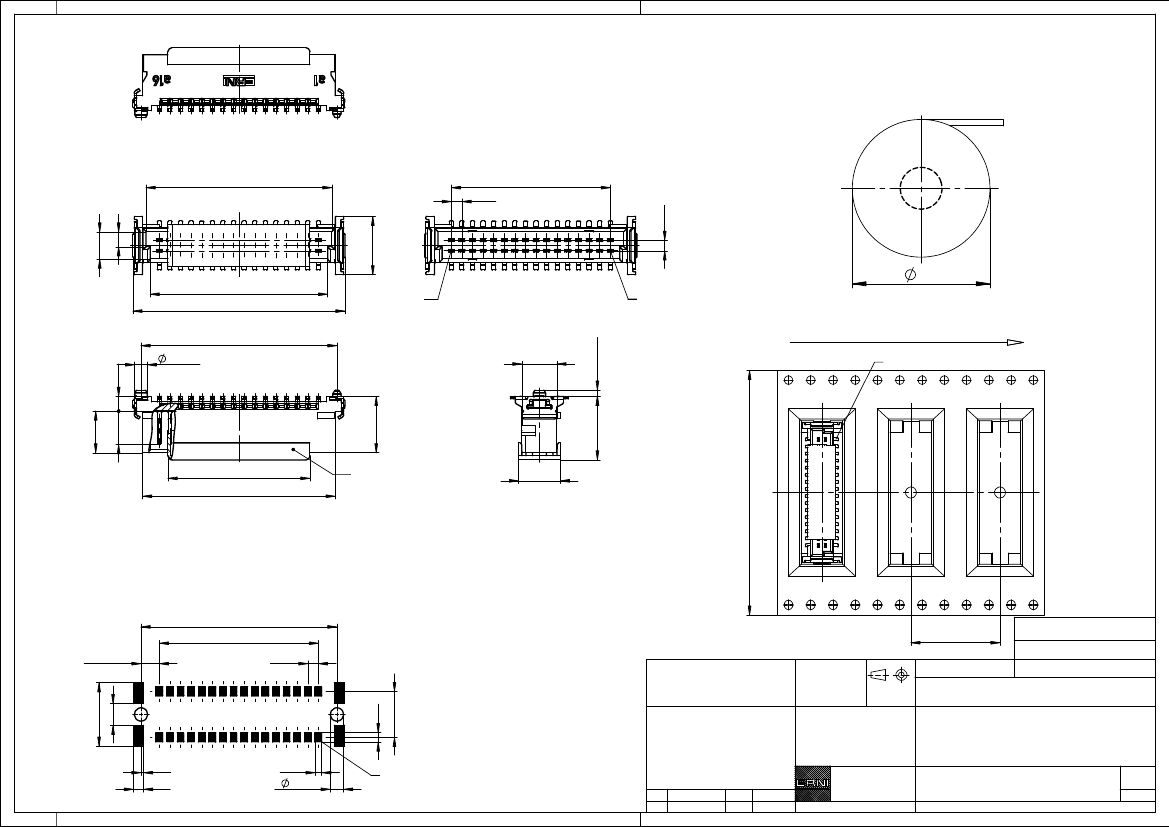

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 280 Stück

Packaging unit: 280 pcs

ohne Ansaughaube -

without hood

22,27

1,27

3,25

1,8

15 x 1,27 = 19,05

21,27

25,4

23,47

±0,03

1,5

-0,03

1,75

330

a16

Abspulrichtung -

Reel off Direction

0,75

-0,1

4,2

±0,1

6,75

23,07

Ansaughaube

hood

Anforderungsstufe 1

Leiterplatten-Layout Vorschlag für SMT

Performance Level 1

Kontaktbereich vergoldet

PCB-Layout Proposal for SMT

23,47

±0,03

15 x 1,27 = 19,05

2,21

±0,03

1,27

Mating Area gold plating

7,6

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Information:

Tolerances

All Dimensions

in mm

BA 8-13 - 8mm Bauhöhe

type 8-13 - Low Profile

Proprietary notice pursuant to ISO 16016 to be observed.

Koplanarität der Anschlüsse

≤

0,1 mm

Scale

3:1

Coplanarity Area of Termination

≤

0,1 mm

7,6

2,6

5,5

1,1

0,3

1,2

0,8

1,6

-0,03

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

24.07.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerl. SMC-Q 32-SMD-BA8-13

Male SMC-Q 32-SMD-type8-13

www.ERNI.com

Class

254589

SMCQ
