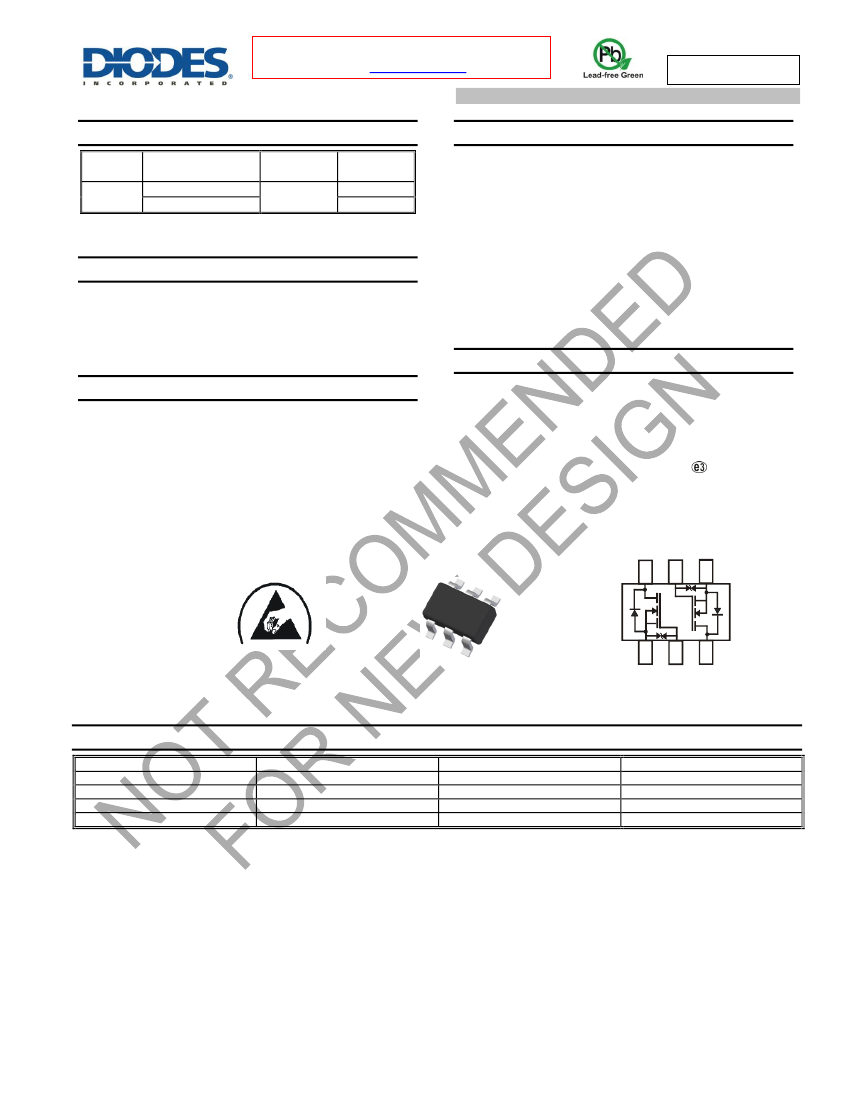

Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.006 grams (Approximate)
SOT363
D
2
G
1
S
1
HBM Class 1C
Top View
S
2
G
2
D
1
Top View
Internal Schematic
Ordering Information
(Notes 4 & 5)
Part Number
2N7002DWA-7
2N7002DWA-13
2N7002DWAQ-7
2N7002DWAQ-13
Notes:
Compliance
Standard
Standard
Automotive
Automotive
Case
SOT363
SOT363
SOT363
SOT363
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/product_compliance_definitions.html.

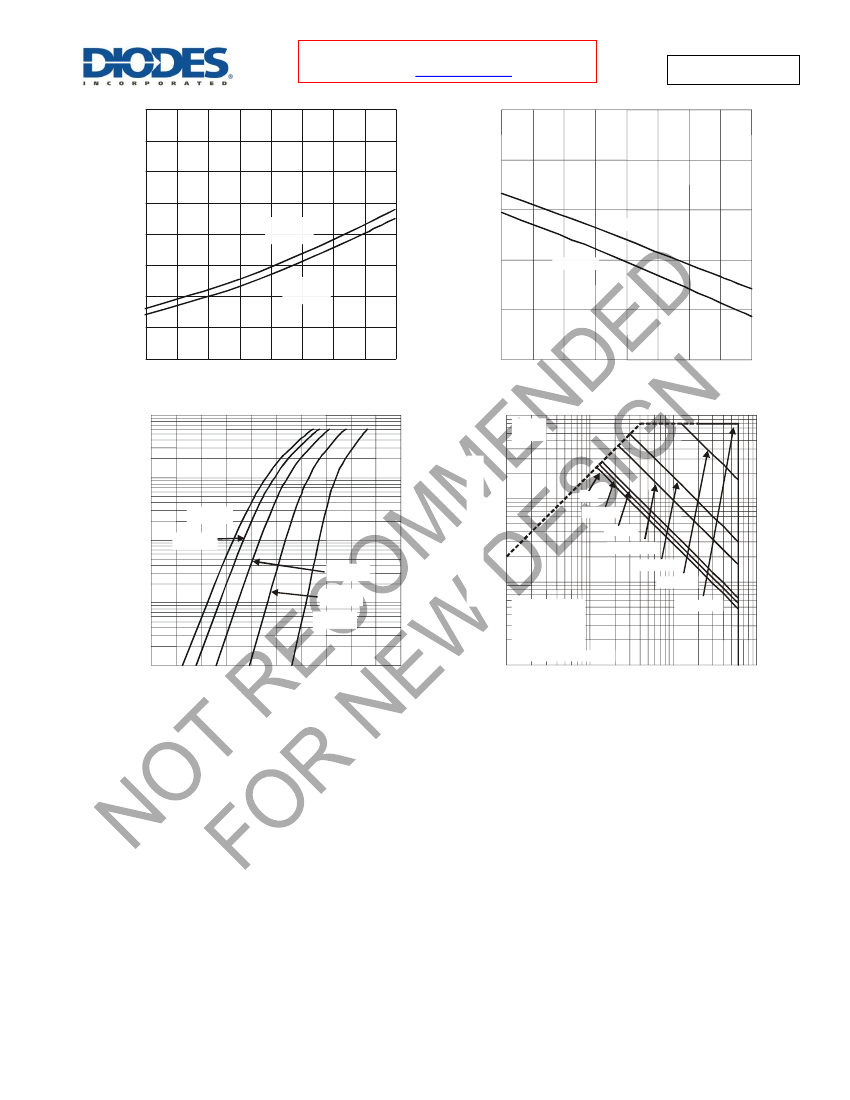

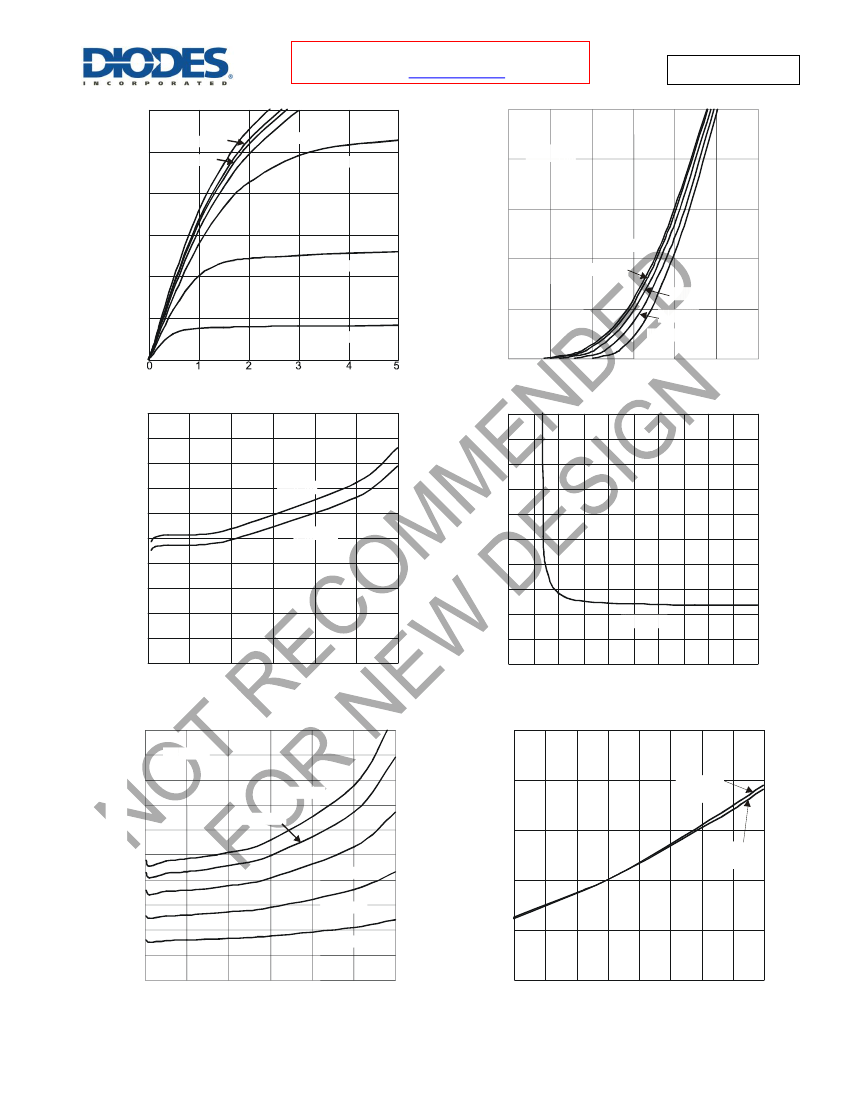

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
