354056 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 354056

354056: Description20 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

354056 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354056	-	-	View	Buy Now

354056 Overview

20 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT

354056 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOW PROFILE
Board mount options	PEG
body width	0.276 inch
subject depth	0.258 inch
body length	0.7 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	354056
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

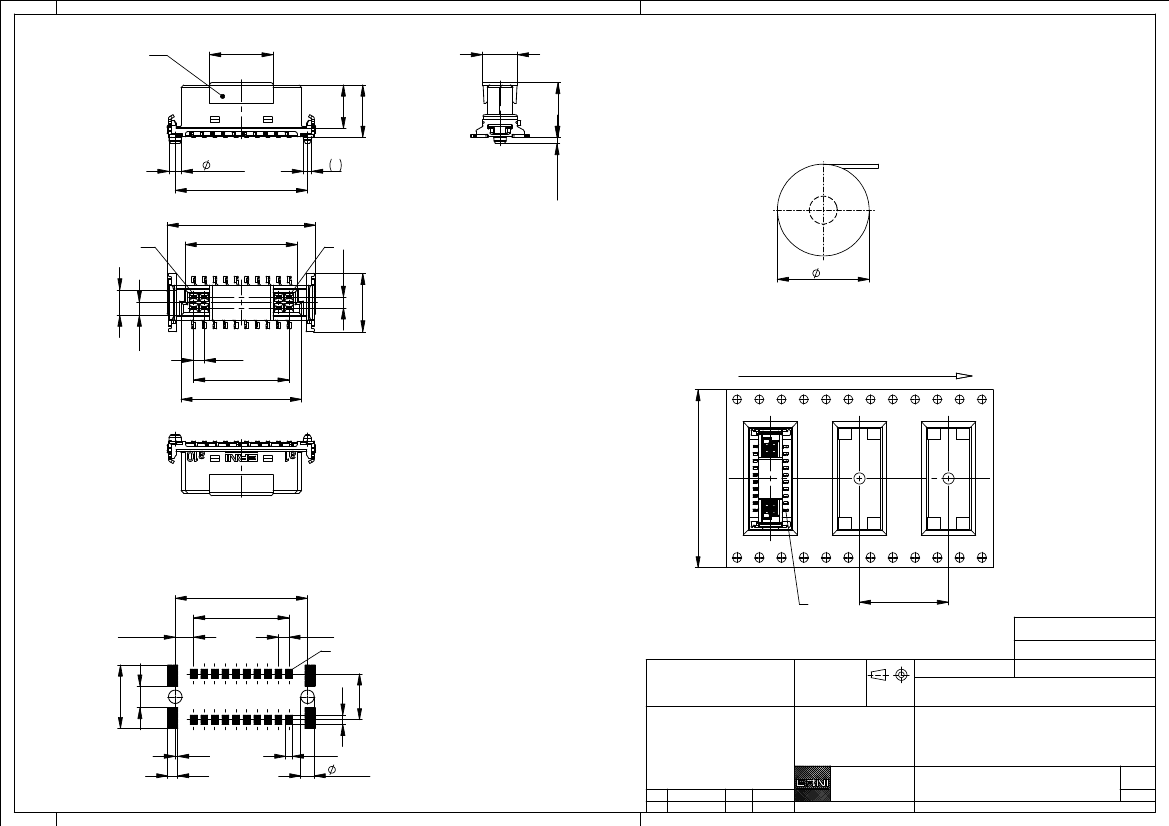

Ansaughaube

7,6

4,2

hood

5,2

6,25

6,55

Verpackt im Gurt nach DIN IEC 60286-3

Tape on Reel Packaging according to DIN IEC 60286-3

Verpackungseinheit: 280 Stück

Packaging unit: 280 pcs

1,5

-0,03

15,85

±0,03

17,78

a10

13,45

1,27

330

0,75

-0,05

3,05

1,55

1,27

9 x 1,27 = 11,43

14,45

Abspulrichtung -

Reel off Direction

Anforderungsstufe 1

Performance Level 1

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Kontaktbereich vergoldet

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

15,85

±0,03

9 x 1,27 = 11,43

2,21

±0,03

1,27

Coplanarity Area of Termination

≤

0,1 mm

BA 7-13 - 8mm Bauhöhe

≤

0,1 mm

type7-13 - Low Profile

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

7,6

2,6

5,5

1,1

0,3

1,2

0,8

1,6

-0,03

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

15.01.2014

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federl. SMC-B 20-SMD-BA7-13

Female SMC-B 20-SMD-type7-13

www.ERNI.com

Class

354056

SMCB
