364086 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 364086

Preview

364086: Description26-26 CONTACT(S), MALE-MALE, PCB ADAPTER; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

364086 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	364086	-	-	View	Buy Now

364086 Overview

26-26 CONTACT(S), MALE-MALE, PCB ADAPTER

364086 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	364086
Mixed contacts	NO
触点数量:侧 1	26
触点数量:侧 2	26
Number of rows loaded	2
Options	GENERAL PURPOSE
direct connection	YES
Base Number Matches	1

Preview

Download Datasheet

View All

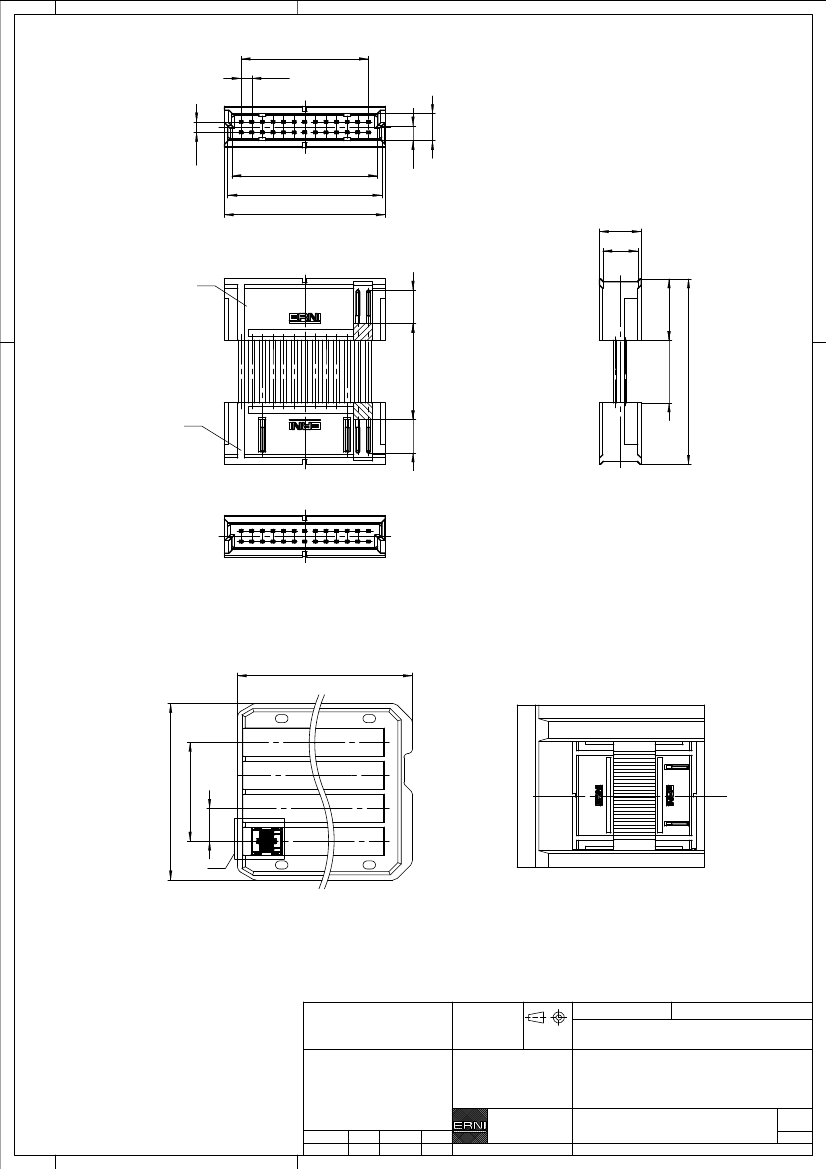

12 x 1,27 = 15,24

1,27

17,46

18,46

19,26

1,8

3,25

5

4,2

ohne Verriegelung

without interlocking

7,35

Einzelheit X (M 2:1)

4

mit Verriegelung

with interlocking

Verpackt in Tray

-tray packaging

Verpackungseinheit 56 Stück

-packaging unit 56

342

max.

4

detail X

3 x 23,7 = 71,1

128

max.

23,7

X

Adapterstück für board-to-board Abstand von 24mm (beidseitig verbaut mit Federleiste: 154806, Low Profile)

Adapter for board-to-board height 24mm (in combination with two female connectors: 154806, low profile)

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

E01

Index

26.06.2008

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

1,27 DRC Adapterstück BTB 24mm

26-polig

www.ERNI.com

Class

364086

DRCBTB

22,2

11,5

7,5

I

A3
