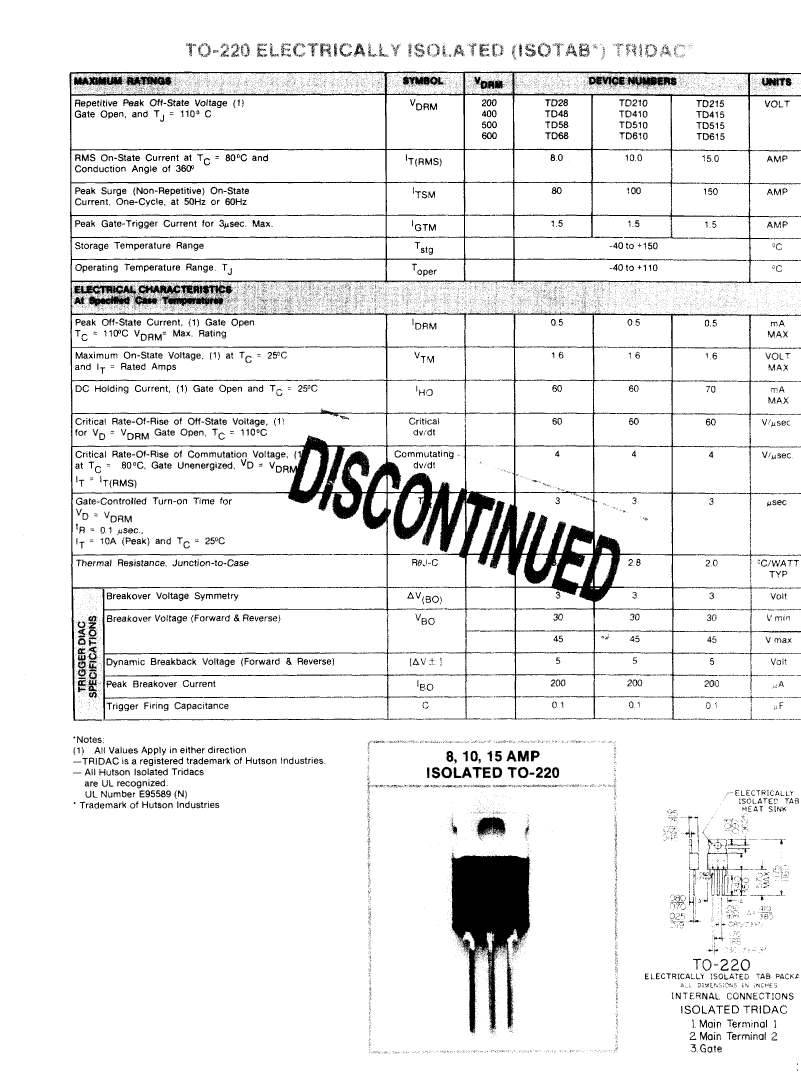

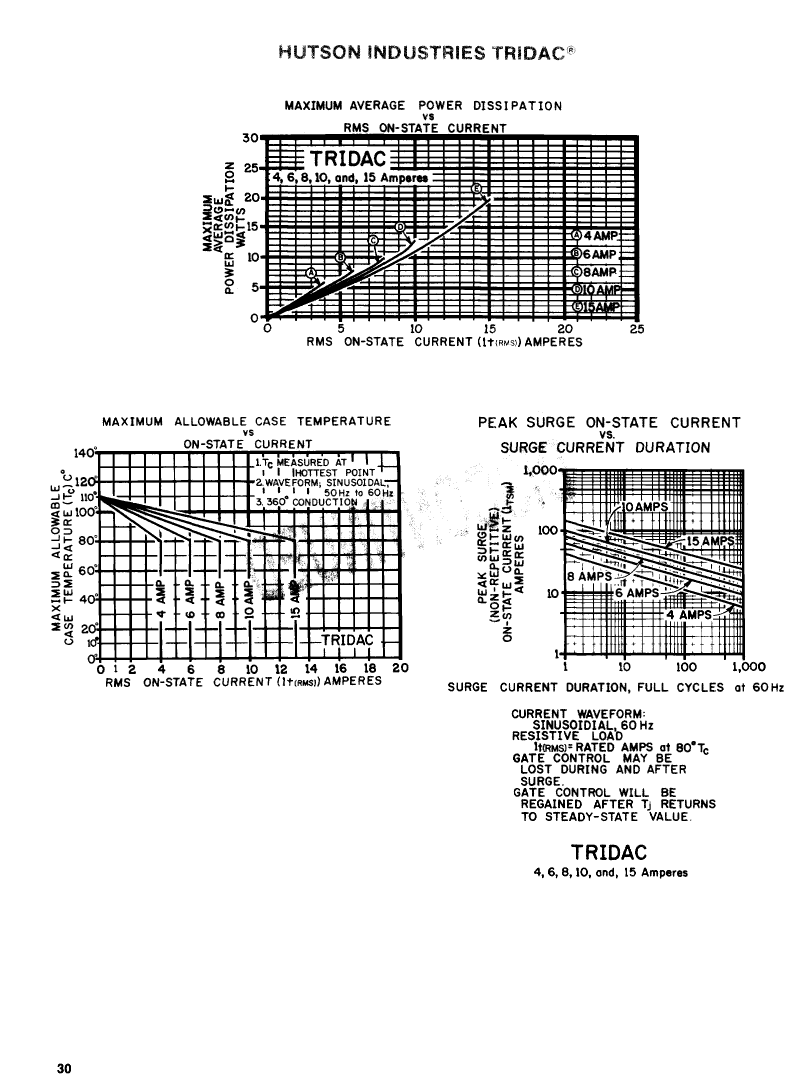

TRIAC With INT Trigger, 400V V(DRM), 8A I(T)RMS, TO-220AB, TO-220, 3 PIN
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Hutson Industries |
| Parts packaging code | SFM |
| package instruction | TO-220, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| Other features | MAXIMUM BREAK-OVER VOLTAGE OF DIAC IS 45 |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Critical rise rate of commutation voltage - minimum value | 4 V/us |
| Critical rise rate of minimum off-state voltage | 60 V/us |
| Maximum DC gate trigger current | 0.2 mA |
| Maximum DC gate trigger voltage | 45 V |
| Maximum holding current | 60 mA |
| JEDEC-95 code | TO-220AB |
| JESD-30 code | R-PSFM-T3 |
| JESD-609 code | e0 |
| Maximum leakage current | 0.5 mA |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 110 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum rms on-state current | 8 A |
| Maximum repetitive peak off-state leakage current | 500 µA |
| Off-state repetitive peak voltage | 400 V |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger device type | TRIAC WITH INT TRIGGER |
| TD48 | TD215 | TD415 | TD510 | TD68 | TD58 | TD410 | TD610 | TD28 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | TRIAC With INT Trigger, 400V V(DRM), 8A I(T)RMS, TO-220AB, TO-220, 3 PIN | TRIAC With INT Trigger, 200V V(DRM), 15A I(T)RMS, TO-220AB, TO-220, 3 PIN | TRIAC With INT Trigger, 400V V(DRM), 15A I(T)RMS, TO-220AB, TO-220, 3 PIN | TRIAC With INT Trigger, 500V V(DRM), 10A I(T)RMS, TO-220AB, TO-220, 3 PIN | TRIAC With INT Trigger, 600V V(DRM), 8A I(T)RMS, TO-220AB, TO-220, 3 PIN | TRIAC With INT Trigger, 500V V(DRM), 8A I(T)RMS, TO-220AB, TO-220, 3 PIN | TRIAC With INT Trigger, 400V V(DRM), 10A I(T)RMS, TO-220AB, TO-220, 3 PIN | TRIAC With INT Trigger, 600V V(DRM), 10A I(T)RMS, TO-220AB, TO-220, 3 PIN | TRIAC With INT Trigger, 200V V(DRM), 8A I(T)RMS, TO-220AB, TO-220, 3 PIN |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Hutson Industries | Hutson Industries | Hutson Industries | Hutson Industries | Hutson Industries | Hutson Industries | Hutson Industries | Hutson Industries | Hutson Industries |
| Parts packaging code | SFM | SFM | SFM | SFM | SFM | SFM | SFM | SFM | SFM |
| package instruction | TO-220, 3 PIN | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | TO-220, 3 PIN | FLANGE MOUNT, R-PSFM-T3 | TO-220, 3 PIN | TO-220, 3 PIN | FLANGE MOUNT, R-PSFM-T3 |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | MAXIMUM BREAK-OVER VOLTAGE OF DIAC IS 45 | MAXIMUM BREAK-OVER VOLTAGE OF DIAC IS 45 | MAXIMUM BREAK-OVER VOLTAGE OF DIAC IS 45 | MAXIMUM BREAK-OVER VOLTAGE OF DIAC IS 45 | MAXIMUM BREAK-OVER VOLTAGE OF DIAC IS 45 | MAXIMUM BREAK-OVER VOLTAGE OF DIAC IS 45 | MAXIMUM BREAK-OVER VOLTAGE OF DIAC IS 45 | MAXIMUM BREAK-OVER VOLTAGE OF DIAC IS 45 | MAXIMUM BREAK-OVER VOLTAGE OF DIAC IS 45 |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Critical rise rate of commutation voltage - minimum value | 4 V/us | 4 V/us | 4 V/us | 4 V/us | 4 V/us | 4 V/us | 4 V/us | 4 V/us | 4 V/us |
| Critical rise rate of minimum off-state voltage | 60 V/us | 60 V/us | 60 V/us | 60 V/us | 60 V/us | 60 V/us | 60 V/us | 60 V/us | 60 V/us |
| Maximum DC gate trigger current | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA | 0.2 mA |
| Maximum DC gate trigger voltage | 45 V | 45 V | 45 V | 45 V | 45 V | 45 V | 45 V | 45 V | 45 V |
| Maximum holding current | 60 mA | 70 mA | 70 mA | 60 mA | 60 mA | 60 mA | 60 mA | 60 mA | 60 mA |
| JEDEC-95 code | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220AB |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Maximum leakage current | 0.5 mA | 0.5 mA | 0.5 mA | 0.5 mA | 0.5 mA | 0.5 mA | 0.5 mA | 0.5 mA | 0.5 mA |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 110 °C | 110 °C | 110 °C | 110 °C | 110 °C | 110 °C | 110 °C | 110 °C | 110 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum rms on-state current | 8 A | 15 A | 15 A | 10 A | 8 A | 8 A | 10 A | 10 A | 8 A |
| Maximum repetitive peak off-state leakage current | 500 µA | 500 µA | 500 µA | 500 µA | 500 µA | 500 µA | 500 µA | 500 µA | 500 µA |
| Off-state repetitive peak voltage | 400 V | 200 V | 400 V | 500 V | 600 V | 500 V | 400 V | 600 V | 200 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Trigger device type | TRIAC WITH INT TRIGGER | TRIAC WITH INT TRIGGER | TRIAC WITH INT TRIGGER | TRIAC WITH INT TRIGGER | TRIAC WITH INT TRIGGER | TRIAC WITH INT TRIGGER | TRIAC WITH INT TRIGGER | TRIAC WITH INT TRIGGER | TRIAC WITH INT TRIGGER |
