T4013SKS: Description700V, 40A, 4 QUADRANT LOGIC LEVEL TRIAC; CategoryAnalog mixed-signal IC Trigger device; File Size135KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

T4013SKS Overview

700V, 40A, 4 QUADRANT LOGIC LEVEL TRIAC

T4013SKS Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	5 V/us
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	75 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	75 mA
JESD-30 code	O-PUFM-D3
Maximum leakage current	0.01 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	40 A
Off-state repetitive peak voltage	700 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

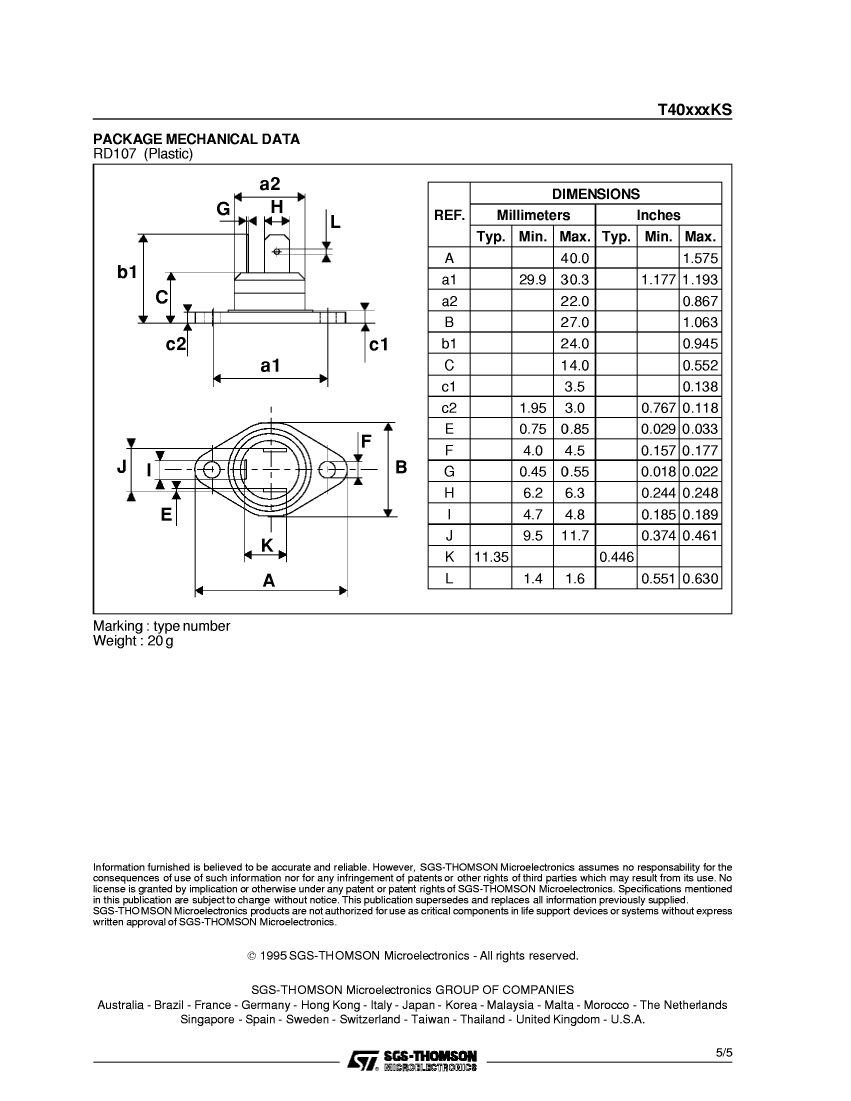

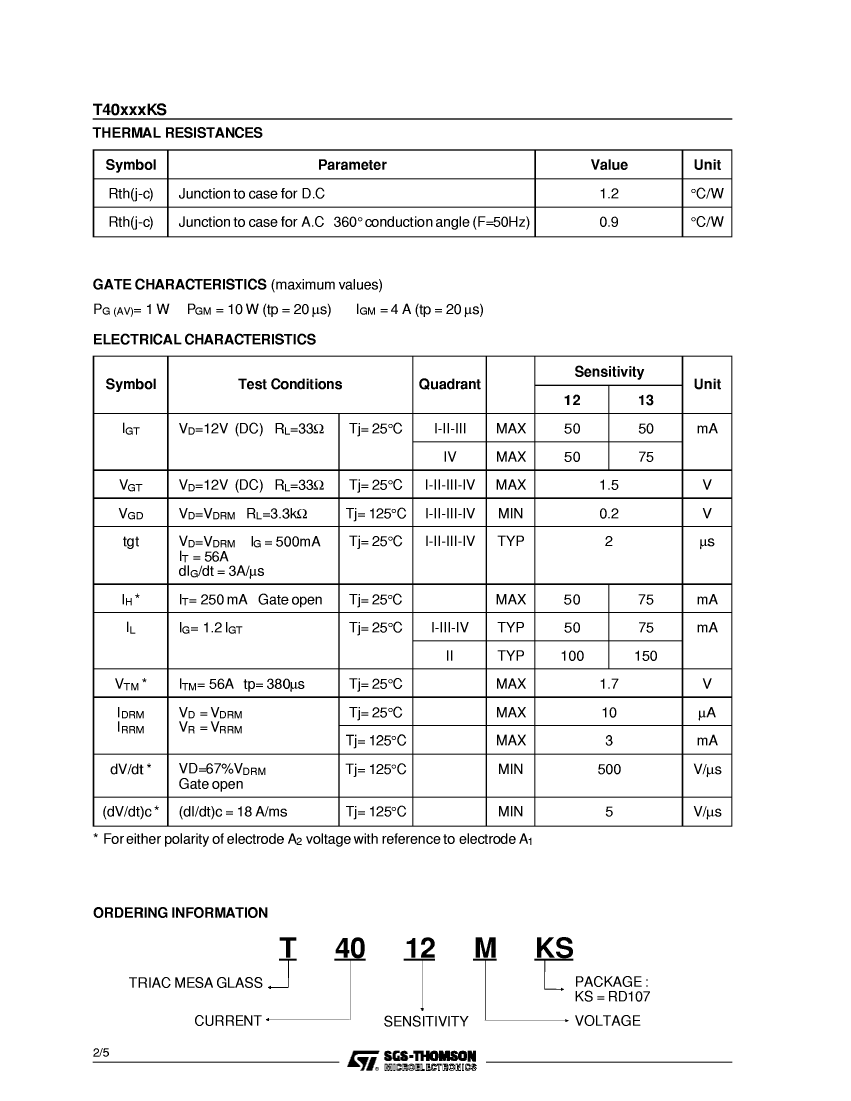

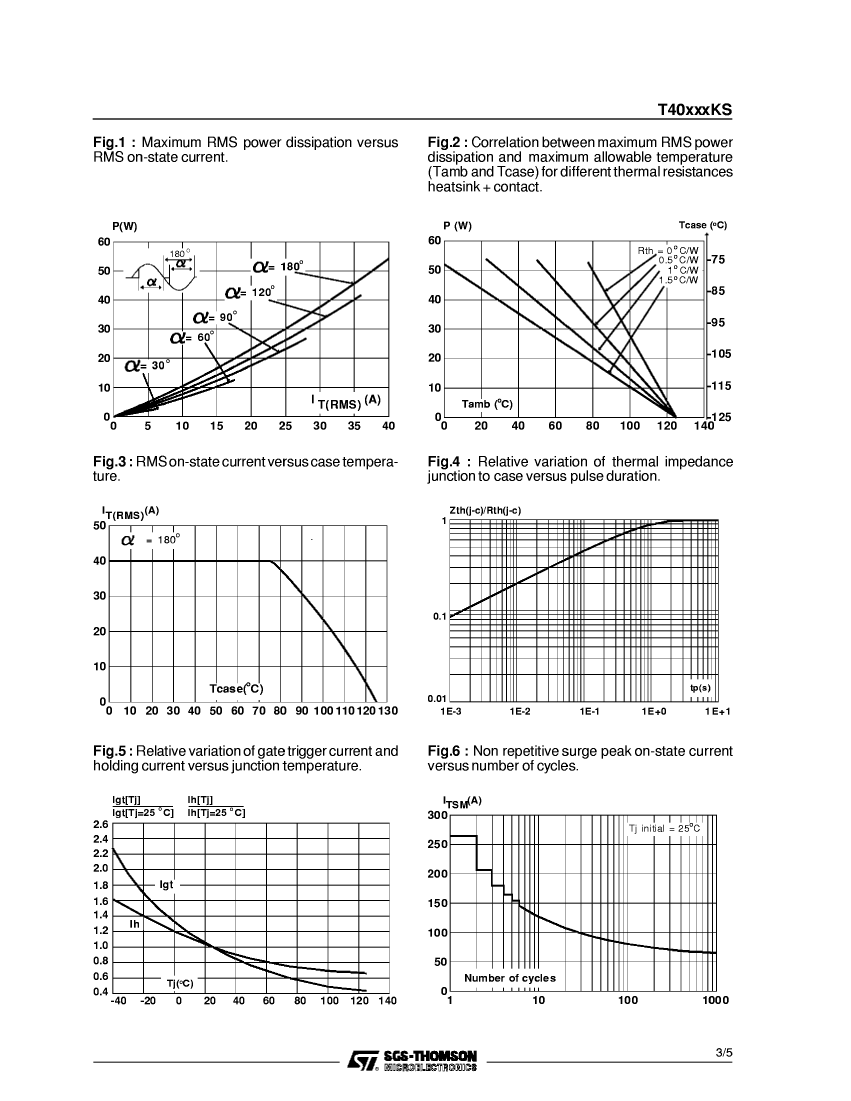

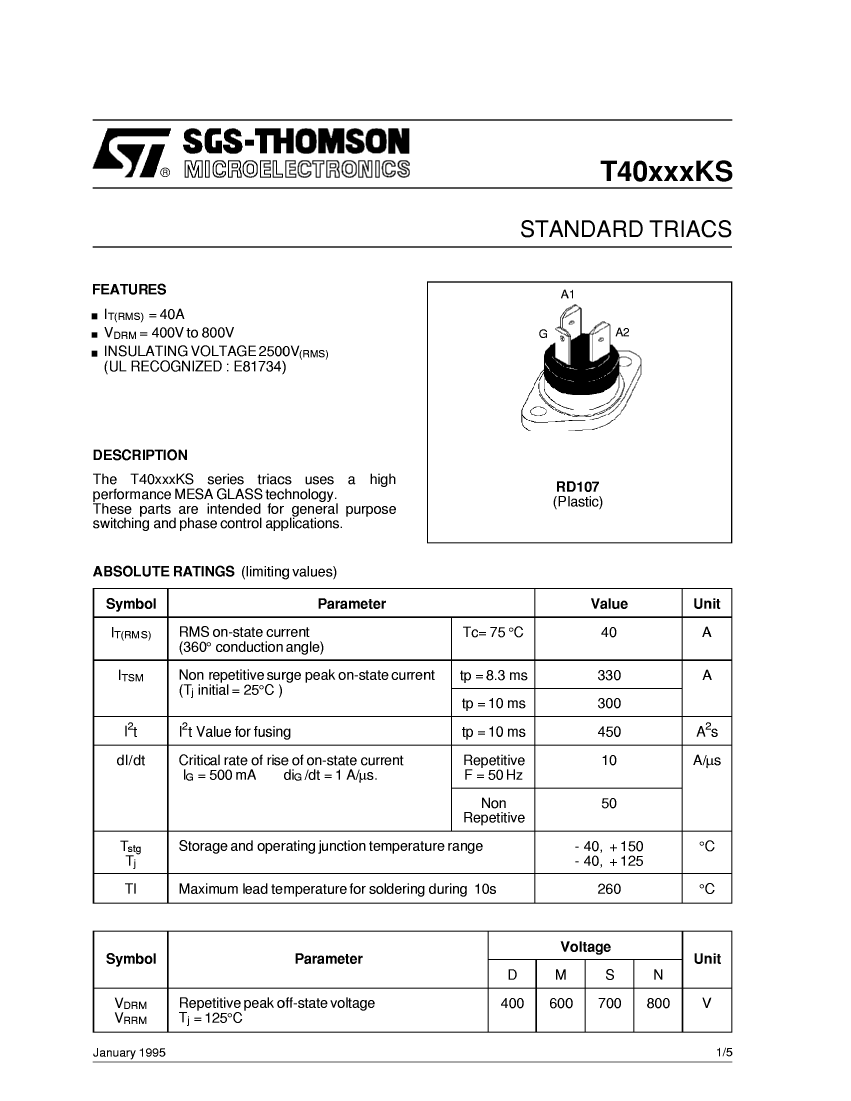

T4013SKS Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

T4013SKS Related Products

	T4013SKS	T4012NKS	T4012SKS	T4013NKS	T4012DKS	T4012MKS	T4013DKS	T4013MKS
Description	700V, 40A, 4 QUADRANT LOGIC LEVEL TRIAC	800V, 40A, 4 QUADRANT LOGIC LEVEL TRIAC	700V, 40A, 4 QUADRANT LOGIC LEVEL TRIAC	800V, 40A, 4 QUADRANT LOGIC LEVEL TRIAC	400V, 40A, 4 QUADRANT LOGIC LEVEL TRIAC	600V, 40A, 4 QUADRANT LOGIC LEVEL TRIAC	400V, 40A, 4 QUADRANT LOGIC LEVEL TRIAC	600V, 40A, 4 QUADRANT LOGIC LEVEL TRIAC
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of commutation voltage - minimum value	5 V/us	5 V/us	5 V/us	5 V/us	5 V/us	5 V/us	5 V/us	5 V/us
Critical rise rate of minimum off-state voltage	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	75 mA	50 mA	50 mA	75 mA	50 mA	50 mA	75 mA	75 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	75 mA	50 mA	50 mA	75 mA	50 mA	50 mA	75 mA	75 mA
JESD-30 code	O-PUFM-D3	O-PUFM-D3	O-PUFM-D3	O-PUFM-D3	O-PUFM-D3	O-PUFM-D3	O-PUFM-D3	O-PUFM-D3
Maximum leakage current	0.01 mA	0.01 mA	0.01 mA	0.01 mA	0.01 mA	0.01 mA	0.01 mA	0.01 mA
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	40 A	40 A	40 A	40 A	40 A	40 A	40 A	40 A
Off-state repetitive peak voltage	700 V	800 V	700 V	800 V	400 V	600 V	400 V	600 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
