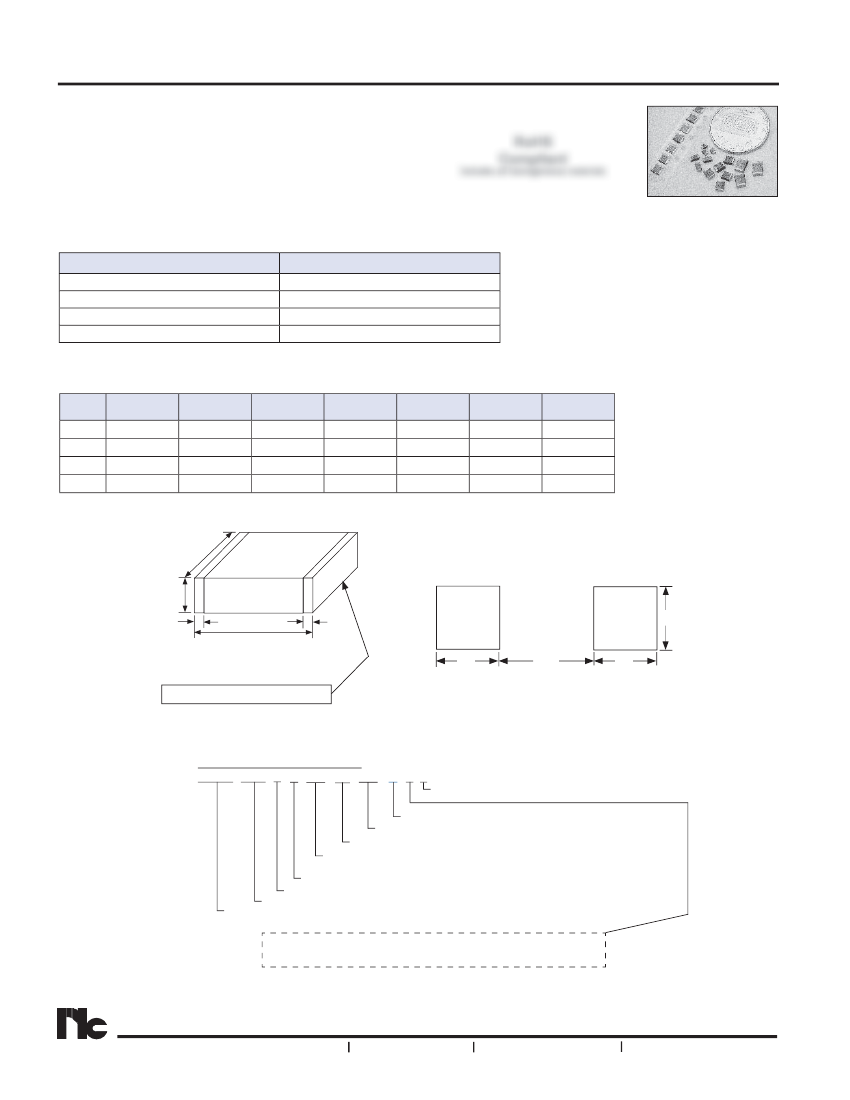

Ferrite Chip Beads For Automotive Use
FEATURES
•
•
•
•
•
•
•
RUGGED CONSTRUCTION IN STANDARD EIA SIZES
EFFECTIVE EM/RFI SUPPRESSION UP TO 1GHz
CURRENT RATINGS UP TO 6 AMPS
AEC Q-200 QUALIFIED
SHARP AND HIGH IMPEDANCES AVAILABLE
OPERATING TEMPERATURE RANGE: -55
O
C TO +125
O
C
SUITABLE FOR AUTOMOTIVE EQUIPMENT*
NCB-H_QY Series
includes all homogeneous materials
RoHS
Compliant
*See Part Number System for Details
CHARACTERISTICS
Type
Sizes Available
Impedance Range
Impedance Tolerance
Operating Temperature Range
High Current Up to 1GHz
0603. 0805, 1206, 1806
19Ω ~ 1,000Ω
±25% Tol.
-55°C ~ +125°C
CASE SIZE & LAND PATTERN DIMENSIONS (mm)
EIA
Size
0603
0805
1206
1806
A
(mm)
1.60 ± 0.15
2.0 +0.3/-0.1
3.20 ± 0.20
4.50 ± 0.20
B
(mm)
0.80 ± 0.15
1.25 ± 0.20
1.60 ± 0.20
1.60 ± 0.20
C
(mm)
0.80 ± 0.15
0.85 ± 0.20
0.85 ± 0.20
1.60 ± 0.20
D
(mm)
0.30 ± 0.20
0.50 ± 0.30
0.50 ± 0.20
0.50 ± 0.20
G
(mm)
0.60 ~ 0.80
0.80 ~ 1.20
1.00 ~ 1.50
1.25 ~ 1.75
H
(mm)
0.60 ~ 0.80
0.90 ~ 1.60
1.20 ~ 2.00
0.90 ~ 1.60
I
(mm)
0.60 ~ 0.80
0.80 ~ 1.20
1.80 ~ 2.50
2.80 ~ 3.20
B
C
D
A
G
I
G
D
H
100% Sn over Ni barrier
PART NUMBER SYSTEM
NCB-H 0805 P U 301 TR 150
Q
Y F
RoHS Compliant
Series
"Q" denotes AEC Q-200 qualified
DC Current Rating (see standard values and case size table)
Packaging: TR = Tape and Reel
Impedance at 100MHz
3 digit code;
fi
rst two digits are significant third digit is no. of zeros

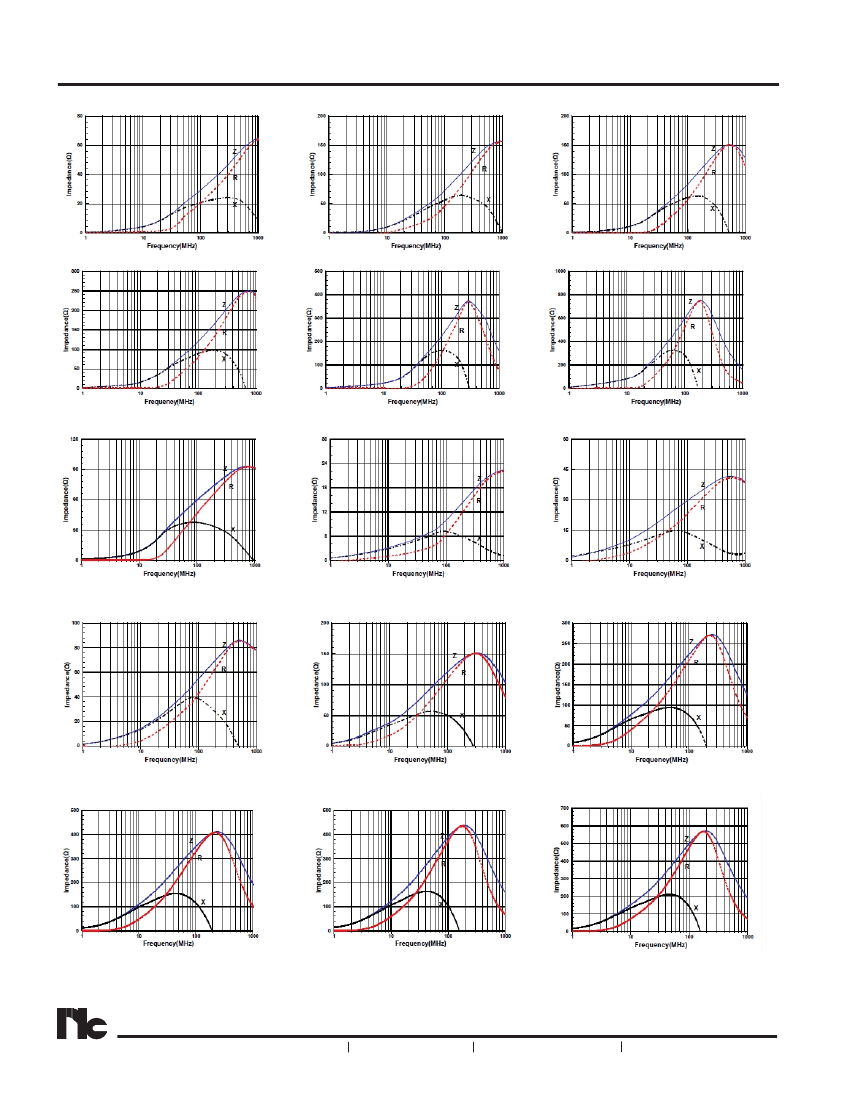

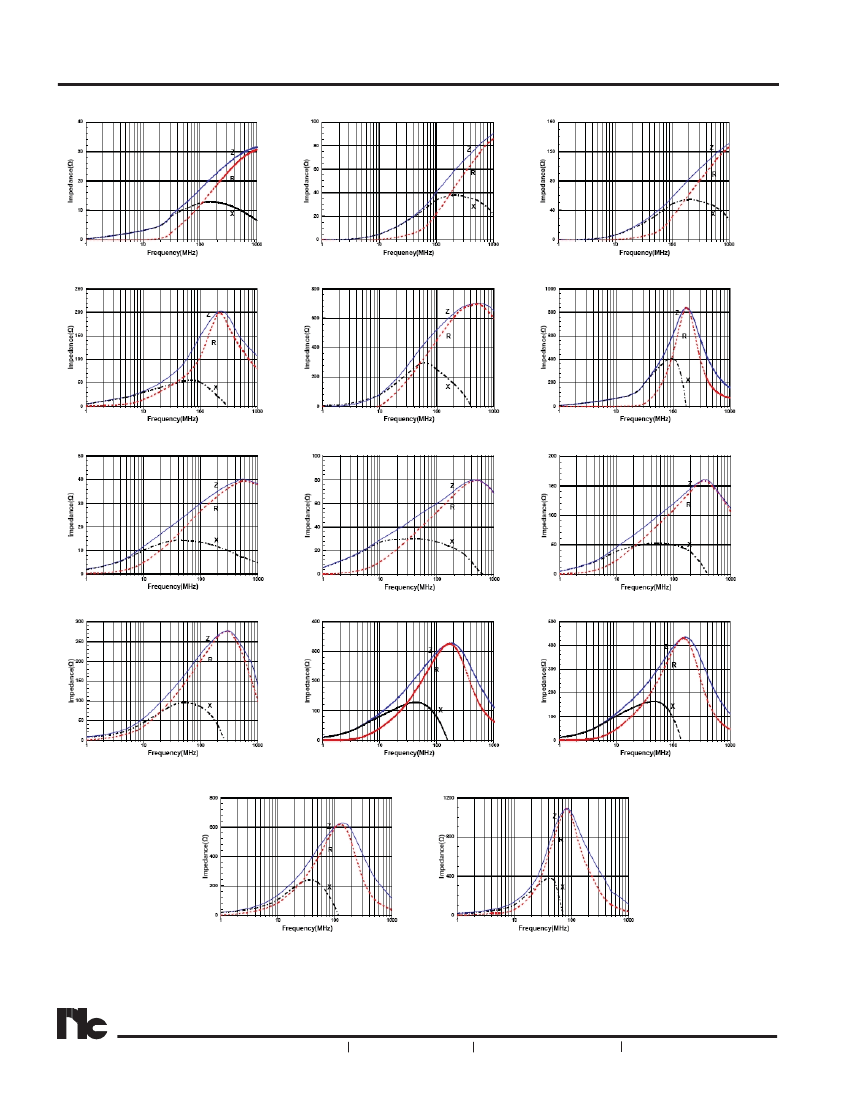

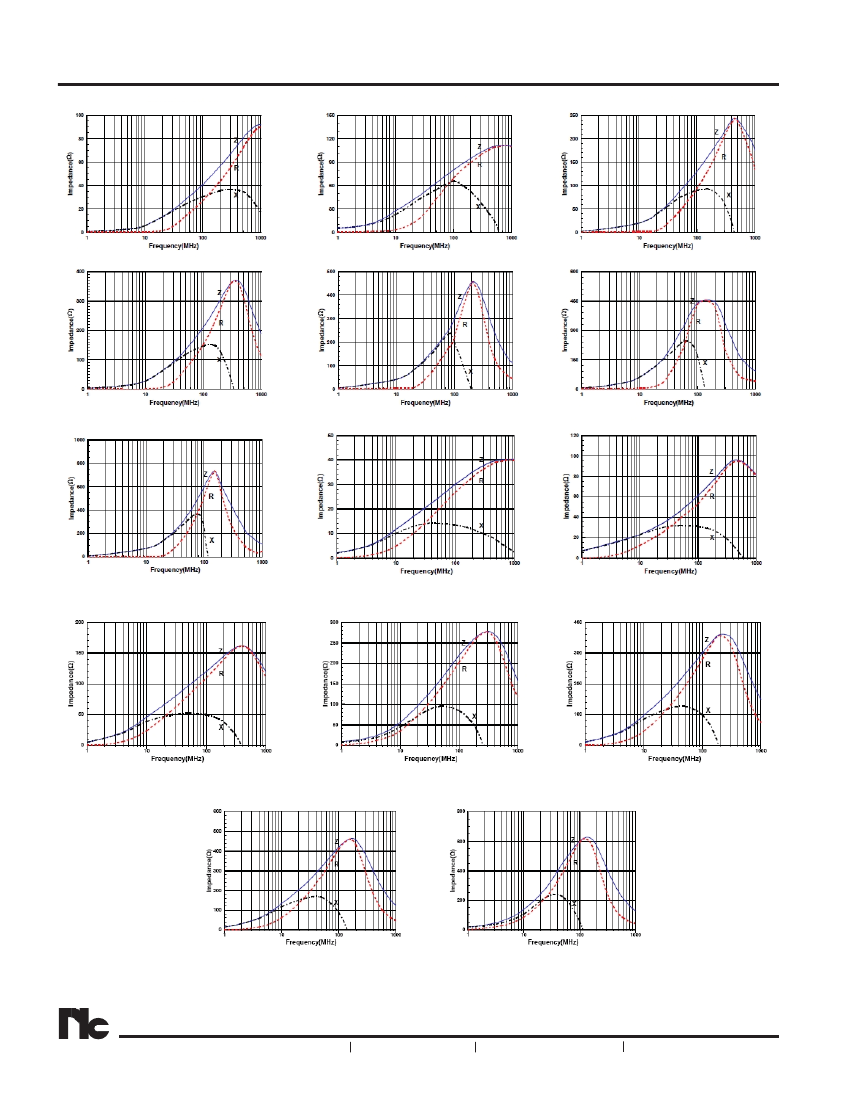

Frequency Charateristic (see frequency response curves)
Type (P = High Current)
Case Size
"Y" denotes suitable for Automotive equipment, sourced to special
production and inspecition at TS-16949 certified production site.
®
*Suitable for automotive equipment, sourced to special production and inspection at TS-16949 certified production site.
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
1
Ferrite Chip Beads For Automotive Use
STANDARD VALUES AND CASE SIZES (mm)
EIA
Size
NIC
Part Number
NCB-H0603PD300TR300QYF
NCB-H0603PD600TR200QYF
NCB-H0603PD750TR100QYF
NCB-H0603PD121TR100QYF
NCB-H0603PD221TR100QYF
NCB-H0603PD601TR050QYF
NCB-H0603PE600TR140QYF
NCB-H0603PU100TR300QYF
NCB-H0603PU300TR300QYF
NCB-H0603PU600TR250QYF
NCB-H0603PU121TR200QYF
NCB-H0603PU221TR140QYF
NCB-H0603PU331TR120QYF
NCB-H0603PU391TR100QYF
NCB-H0603PU471TR100QYF
NCB-H0805PD390TR400QYF
NCB-H0805PD800TR300QYF
NCB-H0805PD121TR250QYF
NCB-H0805PD221TR150QYF
NCB-H0805PD301TR150QYF
NCB-H0805PD471TR080QYF
NCB-H0805PD601TR080QYF
NCB-H0805PU300TR300QYF
NCB-H0805PU600TR300QYF
NCB-H0805PU121TR250QYF
NCB-H0805PU221TR200QYF
NCB-H0805PU301TR150QYF
NCB-H0805PU421TR100QYF
NCB-H0805PU601TR080QYF
NCB-H1206PD190TR600QYF
NCB-H1206PD380TR500QYF
NCB-H1206PD600TR400QYF
NCB-H1206PD121TR250QYF
NCB-H1206PD501TR200QYF
NCB-H1206PD601TR150QYF
NCB-H1206PU300TR600QYF
NCB-H1206PU600TR400QYF
NCB-H1206PU121TR300QYF
NCB-H1206PU221TR200QYF
NCB-H1206PU301TR200QYF
NCB-H1206PU391TR200QYF
NCB-H1206PU601TR150QYF
NCB-H1206PU102TR050QYF
NCB-H1806PU600TR600QYF
NCB-H1806PU720TR600QYF
NCB-H1806PU181TR300QYF
NCB-H1806PU471TR200QYF
Impedance
at 100MHz
Ω
30 ± 25%
60 ± 25%
75 ± 25%
120 ± 25%
220 ± 25%
600 ± 25%
60 ± 25%
0 ~ 15
30 ± 25%
60 ± 25%
120 ± 25%
220 ± 25%
330 ± 25%
390 ± 25%
470 ± 25%
39 ± 25%
80 ± 25%
120 ± 25%
220 ± 25%
300 ± 25%
470 ± 25%
600 ± 25%
30 ± 25%
60 ± 25%
120 ± 25%
220 ± 25%
300 ± 25%
420 ± 25%
600 ± 25%
19 ± 25%
38 ± 25%
60 ± 25%
120 ± 25%
500 ± 25%
600 ± 25%
30 ± 25%
60 ± 25%
120 ± 25%
220 ± 25%
300 ± 25%
390 ± 25%
600 ± 25%
1000 ± 25%
60 ± 25%
72 ± 25%
180 ± 25%
470 ± 25%
DC
Resistance
Max. (Ω)
0.03
0.08
0.15
0.20
0.20
0.35
0.10
0.02
0.03
0.04
0.05
0.10
0.14
0.14
0.20
0.02
0.04
0.06
0.08
0.12
0.25
0.25
0.02
0.025
0.04
0.07
0.10
0.20
0.25
0.01
0.015
0.02
0.04
0.07
0.10
0.01
0.025
0.03
0.08
0.10
0.07
0.10
0.30
0.01
0.01
0.025
0.05
DC
Current
Max. (mA)
3000
2000
1000
1000
1000
500
1400
3000
3000
2500
2000
1400
1200
1000
1000
4000
3000
2500
1500
1500
800
800
3000
3000
2500
2000
1500
1000
800
6000
5000
4000
2500
2000
1500
6000
4000
3000
2000
2000
2000
1500
500
6000
6000
3000
2000
A
(mm)
B
(mm)
NCB-H_QY Series
C
(mm)
D
(mm)
0603
1.60 ± 0.15
0.80 ± 0.15
0.80 ± 0.15
0.30 ± 0.20
0805
2.0 +0.3/-0.1
1.25 ±0.2
0.85 ±0.2
0.5 ±0.3
1206
3.2 ± 0.20
1.6 ± 0.20
0.85 ± 0.2
0.5 ± 0.2
1806
4.5 ± 0.20
1.6 ± 0.2
1.6 ± 0.2
0.5 ± 0.2
®
2
