LH521002CNK-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH521002CNK-20

LH521002CNK-20: DescriptionStandard SRAM, 256KX4, 20ns, CMOS, PDSO28, SOJ-28; Categorystorage storage; File Size456KB，9 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH521002CNK-20 Overview

Standard SRAM, 256KX4, 20ns, CMOS, PDSO28, SOJ-28

LH521002CNK-20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	SOJ-28
Reach Compliance Code	unknown
Maximum access time	20 ns
JESD-30 code	R-PDSO-J28
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of terminals	28
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX4
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal location	DUAL

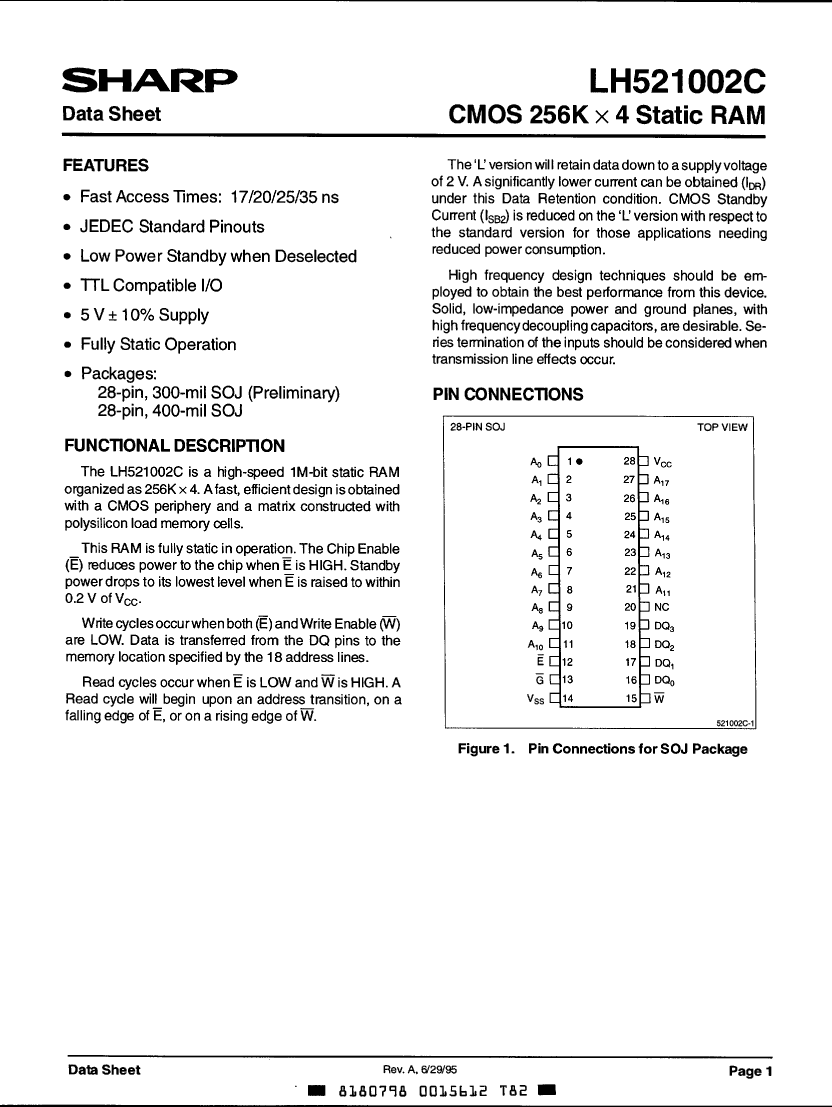

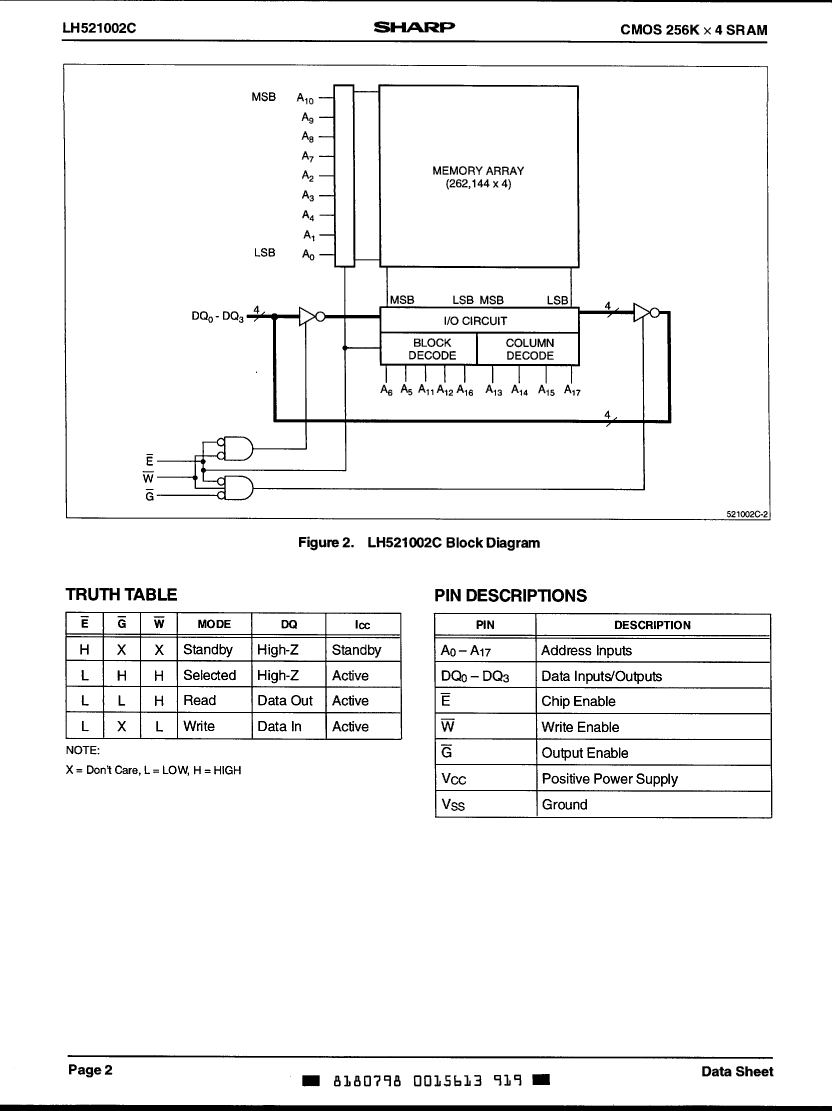

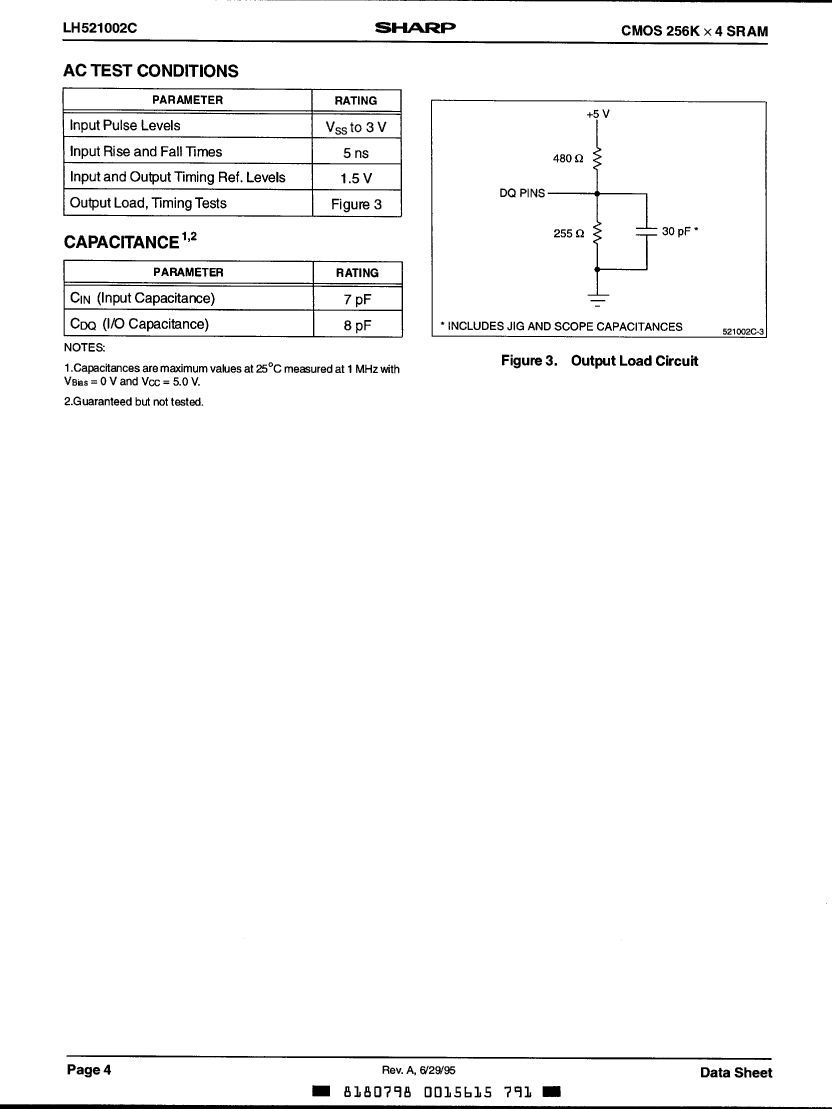

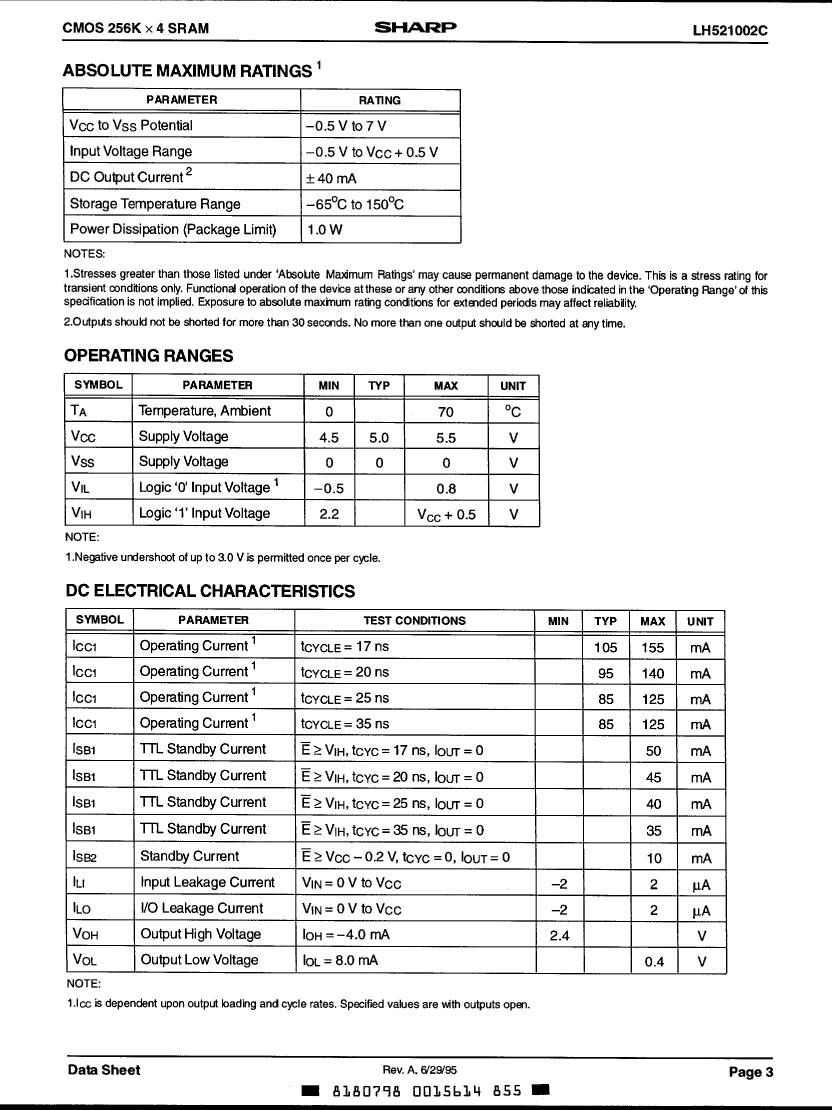

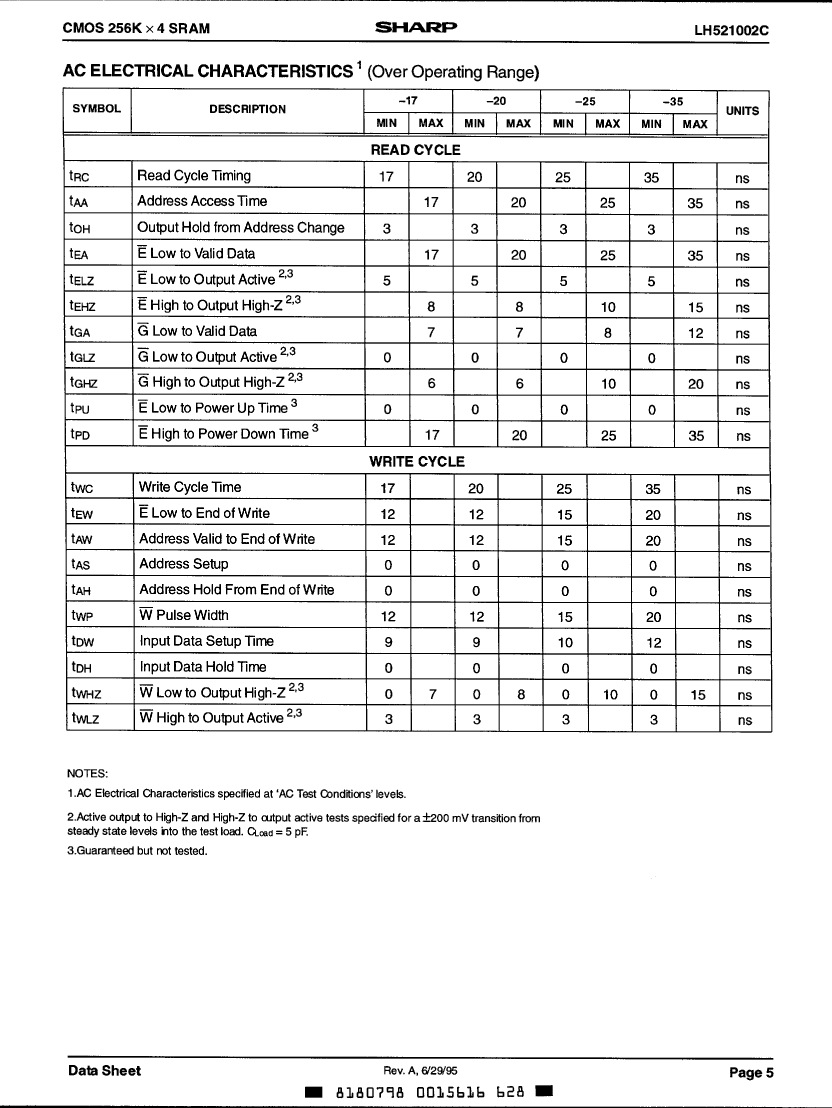

Preview

Download Datasheet

View All

LH521002CNK-20 Related Products

	LH521002CNK-20	LH521002CK-17	LH521002CNK-35	LH521002CK-20	LH521002CK-35	LH521002CNK-17	LH521002CK-25	LH521002CNK-25
Description	Standard SRAM, 256KX4, 20ns, CMOS, PDSO28, SOJ-28	Standard SRAM, 256KX4, 17ns, CMOS, PDSO28, SOJ-28	Standard SRAM, 256KX4, 35ns, CMOS, PDSO28, SOJ-28	Standard SRAM, 256KX4, 20ns, CMOS, PDSO28, SOJ-28	Standard SRAM, 256KX4, 35ns, CMOS, PDSO28, SOJ-28	Standard SRAM, 256KX4, 17ns, CMOS, PDSO28, SOJ-28	Standard SRAM, 256KX4, 25ns, CMOS, PDSO28, SOJ-28	Standard SRAM, 256KX4, 25ns, CMOS, PDSO28, SOJ-28
package instruction	SOJ-28	SOJ-28	SOJ-28	SOJ-28	SOJ-28	SOJ-28	SOJ-28	SOJ-28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	20 ns	17 ns	35 ns	20 ns	35 ns	17 ns	25 ns	25 ns
JESD-30 code	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4	256KX4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	-	incompatible	-	incompatible	incompatible	-	incompatible
Maker	SHARP	-	-	SHARP	SHARP	SHARP	SHARP	SHARP
JESD-609 code	e0	-	e0	-	e0	e0	-	e0
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
