MAY2262S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MAY2262S

Preview

MAY2262S: DescriptionSingle Color LED, Yellow, Clear Pale Yellow, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size256KB，1 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

MAY2262S Overview

Single Color LED, Yellow, Clear Pale Yellow, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2

MAY2262S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stanley Electric Co
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	CLEAR PALE YELLOW
Nominal luminous intensity	16.0 mcd
Installation features	AXIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.3 mm
method of packing	BULK
peak wavelength	580 nm
shape	ROUND
size	1.65 mm
surface mount	NO
perspective	60 deg

Preview

Download Datasheet

View All

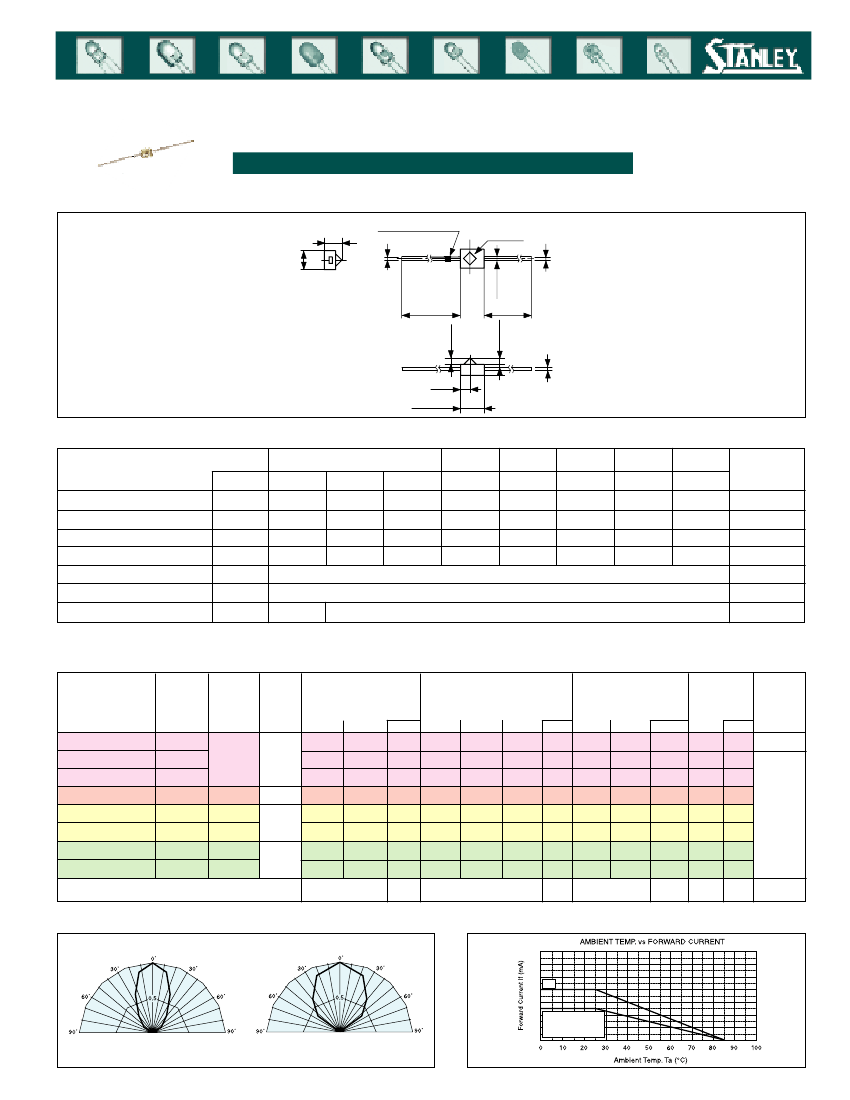

SINGLE COLOR LED

f

1.6mm Round Shape

2262S / 2272S Series

S

n

Outline Dimensions

2.3

+0.2

-0.1

2.0

±

0.2

Cathode mark

0.5

±

0.1

o

1.65

/

T

A

N

D

A

R

D

C

O

L

O

R

0.5

±

0.1

1.1

0.65MAX.

9MIN.

0.9

±

0.1

2.5

±

0.2

9MIN.

1.5

±

0.1

0.2

±

0.05

Unit: mm

n

Absolute Maximum Ratings

Item

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating (DC)*

Red

Orange

Yellow

Yellow Green

Green

Pure Green

(Ta=25°C)

BR

80

40

300

4

MPR

70

25

60

4

MVR

70

25

60

4

MAA

MAY

MPY

70

25

60

4

MPG

70

25

60

4

MBG

70

25

60

4

Units

mW

mA

V

°C

mA/°C

(Ta=25°C)

Symbol

Pd

I

F

I

FM

V

R

Topr

Tstg

DI

F

70

25

60

4

-30 to +85

-30 to +100

0.42

0.67

* Ta=25°C, I

FM

applies for the pulse width

£

1msec. and duty cycle

£1/20

The current derating for operation applies when the temperature is above 25°C

n

Electro-Optical Characteristics

Part No.

Material Emitted Lens

Color Color*

GaAlAs

GaP

GaAsP

GaP

Units

Luminous

Intensity

IV

MIN.

TYP

.

I

F

*2262S lens is clear and 2272S lens is diffused

**The viewing angle is an average and will vary by color

Peak

lp

TYP

.

Spectral Line

Dominant Half Width

ld

Dl

I

F

TYP

.

TYP

.

Wavelength

Forward

Voltage

V

F

TYP

.

MAX.

I

F

Reverse Viewing

Current

IR

Angle**

(2

q

1/2

)

MAX.

V

R

100

20

µA

4

V

70/100˚

BR2262S/2272S

MPR2262S/2272S

MVR2262S/2272S

MAA2262S/2272S

MAY2262S/2272S

MPY2262S/2272S

MPG2262S/2272S

MBG2262S/2272S

Red

Pastel

Red

Pastel

Orange

Yellow

Yellow Green

Green

Pure Green

Pastel

Yellow

Pastel

Green

10/8

0.8/0.6

8/6

8/5

12/8

8/6

4/2

20/16

1.6/1.2

16/12

16/10

24/16

16/12

8/4

20

10

20

mA

660

700

630

605

580

570

560

555

647

635

624

606

590

572

567

558

nm

30

100

30

20

10

20

mA

1.7

2.1

2.0

2.2

2.1

V

2.0

2.8

20

10

20

mA

60/90˚

mcd

Deg.

n

Spatial Distribution (x)

n

Operation Current Derating Chart

70

60

50

40

30

20

10

BR

2262S

2272S

*Spatial distribution is viewed as a typical illustration and will vary by color

0

MPR, MVR, MAA,

MAY, MPY, MPG,

MBG

MAY2262S Related Products

	MAY2262S	MPY2262S	MVR2262S	MAY2272S	MBG2262S	MVR2272S	MPR2262S	MBG2272S
Description	Single Color LED, Yellow, Clear Pale Yellow, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow/green, Clear Pale Yellow, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Red, Clear Pale Red, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow, Diffused Pale Yellow, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Green, Clear Pale Green, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Red, Diffused Pale Red, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Red, Clear Pale Red, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Green, Diffused Pale Green, 1.65mm, ROHS COMPLIANT, PLASTIC PACKAGE-2
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	YELLOW	YELLOW/GREEN	RED	YELLOW	GREEN	RED	RED	GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.025 A	0.03 A	0.03 A	0.025 A
Lens type	CLEAR PALE YELLOW	CLEAR PALE YELLOW	CLEAR PALE RED	DIFFUSED PALE YELLOW	CLEAR PALE GREEN	DIFFUSED PALE RED	CLEAR PALE RED	DIFFUSED PALE GREEN
Nominal luminous intensity	16.0 mcd	24.0 mcd	16.0 mcd	10.0 mcd	8.0 mcd	12.0 mcd	1.6 mcd	4.0 mcd
Installation features	AXIAL MOUNT	AXIAL MOUNT	AXIAL MOUNT	AXIAL MOUNT	AXIAL MOUNT	AXIAL MOUNT	AXIAL MOUNT	AXIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	580 nm	570 nm	630 nm	580 nm	555 nm	630 nm	700 nm	555 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
perspective	60 deg	58 deg	60 deg	86 deg	58 deg	87 deg	60 deg	93 deg
Maker	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	-	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co
