V150LA5C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> V150LA5C

V150LA5C: DescriptionRESISTOR, VOLTAGE DEPENDENT, 268V, 50J, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components The resistor; File Size1005KB，8 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

V150LA5C Overview

RESISTOR, VOLTAGE DEPENDENT, 268V, 50J, THROUGH HOLE MOUNT, RADIAL LEADED

V150LA5C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Littelfuse
package instruction	RADIAL LEADED
Reach Compliance Code	unknown
ECCN code	EAR99
Circuit maximum DC voltage	268 V
Circuit RMS maximum voltage	150 V
Maximum energy absorption capacity	50 J
JESD-609 code	e0
Manufacturer's serial number	C-III
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	DISK PACKAGE
Package form	Radial
method of packing	BULK; TR
Rated temperature	85 °C
Resistor type	VARISTOR
surface mount	NO
technology	METAL OXIDE FILM
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	RADIAL
Terminal shape	WIRE

Preview

Download Datasheet

View All

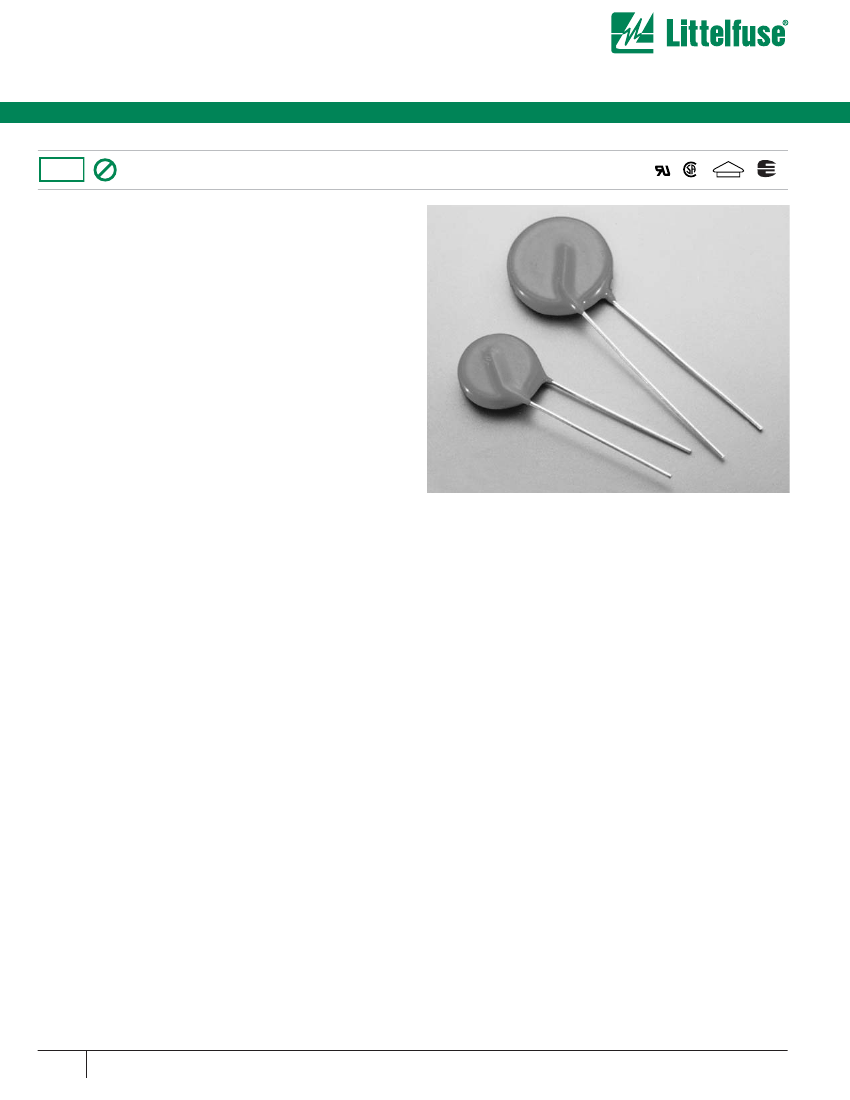

Varistor Products

High Energy, High Multiple Pulse Capability Radial Lead

RoHS

C-III Varistor Series

The C-III Series of metal-oxide varistors are specifically designed for

applications requiring high surge energy absorption ratings and superior

multiple pulse absorbtion rating. This is achieved through a special

dielectric material formulation which also results in higher repetitive

surge ratings than other MOV types.

The C-III series is primarily intended for use in AC line Transient Voltage

Surge Suppressor (TVSS) product environment and other similar appli-

cations requiring high transient energy and peak current capability in a

relatively small package size.

The C-III series is supplied in 10mm, 14mm and 20mm disc versions

with various lead options.

These types are shipped in bulk or Tape and Reel packaging. Part

number and brand information is provided in the Ratings table.

Features

• Lead-free and RoHS compliant option available. Please see the

device and ratings specifications table for more information.

• High Energy Absorption Capability

WTM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40J to 530J (2ms)

• High Pulse Life Rating

• High Peak Pulse Current Capability

ITM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3500A to 9000A (8/20µs)

• Wide Operating Voltage Range

VM(AC)RMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130V to 660V

• Available in Tape and Reel for Automatic Insertion; Also Available with

Crimped and/or Trimmed Lead Styles

• No Derating Up to 85

C Ambient

NEW LEAD-FREE AND

RoHS COMPLIANT PARTS

AVAILABLE

AGENCY APPROVALS:

Recognized under the components program of

Underwriters Laboratories. Certified by CSA, VDE and CECC.

AGENCY FILE NUMBERS:

UL E75961, CSA LR91788,

VDE 116895E, CECC 42201-006.

ALSO SEE LITTELFUSE

ULTRAMOV

™

VARISTOR SERIES

w w w. l i t t e l f u s e . c o m
