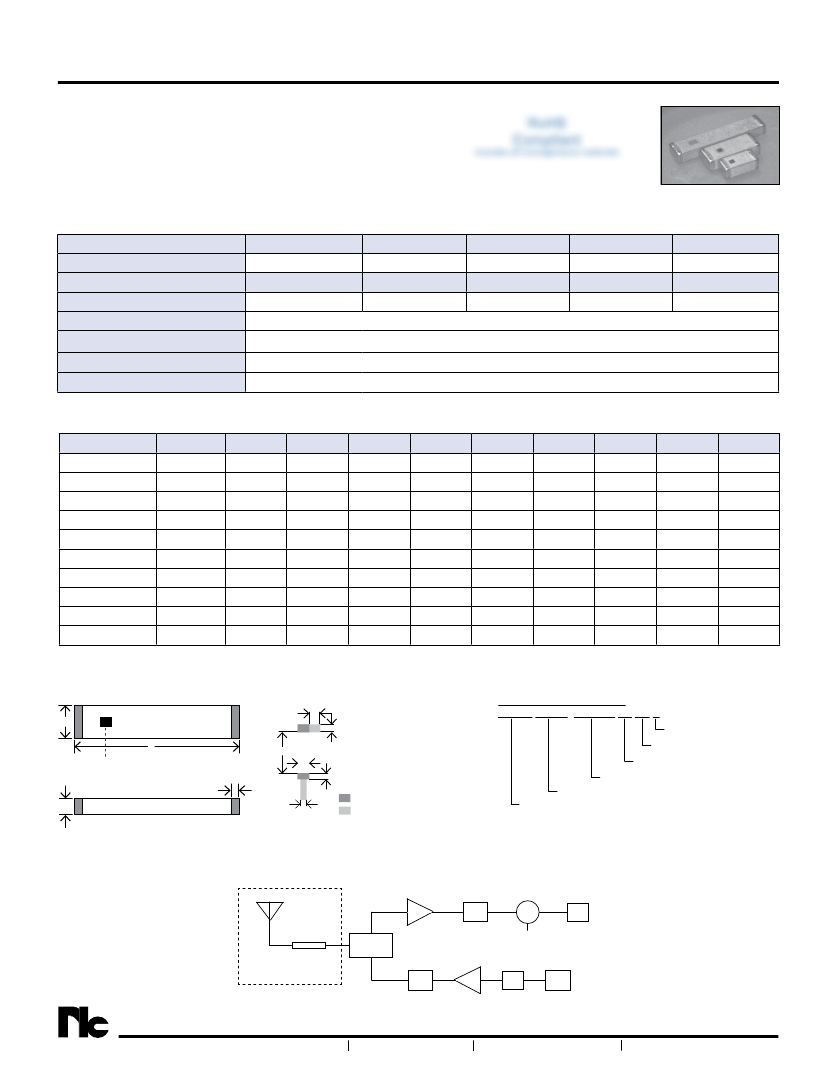

Multilayer Chip Antennas
FEATURES
• LIGHT WEIGHT, COMPACT
• WIDE BANDWIDTH
• LOW COST LTCC CONSTRUCTION
• SURFACE MOUNTABLE CONSTRUCTION
• TAPED AND REELED FOR AUTOMATIC INSERTION
CHARACTERISTICS
Case Code
Frequency Range
Case Code
Frequency Range
Operating Temperature Range
Impedance
Power Capacity
Resistance to Solder Heat
0805
2.45GHz
8010
433MHz ~ 3.01GHz
1206
2.8GHz
9020
2.66GHz
5221
2.35 ~ 2.78GHz
1603
433MHz
-40°C ~ +85°C
50Ω
3 Watts
+260°C for 10 seconds
6020
NGAW Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
7020
2.47 ~ 2.86GHz
5004
650Mhz
2.64GHz
3505
650Mhz
DIMENSIONS (mm)
Case Code
NGAW0805
NGAW1206
NGAW5221
NGAW6020
NGAW7020
NGAW8010
NGAW9020
NGAW1603
NGAW3505
NGAW5004
A
2.0 ± 0.2
3.2 ± 0.2
5.2 ± 0.2
6.0 ± 0.2
7.0 ± 0.2
8.0 ± 0.2
9.0 ± 0.2
16.0 ± 0.4
35.0 ± 0.2
50.0 ± 0.5
B
1.25 ± 0.2
1.6 ± 0.2
2.1 ± 0.2
2.0 ± 0.2
2.0 ± 0.2
1.0 ± 0.2
2.0 ± 0.2
3.0 ± 0.2
5.0 ± 0.2
4.0 ± 0.5
C
± 0.2
0.85
1.2
1.0
1.0
1.0
1.0
1.0
2
1.0
1.0
D
± 0.2
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
1.0
1.0
E
± 0.2
1.3
1.6
2.3
2.2
2.2
1.5
2.2
3.2
5.2
4.2
F
± 0.2
1.0
0.8
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
G
± 0.2
0.8
0.8
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
H
± 0.2
1.0
2.6
4.0
5.0
6.0
7.0
8.0
15
33
48
I
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
J
1.3
1.6
2.3
2.2
2.2
1.5
2.2
3.2
5.2
4.2
DIMENSIONS
B
A
Feeding Point
D
C
I
H
E
J
F
PART NUMBER SYSTEM
NGAW
0805S
2R450G
S1 TR F
RoHS Compliant
Packaging: TR = Tape & Reel
Format Code
G
Solder Pad
Solder Resist
Frequency Code (Ghz): “R” indicates decimal
Size Code (see dimensions table for details)
Series
Typical Application
Antenna
LNA
Balance Filter
Band Pass Filter
Matching
Circuit
®
Coupler
PA
Low Pass
Filter
Balun
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
1

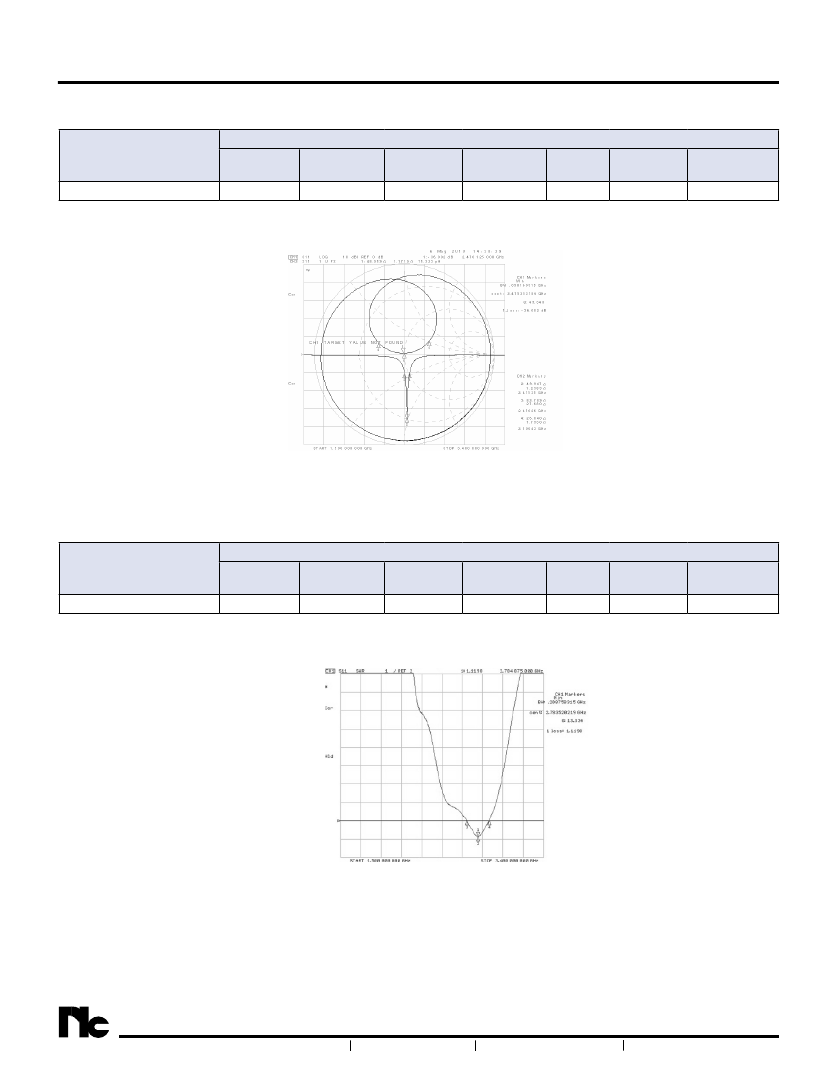

Multilayer Chip Antennas
NGAW0805 Size
Standard Values - Case Size 21 (2.0 x 1.25 x 0.85mm)
Part Number
NGAW0805S2R450GS1TRF
Center
Frequency
2.45Ghz
Bandwidth
(MHz)
≥ 100
Peak Gain
-3.0 dBi Typ.
Average Gain
-8.0dBi Typ.
VSWR
<2.5
NGAW Series
Impedance
(Ω)
50Ω
Power Capacity
(W)
3W
(Customization Available. Please contact NIC for any specific bandwidth & center frequency requirements)
Characteristic Curves - NGAW0805S2R450GS1TRF
NGAW1206 Size
(Please contact NIC for any specific bandwidth & center frequency requirments)
Standard Values - Case Size 1206 (3.2 x 1.6 x 1.2mm)
Part Number
NGAW1206S2R800GS1TRF
Center
Frequency
2.80Ghz
Bandwidth
(MHz)
≥ 100
Peak Gain
0.5 dBi Typ.
Average Gain
-1dBi Typ.
VSWR
<2
Impedance
(Ω)
50Ω
Power Capacity
(W)
3W
(Customization Available. Please contact NIC for any specific bandwidth & center frequency requirements)
Characteristic Curves - NGAW1206S2R800GS1TRF
®
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
Multilayer Chip Antennas

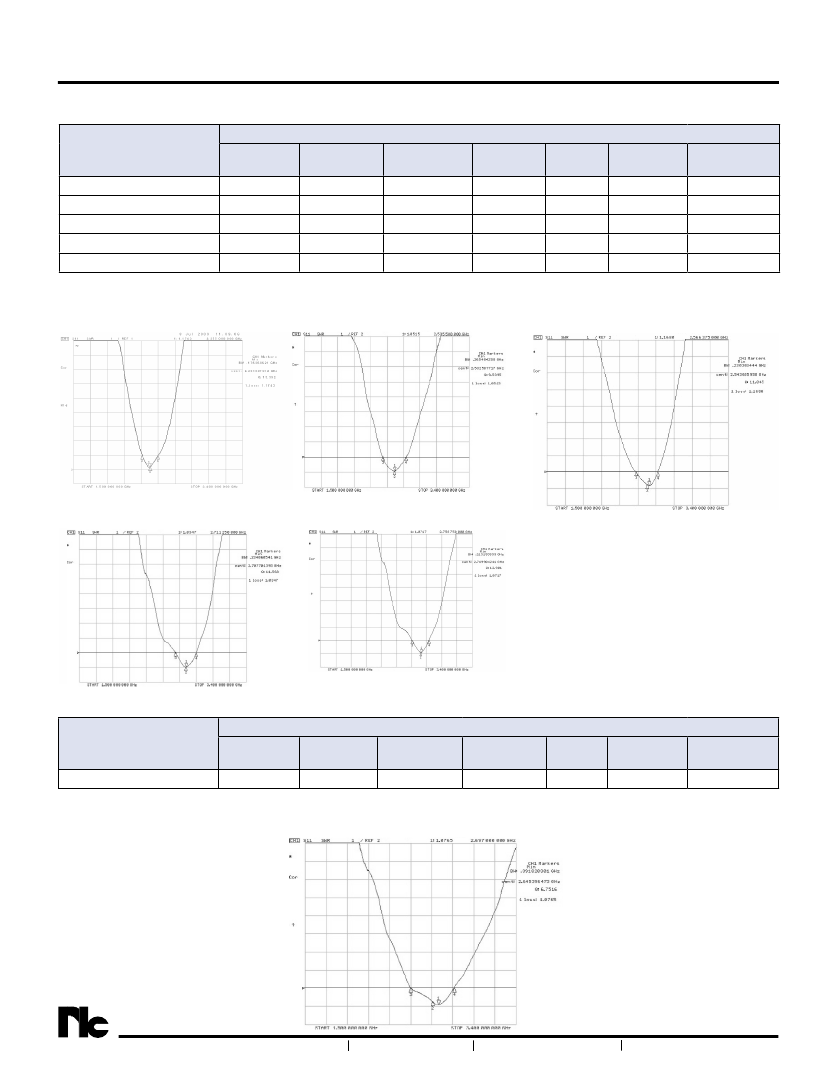

NGAW5221 Size
Standard Values - Case Size 5221 (5.2 x 2.1 x 1.0mm)
Part Number
NGAW5221S2R350GS1TRF
NGAW5221S2R510GS1TRF
NGAW5221S2R540GS1TRF
NGAW5221S2R710GS1TRF
NGAW5221S2R780GS1TRF
Center
Frequency
2.35Ghz
2.51Ghz
2.54Ghz
2.71Ghz
2.78Ghz
Bandwidth
(MHz)
≥ 150
≥ 200
≥ 200
≥ 200
≥ 200
Peak Gain
2.5 dBi Typ.
2.5 dBi Typ.
2.5 dBi Typ.
2.5 dBi Typ.
2.5 dBi Typ.
Average
Gain
0.5dBi Typ.
0.5dBi Typ.
0.5dBi Typ.
0.5dBi Typ.
0.5dBi Typ.
VSWR
<2
<2
<2
<2
<2
NGAW Series
Impedance
(Ω)
50Ω
50Ω
50Ω
50Ω
50Ω
Power Capacity
(W)
3W
3W
3W
3W
3W
(Customization Available. Please contact NIC for any specific bandwidth & center frequency requirements)
Characteristic Curves -
NGAW5221S2R350GS1TRF
NGAW5221S2R510GS1TRF
NGAW5221S2R540GS1TRF
NGAW5221S2R710GS1TRF
NGAW5221S2R780GS1TRF
NGAW6020 Size
Standard Values - Case Size 6020 (6.0 x 2.0 x 1.0mm)
Part Number
NGAW6020S2R640GS1TRF
Center
Frequency
2.64Ghz
Bandwidth
(MHz)
≥ 200
Peak Gain
2.6 dBi Typ.
Average Gain
0.7dBi Typ.
VSWR
<2
Impedance
(Ω)
50Ω
Power Capacity
(W)
3W
(Customization Available. Please contact NIC for any specific bandwidth & center frequency requirements)
Characteristic Curves - NGAW6020S2R640GS1TRF
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
3

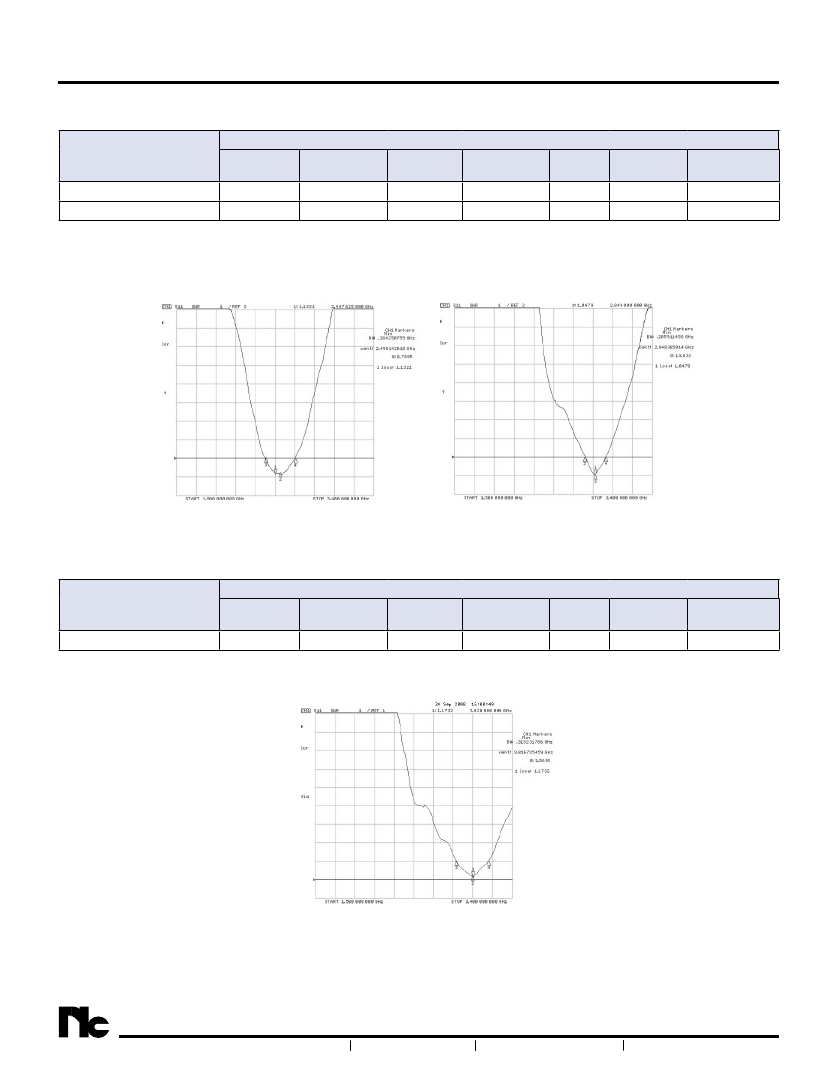

Multilayer Chip Antennas
NGAW7020 Size
Standard Values - Case Size 7020 (7.0 x 2.0 x 1.0mm)
Part Number
NGAW7020S2R470GS1TRF
NGAW7020S2R860GS2TRF
Center
Frequency
2.47Ghz
2.86Ghz
Bandwidth
(MHz)
≥ 200
≥ 200
Peak Gain
2.7 dBi Typ.
2.7 dBi Typ.
Average Gain
1.0dBi Typ.
1.0dBi Typ.
VSWR
<2
<2
NGAW Series
Impedance
(Ω)
50Ω
50Ω
Power Capacity
(W)
3W
3W
(Customization Available. Please contact NIC for any specific bandwidth & center frequency requirements)
Characteristic Curves -
NGAW7020S2R470GS1TRF
NGAW7020S2R860GS2TRF
NGAW8010 Size
Standard Values - Case Size 8010 (8.0 x 1.0 x 1.0mm)
Part Number
NGAW8010S3R010GS1TRF
Center
Frequency
3.01Ghz
Bandwidth
(MHz)
≥ 200
Peak Gain
2.0 dBi Typ.
Average Gain
0.5dBi Typ.
VSWR
<2
Impedance
(Ω)
50Ω
Power Capacity
(W)
3W
(Customization Available. Please contact NIC for any specific bandwidth & center frequency requirements)
Characteristic Curves - NGAW8010S3R010GS1TRF
®
4
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change

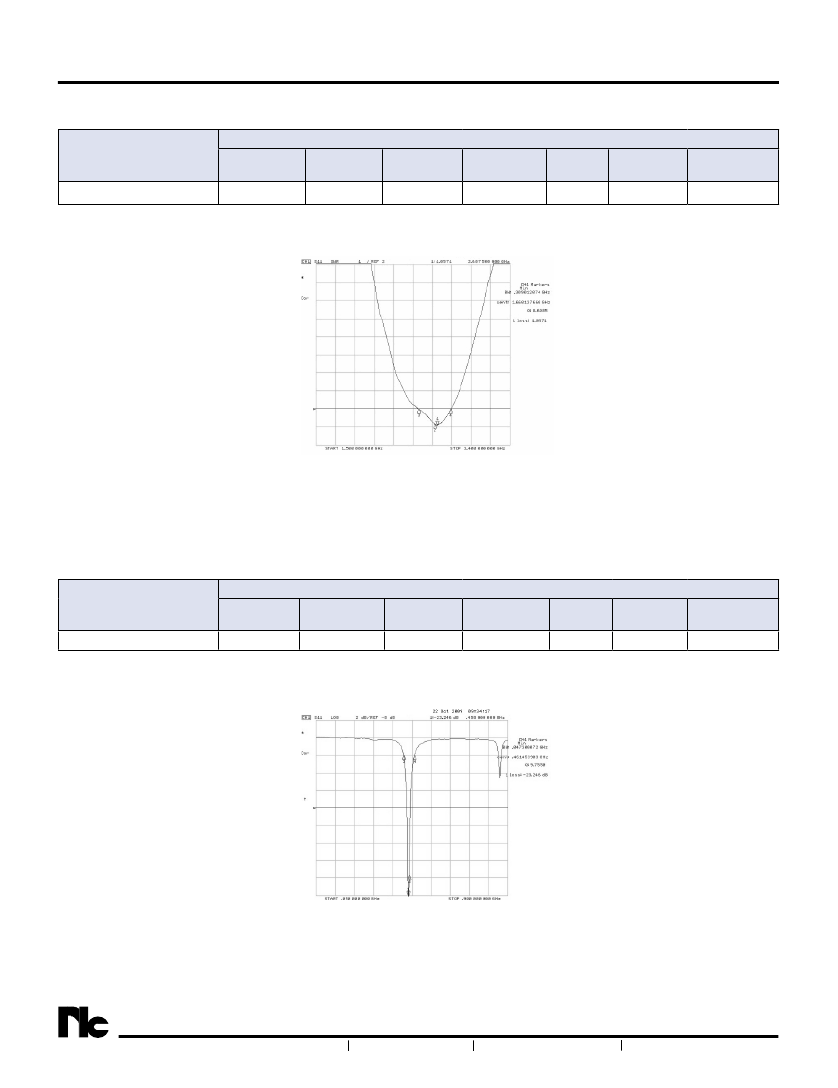

Multilayer Chip Antennas
NGAW9020 Size
Standard Values - Case Size 9020 (9.0 x 2.0 x 1.0mm)
Part Number
NGAW9020S2R660GS1TRF
Center
Frequency
2.66Ghz
Bandwidth
(MHz)
≥ 200
Peak Gain
3.0 dBi Typ.
Average Gain
1.0dBi Typ.
VSWR
<2
NGAW Series
Impedance
(Ω)
50Ω
Power Capacity
(W)
3W
(Customization Available. Please contact NIC for any specific bandwidth & center frequency requirements)
Characteristic Curves - NGAW9020S2R660GS1TRF
NGAW1603 Size
Standard Values - Case Size 1603 (16.0 x 3.0 x 2.0mm)
Part Number
NGAW1603S0R433GS1TRF
Center
Frequency
433Mhz
Bandwidth
(MHz)
≥ 20
Peak Gain
3.0 dBi Typ.
Average Gain
1.0dBi Typ.
VSWR
<2
Impedance
(Ω)
50Ω
Power Capacity
(W)
3W
(Customization Available. Please contact NIC for any specific bandwidth & center frequency requirements)
Characteristic Curves - NGAW1603S0R433GS1TRF
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
5
