NLI85D221KF: DescriptionNLI Radial Power Inductors; File Size144KB，14 Pages; ManufacturerNIC; Websitehttps://www.niccomp.com

Download Datasheet View All

NLI85D221KF Overview

NLI Radial Power Inductors

Preview

Download Datasheet

View All

NLI Radial Power Inductors

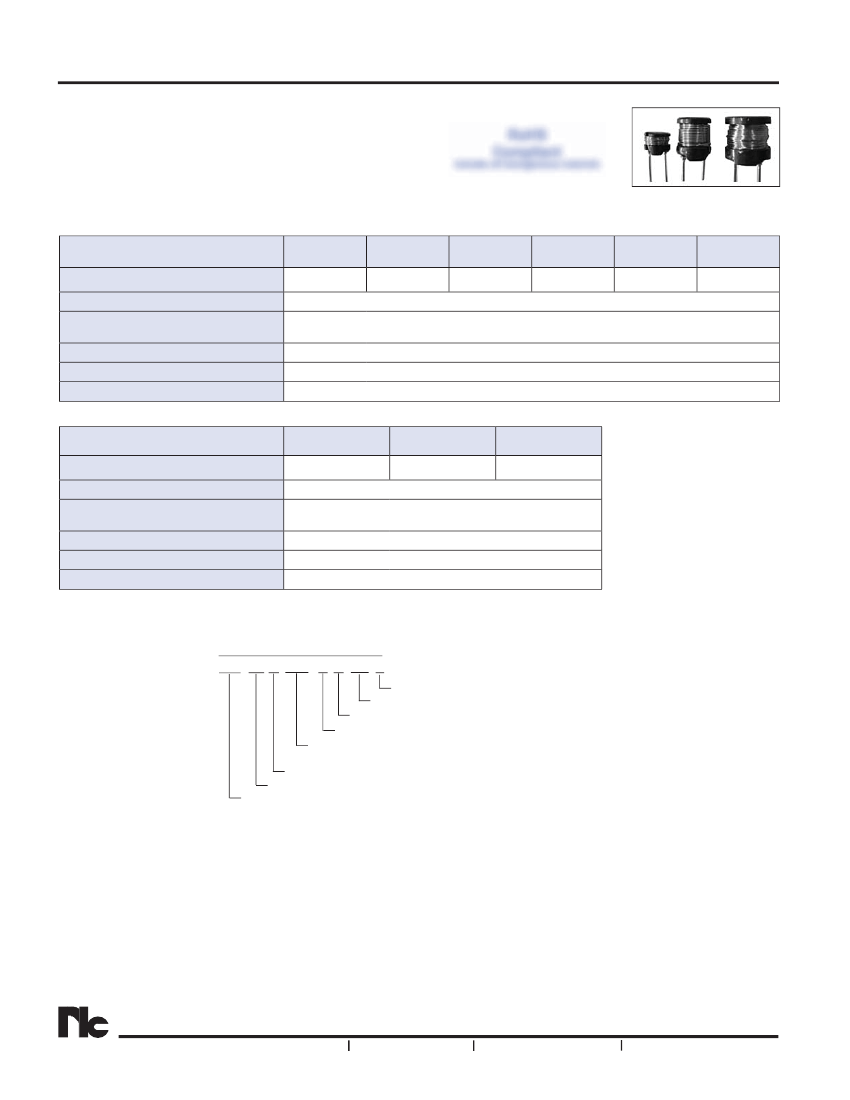

FEATURES

• RADIAL LEADED POWER INDUCTOR

• WIRE WOUND CONSTRUCTION

• WIDE VALUE RANGE 10μH ~ 47,000μH

• AVAILABLE WITH HIGH TEMPERATURE SLEEVE

• NINE CASE SIZES (5.2X6.5mm ~ 14.4X10.5mm)

• AVAILABLE IN BULK OR TAPE & BOX PACKAGING

TWO LEADED PARTS

Case Code

Inductance Range

Ambient Operating Temperature Range

Maximum Component Temperature

(Ambient + Self-Heating)

Temperature Rise at DCI

Inductance Change at DCI

Inductance Tolerance

NLI65D

22μH ~

1,000μH

NLI66D

22μH ~

1,000μH

NLI85D

NLI87D

NLI__D Series

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

NLI89D

10μH ~

47,000μH

NLI114D

6.3μH ~

39,000μH

10μH ~

10,000μH

-20°C ~ +80°C

+120°C

+40°C

-10%

K (±10%), M (±20%)

FOUR LEADED PARTS

Case Code

Inductance Range (μH)

Ambient Operating Temperature Range

Maximum Component Temperature

(Ambient + Self-Heating)

Temperature Rise at DCI

Inductance Change at DCI

Inductance Tolerance

NLI106D

10μH ~

1,000μH

NLI108D

10μH ~

1,000μH

-20°C ~ +80°C

+120°C

+40°C

-10%

K (±10%), M (±20%)

NLI110D

10μH ~

1,000μH

PART NUMBER SYSTEM

NLI 66 D 220 K U TB F

RoHS Compliant

TB = Optional Packaging Tape & Box (blank for bulk packaging)*

U = Optional Black UL +125°C Sleeving (blank for no sleeving)

Inductance Tolerance Code: J = ±5%, K = ±10%, M = ±20%

Inductance Code (μH): 1st two digits are signiﬁcant,

3rd digit is multiplier for values from 10μH and up.

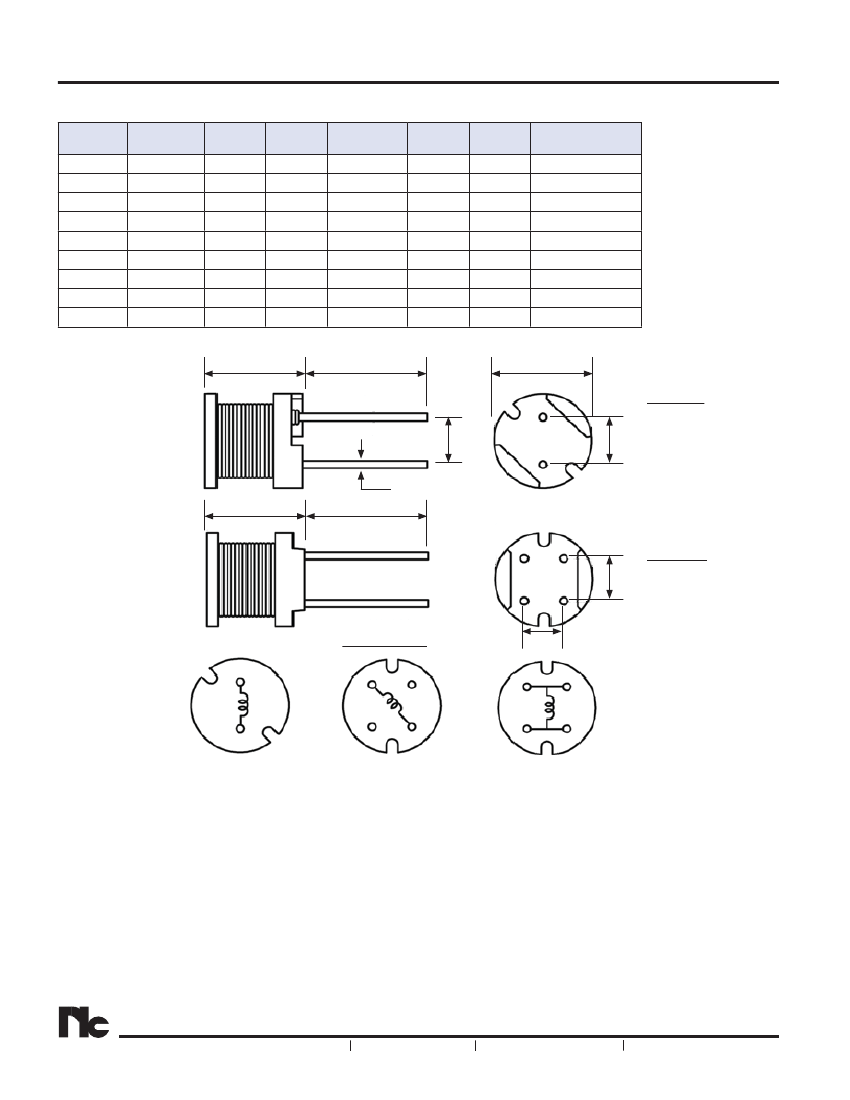

Construction Code (see drawing for details)

Size Code (see table for details)

Series

*Optional Tape & Box packaging not available for case sizes 106, 108 and 110
