74LV14A
HEX INVERTERS WITH SCHMITT TRIGGER INPUTS
Description
The 74LV14A provides provides six independent Schmitt Trigger
input inverters with standard push-pull outputs. The device is
designed for operation with a power supply range of 2.0V to 5.5V.
The inputs are tolerant to 5.5V allowing this device to be used in a
mixed voltage environment. The device is fully specified for partial
power down applications using I
OFF
. The I
OFF
circuitry disables the

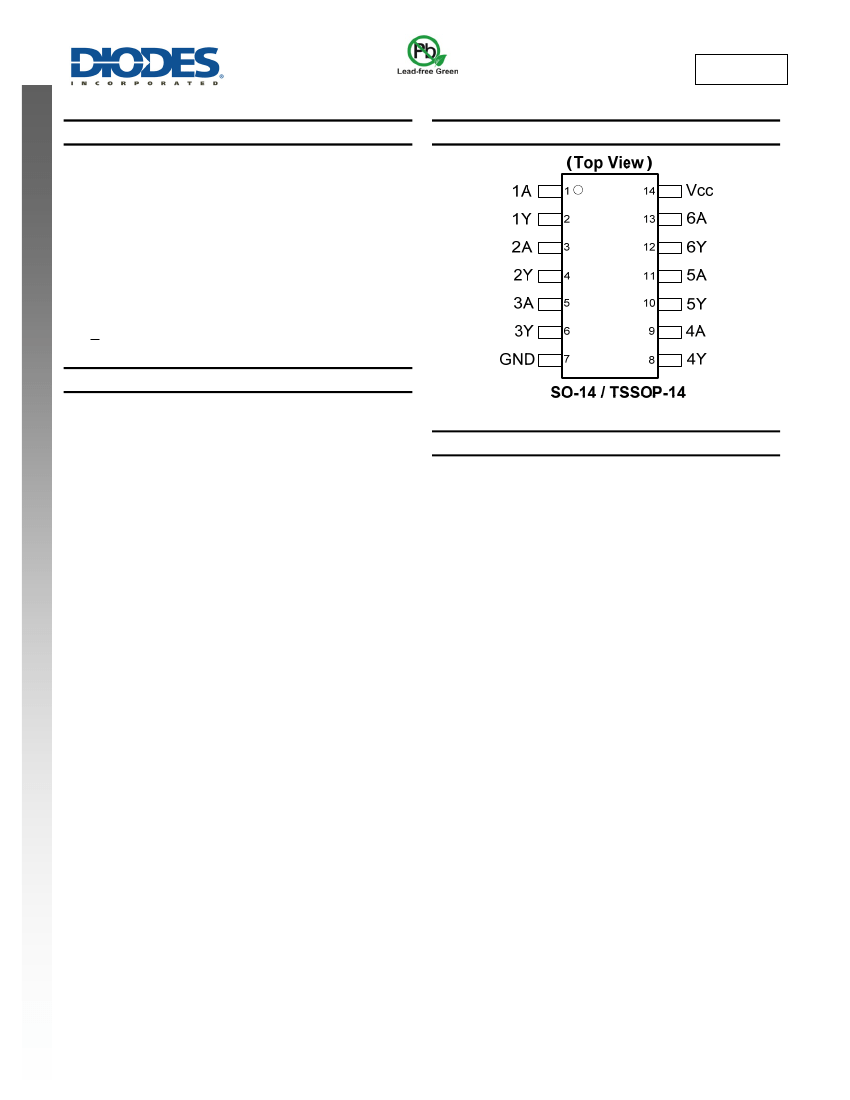

Pin Assignments
NEW PRODUCT
output preventing damaging current backflow when the device is
powered down.
The gates perform the Boolean function:
Y
½
A
Features
Wide Supply Voltage Range from 2.0V to 5.5V
Sinks or sources 12mA at V
CC
= 4.5V
CMOS low power consumption
I
OFF
Supports Partial -Power Down Operation
Inputs or Outputs accept up to 5.5V
Inputs can be driven by 3.3V or 5V allowing for voltage
translation applications.
Schmitt Trigger Action at All Inputs
ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Applications
General Purpose Logic
Power Down Signal Isolation
Wide array of products such as:
PCs, networking, notebooks, ultrabooks, netbooks
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top box
Latch-Up Exceeds 100mA per JESD 78, Class I
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Click here for ordering information, located at the end of datasheet
74LV14A
Document number: DS35663 Rev. 1 - 2
1 of 9
www.diodes.com
October 2013
© Diodes Incorporated
74LV14A
Pin Descriptions
Pin Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Pin Name
1A
1Y
2A
2Y
3A
3Y
GND
4Y
4A
5Y
5A
6Y
6A
VCC
Description
Data Input
Data Output
Data Input
Data Output
Data Input
Data Output
Ground
Data Output
Data Input
Data Output
Data Input
Data Output
Data Input
Supply Voltage

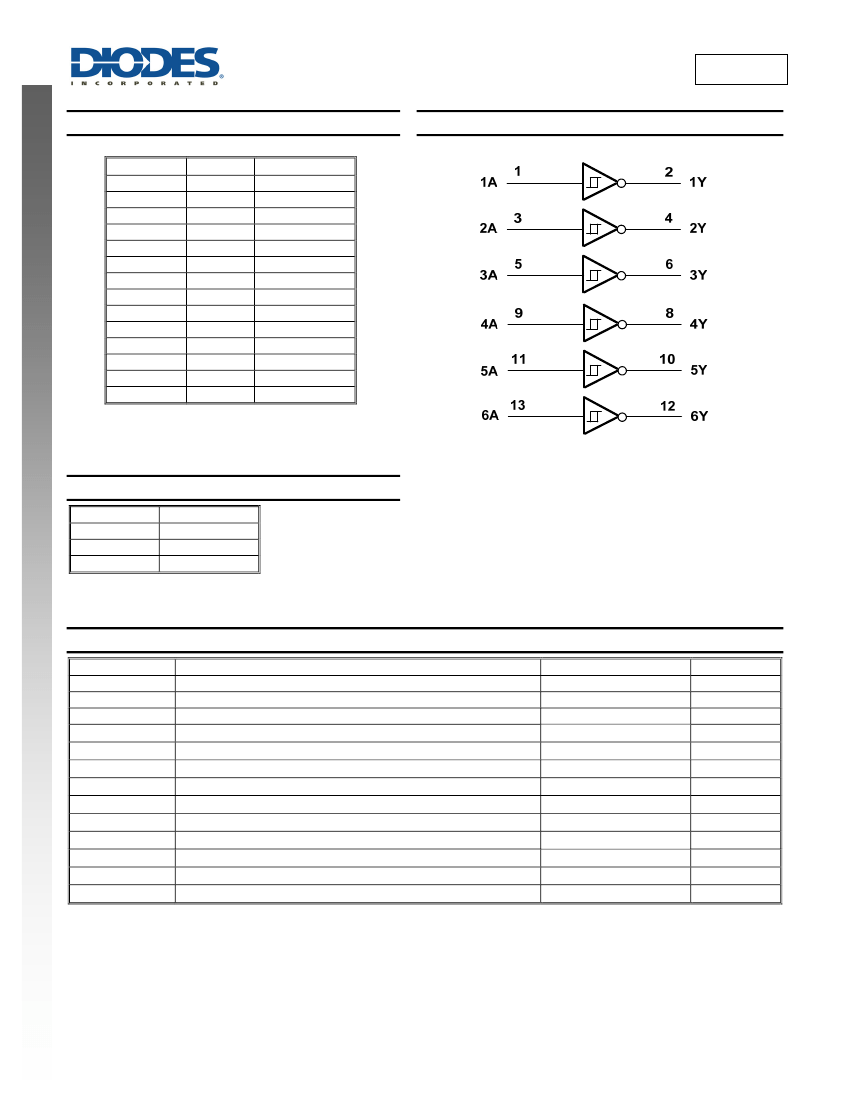

Logic Diagram
NEW PRODUCT
Function Table
Input
A
H
L
Output
Y
L
H
Absolute Maximum Ratings
(Note 4) (@T
A
= +25°C, unless otherwise specified.)
Symbol
ESD HBM
ESD CDM
ESD MM
V
CC
V
I
I
IK
I
OK
I
O
I
CC
I
GND
T
J
T
STG
P
TOT
Note:
Description
Human Body Model ESD Protection
Charged Device Model ESD Protection
Machine Model ESD Protection
Supply Voltage Range
Input Voltage Range note 4
Input Clamp Current
Output Clamp Current
V
I
< 0V
V
O
<-0V
Rating
2
1
200
-0.5 to +7.0
-0.5 to +7.0
-20
-50
±25
50
-50
-40 to +150
-65 to +150
500
Unit
kV
kV
V
V
V
mA
mA
mA
mA
mA
°C
°C
mW
Continuous Output Current - 0.5V < V
O
V
CC
+ 0.5V
Continuous Current Through V
CC
Continuous Current Through GND
Operating Junction Temperature
Storage Temperature
Total Power Dissipation
4. Stresses beyond the absolute maximum may result in immediate failure or reduced reliability. These are stress values and device operation should be
within recommend values.
74LV14A
Document number: DS35663 Rev. 1 - 2
2 of 9
www.diodes.com
October 2013
© Diodes Incorporated
74LV14A
Recommended Operating Conditions
(Note 5) (@T
A
= +25°C, unless otherwise specified.)
Symbol
V
CC
V
I
V
O
Input Voltage
Output Voltage
Parameter
Supply Voltage
Conditions
—
—
—
2.0V
2.3V to 2.7V
3.0V to 3.6V
4.5V to 5.5V
2.0V
2.3V to 2.7V
3.0V to 3.6V
4.5V to 5.5V
—
Min
2.0
0
0
—
—
—
—
—
—
—
—
-40
Max
5.5
5.5
V
CC
-50
-2
-6
-12
50
2
6
12
+125
Unit
V
V
V
mA
μA
mA
mA
μA
mA
mA
mA
°C
I
OH
High-Level Output Current
NEW PRODUCT
I
OL
Low-Level Output Current
T
A
Note:
Operating Free-Air Temperature
5. Unused inputs should be held at V
CC
or Ground.
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Symbol
Parameter
Positive Going
Threshold
Negative Going
Threshold
Hysteresis
(V
T+ -
V
T-)
Test Conditions
—
—
—
—
—
—
—
—
—
I
OH
= -50μA
V
OH
High-Level
Output Voltage
I
OH
= -2mA
I
OH
= -6mA
I
OH
= -12mA
I
OL
= 50μA
V
OL
Low-Level
Output Voltage
I
OL
= 2mA
I
OL
= 6mA
I
OL
= 12mA
I
OFF
I
I
I
CC
Power Down
V
I
or V
O
= 0 to 5.5V
Leakage Current
Input Current
Supply Current
V
I
= GND or 5.5V
V
I
= GND or V
CC
I
O
=0
V
CC
2.5 V
3.3 V
5.0 V
2.5 V
3.3 V
5.0 V
2.5 V
3.3 V
5.0 V
2.0V to 5.5V
2.3V
3.0V
4.5V
2.0V to 5.5V
2.3V
3.0V
4.5V
0V
0 to 5.5V
5.5V
T
A
= -40°C to +85°C
Min
1
1.31
1.95
0.75
0.99
1.5
0.25
0.33
0.5
V
CC
-0.1
2.0
2.48
3.8
—
—
—
—
—
—
—
Max
1.75
2.31
3.5
1.5
2.07
3.05
1
1.32
2
—
—
—
—
0.1
0.4
0.44
0.55
5
±1
20
T
A
= -40°C to +125°C
Min
1
1.31
1.95
0.75
0.99
1.5
0.25
0.33
0.5
V
CC
-0.1
2.0
2.48
3.8
—
—
—
—
—
—
—
Max
1.75
2.31
3.5
1.5
2.07
3.05
1
1.32
2
—
—
—
—
0.1
0.4
0.44
0.55
5
±1
20
μA
μA
μA
V
V
Unit
V
T+
V
V
T-
—
V
H
V
74LV14A
Document number: DS35663 Rev. 1 - 2
3 of 9
www.diodes.com
October 2013
© Diodes Incorporated
74LV14A
Switching Characteristics
Symbol
Parameter
Test
Conditions
Figure 1
C
L
= 15pF
Figure 1
C
L
= 50pF
V
CC
2.5V ± 0.2V
3.3V ± 0.3V
5.0V ± 0.5V
2.5V ± 0.2V
3.3V ± 0.3V
5.0V ± 0.5V
T
A
= +25°C
Min
—
—
—
—
—
—
Typ.
10.2
7.3
5.1
13.3
9.6
6.7
Max
19.7
12.8
8.6
24
16.3
10.6
-40°C to +85°C
Min
1
1
1
1
1
1
Max
22
15
10
27
18.5
12
-40°C to +125°C
Min
1
1
1
1
1
1
Max
22
15.9
10
27
19.4
12
ns
Unit
ns
t
PD
Propagation
Delay A
N
to Y
N
NEW PRODUCT
Operating Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Parameter
C
pd
Power Dissipation
Capacitance per Gate
Test
Conditions
F= 10 MHz
C
L
=50pF
V
CC
3.3V
5.0V
Typ
8.8
9.6
Unit
pF
Noise Characteristics
V
CC
= 3V, C
L
= 50pF T
A
= +25°C
Symbol
V
OL(p)
V
OL(V)
V
OH(V)
V
IH(D)
V
IL(D)
Parameter
Quiet output, maximum dynamic V
OL
Quiet output, minimum dynamic V
OL
Quiet output, minimum dynamic V
OH
High Level dynamic input voltage
Low Level dynamic input voltage
Min
—
—
—
2.31
—
Typ
0.2
-0.1
3.1
—
—
Max
0.8
-0.8
—
—
0.99
Unit
V
V
V
V
V
Package Characterisitics
Symbol
C
i
Parameter
Input Capacitance
Test Conditions
V
i
= V
CC
– or GND
V
CC
2.0 to 5.5V
Min
—
Typ
3.3
Max
10
Unit
pF
74LV14A
Document number: DS35663 Rev. 1 - 2
4 of 9
www.diodes.com
October 2013
© Diodes Incorporated
74LV14A
Parameter Measurement Information
NEW PRODUCT
V
CC
2.0V to 5.5V
Inputs
V
I
V
CC
t
r
/ t
f
< 3ns
V
M
V
CC
/ 2
C
L
15pF or 50pF
Voltage Waveform
Pulse Duration
Voltage Waveform
Propagation Delay Times
Inverting and Non Inverting Outputs
Notes:
A. Includes test lead and test apparatus capacitance.
B. All pulses are supplied at pulse repetition rate
≤
10MHz.
C. Inputs are measured separately one transition per measurement.
D. t
PLH
and t
PHL
are the same as t
PD
.

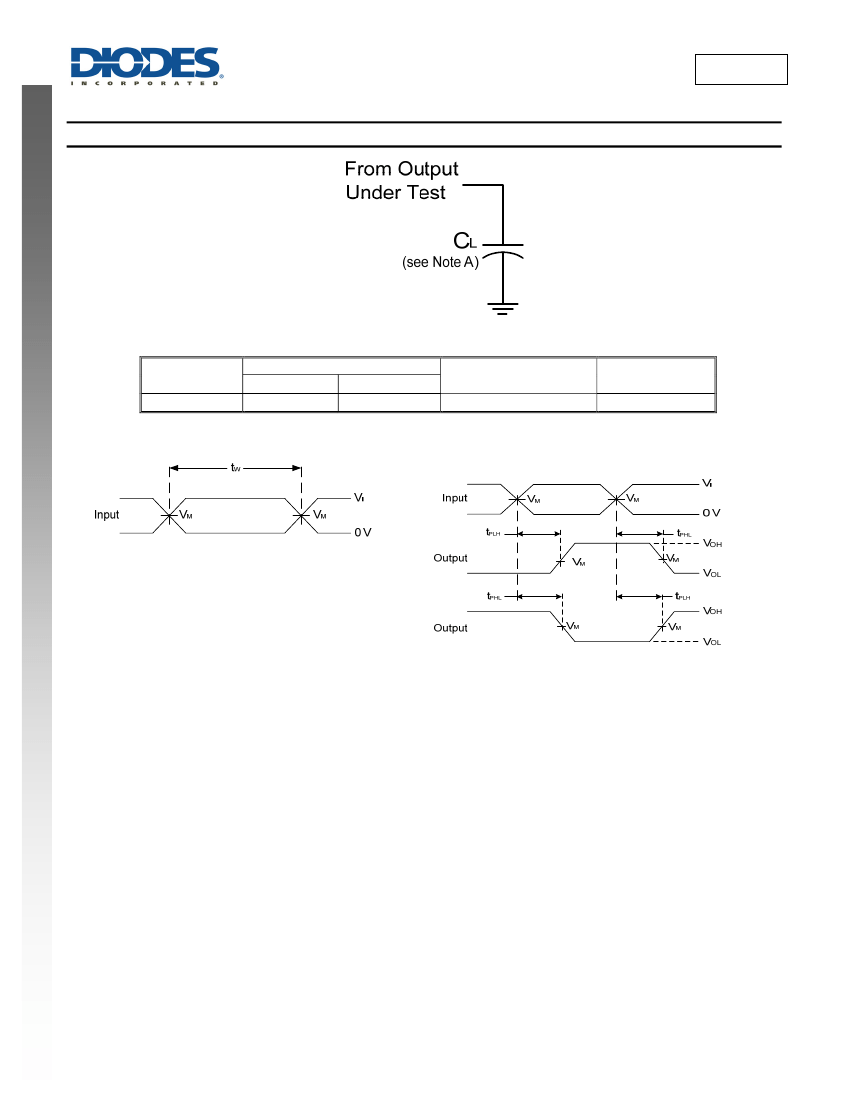

Figure 1 Load Circuit and Voltage Waveforms
74LV14A
Document number: DS35663 Rev. 1 - 2
5 of 9
www.diodes.com
October 2013
© Diodes Incorporated
