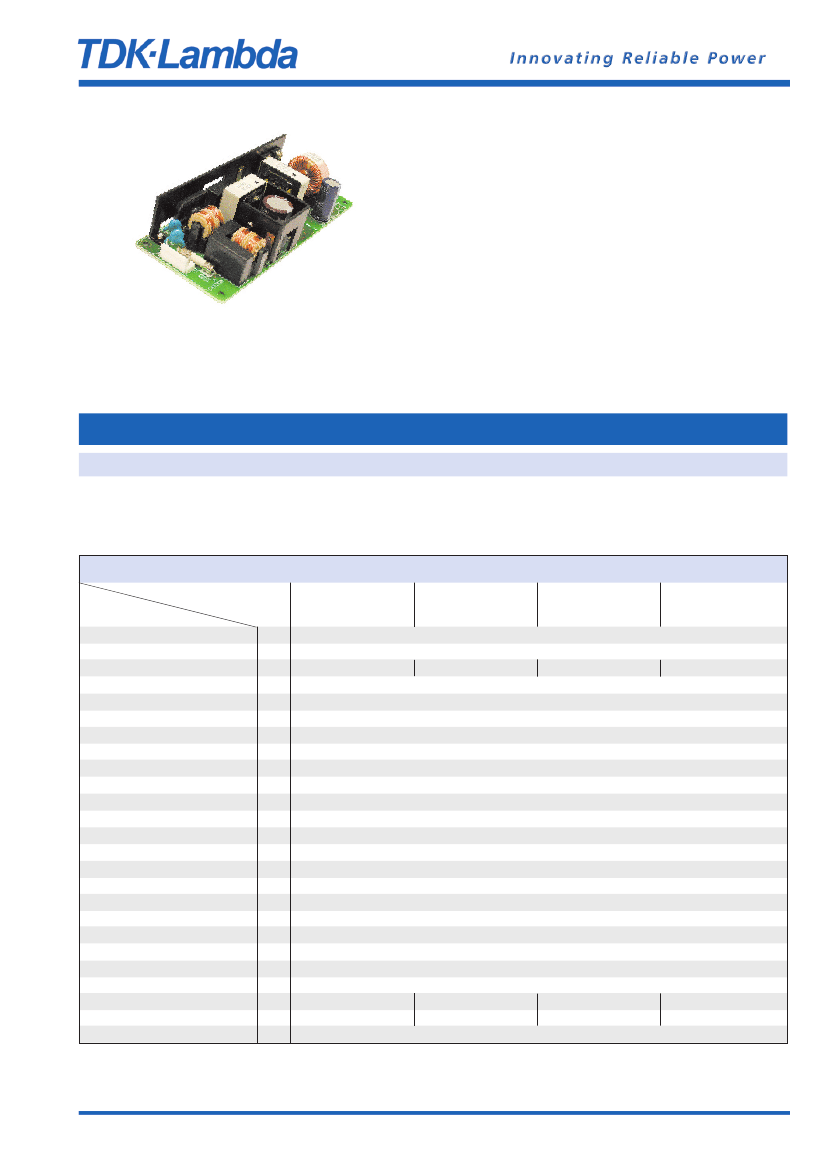

• Universal Input (85 - 265VAC)
• Power Factor Corrected
• Convection Cooled
• 5 year warranty
• Compact Design
Key Market Segments & Applications
Factory Automation
ZWS-BAF Series
50W to 150W Single Output Power Supplies,
Low Cost, Worldwide Use
ZWS-BAF Features and Benefits
Features
•
Convection Cooled
•
5 Year Warranty
•
Power Factor Corrected
Test & Measurement
Light Industrial Equipment
Benefits
•
Better Field Reliability
•
Lower Cost of Ownership
•
Supports Global Use
Specifications
MODELS
ITEMS
AC Input Voltage range
-
DC Input Voltage range
-
Input Current (Typical)
(2)
A
Inrush Current
(2)
A
Power Factor (Active)
-
Maximum Ripple and Noise
mV
Temperature Coefficient
-
Overcurrent Protection
(1)
-
Hold Up Time (Typ) at 100VAC
ms
Leakage Current
-
Remote On / Off
-
Operating Temperature (Convection) -
Operating Temperature (Forced Air)
-
Storage Temperature
°C
Humidity (non condensing)
-
Withstand Voltage
-
Isolation Resistance
-
Vibration (non operating)
-
Shock
-
Safety Agency Certifications
-
Conducted & Radiated EMI
-
Immunity
-
Weight (Typ)
g
Size (W x H x D)
mm
Warranty
yrs
Notes:
(1) Avoid prolonged operation in overload
ZWS50BAF
ZWS75BAF
ZWS100BAF
ZWS150BAF
85-265VAC (47-63Hz)
120 - 370VDC
0.45 / 0.25
1.0 / 0.5
1.3 / 0.65
1.9 / 0.95
14 / 28 25°C ambient, cold start
Meets EN61000-3-2 (Typically 0.98/0.93)
3.3 & 5V: 120mV, 12 to 24V: 150mV, 48V: 200mV
<0.02%/°C
>105% of maximum output current
20ms
0.5mA max, 0.4mA typ at 230VAC
Optional
-10 to +70°C, derate linearly to 50% load from 50 to 70°C
-10 to +70°C, derate linearly to 75% load from 60 to 70°C
-30 to +75°C
Operating: 30 - 90%RH, storage: 10 - 90%RH
I/P to Grnd 2kVAC (10mA), I/P to O/P 3kVAC (10mA), O/P to Grnd 500VAC (20mA) for 1 min.
>100MΩ at 25°C & 70%RH, Output to Ground 500VDC
10 - 55Hz (1 minute sweep), 19.6m/s
2
constant X, Y, Z 1 hour
< 196.1 m/s
2
UL60950-1, CSA60950-1, EN60950-1, EN50178 (OV II), CE Mark
EN55011/EN55022-B, FCC-B, VCCI-B
IEC61000-4-2 (lv 2,3), -3 (lv3), -4 (lv 3), 50/75W: -5 (lv4); 100/150W: -5 (lv 3,4), -6 (lv 3), -8 (lv 4), -11
165
230
290
390
50 x 26 x 132
50 x 33 x 150
62 x 33 x 155
75 x 37 x 160
5
(2) 100 / 200VAC Input
ZWS-BAF Series
1
M o d el Se l ecto r
Model
ZWS50BAF-3
ZWS50BAF-5
ZWS50BAF-12
ZWS50BAF-15
ZWS50BAF-24
ZWS50BAF-48
ZWS75BAF-3
ZWS75BAF-5
ZWS75BAF-12
ZWS75BAF-15
ZWS75BAF-24
ZWS75BAF-48
ZWS100BAF-3
ZWS100BAF-5
ZWS100BAF-12
ZWS100BAF-15
ZWS100BAF-24
ZWS100BAF-48
ZWS150BAF-3
ZWS150BAF-5
ZWS150BAF-12
ZWS150BAF-15
ZWS150BAF-24
ZWS150BAF-48
Output
Voltage
3.3V
5V
12V
15V
24V
48V
3.3V
5V
12V
15V
24V
48V
3.3V
5V
12V
15V
24V
48V
3.3V
5V
12V
15V
24V
48V
Output Adjust
Range (V)
2.97-3.63
4.5-5.5
10.8-13.2
13.5-16.5
21.6-26.4
43.2-52.8
2.97-3.63
4.5-5.5
10.8-13.2
13.5-16.5
21.6-26.4
43.2-52.8
2.97-3.63
4.5-5.5
10.8-13.2
13.5-16.5
21.6-26.4
39.5-52.8
2.97-3.63
4.5-5.5
10.8-13.2
13.5-16.5
21.6-26.4
39.5-52.8
Max Current
(A)
10
10
4.3
3.5
2.1
1.1
15
15
6.3
5
3.2
1.6
20
20
8.5
6.7
4.3
2.1
30
30
12.5
10
6.3
3.2
Max Output
Power(W)
33
50
51.6
52.5
50.4
52.8
49.5
75
75
75
76.8
76.8
66
100
102
100.5
103.2
100.8
99
150
150
150
151.2
153.6
Efficiency
(typ) %
79
84
85
86
87
87
79
84
85
86
87
88
84
86
88
88
89
90
84
87
88
89
90
91
Load Reg
(mV)
40
40
96
120
150
240
40
40
96
120
150
240
40
40
96
120
150
240
40
40
96
120
150
240
Line Reg
(mV)
20
20
48
60
96
192
20
20
48
60
96
192
20
20
48
60
96
192
20
20
48
60
96
192
OVP
(V)
3.8-4.95
5.75-7
13.8-16.2
17.3-20.3
27.6-32.4
55.2-64.8
3.8-4.95
5.75-7
13.8-16.2
17.3-20.3
27.6-32.4
55.2-64.8
3.79-4.95
5.75-7
13.8-16.2
17.3-20.3
27.6-32.4
55.2-64.8
3.79-4.95
5.75-7
13.8-16.2
17.3-20.3
27.6-32.4
55.2-64.8
Note:
ZWS50 & 75 available Q1 2011

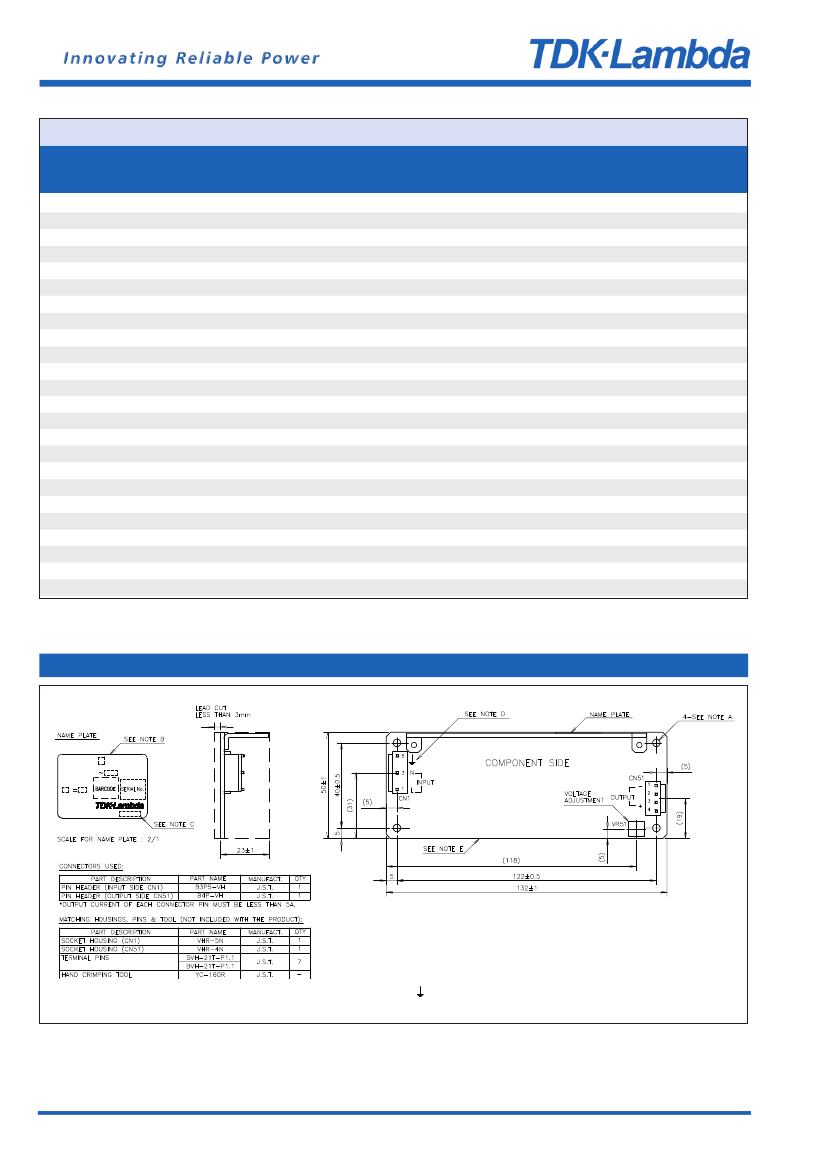

Outline Drawing ZWS50BAF
ZWS50BAF-5
INPUT
100-240VAC
50/60Hz
OUTPUT
5 V 10 A
0.67 A
MADE IN JAPAN
Notes:
A:
B:
C:
D:
E:
4 - 3.5mm Ø holes are for customers chassis mounting holes. All must be screwed in order
to conform the vibration specification.
Model name, input voltage range nominal output voltage and maximum output current are
shown here in accordance with the specifications.
Country of manufacture will be shown here.
is for safety ground connection.
To keep the distance more than 4mm between PCB edge and customer’s chassis.
2
ZWS-BAF Series

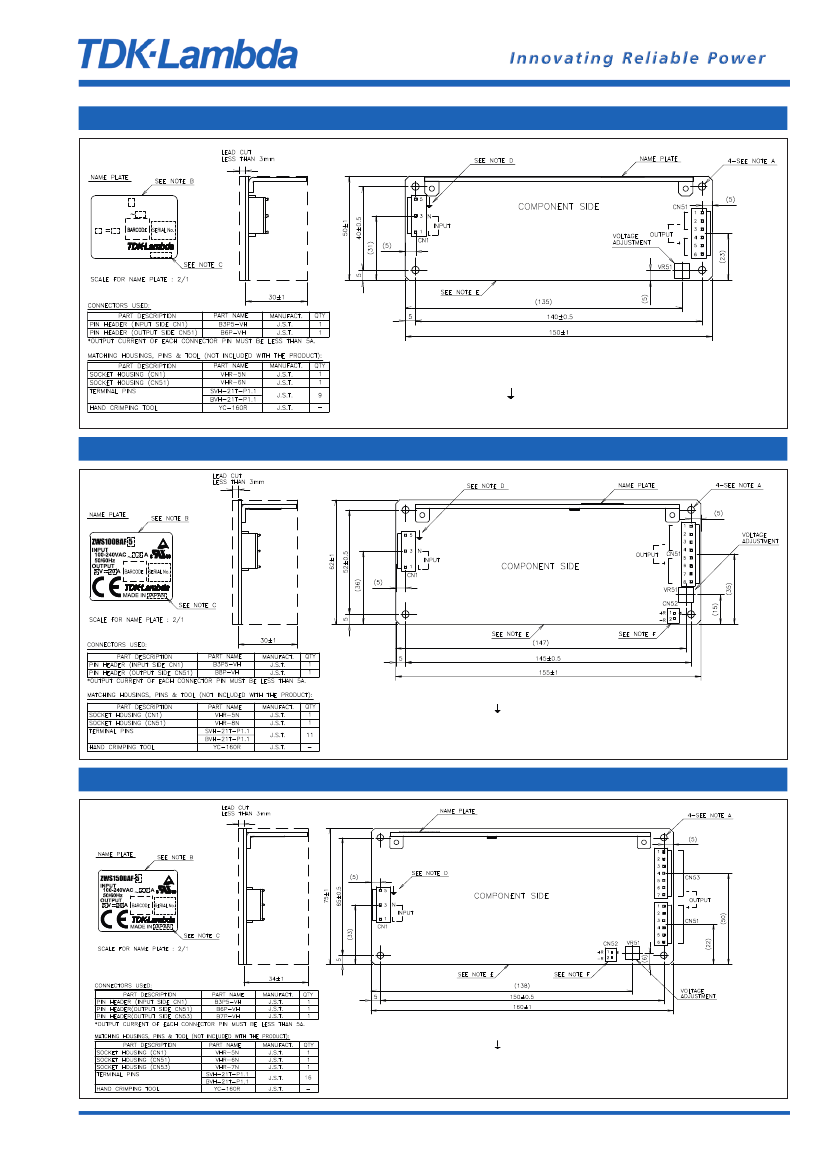

Outline Drawing ZWS75BAF
ZWS75BAF-5
INPUT
100-240VAC
50/60Hz
OUTPUT
5 V 15 A
1.0 A
MADE IN JAPAN
Notes:
A:
4 - 3.5mm Ø holes are for customers chassis mounting holes. All must be screwed in order to conform the vibration specification.
B:
Model name, input voltage range nominal output voltage and maximum output current are shown here in accordance with the specifications.
C:
Country of manufacture will be shown here.
D:
is for safety ground connection.
E:
To keep the distance more than 4mm between PCB edge and customer’s chassis.
Outline Drawing ZWS100BAF
Notes:
A:
4 - 3.5mm Ø holes are for customers chassis mounting holes. All must be screwed in order to conform the vibration specification.
B:
Model name, input voltage range nominal output voltage and maximum output current are shown here in accordance with the specifications.
C:
Country of manufacture will be shown here.
D:
is for safety ground connection.
E:
To keep the distance more than 4mm between PCB edge and customer’s chassis.
F: Remote On/Off Control Connector (CN52):
B2B-XH-AM (J.S.T.)
Option Matching Housing:
XHP-2 (J.S.T.).
Matching Terminal:
BXH-001T-
P0.6 (J.S.T.) or SXH-001T-P0.6 (J.S.T.)
Hand Crimping Tool:
YC-110R (J.S.T.) or YRS-110 (J.S.T.)
Matching Housing & Terminal
--- not included with the product.
Outline Drawing ZWS150BAF
Notes:
A:
4 - 3.5mm Ø holes are for customers chassis mounting holes. All must be screwed in order to conform the vibration specification.
B:
Model name, input voltage range nominal output voltage and maximum output current are shown here in accordance with the specifications.
C:
Country of manufacture will be shown here.
D:
is for safety ground connection.
E:
To keep the distance more than 4mm between PCB edge and customer’s chassis.
F: Remote On/Off Control Connector (CN52):
B2B-XH-AM (J.S.T.)
Option Matching Housing:
XHP-2 (J.S.T.).
Matching Terminal:
BXH-001T-
P0.6 (J.S.T.) or SXH-001T-P0.6 (J.S.T.)
Hand Crimping Tool:
YC-110R (J.S.T.) or YRS-110 (J.S.T.)
Matching Housing & Terminal
--- not included with the product.
ZWS-BAF Series
