374722 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 374722

374722: Description50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER AND SMT; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

374722 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	374722	-	-	View	Buy Now

374722 Overview

50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER AND SMT

374722 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Descripti	Board to Board & Mezzanine Connectors 50P 1/1.5MM R/A MALE 2R SMT/THR DAUG CARD
Other features	ROHS COMPLIANT
Board mount options	LOCATING POSTS
body width	0.266 inch
subject depth	0.358 inch
body length	1.14 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	374722
Plug contact pitch	0.039 inch
Match contact row spacing	0.059 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.4986 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SOLDER AND SURFACE MOUNT
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

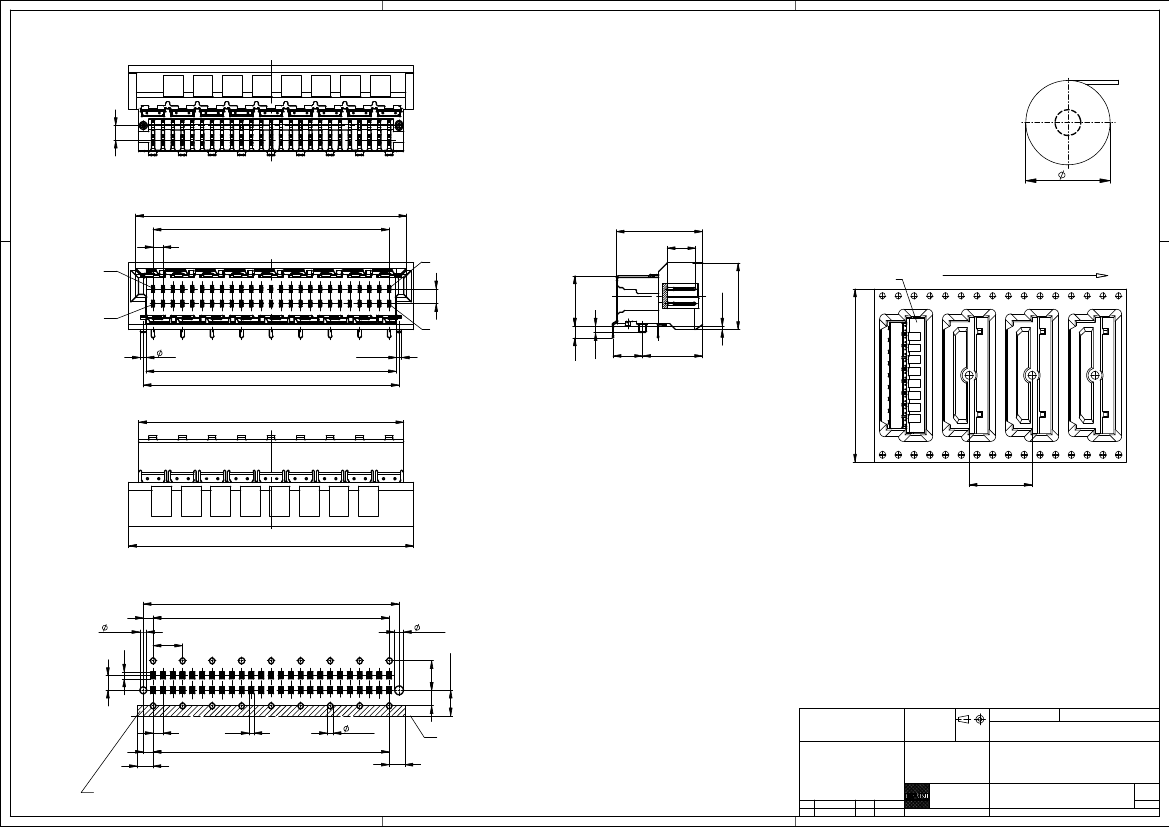

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 400 Stück

Packaging unit: 400 pcs

1,5

330

27,55

24 x 1 = 24

b 25

0,35

5,1

6,75

1,5

8,8

2,9

Abspulrichtung -

Reel off Direction

a 25

6,1

25,45

1,2

0,6

0,5 x 0,8

0,7

28,95

Leiterplatten-Layout Vorschlag /

PCB-layout proposal

±0,03

2.)

0,7

±0,03

0,7

2,6 max.

8 x 3 = 24

2.)

Anforderungsstufe 1

Performance Level 1

0,9

±0,03

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

1,5

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

1,575

1,6

0,5

24 x 1 = 24

0,6

±0,05

1.)

1,6

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

5:1

Leiterplattenkante

Board edge

Schirmblechauflagefläche berücksichtigen,

keine Durchkontaktierungen oder Leitungen möglich!

1.) Fertiglochdurchmesser /

Finished via diameter

2.) Durchmesser des Bohrers /

Drill tool

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

15.04.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerl. 90° SMDTHR 50p BM EMV

Male 90° SMDTHR 50co. BM EMV

Consider shielding contact area, no via´s or traces possible!

www.ERNI.com

Class

374722

MSPEED
