650479-9 datasheet, PDF - EEWORLD Datasheet

650479-9: DescriptionCONNECTOR,DIN-41612,PCB MNT,RECEPT,48 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,HOLE .112-.124; CategoryThe connector The connector; File Size127KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

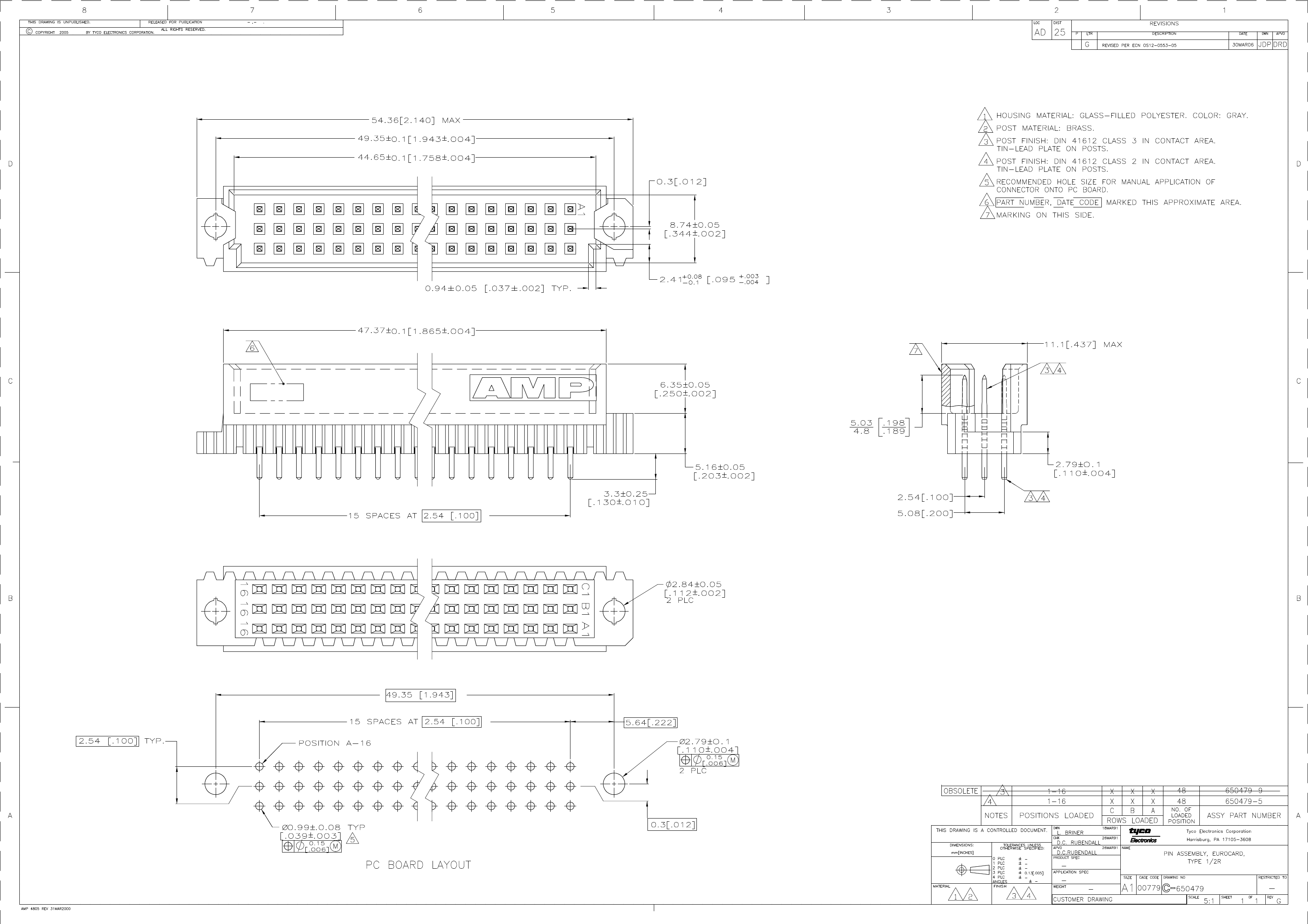

650479-9 Overview

CONNECTOR,DIN-41612,PCB MNT,RECEPT,48 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,HOLE .112-.124

Parameter Name	Attribute value
Objectid	300236166
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.433 inch
subject depth	0.453 inch
body length	2.14 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
Contact material	BRASS
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	HOLE .112-.124
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48

	650479-9	650479-5
Description	CONNECTOR,DIN-41612,PCB MNT,RECEPT,48 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,HOLE .112-.124	048 EURO TYPE R PIN ST ASSY
Reach Compliance Code	unknown	not_compliant
ECCN code	EAR99	EAR99
body width	0.433 inch	0.437 inch
subject depth	0.453 inch	0.453 inch
body length	2.14 inch	2.14 inch
Body/casing type	RECEPTACLE	PLUG
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
Contact resistance	20 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES
Dielectric withstand voltage	1000VAC V	1000VAC V
Insulation resistance	1000000000000 Ω	1000000000000 Ω
Insulator color	GRAY	GRAY
insulator material	POLYESTER	POLYESTER
Plug contact pitch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch
Installation option 1	HOLE .112-.124	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Loaded row name	A,B,C	A,B,C
PCB row number	3	3
Number of rows loaded	3	3
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm
Guideline	UL, CSA	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.13 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	48	48
