MS750 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> MS750

MS750: DescriptionElectric Fuse, Slow Blow, 0.75A, 125VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size1MB，4 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric Compare View All

MS750 Overview

Electric Fuse, Slow Blow, 0.75A, 125VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT

MS750 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bel Fuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 125 VDC: 300 A
Fusing characteristics	SLOW
body height	7.1 mm
Body length or diameter	3.18 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal
Manufacturer's serial number	MS
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK
physical size	3.18mm x 7.1mm
Rated breaking capacity	50 A
Rated current	0.75 A
Rated voltage (AC)	125 V
Rated voltage (DC)	125 V
Guideline	CE; CSA; UL
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	PIN WIRE

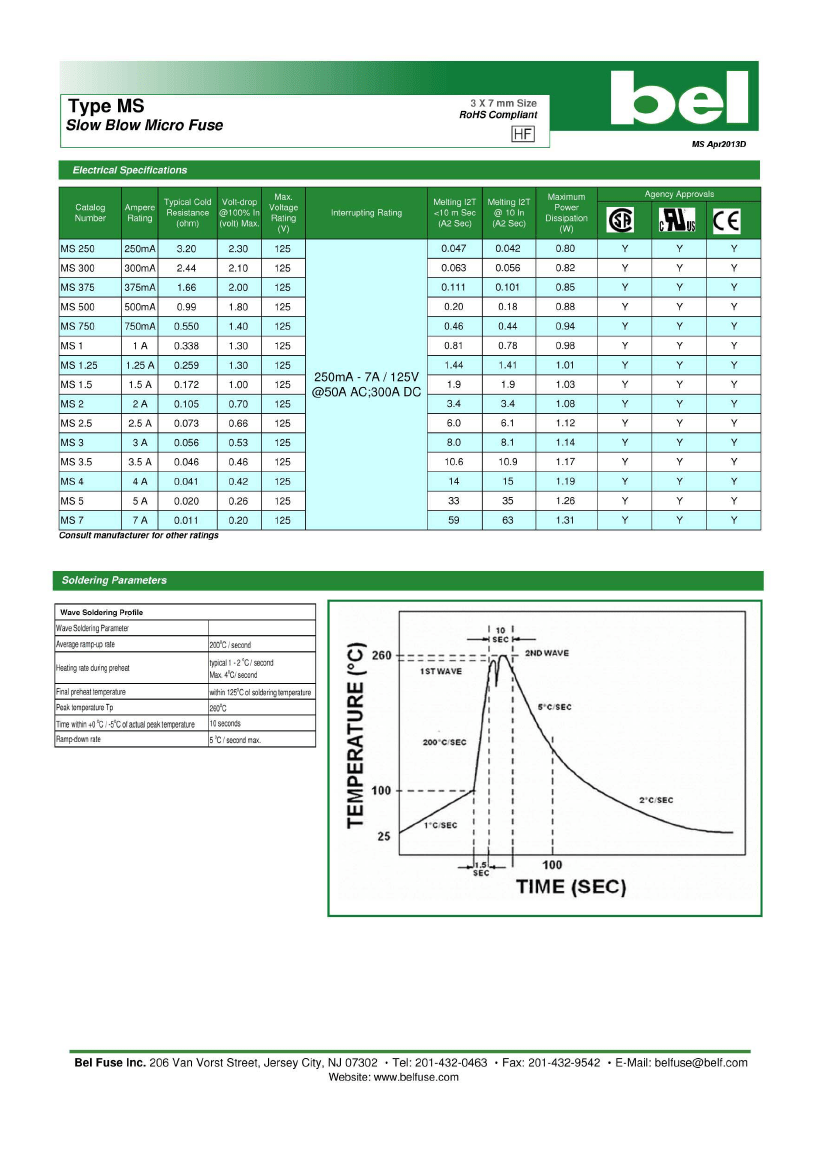

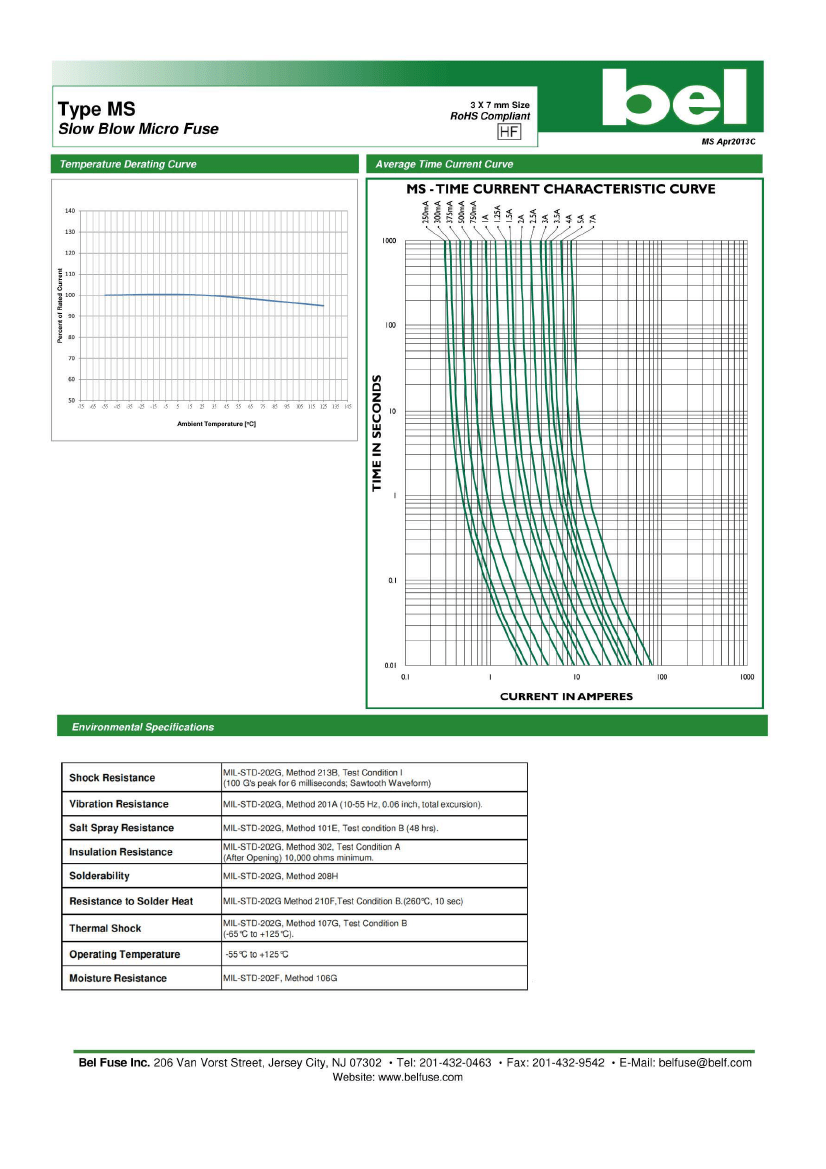

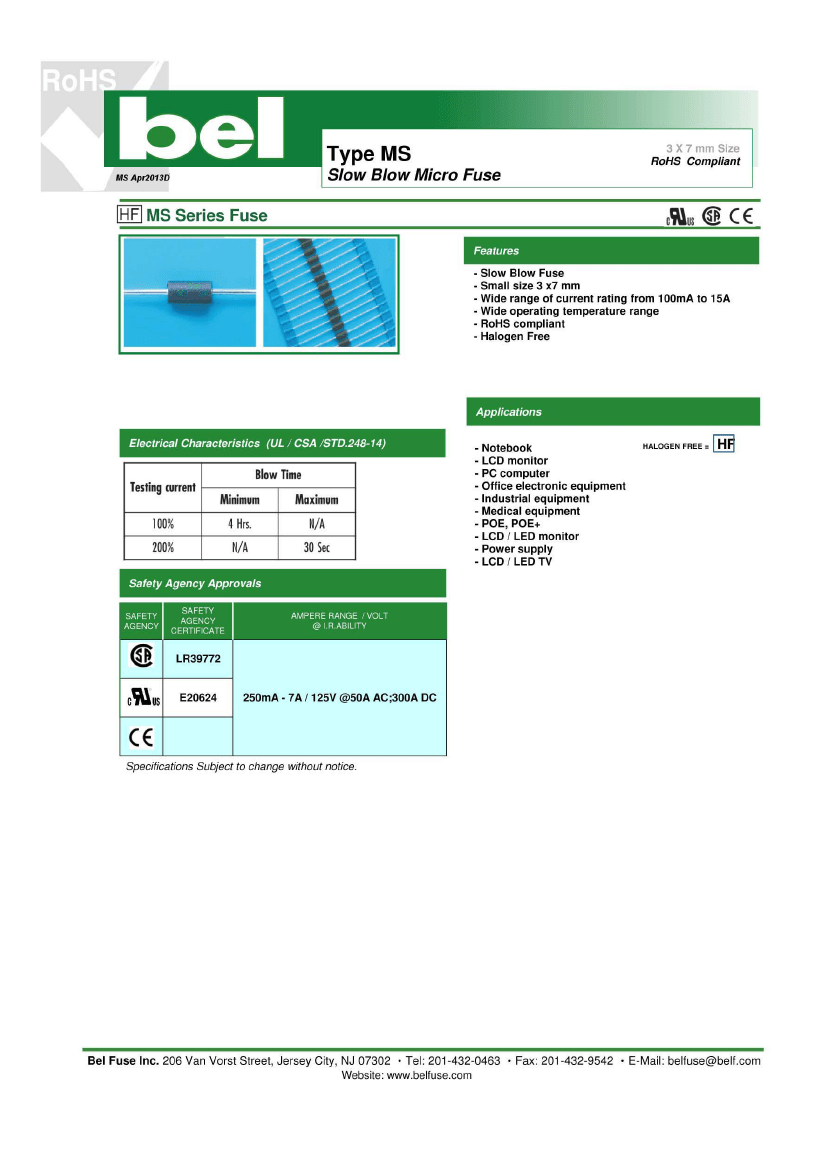

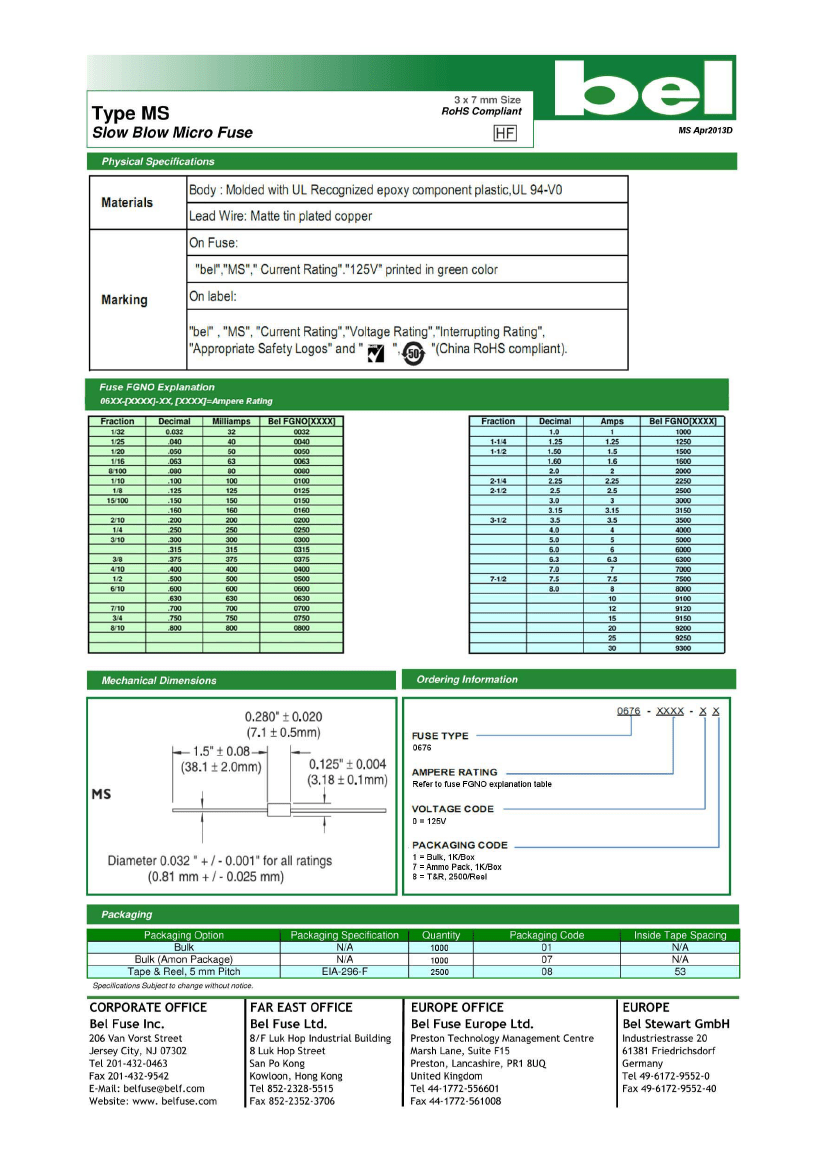

MS750 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

MS750 Related Products

	MS750	MS4	MS7	MS3.5
Description	Electric Fuse, Slow Blow, 0.75A, 125VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Slow Blow, 4A, 125VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Slow Blow, 7A, 125VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, Slow Blow, 3.5A, 125VAC, 125VDC, 50A (IR), Through Hole, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	RATED BREAKING CAPACITY AT 125 VDC: 300 A	RATED BREAKING CAPACITY AT 125 VDC: 300 A	RATED BREAKING CAPACITY AT 125 VDC: 300 A	RATED BREAKING CAPACITY AT 125 VDC: 300 A
Fusing characteristics	SLOW	SLOW	SLOW	SLOW
body height	7.1 mm	7.1 mm	7.1 mm	7.1 mm
Body length or diameter	3.18 mm	3.18 mm	3.18 mm	3.18 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
JESD-609 code	e3	e3	e3	e3
Joule integral nominal	-	14 J	59 J	10 J
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	BULK	BULK	BULK	BULK
physical size	3.18mm x 7.1mm	3.18mm x 7.1mm	3.18mm x 7.1mm	3.18mm x 7.1mm
Rated breaking capacity	50 A	50 A	50 A	50 A
Rated current	0.75 A	4 A	7 A	3.5 A
Rated voltage (AC)	125 V	125 V	125 V	125 V
Rated voltage (DC)	125 V	125 V	125 V	125 V
Guideline	CE; CSA; UL	CE; CSA; UL	CE; CSA; UL	CE; CSA; UL
surface mount	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE
Manufacturer's serial number	MS	MS	-	MS
