PES-02-02-T-VT-LC datasheet, PDF

Datasheet> All Categories > The connector> The connector> PES-02-02-T-VT-LC

PES-02-02-T-VT-LC: DescriptionRectangular Power Connector, 2 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size129KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PES-02-02-T-VT-LC Overview

Rectangular Power Connector, 2 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT

PES-02-02-T-VT-LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	POWER EDGE
Board mount options	SPLIT BOARD LOCK
body width	0.472 inch
subject depth	0.67 inch
body length	1.15 inch
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	5 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1350VAC V
Durability	100 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	15000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	PES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Terminal length	0.156 inch
Termination type	SOLDER
Total number of contacts	2

Preview

Download Datasheet

View All

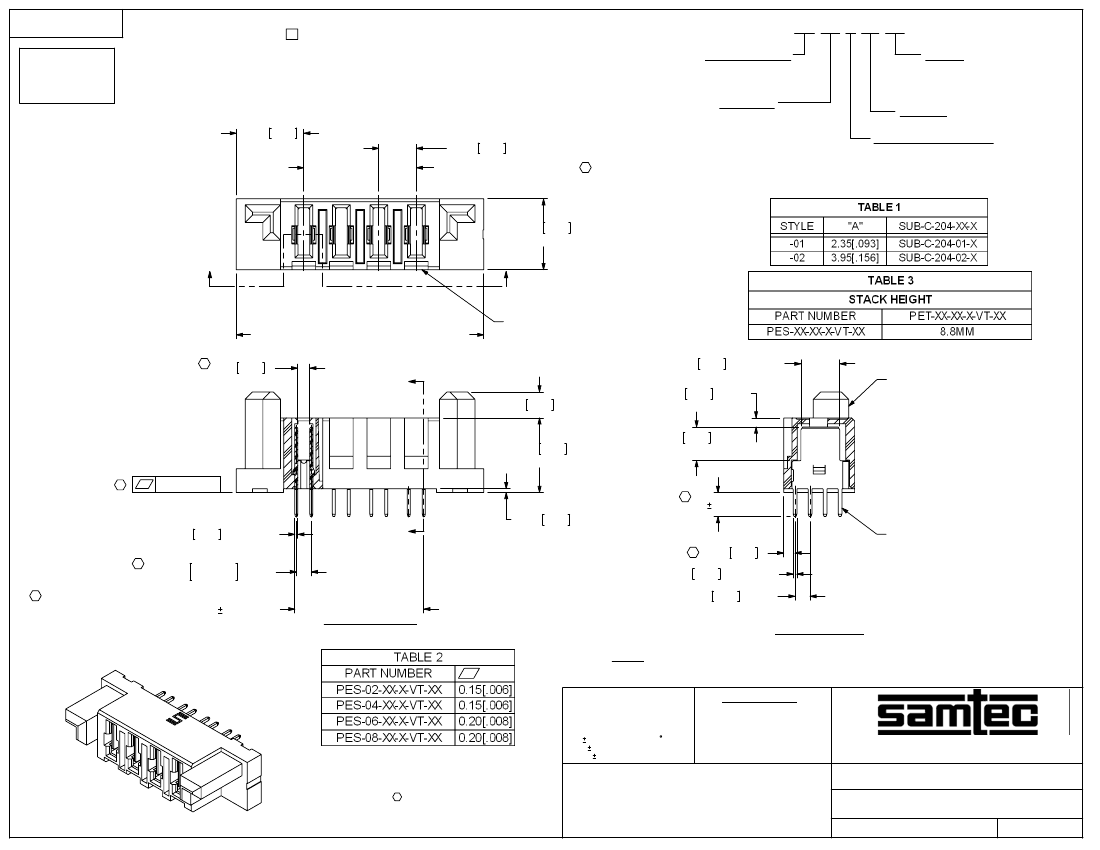

REVISION E

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

PES-XX-XX-X-VT-XX

No OF POSITIONS

-02, -04, -06, -08

OPTION

-LC: LOCKING CLIP

(USE LC-11-TM)

(SEE FIG 2, SHT 2)

VERTICAL

PLATING SPECIFICATION

-S: SELECTIVE GOLD/MATTE TIN ON TAIL

-T: MATTE TIN ALL OVER

-L: LIGHT SELECTIVE GOLD/MATTE TIN ON TAIL

11.43 .450

6.35 .250 (TYP) REF

(No OF POS-1) x 6.35[.250]

LEAD STYLE

-01: FOR 1.57[.062] THICK PCB

(USE SUB-C-204-01-X)

-02: FOR 3.18[.125] THICK PCB

(USE SUB-C-204-02-X)

12.00 .472

REF

"A"

No OF POS x 6.35[.250] + 16.51[.650] REF

#1 POSITION

(FOR PACKAGING PURPOSES ONLY)

6.60 .260 (TYP) REF

2.04 .080

"B"

4.40 .173 REF

1.54 .061 (TYP)

PES-XX-V

12.64 .497

REF

5.70 .224 REF

(CONTACT AREA)

SEE TABLE 2

0.64 .025 REF

"A"

0.20[.008]

0.13[.005]

0.50 .020 (TYP) REF

+0.20

2.54

- 0.13

+.008

.100

- .005

"B"

SUB-C-204-XX-X

1.91 .075

(TYP)

0.64 .025 (TYP) REF

2.54 .100 (TYP)

((No OF POS x 6.35[.250]) - 3.85[.152]) 0.20[.008]

SECTION "A"-"A"

SECTION "B"-"B"

MAX

PES-04-02-X-VT SHOWN

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

TOLERANCES ARE:

DECIMALS

FIG 1

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.X: 0.3 [.01]

.XX: 0.13 [.005]

.XXX: 0.051 [.0020]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: 0.038[.0015] MAX.

3. MINIMUM PUSHOUT FORCE: 4.45N[1.0 LB].

4. PARTS TO BE PACKAGED IN TRAYS.

INSULATOR: LCP, COLOR: BLACK

CONTACT: COPPER ALLOY

DO NOT SCALE DRAWING

SHEET SCALE: 1:0.666667

VERTICAL POWER SOCKET

PES-XX-XX-X-VT-XX

3/24/2005

SHEET

F:\DWG\MISC\MKTG\PES-XX-XX-X-VT-XX-MKT.SLDDRW

BY:

CHAD F
