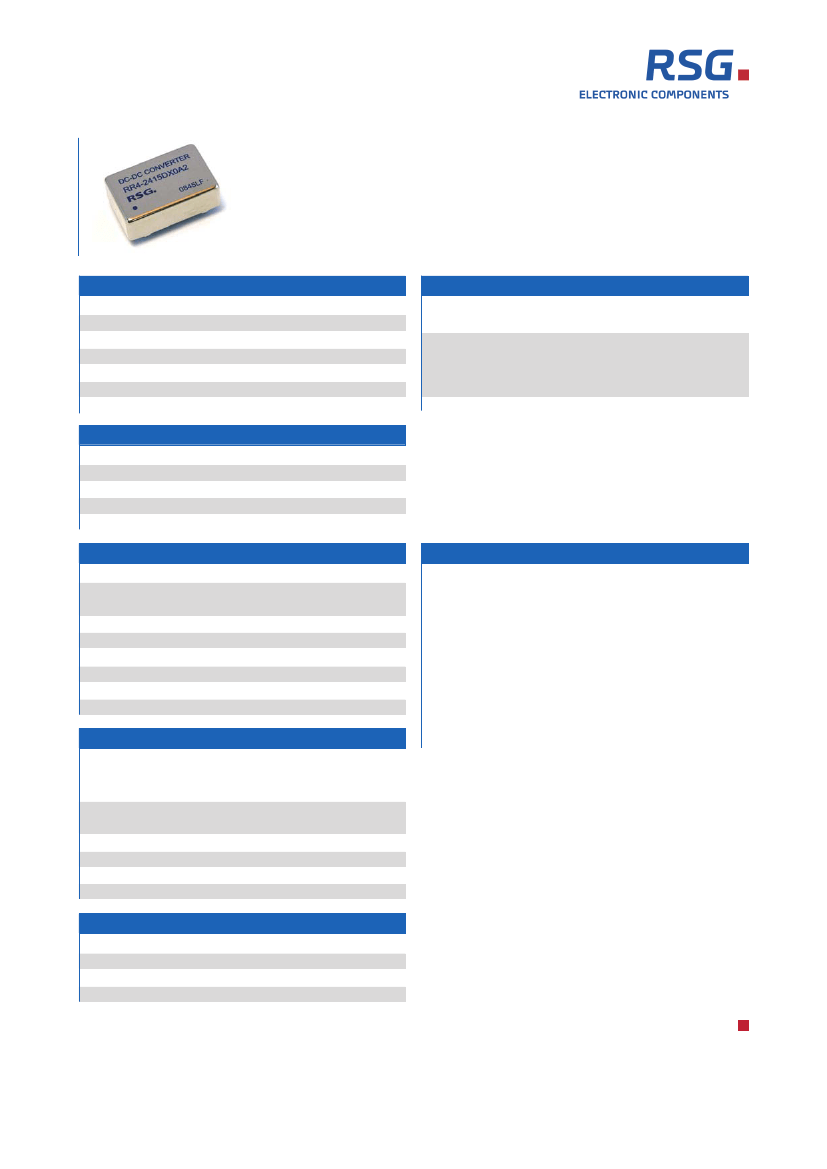

RR5-S03/D03
3.0 Watt 4:1 regulated
single & dual output
RR-series, DIL 24 package, metal version, pic. similar
DIP24 package, wide
4:1 input range
■
Full SMD technology
■
1500 VDC isolation up to 3500 VDC isolation
■
Continuous short circuit protection
■
Efficiency up to 80%
■
-25/-40°C~85°C operation temperature range
■
Optional metal case
■
OUTPUT SPECIFICATIONS
Voltage accuracy
Line regulation
Load regulation
Ripple & Noise
(20 MHz bandwith) (1)
Short circuit protection
Temperature coefficient
Capacitor load
(2)
± 1%
± 0.5%
± 0.5%
60 mV pk-pk
Continuous
± 0.02%/°C
See table
ABSOLUTE MAXIMUM RATINGS
(4)
These are stress ratings. Exposure of devices to any of these
conditions may adversely affect long-term reliability.
Input voltage (100 mS)
24 modes
-0.7 ~ 40 VDC
48 modes
-0.7 ~ 80 VDC
Lead soldering temperature
260°C
(1.5 mm from case 10 sec.)
INPUT SPECIFICATIONS
Voltage range
Max. input current
No-load input current
Input filter
Input reflected ripple current
See table
See table
See table
PI Type
35 mA pk-pk
All specifications typical at Ta = 25°C, nominal input voltage and full load
unless otherwise specified.
The information and specifications contained in this data sheet are believed
to be correct at time of publication. However, we accept no responsibility
for consequences arising from printing errors or inaccuracies.
Subject to change without notice.
(3)
GENERAL SPECIFICATIONS
Efficiency
See table
I/O isolation voltage
(3 sec.)
Input/Output 1500~3500 VDC
Metal case / input & output
1000 VDC
I/O isolation capacitance
60 pF typ.
I/O isolation resistance
1000 M Ohm
Switching frequency
100~400 kHz
Humidity
95% rel. H
Reliability calculated MTBF
(MIL-HDBK-217F)
> 2.199 Mhrs.
Safety standard
(designed to meet)
IEC 60950-1:2001
NOTE
1) Typical value at nominal input voltage and full load.
2) Tested by nominal Vin and constant resistor load.
3) Measured input reflected ripple current with a simulated
source inductance of 12uH.
4) Exceeding the absolute ratings of the unit could cause
damage. It is not allowed for continuous operating.
5) Operation under no-load conditions will not damage
these devices. However they may not meet all listed
specifications.
6) It´s necessary to add minimum capacitor in output for
some single models. Please ask for detail value.
PHYSICAL SPECIFICATIONS
Case material
Non-conductive black plastic
(UL94V-0 rated)
Nickel-coated copper
Non-conductive black plastic
(UL94V-0 rated)
Ø 0.5 mm brass solder-coated
Epoxy (UL94V-0 rated)
Metal 15 g, Plastic 12.5 g
1.25“ x 0.8“ x 0.4“
Base material
Pin material
Potting material
Weight
Dimensions
The models listed are just for standard type. If you need a
special specification product, please contact our service.
Phone: +49 69 984047-0, mail to: info@rsg-electronic.de
or use the forms on www.rsg-electronic.de („Kontakt“).
ENVIRONMENT SPECIFICATIONS
Operating temperature
(See derating curve)
-25/-40°C~ 85°C
Maximum case temperature
100°C
Storage temperature
-40°C~125°C
Cooling
Nature convection
Page: 1/4
Last update: 18.02.09
RR5-S03/D03
3.0 Watt 4:1 regulated
single & dual output
NUMBER STRUCTURE
RR5 - XX
Name/Package
RR5=DIL24

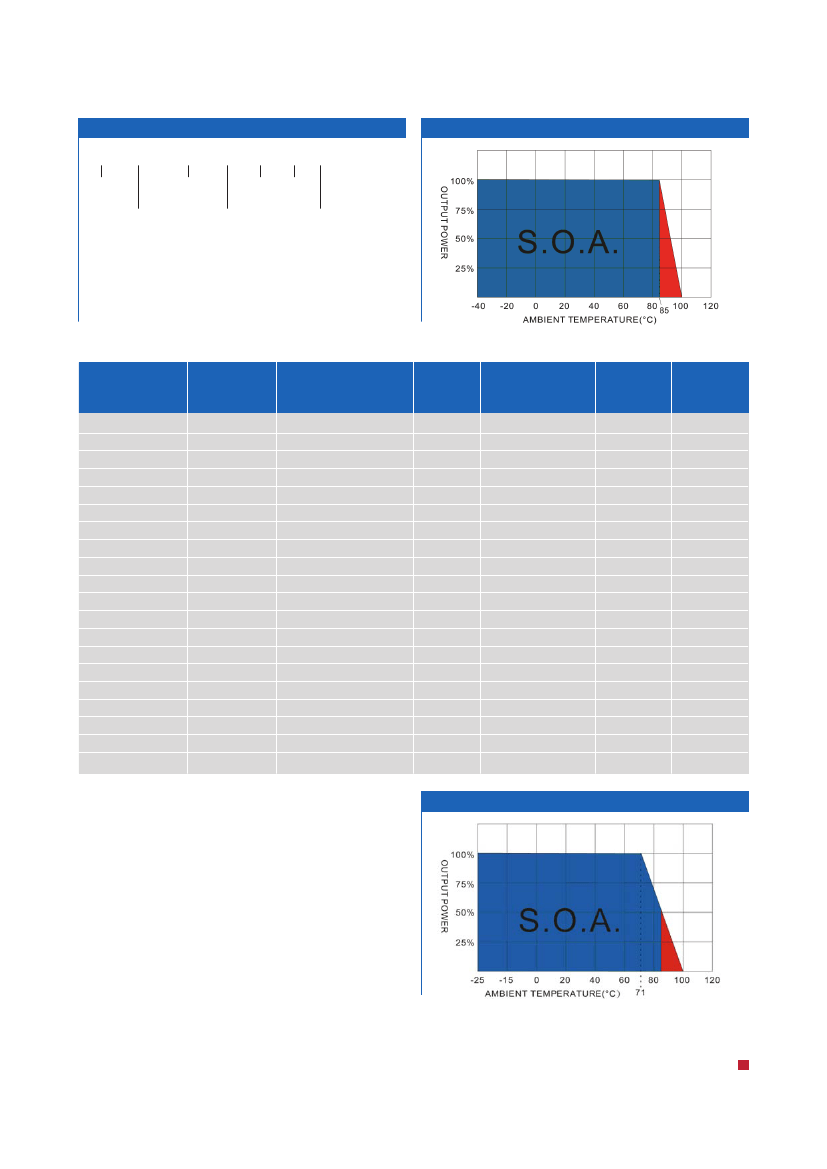

DERATING CURVE (J/K-Models)
03
A
1 (M-J/P/K)*
XX
S
Output
05=5V
09=9V
Input
12=12V
24=9~36V 15=15V
48=18~72V 24=24V
Power Code
03=3W internal
Type
S=Single
D=Dual
Isolation
1=1.5 kVDC
3=3.5 kVDC
* Standard version in plastic case. Add suffix „M“ for metal case!
Please see Pinout-versions page 3 and add suffix „J“, „P“ or „K“!
MODEL SELECTION GUIDE
Model Number
Input
Range
VDC
9-36
9-36
9-36
9-36
9-36
9-36
9-36
9-36
9-36
9-36
18-72
18-72
18-72
18-72
18-72
18-72
18-72
18-72
18-72
18-72
Input current
No Load /
Full Load (mA)
20 / 173
20 / 168
20 / 164
20 / 164
20 / 166
20 / 178
20 / 173
20 / 168
20 / 168
30 / 171
10 / 83
10 / 81
10 / 78
10 / 78
10 / 80
10 / 85
10 / 83
10 / 80
10 / 80
10 / 82
Output
VDC
5
9
12
15
24
±5
±9
±12
±15
±24
5
9
12
15
24
±5
±9
±12
±15
±24
Output current
Min. Load /
Full Load (mA)
200 / 600
111 / 333
83.3 / 250
66.7 / 200
41.7 / 125
±100 / ±300
±55.7 / ±167
±41.7 / ±125
±33.3 / ±100
±21 / ±63
200 / 600
111 / 333
83.3 / 250
66.7 / 200
41.7 / 125
±100 / ±300
±55.7 / ±167
±41.7 / ±125
±33.3 / ±100
±21 / ±63
Efficiency
@FL (%)
72
74
76
76
75
70
72
74
74
73
75
77
80
80
78
73
75
78
78
76
Capacitor
Load (HF)
2200
470
470
470
220
±1000
±220
±220
±220
±100
2200
470
470
470
220
±1000
±220
±220
±220
±100
RR5-2405S03AX
RR5-2409S03AX
RR5-2412S03AX
RR5-2415S03AX
RR5-2424S03AX
RR5-2405D03AX
RR5-2409D03AX
RR5-2412D03AX
RR5-2415D03AX
RR5-2424D03AX
RR5-4805S03AX
RR5-4809S03AX
RR5-4812S03AX
RR5-4815S03AX
RR5-4824S03AX
RR5-4805D03AX
RR5-4809D03AX
RR5-4812D03AX
RR5-4815D03AX
RR5-4824D03AX
Please attend:
Operation temperature range
-J series
and
-K series:
-40°C~ 85°C.
Operation temperature range
-P series:
-25°C~ 85°C
Also please attend the different deratings (here, page
2) and Pin-out versions (pages 3 and 4).
DERATING CURVE (P-Models)
Page: 2/4
Last update: 18.02.09
RR5-S03/D03
3.0 Watt 4:1 regulated
single & dual output

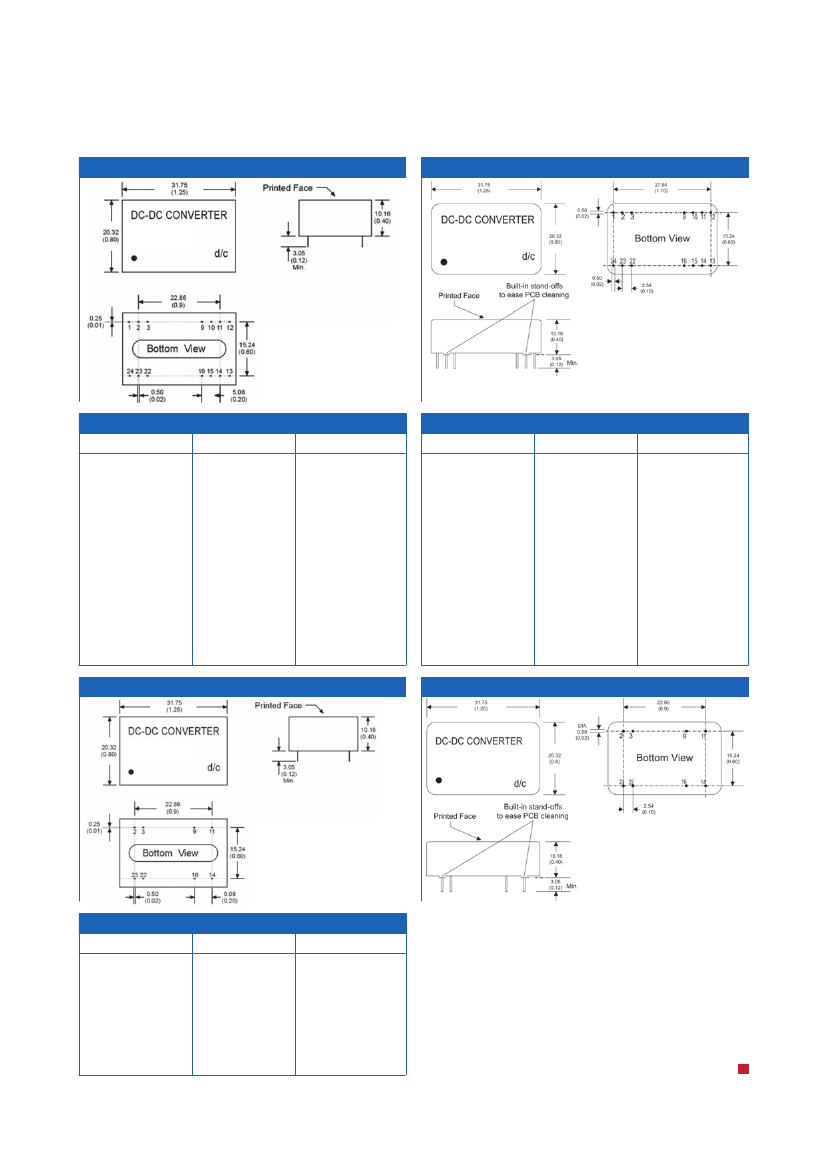

MECHANICAL SPECIFICATIONS (P-Models)
MECHANICAL SPECIFICATIONS (P-Models)
RSG
■
RR5-XXXXX03AX(P)
RSG
■
RR5-XXXXX03AX(MP)
DIL 24 package
Plastic case
„M“ - Metal case
DIL 24 package
Notes:
All dimensions are typical in mm (inches).
1) Pin diameter: 0.5 ± 0.05 (0.02 ± 0.002)
2) Pin pitch tolerance: ± 0.35 (± 0.014)
3) Case tolerance: ± 0.5 (± 0.02)
PIN CONNECTIONS (P-Models)
Pin Number
1
2
3
9
10
11
12
13
14
15
16
22
23
24
Single
+V Input
N.C.
N.C.
N.P.
-V Output
+V Output
-V Input
-V Input
+V Output
-V Output
N.P.
N.C.
N.C.
+V Input
Dual
+V Input
-V Output
Common
N.P.
Common
+V Output
-V Input
-V Input
+V Output
Common
N.P.
Common
-V Output
+V Input
PIN CONNECTIONS (P-Models High Isolation)
Pin Number
1
2
3
9
10
11
12
13
14
15
16
22
23
24
Single
N.P.
-V Input
-V Input
N.C.
N.P.
N.C.
N.P.
N.P.
+V Output
N.P.
-V Output
+V Input
+V Input
N.P.
Dual
N.P.
-V Input
-V Input
Common
N.P.
-V Output
N.P.
N.P.
+V Output
N.P.
Common
+V Input
+V Input
N.P.
MECHANICAL SPECIFICATIONS (K-Models)
MECHANICAL SPECIFICATIONS (K-Models)
RSG
■
RR5-XXXXX03AX(K)
RSG
■
RR5-XXXXX03AX(MK)
DIL 24 package
Plastic case
„M“ - Metal case
DIL 24 package
PIN CONNECTIONS (K-Models)
Pin Number
2
3
9
11
14
16
22
23
Single
-V Input
-V Input
N.P.
N.C.
+V Output
-V Output
+V Input
+V Input
Dual
-V Input
-V Input
Common
-V Output
+V Output
Common
+V Input
+V Input
Notes:
All dimensions are typical in mm (inches).
1) Pin diameter: 0.5 ± 0.05 (0.02 ± 0.002)
2) Pin pitch tolerance: ± 0.35 (± 0.014)
3) Case tolerance: ± 0.5 (± 0.02)
The Pin connections for High
Isolation „K“-Models are the same
as for normal ones!
Page: 3/4
Last update: 18.02.09
RR5-S03/D03
3.0 Watt 4:1 regulated
single & dual output

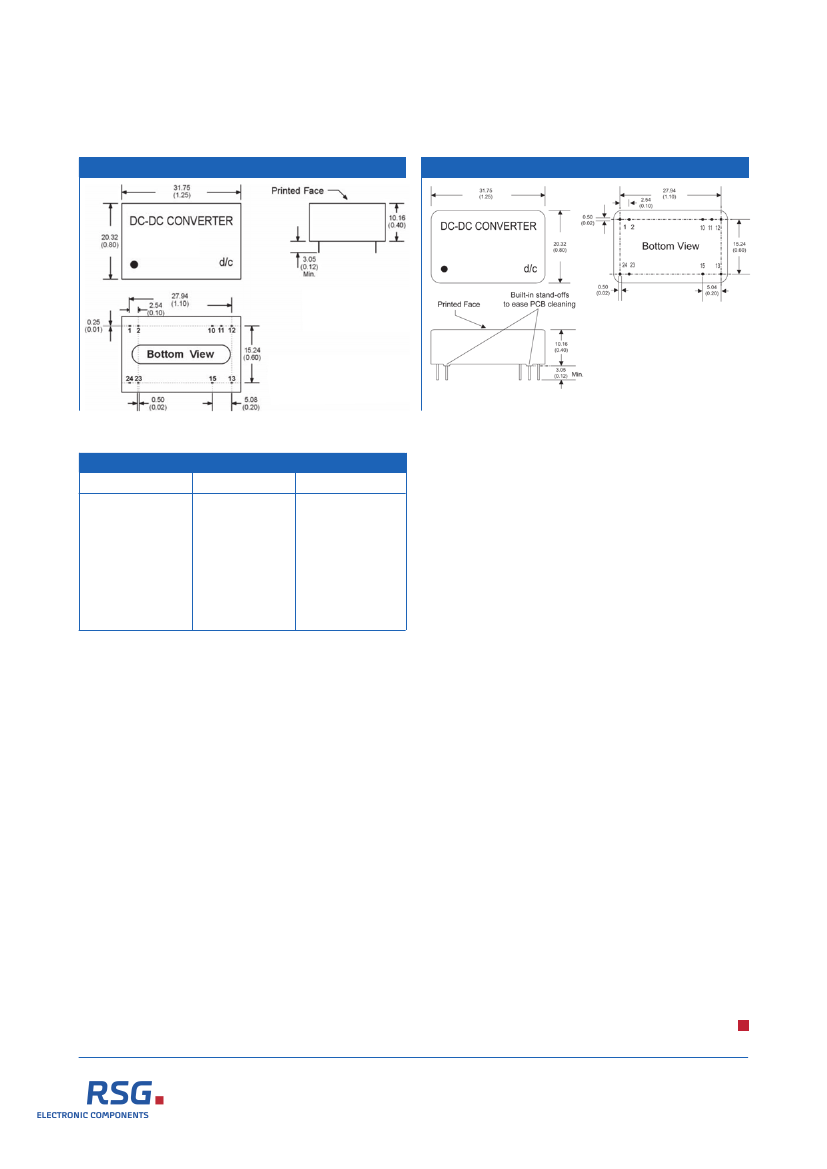

MECHANICAL SPECIFICATIONS (J-Models)
MECHANICAL SPECIFICATIONS (J-Models)
RSG
■
RR5-XXXXX03AX(J)
RSG
■
RR5-XXXXX03AX(MJ)
DIL 24 package
Plastic case
„M“- Metal case
DIL 24 package
PIN CONNECTIONS (J-Models)
Pin Number
1
2
10
11
12
13
15
23
24
Single
+V Input
+V Input
N.C.
N.C.
-V Output
+V Output
N.C.
-V Input
-V Input
Dual
+V Input
+V Input
Common
Common
N.C.
-V Output
+V Output
-V Input
-V Input
Notes:
All dimensions are typical in millimeters (inches).
1) Pin diameter: 0.5 ± 0.05 (0.02 ± 0.002)
2) Pin pitch tolerance: ± 0.35 (± 0.014)
3) Case tolerance: ± 0.5 (± 0.02)
The Pin connections for High Isolation „J“-Models are
the same as for normal ones!
Page: 4/4
Last update: 18.02.09
