RV1-S10/D10
10 Watt regulated
single & dual output
2"x1"
package,
wide
2:1 input range
Full SMD technology
■
1500 VDC isolation
■
Continuous short circuit protection
■
Efficiency up to 86%
■
-40°C~85°C operation temperature range
■
EMI complies with EN55022 class A
■
■
OUTPUT SPECIFICATIONS
Voltage accuracy
± 1%
Line regulation
± 0.5%
Load regulation
(From 10% to 100% Load)
± 0.5%
Ripple & Noise
(20 MHz bandwith) (1)
100 mV pk-pk
Over current protection
(of max. Io)
140%
Short circuit protection
Indefinite (automatic recovery)
Temperature coefficient
± 0.02%/°C
Capacitor load
(2)
See table
ABSOLUTE MAXIMUM RATINGS
(4)
These are stress ratings. Exposure of devices to any of these
conditions may adversely affect long-term reliability.
Input voltage (100 mS)
12 modes
-0.7 ~ 24 VDC
24 modes
-0.7 ~ 40 VDC
48 modes
-0.7 ~ 80 VDC
Lead soldering temperature
260°C
(1.5 mm from case 10 sec.)
INPUT SPECIFICATIONS
Voltage range
Start up time
(nom. Vin and constant resistive load)
Max. input current
No-load input current
Input filter
Input reflected ripple current
(3)
See table
20ms typ
See table
See table
Capacitors
35 mA pk-pk
All specifications typical at Ta = 25°C, nominal input voltage and full load
unless otherwise specified.
The information and specifications contained in this data sheet are believed
to be correct at time of publication. However, we accept no responsibility
for consequences arising from printing errors or inaccuracies.
Subject to change without notice.
NOTE
1) Ripple / Noise measured with 20 MHz bandwith.
2) Tested by minimal Vin and constant resistive load.

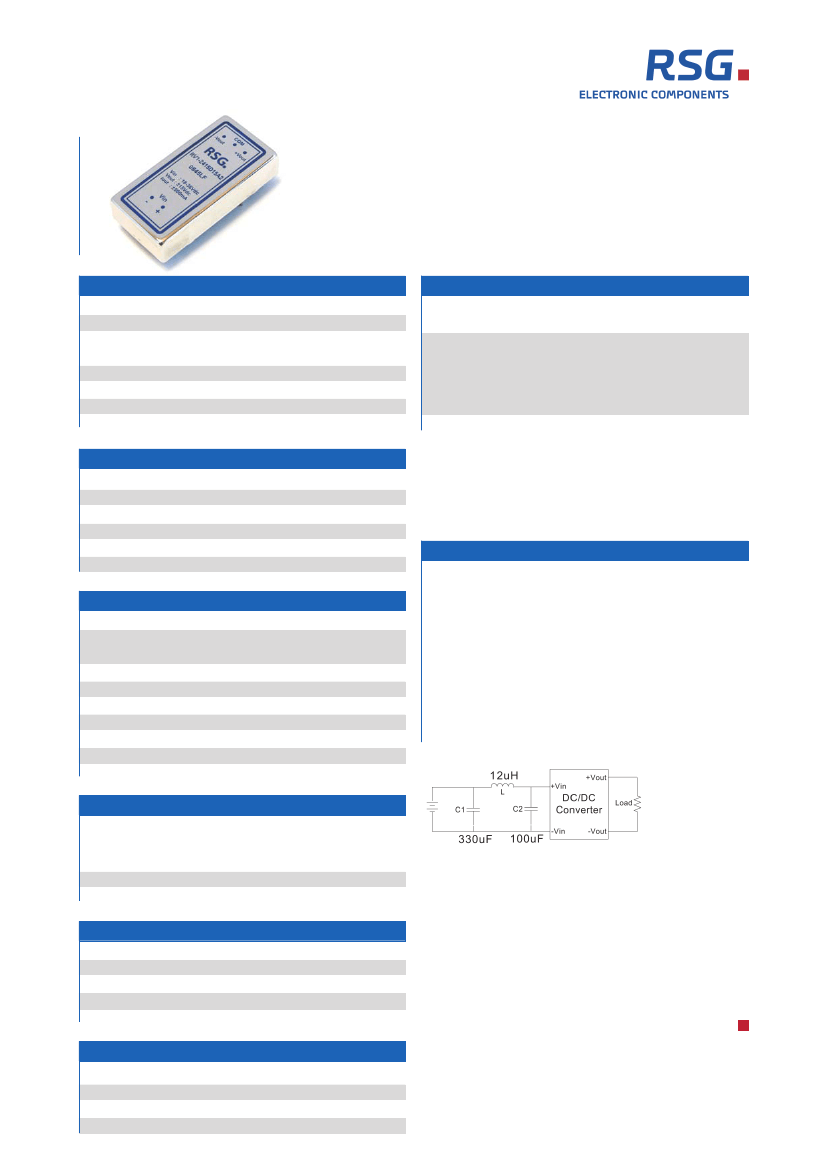

3) Measured input reflected ripple current with a simulated
source inductance of 12uH.
4) Exceeding the absolute ratings of the unit could cause
damage. It is not allowed for continuous operating.
5) Operation under no-load conditions will not damage
these devices. However they may not meet all listed
specifications.
6) Add external input filters to meet conducted emissions
(EN55022 class A)
GENERAL SPECIFICATIONS
Efficiency
See table
I/O isolation voltage
(3 sec.)
Input / output
1500 VDC
Metal case / input & output
1000 VDC
I/O isolation capacitance
500 pF typ.
I/O isolation resistance
1000 M Ohm
Switching frequency
typ. 200 kHz
Humidity
95% rel. H
Reliability calculated MTBF
(MIL-HDBK-217F)
> 1.121 Mhrs.
Safety standard
(designed to meet)
IEC 60950-1:2001
EMC CHARACTERISTICS
Radiated Emissions
EN55022
FCC 47 CFR
Part 15
Subpart B
EN61000-4-2
EN61000-4-3
Class A
Class A
Perf. crit. B
Perf. crit. A
ESD
RS
The models listed are just for standard type. If you need a
special specification product, please contact our service.
Phone: +49 69 984047-0, mail to: info@rsg-electronic.de
or use the forms on www.rsg-electronic.de („Kontakt“).
PHYSICAL SPECIFICATIONS
Case material
Pin material
Potting material
Weight
Dimensions
Nickel-coated brass
Ø 1.0 mm brass solder-coated
Epoxy (UL94V-0 rated)
30 g
2“x1“x 0.4“
Page: 1/4
Last update: 12.02.09
ENVIRONMENT SPECIFICATIONS
Operating temperature
Maximum case temperature
Storage temperature
Cooling
-40°C~ 85°C
(See derating curve)
100°C
-40°C~125°C
Nature convection
RV1-S10/D10
10 Watt regulated
single & dual output

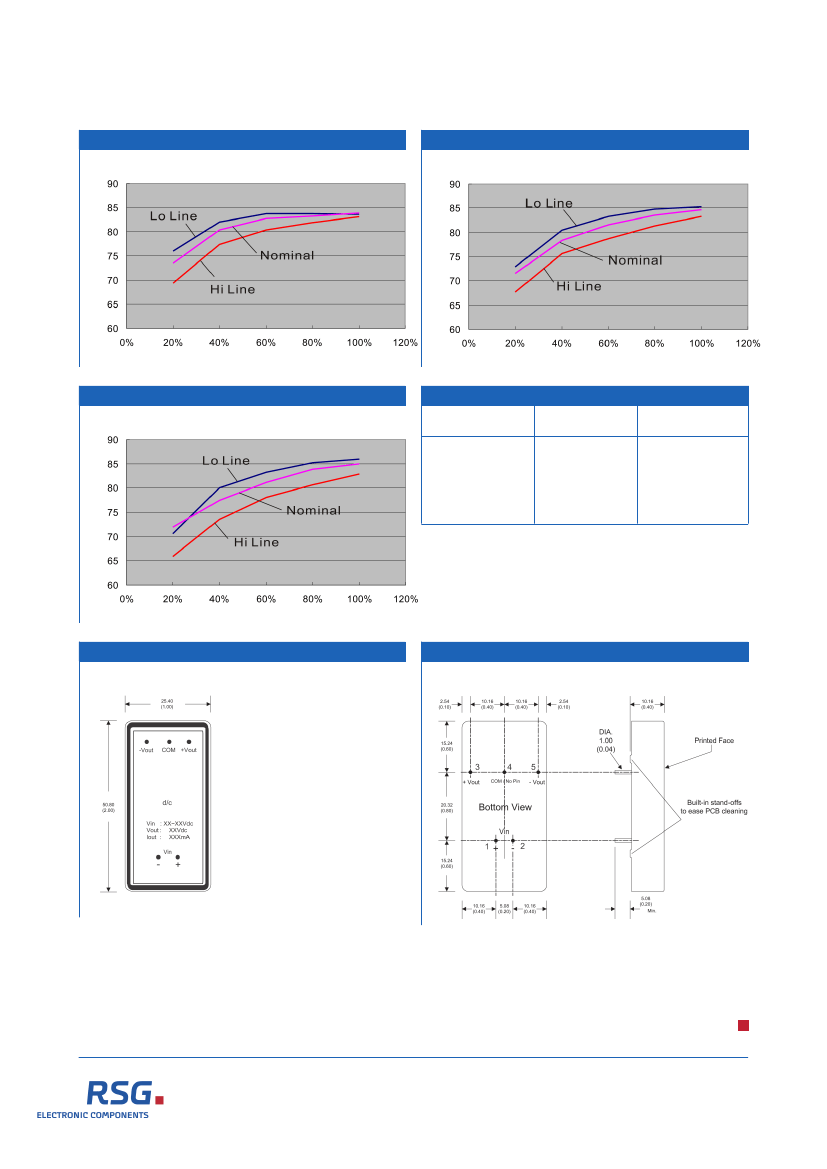

EFFICIENCY VS OUTPUT CURRENT
12 MODELS
EFFICIENCY VS OUTPUT CURRENT
24 MODELS
Efficiency (%)
Load
Efficiency (%)
Load
EFFICIENCY VS OUTPUT CURRENT
12 MODELS
PIN CONNECTIONS
Pin Number
1
2
3
4
5
Single
+V Input
-V Input
+V Output
N.P.
-V Output
Dual
+V Input
-V Input
+V Output
Common
-V Output
Efficiency (%)
Load
DIMENSIONS
MECHANICAL SPECIFICATIONS
RSG
■
RV1-XXXXX10A1
Notes:
All dimensions are typical
in millimeters (inches).
1) Pin diameter: 1.0 ± 0.05 (0.04 ± 0.002)
2) Pin pitch tolerance: ± 0.35 (± 0.014)
3) Case tolerance: ± 0.5 (± 0.02)
Page: 4/4
Last update: 12.02.09
RSG Electronic Components GmbH
Sprendlinger Landstr. 115
D-63069 Offenbach
Tel. +49 69 984047-0
Fax +49 69 984047-77
mail: info@rsg-electronic.de
www.rsg-electronic.de
