3 WATTS REGULATED OUTPUT POWER
•
4:1 WIDE INPUT VOLTAGE RANGE
•
UL60950-1, EN60950-1 AND IEC60950-1 LICENSED
•
FIVE-SIDED SHIELD
•
HIGH EFFICIENCY UP TO 78%
•
STANDARD 24 PIN DIP PACKAGE & SMD TYPE PACKAGE
•
OVER CURRENT PROTECTION
APPLICATIONS
Wireless Network
Telecom/Datacom
Industry Control System
Measurement Equipment
Semiconductor Equipment

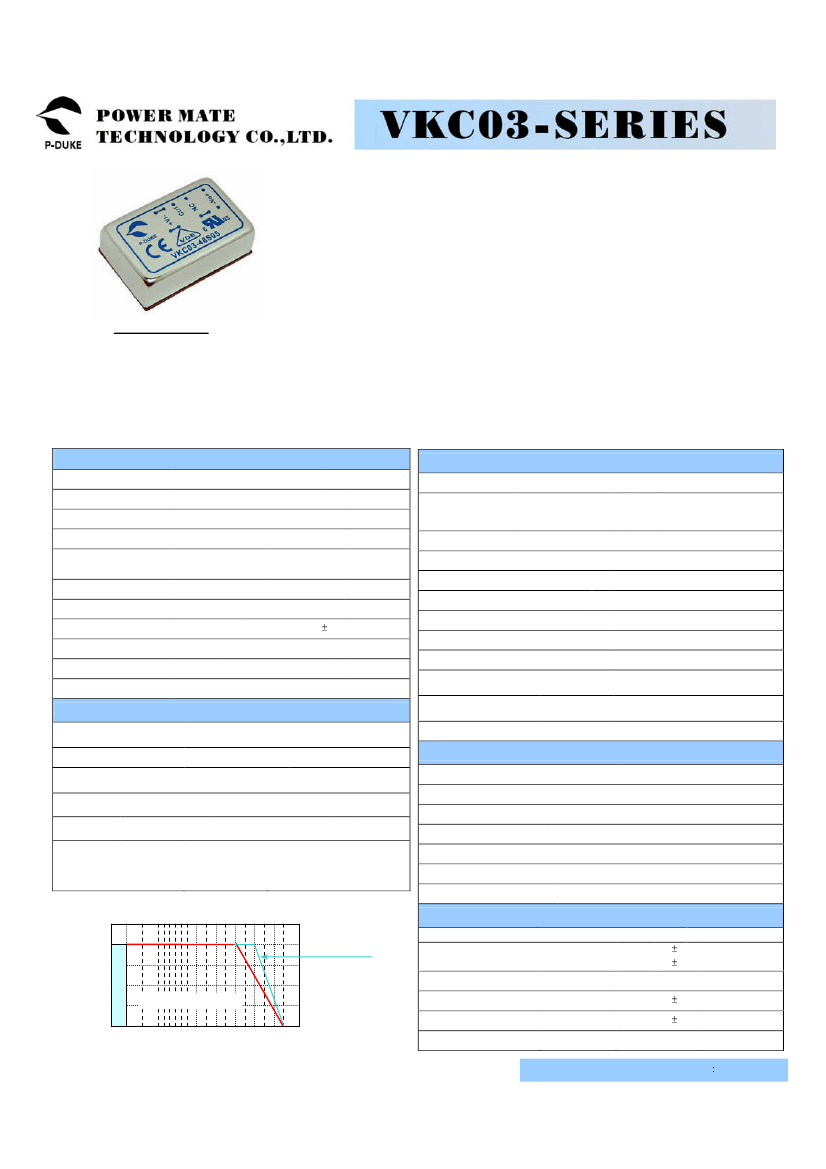

The VKC03 offers 3
watts of output power from a package in an IC compatible 24pin DIP
configuration. VKC03 series have 4:1 wide input voltage of 9~36 and 18~75VDC. The
VKC03
features 1600VDC of isolation, short-circuit protection and as well as five sided
shielding. All models are particularly suited to telecommunications, industrial, mobile
telecom and test equipment applications.
T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
Output power
Voltage accuracy
Minimum load (Note 1)
Line regulation
All specifications are typical at nominal input, full load and 25ºC otherwise noted
GENERAL SPECIFICATIONS
3 Watts, max. Efficiency
± 1%
10% of FL
Isolation voltage
Input to Output
Input(Output) to Case
See table
1600VDC, min. 1minute
DIP 1600VDC, min.
1minute
SMD 1000VDC, min. 1minute
LL to HL at Full Load
25% to 100% FL
Single
Dual
± 0.2% Isolation resistance
10 ohms, min.
300pF,
max.
300KHz±10%
IEC60950-1, UL60950-1, EN60950-1
Nickel-coated
copper
Non-conductive
black plastic
Epoxy (UL94-V0)
1.25 X 0.80 X 0.40 Inch
(31.8 X 20.3 X 10.2 mm)
16g (0.55oz)
18g (0.62oz)
9
± 0.2% Isolation capacitance
± 1%
Switching frequency
Cross regulation
Asymmetrical load 25% / 100% FL
± 5%
Approvals and standard
Ripple and noise
20MHz bandwidth
50mVp-p
Case material
0.02% / ºC, max.
Temperature coefficient
Base material
Transient response recovery time 25% load step change
200µS
Potting material
Over load protection
% of FL at nominal input
180%
Dimensions
Short circuit protection
Continuous, automatics recovery
Load regulation
INPUT SPECIFICATIONS
Input voltage range
Input filter
Input surge voltage
24VDC input
48VDC input
24VDC nominal input (Note 2)
48VDC nominal input
50VDC 100mS, max. Operating ambient temperature
-25ºC ~ +85ºC (with derating)
100VDC 100mS, max.
Operating case temperature
100ºC
Input reflected ripple (Note 3)
20mAp-p
Storage temperature range
-55ºC ~ +105ºC
Start up time
Nominal input and constant resistor load
350mS
Thermal impedance
Nature convection
20ºC/Watt
Remote ON/OFF (Note 4)
Thermal shock
MIL-STD-810F
(Positive logic)
DC-DC ON
Open or 3.5V < Vr < 12V
DC-DC OFF
Short or 0V < Vr < 1.2V
Vibration
MIL-STD-810F
Remote off input current Nominal input
2.5mA
Relative humidity
5% to 95% RH
OUTPUT POWER
(%)
VKC03-48S05
Derating Curve
100
M! Version
50
25
Radiated immunity
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
VER:06 Page 1 of 2
10 V/m Perf. Criteria
A
2KV
Perf. Criteria
B
1KV
Perf. Criteria
B
±
Nature convection
50 60 70 80 90 100
Fast transient
Surge
Conducted immunity
0
-40 -25 -10 0
AMBIENT TEMPERATURE (ºC)
10 Vr.m.s Perf. Criteria
A
Issued Date 2011/12/23
：
±
75
ESD
EN61000-4-2
±
M1 Version
±
±
Weight
9 ~ 36VDC MTBF (Note 5)
18 ~ 75VDC
Pi type
ENVIRONMENTAL
DIP
SMD
2.941 x 10
6
hrs
SPECIFICATIONS
EMC CHARACTERISTICS
EMI
EN55022
Air
Contact
Class
A
8KV
6KV
Perf. Criteria
B
Model
Number
VKC03-24S05
VKC03-24S12
VKC03-24S15
VKC03-24D05
VKC03-24D12
VKC03-24D15
VKC03-48S05
VKC03-48S12
VKC03-48S15
VKC03-48D05
VKC03-48D12
VKC03-48D15
Input
Range
9 ~ 36 VDC
9 ~ 36 VDC
9 ~ 36 VDC
9 ~ 36 VDC
9 ~ 36 VDC
9 ~ 36 VDC
18 ~ 75 VDC
18 ~ 75 VDC
18 ~ 75 VDC
18 ~ 75 VDC
18 ~ 75 VDC
18 ~ 75 VDC
Output
Voltage
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
Output
Current
500mA
250mA
200mA
± 250mA
± 125mA
± 100mA
500mA
250mA
200mA
± 250mA
± 125mA
± 100mA
Input
(7)
Current
147mA
169mA
169mA
149mA
172mA
172mA
74mA
85mA
86mA
75mA
86mA
85mA
Eff
(%)
75
78
78
74
77
77
75
78
77
74
77
78
(8)
Capacitor
Load max
1000uF
170uF
110uF
± 550uF
± 96uF
± 47uF
1000uF
170uF
110uF
± 550uF
± 96uF
± 47uF
(9)
Note
The VKC03 series required a minimum 10% loading on the output to maintain specified regulation. Operation under no-load
condition will not damage
these devices, however they may not meet all listed specification.
2. Start up voltage 10 Vdc.
3. Please add an external filter at converter input terminals when measuring input reflected , figure 1.
L: Simulated source impedance of 12uH. C: Nippon chemi-con KMF series 47uF/100V.
4. The ON/OFF control pin voltage is referenced to –INPUT.
5. BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40ºC. (Ground fixed and controlled environment)
6. M1 version is more efficiency; therefore, it can be operated in a more extensive temperature range than standard.
7. Maximum value at nominal input voltage and full load of standard type.
8. Typical value at nominal input voltage and full load
9. Test by minimum input and constant resistor load.
CAUTION:
This power module is not internally fused. An input line fuse must always be used.
：
1.

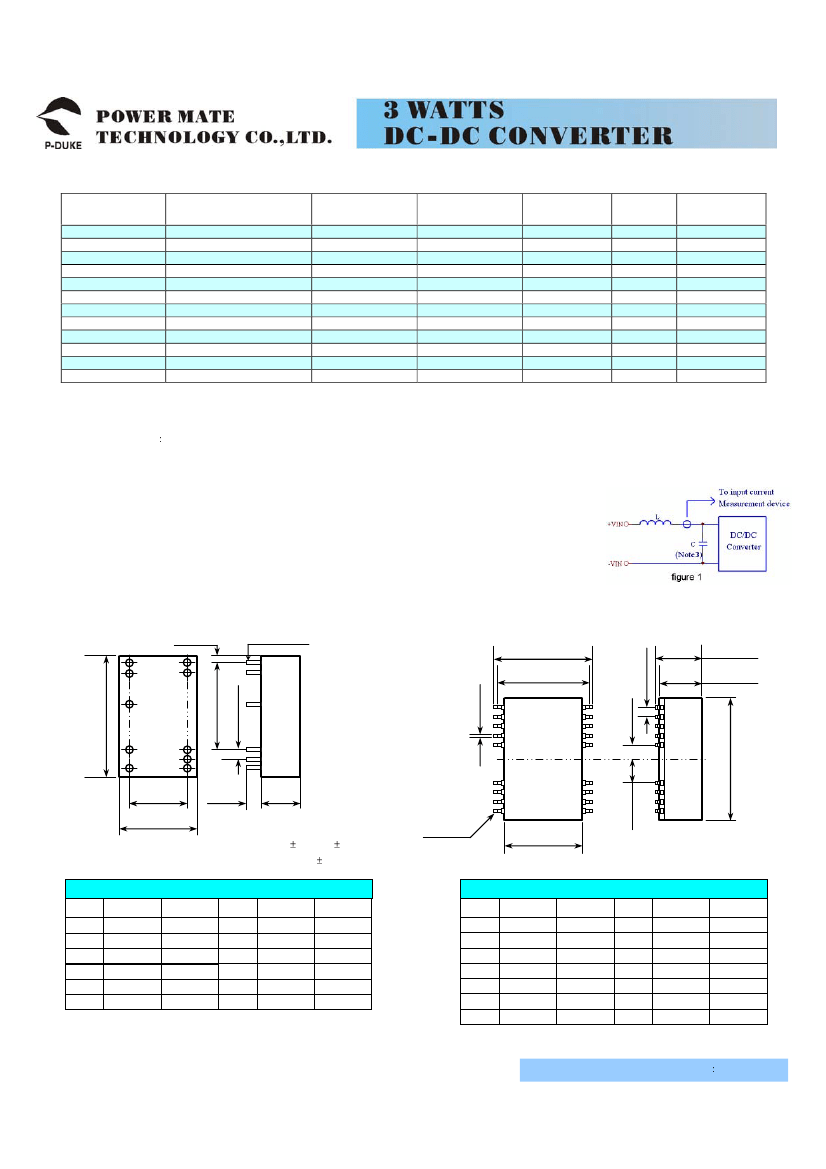

Mechanical Drawing:
0.08(2.0)
Pin size is 0.02(0.5) Dia or
0.01 x 0.02 (0.25 x 0.50) Rectangular Pin
1.00(25.4)
Suffix-SMD
0.10 (2.54)
0.44(11.2)
0.43(10.9)
24
23
1.25 (31.8)
1
2
0.90 (22.9)
0.02(0.5)
0.92(23.4)
0.10 (2.5)
15
13
10
11
12
0.15
(3.8)
0.40
(10.2)
Pin Area
0.04 x 0.02
(1.0 x 0.5)
20
BOTTOM
VIEW
5
9
16
0.80(20.3)
13
12
0.80(20.3)
1. All dimensions in Inch (mm)
Tolerance x.xx 0.02(x.x 0.05)
2. Pin pitch tolerance 0.014(0.35)
±
±
DIP PIN CONNECTION
PIN
1
2
10
11
12
SINGLE
+ INPUT
+ INPUT
DUAL
+ INPUT
+ INPUT
PIN
24
23
20
15
13
SINGLE
- INPUT
- INPUT
CTRL
NC
DUAL
- INPUT
- INPUT
CTRL
+ OUTPUT
SMD PIN CONNECTION
PIN
1
2
SINGLE
+ INPUT
+ INPUT
DUAL
+ INPUT
+ INPUT
PIN
24
23
20
15
SINGLE
- INPUT
- INPUT
CTRL
NC
DUAL
- INPUT
- INPUT
NC
COMMON
NC
COMMON
- OUTPUT
NC
+ OUTPUT - OUTPUT
CTRL
10
NC
+ OUTPUT
COMMON
11
NC
COMMON
12 - OUTPUT
NC
13 + OUTPUT - OUTPUT
Others
NC
NC
Others
NC
NC
：
VER:06 Page 2 of 2
