294257: Description0,8 DRC-Q, F 50 polig; File Size95KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

294257 Overview

0,8 DRC-Q, F 50 polig

Preview

Download Datasheet

View All

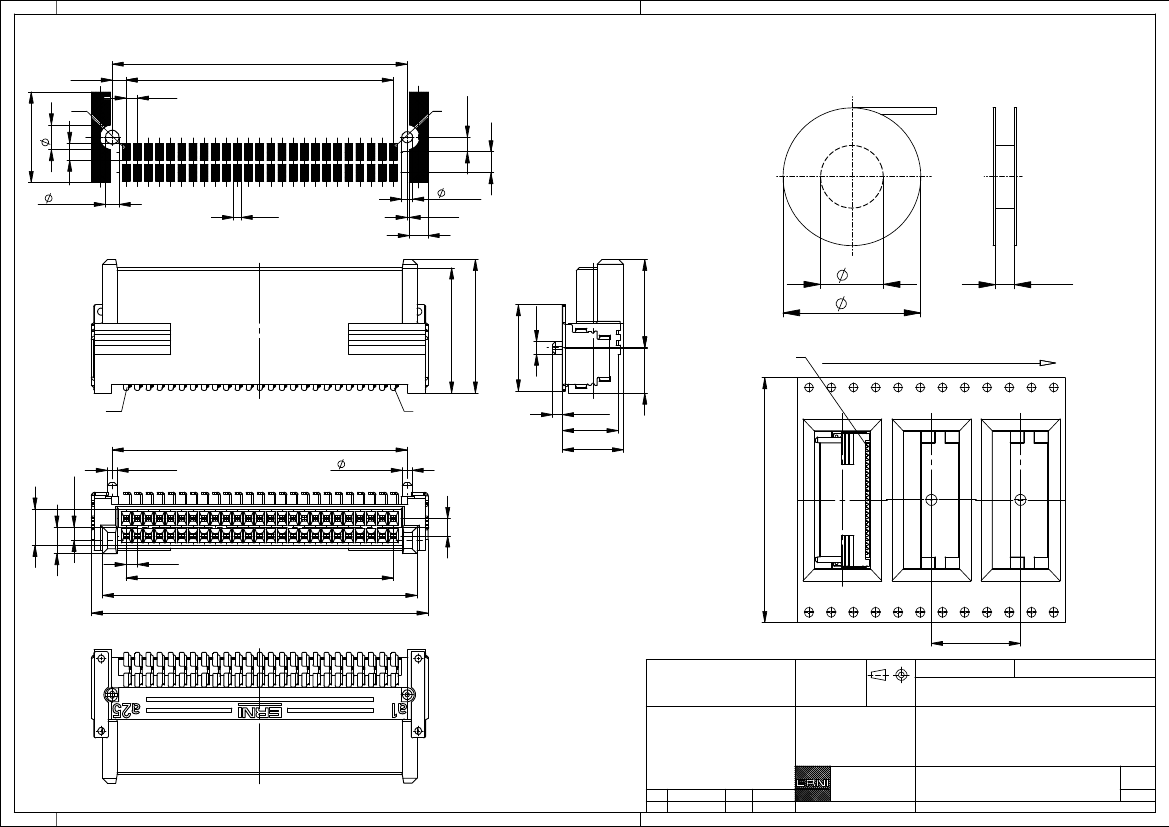

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

21,2

±0,03

0,8

a25

1,8

6,5

24 x 0,8 = 19,2

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 650 Stück -

Packaging unit: 650 pcs

1,05

0,8

-0,03

1,5

-0,03

0,55

1,35

1,2

0,15

150

9,6

0,9

44,5

330

6,2

6,35

Abspulrichtung -

Reel off Direction

b25

0,7

-0,05

4,4

21,2

±0,03

0,7

-0,03

0,95

0,7

-0,03

Performance Level 2

1,25

2,6

1,9

Kontaktbereich vergoldet

0,8

24 x 0,8 = 19,2

22,6

24,2

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

Information:

Tolerances

All Dimensions

in mm

Anforderungsstufe 2

3,25

Proprietary notice pursuant to ISO 16016 to be observed.

Scale

5:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

24.09.2012

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

0,8 DRC-Q, F 50 polig

0,8 DRC-Q, F 50 pin

www.ERNI.com

Class

294257

DRCQ
