354182: Description50 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER AND SMT; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

354182 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354182	-	-	View	Buy Now

354182 Overview

50 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER AND SMT

354182 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER AND SURFACE MOUNT
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

28,95

8,95

Ansaughaube

6,75

4,6

Verpackt im Gurt nach DIN IEC 60286-3

Verpackungseinheit: 400 Stück

1,62

hood

Tape on Reel Packaging according to DIN IEC 60286-3

Packaging unit: 400 pcs

7,62

2,9

4,8

0,65

0,5

26

0,6

0,8

0,15

4,125

330

1,2

6,42

b25

27,55

b1

Abspulrichtung -

Reel off Direction

a1

16

4,475

2,25

a25

1

24 x 1 = 24

25,45

a1

1,5

Leiterplatten-Layout Vorschlag /

PCB-layout proposal

26

±0,03

1

3

1)

0,9

±0,03

8 x 3 = 24

0,6

±0,05

1)

0,7

±0,03

Anforderungsstufe 1

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

4,5

1,5

Coplanarity Area of Termination

≤

0,1 mm

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

0,7

56

Information:

Tolerances

All Dimensions

in mm

Scale

5:1

1

0,5

24 x 1 = 24

1) Durchmesser des Bohrers /

drill tool

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

f

Index

28.01.2014

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

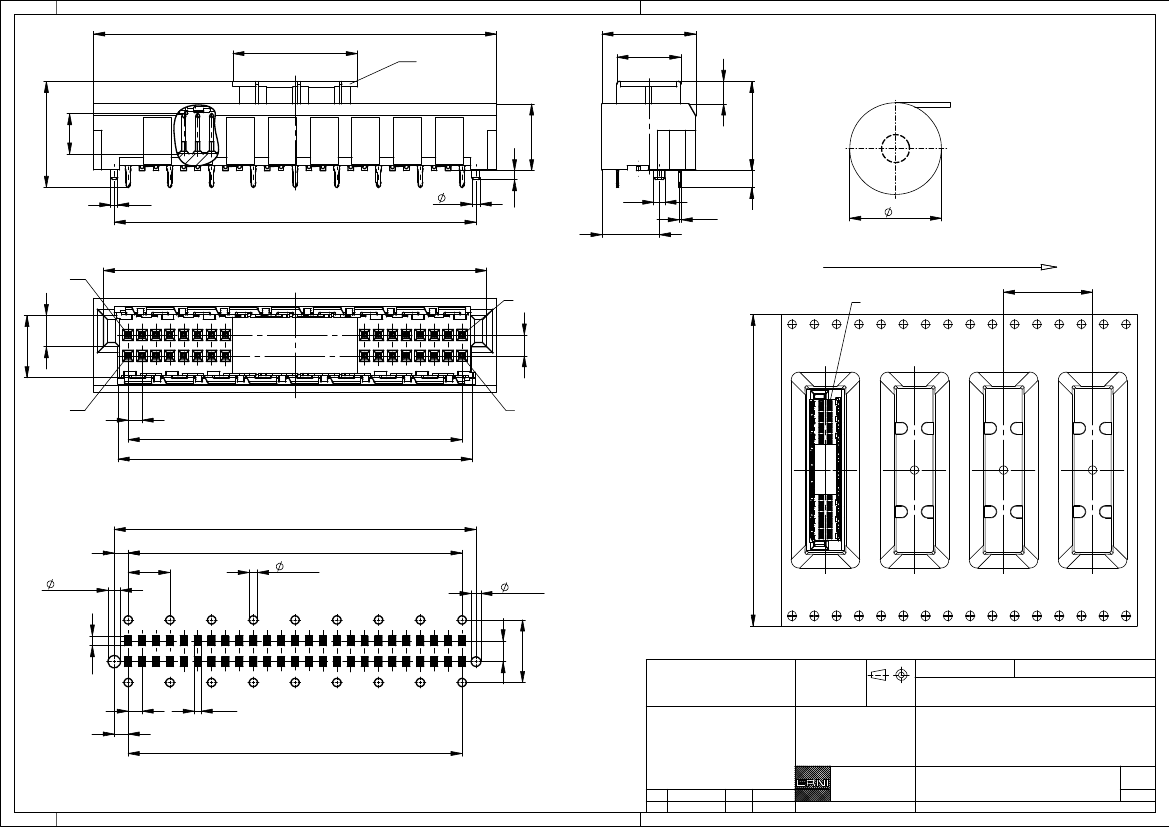

M01 MSpeed Blind Mate 50 THR

www.ERNI.com

Class

354182

MSPEED

I

A3
