645003117322: Description3.96mm Male Right Angled Locking Header WR-WTB; CategoryThe connector The connector; File Size520KB，4 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

645003117322 Overview

3.96mm Male Right Angled Locking Header WR-WTB

645003117322 Parametric

Parameter Name	Attribute value
Brand Name	Wurth Electronik
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.402 inch
subject depth	0.588 inch
body length	0.472 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	645
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: NYLON 66

FLAMABILITY RATING: UL94-V2

COLOR: TRANSPARENT WHITE

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: TIN

QUALITY CLASS: 25 MATING CYCLES

PITCH: 3.96MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 105 °C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 7 A

WORKING VOLTAGE: 250 VAC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 1500 VAC/MN

CONTACT RESISTANCE: 20 mOHM MAX

STANDARD

CERTIFIED: E323964

+0.20

-0.50

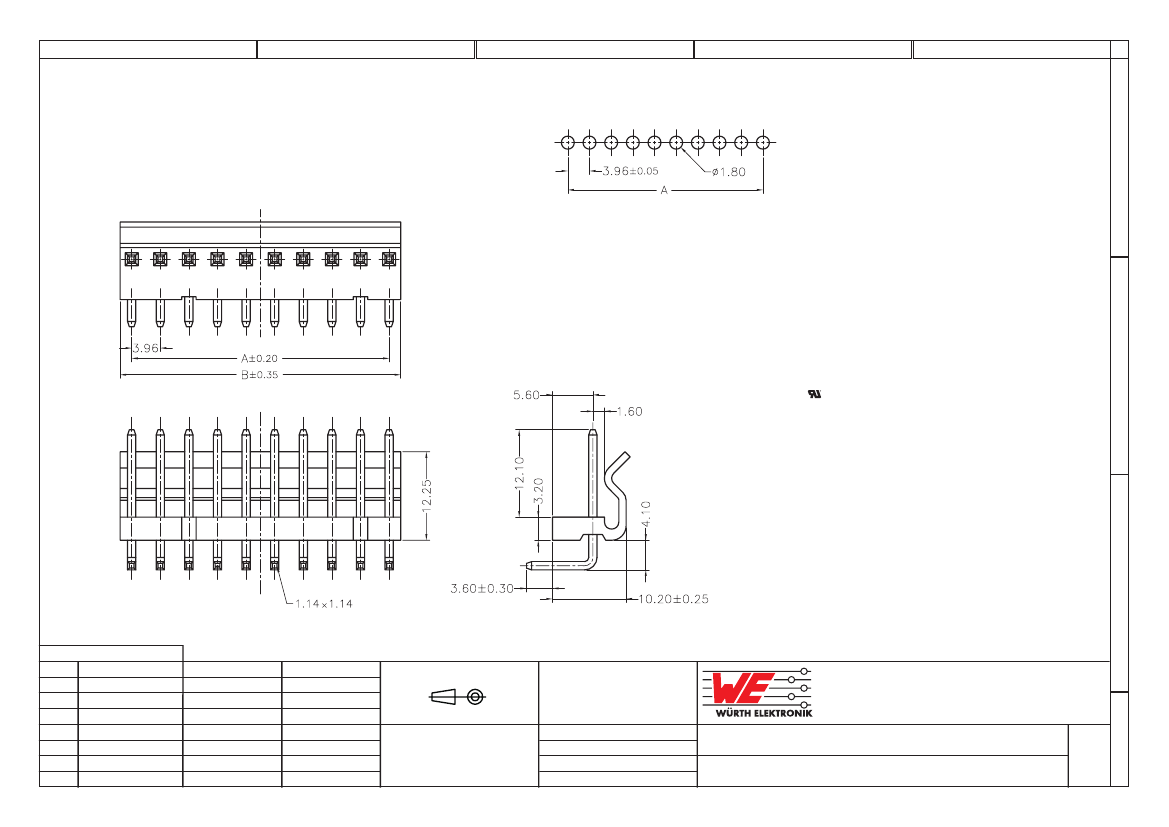

PCB LAYOUT - COMPONENT VIEW

SOLDERING

JEDEC LEAD FREE WAVE SOLDERING PROCESS

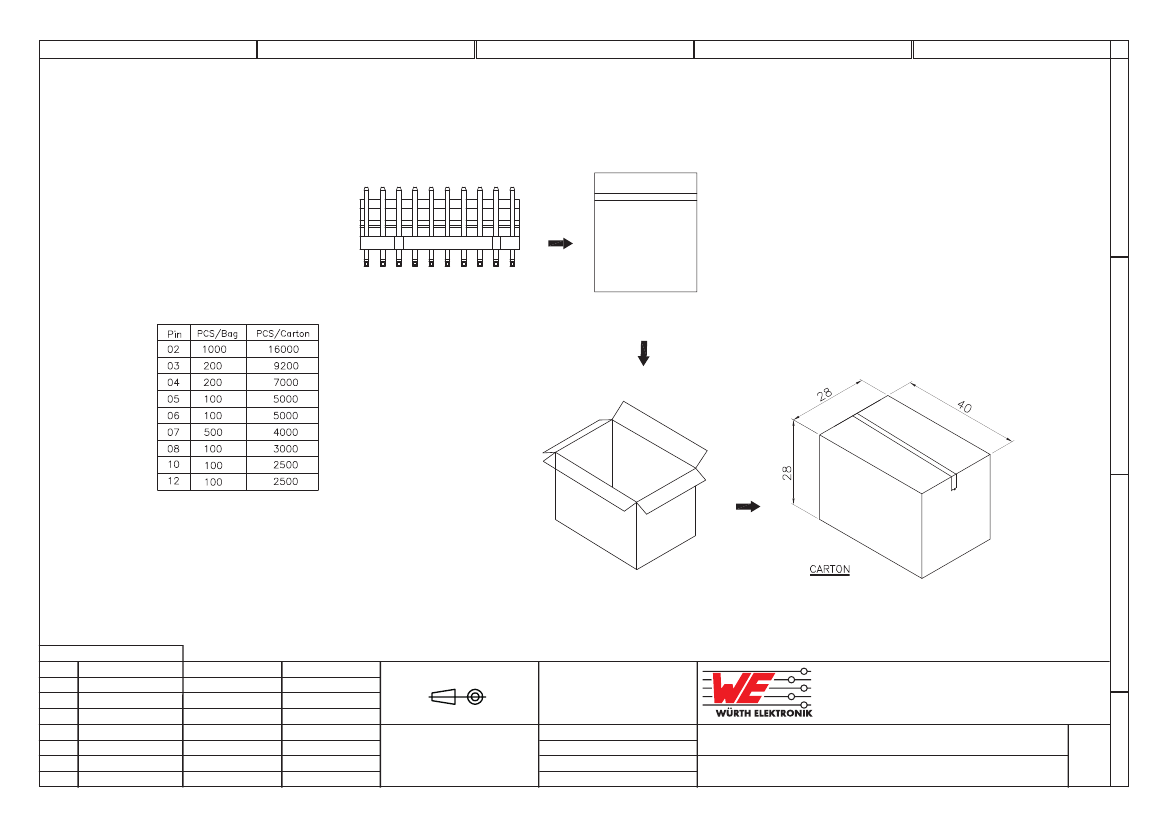

PACKAGING

BAG

DIMENSION

A = 3.96 x (NB. PIN - 1)

B = 3.96 x (NB PIN)

RoHS Compliant

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

APPROVAL: BBu

UNIT: MM

SCALE:

SHEET: 1/2

DRAW: AK

WERI PART NO: 645 0xx 117 322

DESCRIPTION: 3.96 MM MALE RIGHT ANGLED LOCKING HEADER

SIZE

REV

09-SEP-18

04-JUN-18

04-AUG-15

06-AUG-13

DATE

COTE

TPK

UPDATE

MODEL N°

FILE

Cleaning and Washing:

Cautions and Warnings:

The following conditions apply to all goods within the product services of the

Connectors of Würth Elektronik eiSos GmbH & Co. KG:

General:

• This electronic component is designed and developed with the intention for use in general electronics equipment.

• Before incorporating the components into any equipment in the ﬁeld such as military, aerospace, aviation, nuclear control,

submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster

prevention, medical, public information

network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury

to human body, Würth Elektronik must be asked for a written approval.

• In addition, even electronic component in general electronic equipment, when used in electrical circuits that require

high safety, reliability functions or performance, the sufﬁcient reliability evaluation-check for the safety must be

performed by the user before usage.

• The connector is designed and manufactured to be used within the datasheet speciﬁed values.

• Do not use the connector outside the datasheet speciﬁcations.

• Prevent any damage or scratches on the connector, especially on the actuator.

• Direct mechanical impact to the product shall be prevented (e.g overlapping of the PCB´s).

• The responsibility for the applicability of the customer speciﬁc products and use in a particular customer design is

always within the authority of the customer. All technical speciﬁcation for standard products do also apply to customer

speciﬁc products.

• Würth Elektronik products are qualiﬁed according to international standards which are listed into each product

reliability report.

All products characteristics are therefore given according to results obtained throughout these detailed tests protocols.

May any product characteristic be qualiﬁed by the customer, out of given Würth Elektronik speciﬁcations, Würth Elektronik

cannot insure its validity and sustainability over time.

• The Connectors are designed to be used along with Würth Elektronik counterparts and tools. Würth Elektronik cannot

insure the reliability of these components while being used with other products.

• Parts are not constructed for washing, so washing can cause malfunction afterwards.

• Cleaning agent that are used to clean the customer applications might damage or change the characteristics of

the component, body, pins and termination.

• Please do not submerse our washable products into water or cleaning agents or put them in locations exposed to

water completely.

• When cleaning by hand (brushing), please do not use excessive force on our connectors to avoid malfunction

afterwards, because customer could deform function relevant areas.

• We recommended a solution without organic acid (preserve the plating against corrosion) volatile, without residues

and compatible with the plastic.

• We recommend to perform tests and to let a part in immersion in the solution 8 to 12 hours and see if there is

a degradation.

Storage Conditions:

• The Connectors are considered MSL1 into closed original packaging and are not subject to storage time limits

regarding the moisture sensivity but all products shall be used before the end of the period of 12 months based

on the products date code, if not 100% solderability can’t be warranted.

Handling:

• Do not repeatedly operate the connector with excessive force. It may damage or deforms the contact dome which

results in malfunction.

• In the case a product requires particular handling precautions, in addition to the general recommendations

mentioned here before, these will appear on the product datasheet.

Product Speciﬁc:

Soldering:

• The solder proﬁle must comply with the Würth Elektronik technical soldering speciﬁcation, otherwise this will void the warranty.

• Other soldering methods are not veriﬁed and have to be validated by the customer at his own risk.

RoHS Compliant

REV

25/01/2018

DATE

UPDATE

FILE

ESo

APPROVAL: JC

UNIT: MM

SCALE:

SHEET: 1/2

DRAW: ESo

WERI PART NO: DISCLAIMER

DESCRIPTION: DISCLAIMER

SIZE

PROJECTION:

GENERAL TOLERANCE

5. Product R&D

Important Notes

The following conditions apply to all goods within the product range of

Würth Elektronik eiSos GmbH & Co. KG:

1. General Customer Responsibility

Some goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general

suitability for certain application areas. These statements about suitability are based on our knowledge and experience

of typical requirements concerning the areas, serve as general guidance and cannot be estimated as binding statements

about the suitability for a customer application. The responsibility for the applicability and use in a particular customer

design is always solely within the authority of the customer. Due to this fact it is up to the customer to evaluate, where

appropriate to investigate and decide whether the device with the speciﬁc product characteristics described in the product

speciﬁcation is valid and suitable for the respective customer application or not.

Due to constant product improvement product speciﬁcations may change from time to time. As a standard reporting

procedure of the Product Change Notiﬁcation (PCN) according to the JEDEC-Standard inform about minor and major

changes. In case of further queries regarding the PCN, the ﬁeld sales engineer or the internal sales person in charge

should be contacted. The basic responsibility of the customer as per Section 1 and 2 remains unaffected

Product Life Cycle

Due to technical progress and economical evaluation we also reserve the right to discontinue production and delivery

of products. As a standard reporting procedure of the Product Termination Notiﬁcation (PTN) according to the

JEDEC-Standard we will inform at an early stage about inevitable product discontinuance. According to this we cannot

guarantee that all products within our product range will always be available. Therefore it needs to be veriﬁed with the

ﬁeld sales engineer or the internal sales person in charge about the current product availability expectancy before or

when the product for application design-in disposal is considered. The approach named above does not apply in the

case of individual agreements deviating from the foregoing for customer-speciﬁc products.

2. Customer Responsibility related to Speciﬁc, in particular Safety-Relevant Applications

It has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the

usual lifetime cannot be completely eliminated in the current state of the art, even if the products are operated within the

range of the speciﬁcations.

In certain customer applications requiring a very high level of safety and especially in customer applications in which the

malfunction or failure of an electronic component could endanger human life or health it must be ensured by most advanced

technological aid of suitable design of the customer application that no injury or damage is caused to third parties in the

event of malfunction or failure of an electronic component. Therefore, customer is cautioned to verify that data sheets are

current before placing orders. The current data sheets can be downloaded at www.we-online.com.

7. Property Rights

All the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas,

development contracts as well as models or templates that are subject to copyright, patent or commercial protection

supplied to the customer will remain with Würth Elektronik eiSos GmbH & Co. KG. Würth Elektronik eiSos GmbH

& Co. KG does not warrant or represent that any license, either expressed or implied, is granted under any patent right,

which Würth Elektronik eiSos GmbH & Co. KG components or services are used.

3. Best Care and Attention

Any product-speciﬁc notes, cautions and warnings must be strictly observed. Any disregard will result in the loss of warranty

8. General Terms and Conditions

Unless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and

Conditions of Würth Elektronik eiSos Group”, last version available at www.we-online.com.

4. Customer Support for Product Speciﬁcations

Some products within the product range may contain substances which are subject to restrictions in certain jurisdictions

in order to serve speciﬁc technical requirements. Necessary information is available on request. In this case the ﬁeld sales

engineer or the internal sales person in charge should be contacted who will be happy to support in this matter.

RoHS Compliant

REV

25/01/2018

DATE

UPDATE

FILE

ESo

APPROVAL: JC

UNIT: MM

SCALE:

SHEET: 2/2

DRAW: ESo

WERI PART NO: DISCLAIMER

DESCRIPTION: DISCLAIMER

SIZE

PROJECTION:

GENERAL TOLERANCE

645003117322 Related Products

	645003117322	645008117322	645002117322	645004117322	645005117322	645010117322
Description	3.96mm Male Right Angled Locking Header WR-WTB	3.96mm Male Right Angled Locking Header WR-WTB	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle,	3.96mm Male Right Angled Locking Header WR-WTB	3.96mm Male Right Angled Locking Header WR-WTB	3.96mm Male Right Angled Locking Header WR-WTB
Brand Name	Wurth Electronik	Wurth Electronik	Wurth Electronik	Wurth Electronik	Wurth Electronik	Wurth Electronik
Maker	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.402 inch	0.402 inch	0.402 inch	0.402 inch	0.402 inch	0.402 inch
subject depth	0.588 inch	0.588 inch	0.588 inch	0.588 inch	0.588 inch	0.588 inch
body length	0.472 inch	1.252 inch	0.316 inch	0.628 inch	0.784 inch	1.563 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	NOT SPECIFIED	SN	SN	SN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	7 A	7 A	7 A	7 A	7 A	7 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch
Terminal pitch	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	8	2	4	5	10
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99
Contact completed and terminated	TIN	TIN	-	TIN	TIN	TIN

Recommended Resources

Magnetoresistance AC amplifier circuit

Transformer coupled amplifier circuit

Low-cost air conditioner main control board circuit, PIC16C54

DM 6017/DM6017A type 4 1/2 digit digital multimeter circuit

Constant voltage/constant current power supply composed of CW117

4～4.6MHz tuner

Standard storage date for automotive electronics: Our company's products are vehicle controllers, including diesel engine controllers, gas engine controllers, etc. Because the products are sometimes put into the warehouse after they are made, custome...; bluewow Automotive Electronics

Differential mode and common mode inductors: [color=#3E3E3E][font="][size=12.0pt]Common mode inductors are two windings connected to the neutral line and the live line respectively. The two windings have the same input and output, and filter out...; lclhitwh Analogue and Mixed Signal

A letter to the finalists of the SensorTile competition: [align=left]I always write a letter to netizens to explain and account for every competition. This time, in order to save paper and protect the environment, I will write the letter online :loveliness:...; nmg MEMS sensors

EEWORLD University Hall ---- Infineon's new 12V brushless DC motor demonstration system introduction: Infineon's new 12V brushless DC motor demonstration system introduction : https://training.eeworld.com.cn/course/615...; chenyy Industrial Control Electronics

Does embedded development belong to hardware development or software development?: Does embedded development belong to hardware development or software development?...; yanxinghua Embedded System

What are the algorithms for transmitter nonlinear compensation?: I would like to ask: What are the algorithms for transmitter nonlinear compensation? I heard that there are: fitting, polynomial, least squares method, etc., but I don’t understand them, so I post thi...; yhye2world MCU

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
