Chip Inductors - 0201DS Series (0603)
• 0201 size; world’s smallest wirewound inductor
• 32 inductance values from 0.5 to 14 nH
Part
0201DS-0N5XKL_
0201DS-0N6XKL_
0201DS-1N2XJL_
0201DS-1N3XJL_
0201DS-1N4XJL_
0201DS-1N5XJL_
0201DS-2N2XJL_
0201DS-2N3XJL_
0201DS-2N4XJL_
0201DS-2N5XJL_
0201DS-3N3XJL_
0201DS-3N4XJL_
0201DS-3N5XJL_
0201DS-3N6XJL_
0201DS-3N7XJL_
0201DS-3N8XJL_
0201DS-3N9XJL_
0201DS-4N8XJL_
0201DS-5N2XJL_
0201DS-5N5XJL_
0201DS-6N7XJL_
0201DS-7N0XJL_
0201DS-7N5XJL_
0201DS-8N2XJL_
0201DS-8N7XJL_
0201DS-9N0XJL_
0201DS-9N4XJL_
0201DS-9N6XJL_
0201DS-11NXJL_
0201DS-12NXJL_
0201DS-13NXJL_
0201DS-14NXJL_
number
1
Inductance
2
(nH)
0.5
0.6
1.2
1.3
1.4
1.5
2.2
2.3
2.4
2.5
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4.8
5.2
5.5
6.7
7.0
7.5
8.2
8.7
9.0
9.4
9.6
11.0
12.0
13.0
14.0
Percent
tolerance
10
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Request free evaluation samples by contacting Coilcraft
or visiting
www.coilcraft.com.
900 MHz
L typ
Q typ
3
0.50
29
0.58
31
1.16
42
1.24
38
1.35
27
1.47
28
2.23
32
2.28
45
2.36
35
2.50
31
3.31
42
3.38
42
3.41
44
3.53
40
3.65
39
3.81
38
3.89
35
4.83
34
5.21
36
5.49
35
6.71
40
6.97
39
7.44
36
8.14
37
8.68
38
9.02
42
9.38
36
9.62
38
11.11
40
12.15
39
13.12
38
14.13
37
1.7 GHz
L typ
Q typ
3
0.49
43
0.58
51
1.16
60
1.24
57
1.34
37
1.47
40
2.23
32
2.28
64
2.36
53
2.49
44
3.32
62
3.42
62
3.45
64
3.57
61
3.66
58
3.81
60
3.89
50
4.83
50
5.21
55
5.49
50
6.72
59
6.97
60
7.46
50
8.22
53
8.74
59
9.04
63
9.39
51
9.64
53
11.15
62
12.20
56
13.22
52
14.37
51
SRF typ
4
(GHz)
23.5
24.5
17.9
17.6
17.0
17.0
16.7
16.5
13.0
12.5
12.8
12.7
12.4
12.5
10.6
10.2
11.2
11.0
10.0
9.5
6.8
6.7
6.8
6.4
6.3
6.4
6.4
6.2
5.7
5.6
6.7
5.1
DCR max
5
(Ohms)
0.020
0.030
0.042
0.048
0.080
0.090
0.070
0.070
0.082
0.165
0.080
0.080
0.080
0.105
0.105
0.180
0.240
0.096
0.170
0.285
0.150
0.210
0.340
0.270
0.350
0.350
0.400
0.400
0.400
0.360
0.440
0.440
Irms
6
(mA)
1250
1000
870
820
630
600
700
670
620
440
630
630
630
550
550
420
360
570
430
330
460
390
300
340
300
300
280
280
280
300
270
270
1. When ordering, please specify
termination
and
packaging
codes:
0201DS-14NXJLW
Termination: L
= RoHS compliant silver-platinum-glass frit.
E
= Halogen free component. RoHS compliant silver-
platinum-glass frit terminations.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: W
= 7″ machine-ready reel. EIA-481 punched paper
tape (2000 parts per full reel).
U
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter W instead.
2. Inductance measured at 250 MHz using a Coilcraft SMD-F fixture in an
Agilent/HP 4286 impedance analyzer with Coilcraft-provided correlation
pieces.
3. Q measured using an Agilent/HP 4291A with an Agilent/HP 16197 test
fixture.
4. SRF measured using an Agilent/HP 8722ES network analyzer and a test
fixture with a 0.010″ air gap.
5. DCR measured on a micro-ohmmeter and a Coilcraft CCF858 test fixture.
6. Current that causes a 15°C temperature rise from 25°C ambient.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Designer’s Kit C425
contains 20 each of all values
Core material
Ceramic
Environmental
RoHS compliant, halogen free optional
Terminations
RoHS compliant silver-platinum-glass frit. Other
terminations available at additional cost.
Weight
0.14 – 0.23 mg
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C
to +140°C with derated current
Storage temperature
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000 per 7″ reel. Paper tape: 8 mm wide, 0.6 mm thick,
2 mm pocket spacing
PCB washing
Only pure water or alcohol recommended
Document 699-1
Revised 12/12/12
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
© Coilcraft Inc. 2012
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check out web site for latest information.

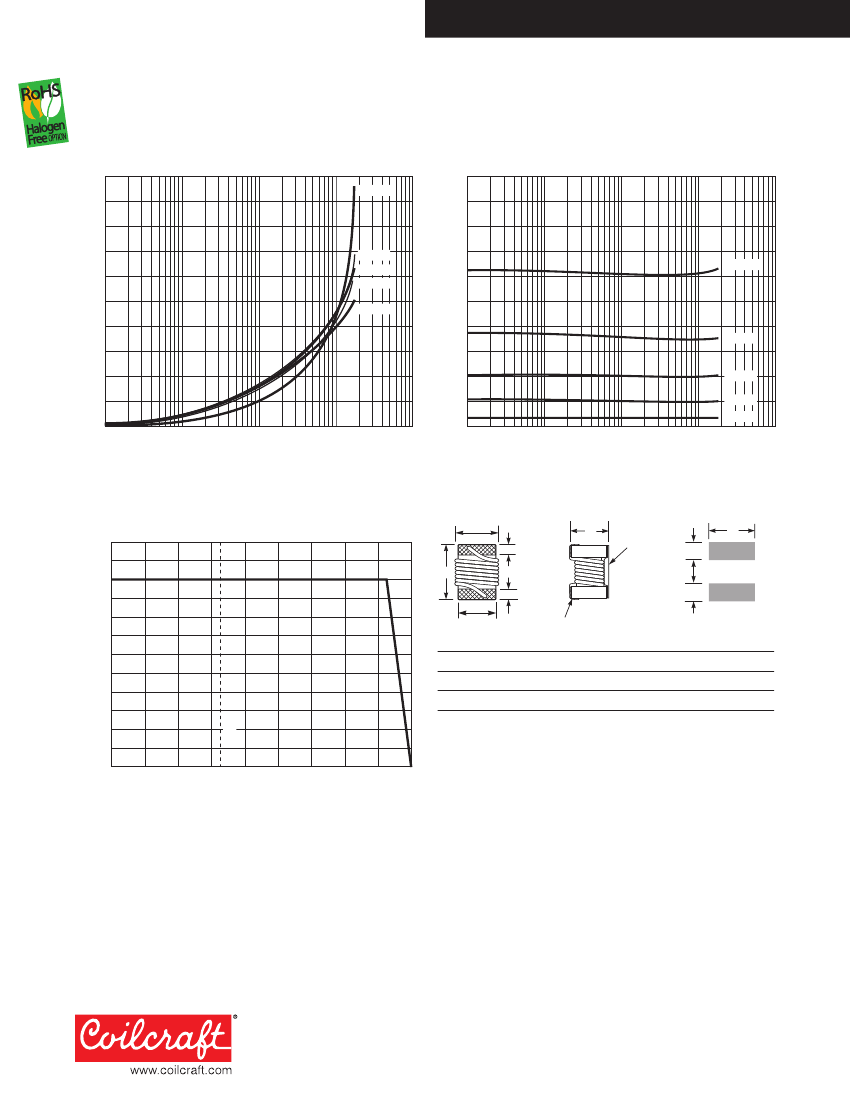

Document 699-2
0201DS Chip Inductor Series (0603)
Typical Q vs Frequency
100
90
80
0.6 nH
Typical L vs Frequency
20
18
16
2.3 nH
3.9 nH
7.0 nH
12.0 nH
Inductance (nH)
70
14
12.0 nH
Q Factor
60
50
40
30
20
10
0
1
10
100
1000
12
10
8
6
4
2
3.9 nH
2.3 nH
0.6 nH
7.0 nH
10000
0
1
10
100
1000
10000
Frequency (MHz)
Frequency (MHz)
Irms Derating
120
110
100
A
B
overall
D
C
Pick and
place
material
F
H
G
Percent of rated
I
rms
90
80
70
60
50
40
30
E
terminal
D
Terminal wraparound:
approx 0.006/0,15 both ends
G
Recommended
Land Pattern
G
0.007
0,18
H
0.018 inches
0,46
mm
A max B max
0.023
0,58
25°C
C max
0,45
D
0,10
E
0.015
0,38
F
0.009
0,23
0.018
0,46
0.0177 0.004
20
10
0
-40
-20
0
20
Note:
Height dimension (C) is before optional solder application. For maximum
height dimension including solder, add 0.006 in / 0,152 mm.
40
60
80
100
120 140
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 699-2
Revised 12/12/12
© Coilcraft Inc. 2012
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check out web site for latest information.
