0805CQ-300EJTS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 0805CQ-300EJTS

0805CQ-300EJTS: DescriptionGeneral Purpose Inductor, 0.03uH, 5%, 1 Element, SMD, CHIP, 0907; CategoryPassive components inductor; File Size247KB，3 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric View All

0805CQ-300EJTS Overview

General Purpose Inductor, 0.03uH, 5%, 1 Element, SMD, CHIP, 0907

0805CQ-300EJTS Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
package instruction	CHIP, 0907
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.095 Ω
Nominal inductance(L)	0.03 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	0805CQ
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	65
Maximum rated current	1.2 A
self resonant frequency	1950 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 500MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	250 MHz
Tolerance	5%

0805CQ-300EJTS Preview

1. Part Description

1.1 Part Numbering (Example)

( Ex. )

0805

120

T S

SIZE.

0402 1.0 * 0.5 mm

0603 1.6 * 0.8 mm

0805 2.0 * 1.2 mm

1008 2.5 * 2.0 mm

1206 3.2 * 1.6 mm

1210 3.2 * 2.5 mm

SHAPE.

C : C SHAPE

H : H SHAPE

M : MOLDING

PACK.

S=EIA RS481 CLEAR TAPE & REEL

PROFILE.

S: STANDARD

T: LOW PROFILE

Q:HIGH Q

TERMINALTYPE/MATERIAL.

A/T = Terminal

F = Ferrite Core (Substrate)

INDUCTANCE TOLERANCE.

INDUCTANCE.

1ST , 2ND , 3RD MULTIPLIER

G = ±2% , H = ±3% ,J = ±5% , K = ±10%

B=±

0.1n H , C=± 0.2n H , D=± 0.5 n H

SHAPE.

B=± 0.1n H ,

C=± 0.2n H ,

D=± 0.5 n H

E = FLAT TOP

WIRE-WOUND CHIP INDUCTOR – CERAMIC / High Q

0805CQ (2012) Series (2.5 ~ 51nH)

Part

Number

0805CQ-2N5E_TS

0805CQ-5N6E_TS

0805CQ-6N2E_TS

0805CQ-6N8E_TS

0805CQ-8N2E_TS

0805CQ-100E_TS

0805CQ-120E_TS

0805CQ-150E_TS

0805CQ-160E_TS

0805CQ-180E_TS

0805CQ-200E_TS

0805CQ-220E_TS

0805CQ-270E_TS

0805CQ-300E_TS

0805CQ-390E_TS

0805CQ-480E_TS

0805CQ-510E_TS

Inductance

2.5 @ 250MHz

5.6 @ 250MHz

6.2 @ 250MHz

6.8 @ 250MHz

8.2 @ 250MHz

10 @ 250MHz

12 @ 250MHz

15 @ 250MHz

16 @ 250MHz

18 @ 250MHz

20 @ 250MHz

22 @ 250MHz

27 @ 250MHz

30 @ 250MHz

39 @ 250MHz

48 @ 200MHz

51 @ 200MHz

Percent

Tolerance

10,5

10,5,2

Q Min

80 @ 1500MHz

98 @ 1500MHz

88 @ 1000MHz

80 @ 1000MHz

75 @ 1000MHz

80 @ 1000MHz

72 @ 500MHz

75 @ 500MHz

70 @ 500MHz

80 @ 500MHz

75 @ 500MHz

65 @ 500MHz

SRF Min RDC Max IDC Max

MHz

Ohms

6000

4750

4400

3000

2800

2950

2550

2050

2000

1950

1600

1400

0.020

0.035

0.075

0.060

0.045

0.100

0.060

0.055

0.100

0.070

0.095

0.110

0.095

0.120

1600

1000

1600

1200

1500

1400

1200

1300

1200

1100

1200

1000

Working Temperature Range : -40 ° ~ 125 °

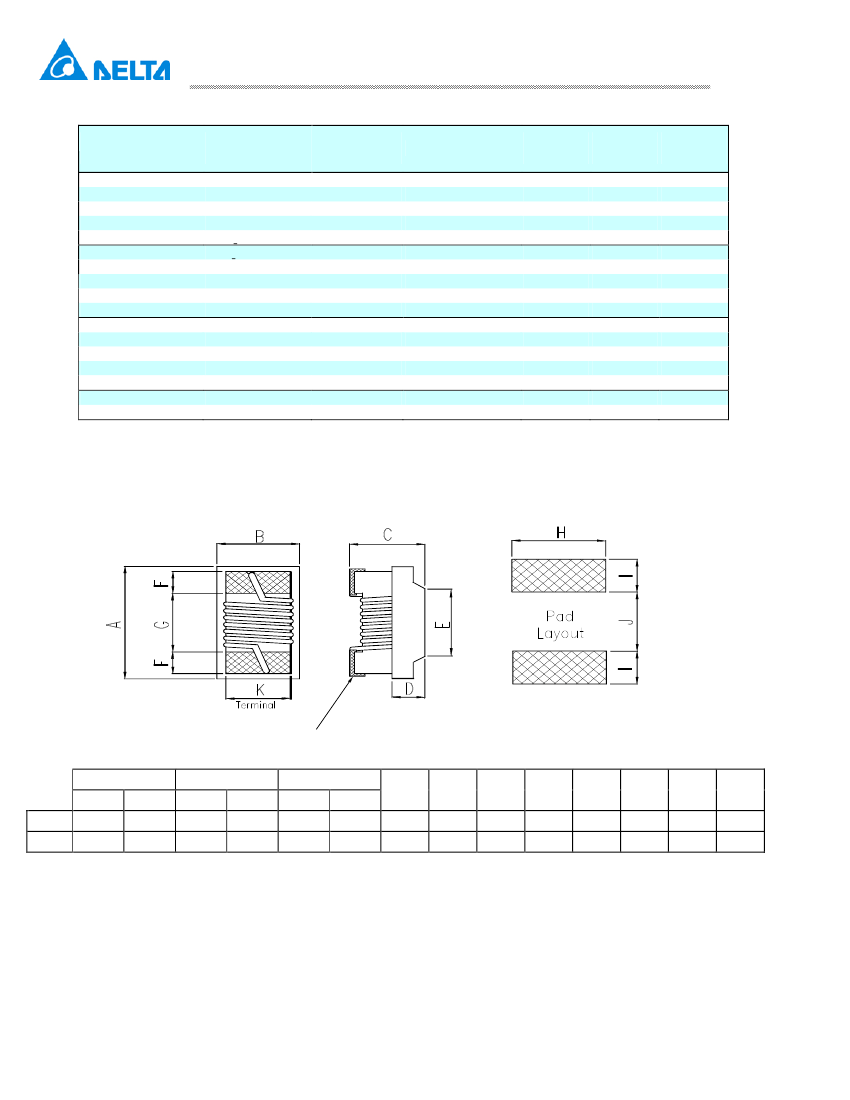

Shape & Dimension

Terminal wraparound

Max.

inch

0.09

2.29

Ref

0.083

2.10

Max

0.068

1.73

Ref

0.065

1.65

Max

0.060

1.52

Ref

0.055

1.40

Ref.

0.02

0.51

Ref.

0.050 0.018 0.040 0.070 0.040 0.030 0.050

1.27

0.44

1.02

1.78

1.02

0.76

1.27

Parts/Reel: 7” 2,000PCS

Tape Width: 8mm

WIRE-WOUND CHIP INDUCTOR – CERAMIC / High Q

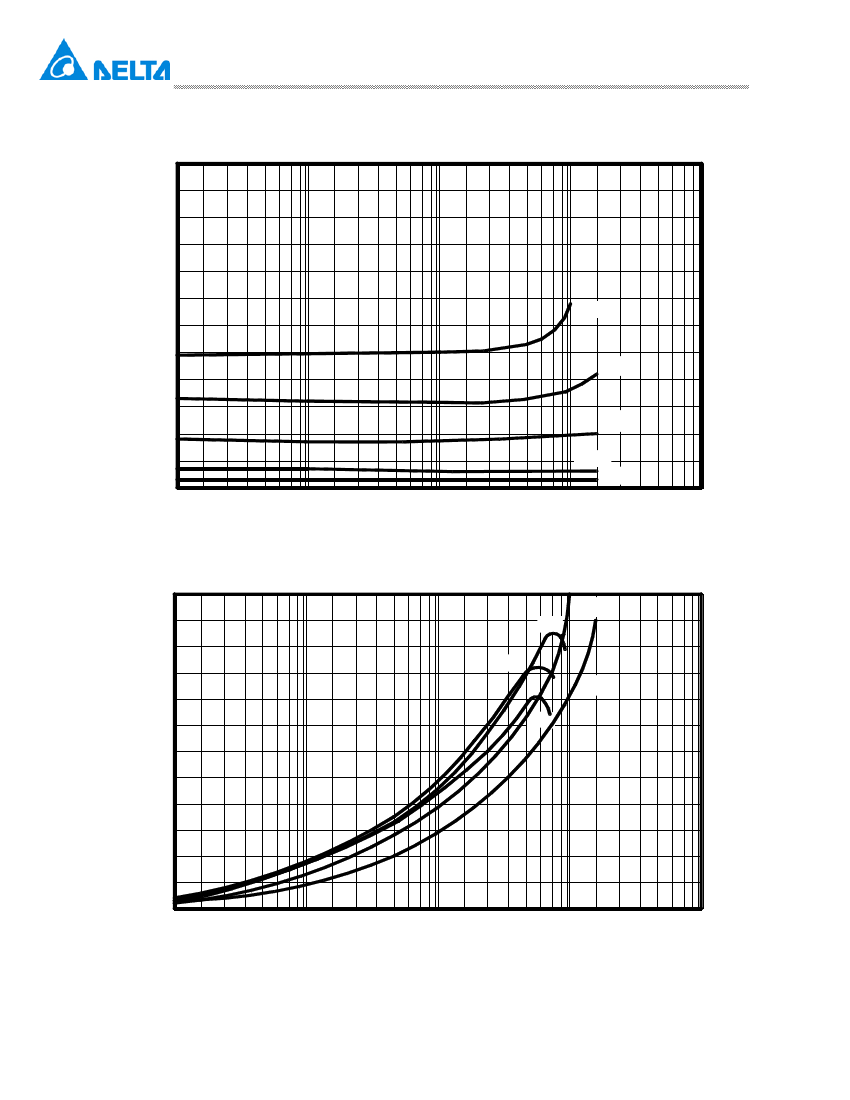

0805CQ Series Typical Electrical Characteristics

TYPICAL L vs FREQUENCY

120

100

Inductance(nH)

510

300

180

6N2

2N5

Frequency(MHz)

100

1000

10000

TYPICAL Q vs FREQUENCY

120

180

100

510

300

2N5

6N2

100

1000

10000

Frequency(M Hz)

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
