Crimp
LC
CONNECTOR
5.08mm
(.200") pitch
Disconnectable Crimp style connectors

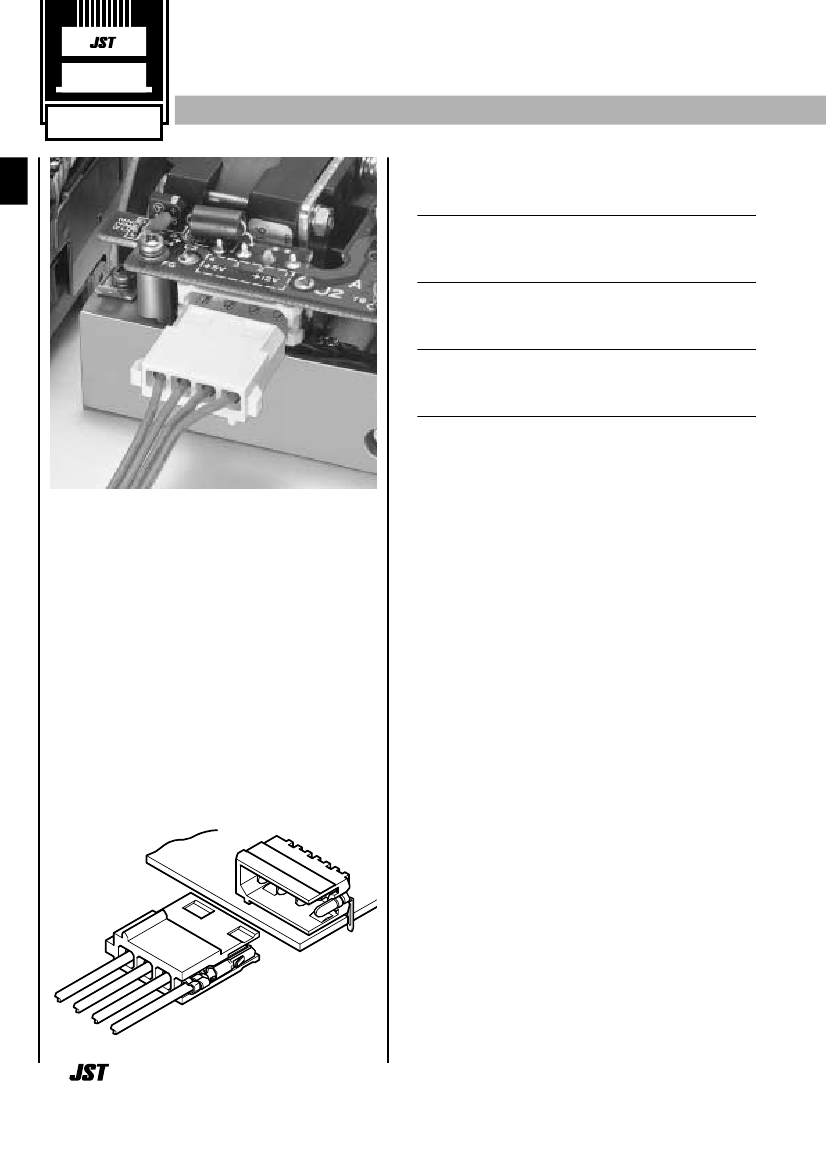

Features ––––––––––––––––––––––––
• Anti-misinsertion feature
The plug and header are polarized, thus preventing
misinsertion of the connector.
• Self-locking housing clamp
The self-locking housing clamp for the header ensures easy
handling and sturdy mounting.
• Two kinds of headers
Type A and B headers are available to match the mounting
direction of your printed circuit boards.
• Two-wire crimp style contact
Two-wire crimp contacts which facilitate branch connections
and internal jumpering are available.
This reliable, low cost connector is suited
for bringing power to printed circuit boards
in office automation equipment. A major
application has been in secondary power
supply circuits of floppy disk drives.
Specifications –––––––––––––––––––
• Current rating: 7A AC, DC (AWG #18)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +90˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #22 to #18
• Applicable PC board thickness: 1.6mm(.063")
• Number of circuits: 4
* Contact JST for details.
Standards ––––––––––––––––––––––
160
0
1
Recognized E60389
Certified LR20812
LC
One-wire crimping type
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Applicable wire
Model No.
mm
2
0.3 to 0.75
AWG #
22 to 18
Insulation O.D.
mm(in.)
1.7 to 2.1(.067 to .083)
Q'ty /
reel
SLC-21T-2.0
4,000
Material and Finish
Brass, tin-plated
16.8(.661) [17.3(.681) ]
10.5(.413)
4.3(.169) [ 4.8(.189) ]
Two-wire crimping type
Model No.
SLC-22T-2.0
Combination of applicable wires
UL1007 AWG #
20+20, 20+18,
18+18
Q’ty /
reel
3,000
Material and Finish
Dimensions in[ ]apply to the SLC-22T-2.0 two-wire crimping type.
Brass, tin-plated
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
LCP-04
25.6(1.008)
Q’ty / box
500
Material
Nylon 6, UL94V-0, natural (white)
21.0(.827)
1.5(.059)
2.88(.113)
5.08
(.200)
15.24(.600)
3.5
(.138)
7.8(.307)
161
LC
CONNECTOR

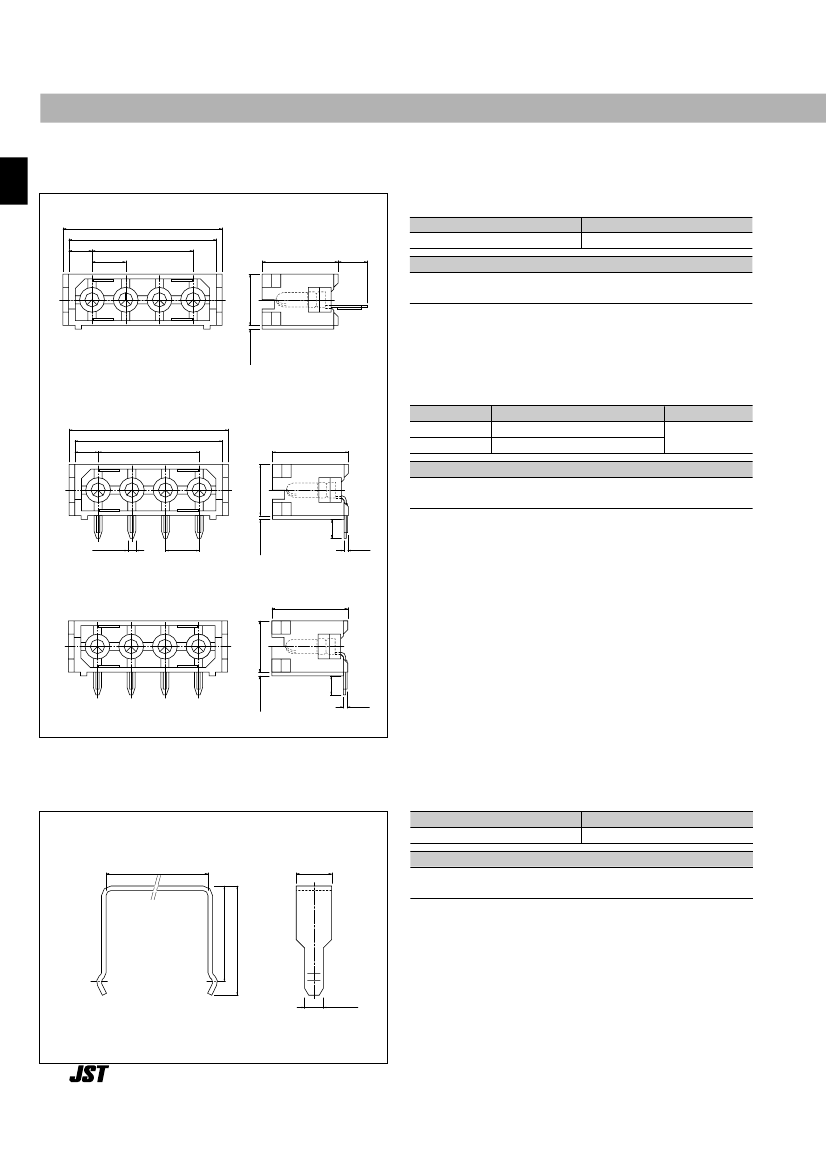

Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
25.6(1.008)
23.6(.929)
4.18(.165)
15.24(.600)
5.08(.200)
Top entry type
Model No.
LC-04T
11.5(.453)
4.6(.181)
Q’ty / box
100
Material and Finish
Contact: Brass, copper-undercoated, tin-plated
Housing: Nylon 66, UL94V-0, natural (white)
4
3
2
1
0.5(.020)
8.0(.315)
Side entry type
Shape A
4.18(.165)
25.6(1.008)
23.6(.929)
15.24(.600)
11.5(.453)
Side entry type
Shape
A
B
Model No.
LC-04A
LC-04B
Material and Finish
Contact: Brass, copper-undercoated, tin-plated
Housing: Nylon 66, UL94V-0, natural (white)
Q’ty / box
100
4
3
2
1
0.5(.020)
8.0(.315)
1.3(.051)
5.08
(.200)
3.8
(.150)
11.5(.453)
3.8
(.150)
0.35
(.014)
Shape B
0.5(.020)
8.0(.315)
Housing clamp –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
LCC-04
Material and Finish
23.8(.937)
4.1(.161)
10.6(.417)
12.0(.472)
162
4
3
2
1
0.35
(.014)
Q’ty / box
500
Brass, copper-undercoated, tin-plated
2.0(.079)
LC
CONNECTOR
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
Top entry type
1.5±0.1
(.059±.004)dia.
Side entry type
5.45(.215)
5.08±0.05
(.200±.002)
15.24±0.1(.600±.004)
2.3
±
0.1
(.091
±
.004)dia.
1.5
±
0.1
(.059
±
.004)dia.
9.65(.380)
4.38
(.172)
5.08
±
0.05
(.228
±
.002)
15.24
±
0.1 (.600
±
.004)
24.0(.945)
24.0(.945)
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SLC-21T-2.0
SLC-22T-2.0
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SLC21-20
APLMK SLC22-20
APLNC SLC21-20
APLNC SLC22-20
1.6(.063)
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
–
–
Strip-crimp applicator MKS-SC
with safety cover
–
–
1.6(.063)
10.15(.400)
163
