NJU7660M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> NJU7660M

Preview

NJU7660M: DescriptionSwitched Capacitor Converter, 0.02A, 5kHz Switching Freq-Max, CMOS, PDSO8, DMP-8; CategoryPower/power management The power supply circuit; File Size139KB，5 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU7660M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NJU7660M	-	-	View	Buy Now

NJU7660M Overview

Switched Capacitor Converter, 0.02A, 5kHz Switching Freq-Max, CMOS, PDSO8, DMP-8

NJU7660M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	DMP-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHED CAPACITOR CONVERTER
Maximum input voltage	10 V
Minimum input voltage	1.5 V
Nominal input voltage	5 V
JESD-30 code	S-PDSO-G8
JESD-609 code	e6
length	5 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.02 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	SQUARE
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply current (Isup)	0.5 mA
surface mount	YES
Switch configuration	DOUBLER INVERTER
Maximum switching frequency	5 kHz
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5 mm

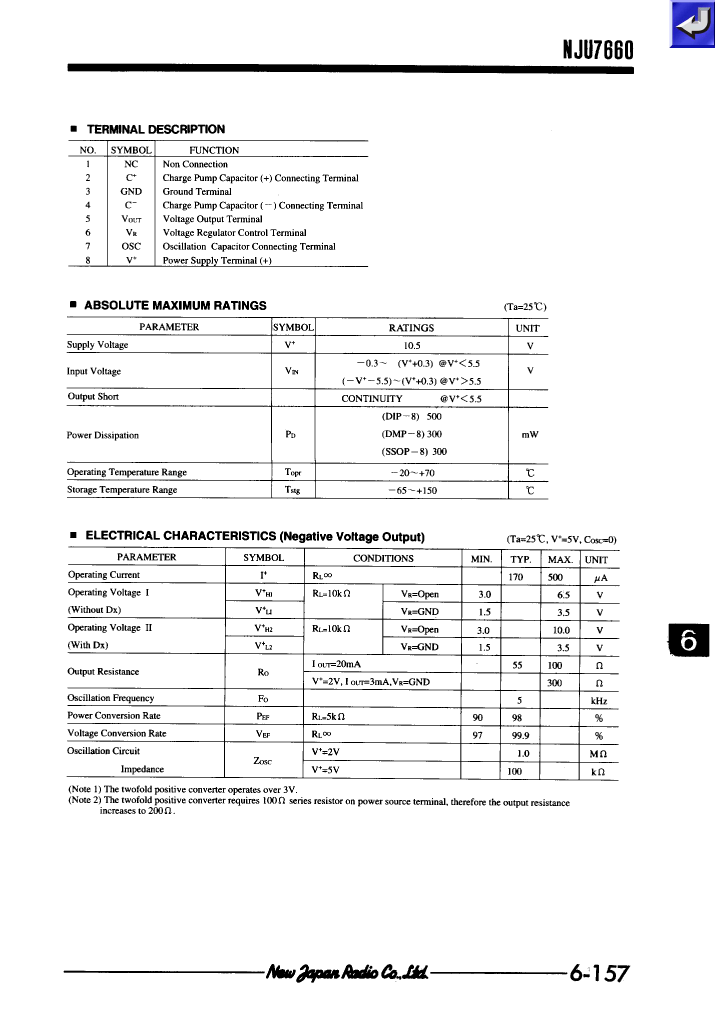

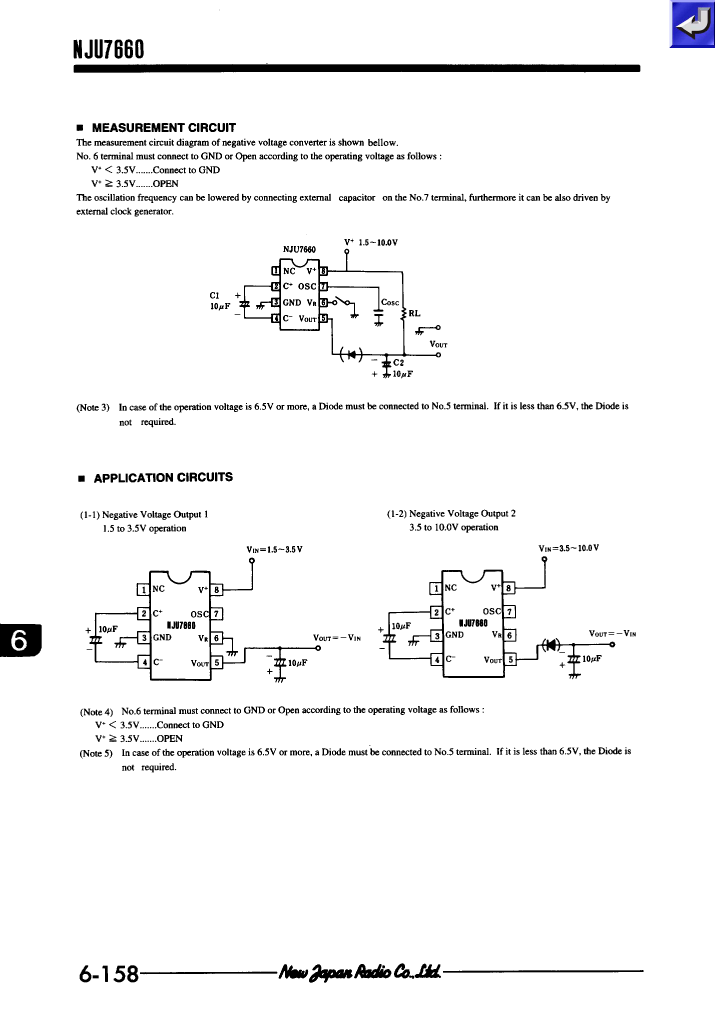

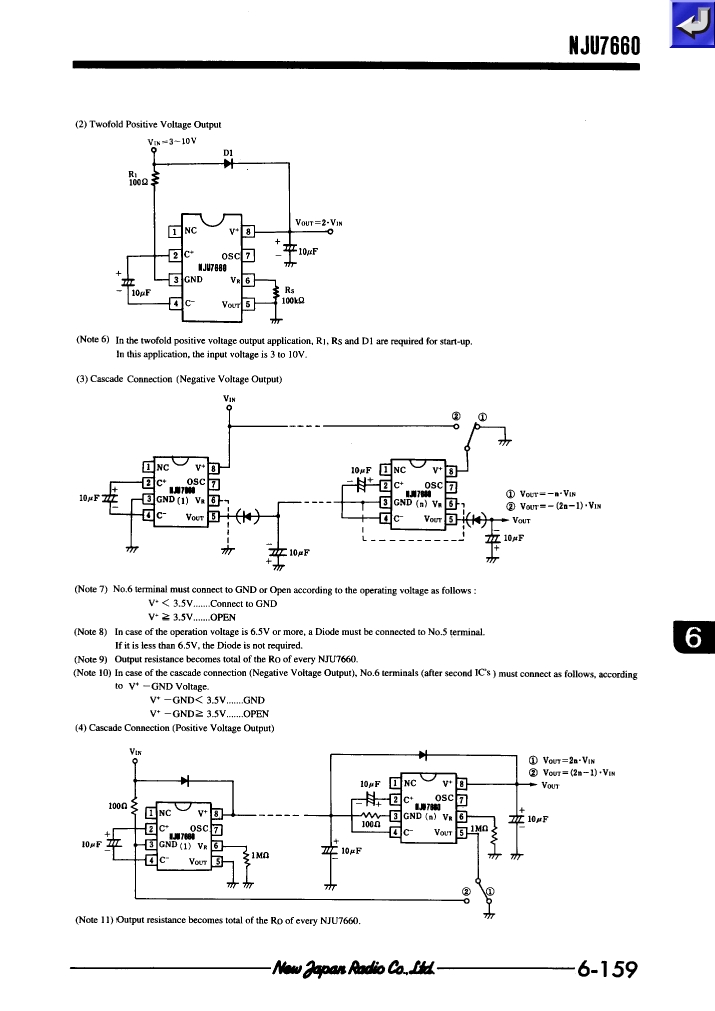

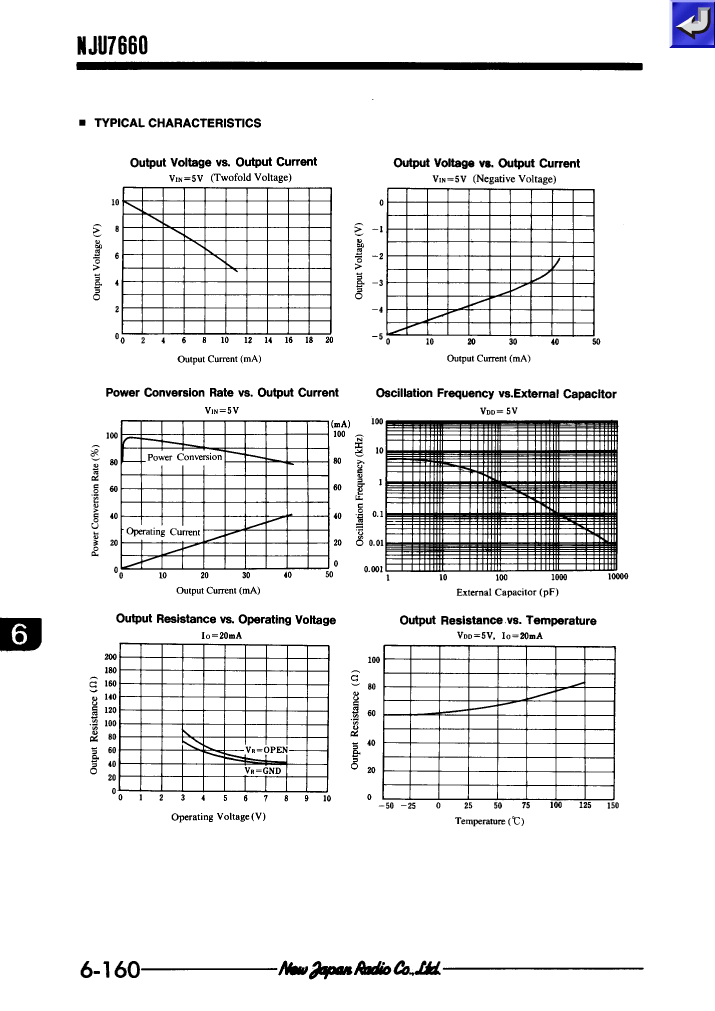

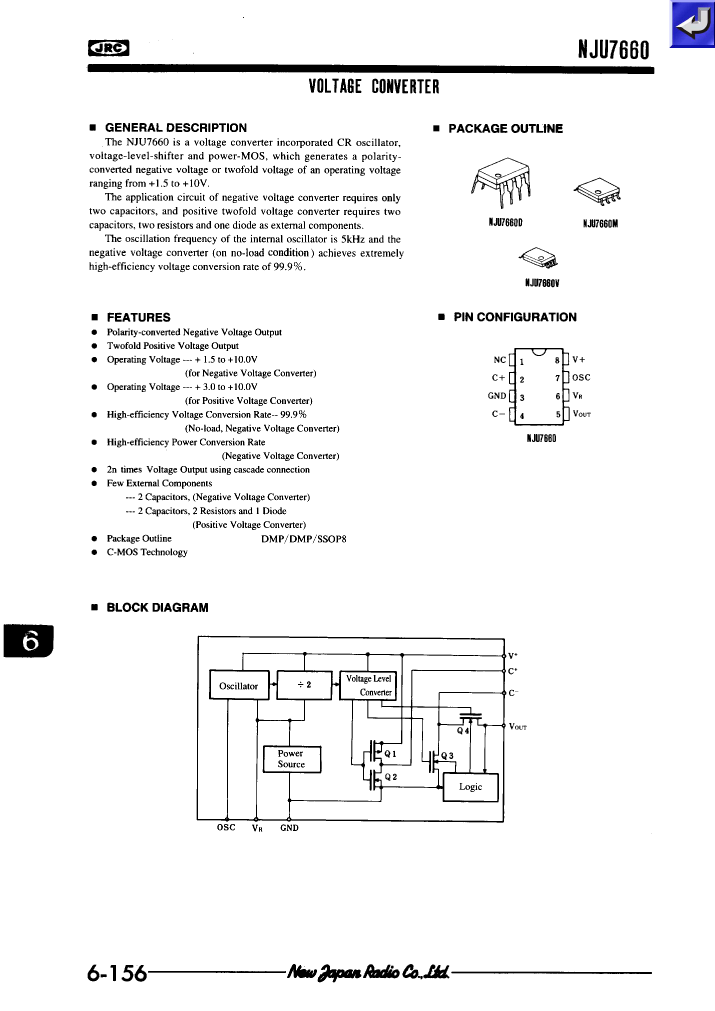

NJU7660M Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
