ATC GENERAL PURPOSE CAPACITORS: Z5U DIELECTRIC
ELECTRICAL CHARACTERISTICS
CAPACITANCE RANGE:
.01 µF to 15 µF.
TEMPERATURE CHARACTERISTIC:
+22%, -56%
OPERATING TEMPERATURE RANGE:
+10°C to +85°C.
DISSIPATION FACTOR:
50v ratings, 3.0% (max.) @ .5 Vrms and
1 kHz - 25v ratings, 3.5% (max.) @ .5 Vrms and 1 KHz.
INSULATION RESISTANCE
@ + 25°C and rated Vdc:
100 ohm-farads (min.).
DIELECTRIC WITHSTANDING VOLTAGE:
250% of rated voltage for 5 ± 1 seconds, 50 milliamps (max.).
AGING RATE:
3% (maximum) per decade.
Unless otherwise specified all test data is at + 25°C.
MB
L
W
T (MAX.)

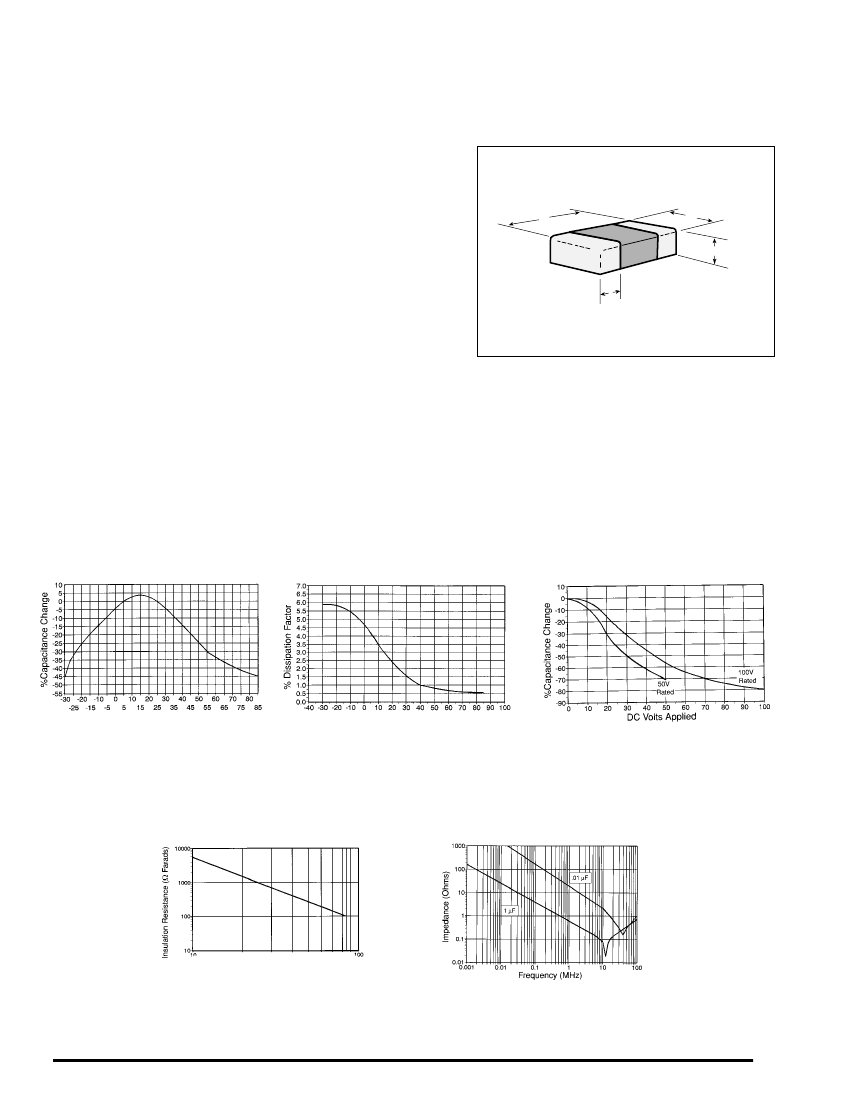

Temperature Coefficient of Capacitance
Dissipation Factor vs. Temperature
Voltage Coefficient of Capacitance
Temperature (Celsius)
Temperature (Celsius)
Minimum IR vs. Temperature
Impedance vs. Frequency
Temperature (Celsius)
A M E R I C A N
ATC North America
631-622-4700
•
sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410
•
sales@atceramics-europe.com
C E R A M I C S
ATC Asia
86-755-8366-4318
•
sales@atceramics-asia.com
6
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
ATC GENERAL PURPOSE CAPACITORS: Z5U DIELECTRIC
SIZE
Length (L)
Width (W)
Tol. L & W
T Max.
Term.
(MB)
Min.
Max.
Min Cap
Max. Cap.
(code)
& WVDC
10V
16V
25V
50V
100V
200V
154
104
683
273
562
684
474
334
124
333
155
125
105
274
823
335
225
185
564
184
565
475
395
125
394
106
106
825
225
684
0603
.063 (1.60)
.031 (0.80)
±.005 (0.12)
.035 (0.89)
.005
.015
562
(.12)
(.38)
0805
.079 (2.00)
.049 (1.25)
±.008 (0.2)
.051(1.30)
.010
.028
103
(.25)
(.71)
1206
.126 (3.20)
.063 (1.60)
±.008 (0.2)
.051 (1.30)
.010
.028
223
(.25)
(.71)
1210
.126 (3.20)
.098 (2.50)
±.008 (0.2)
.067 (1.70)
.010
.028
333
(.25)
(.71)
1812
.177 (4.50)
.126 (3.20)
±.010 (0.25)
.067 (1.70)
.010
.030
154
(.25)
(.76)
2225*
.220 (5.59)
.250 (6.35)
±.015 (0.38)
.070 (1.78)
.010
.030
105
(.25)
(.76)
Dimensions shown in inches (mm)
*
IR and Vapor Phase soldering only recommended.
PART NUMBER CODE
1206
Size Code
Temperature Characteristic
Capacitance Code: First 2 Significant Digits For Capacity.
Marking
A=No mark
*S=EIA Code - *Special Order
WVDC Code
A
WVDC
CAPACITANCE TOLERANCE
M
Z
Code
±20
+80 -20
Tol.
%
7
1
2
3
4
Z5U
10
4
M
T
2
A
T
Packaging: T=7” Reel, B=Bulk
*R=13” Reel - *Special Order
Indicates number of zeros following
digits of capacitance in picofarads
10 16
25 50 100* 200*
*
Special Order - Consult Factory
Termination Code
T = Tin plated over Nickel Barrier (Standard),
Lead-Free, RoHS Compliant
W = Tin/Lead, Solder Plated over Nickel Barrier**
C = Palladium Silver, (non-magnetic), Lead-Free RoHS Compliant**
**
Consult ATC for availability
STANDARD EIA CAPACITANCE VALUES REFERENCE TABLE
Cap. Code Cap. pF Cap. Code Cap. pF Cap. Code Cap. pF Cap. Code Cap. pF Cap. Code Cap. pF Cap. Code
0R5
0.5
6R8
6.8
560
56
471
470
392
3900
273
1R0
1.0
8R2
8.2
680
68
561
560
472
4700
333
1R2
1.2
100
10
820
82
681
680
562
5600
393
1R5
1.5
120
12
101
100
821
820
682
6800
473
1R8
1.8
150
15
121
120
102
1000
822
8200
563
2R2
2.2
180
18
151
150
122
1200
Cap. Code Cap.µF
683
103
.010
2R7
2.7
220
22
181
180
152
1500
823
123
.012
3R3
3.3
270
27
221
220
182
1800
104
153
.015
3R9
3.9
330
33
271
270
222
2200
124
183
.018
4R7
4.7
390
39
331
330
272
2700
154
223
.022
5R6
5.6
470
47
391
390
332
3300
184
Cap.µF
.027
.033
.039
.047
.056
.068
.082
.10
.12
.15
.18
Cap. Code Cap. µF
224
.22
274
.27
334
.33
394
.39
474
.47
564
.56
684
.68
824
.82
105
1.0
125
1.2
155
1.5
Cap. Code Cap. µF
185
1.8
225
2.2
275
2.7
335
3.3
395
3.9
475
4.7
565
5.6
685
6.8
825
8.2
106
10.0
126
12.0
156
15.0
A M E R I C A N
ATC North America
631-622-4700
•
sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410
•
sales@atceramics-europe.com
C E R A M I C S
ATC Asia
86-755-8366-4318
•
sales@atceramics-asia.com
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
