UF4001G
THRU
UF4007G
Technical Data
Data Sheet N1660, Rev. B
UF4001G THRU UF4007G
ULTRA FAST RECITIFIERS
Features
Super fast switching for high efficiency
Low leakage current
High forward surge capability
Solder dip 260
°C,
40 s
Component in accordance to RoHS 2002/95/EC and WEEE
2002/96/EC
Glass Passivated Die Construction
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
DO-41

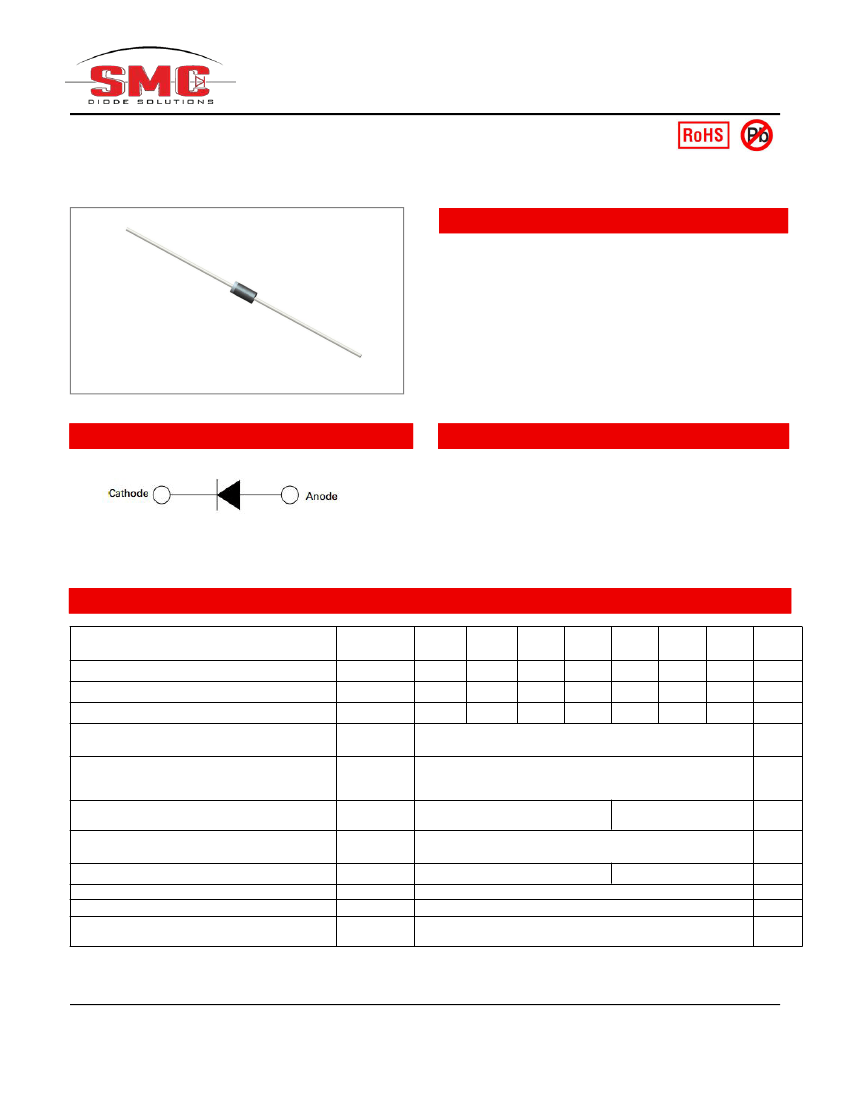

Circuit Diagram
Mechanical Data
Case: JEDEC DO-41 molded plastic body
Terminals: Plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: 0.33 grams
Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
SYMBOLS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375"( 9.5mm ) lead length at T
A
=55℃
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load ( JEDEC Method)
Maximum instantaneous forward voltage at
1.0A
Maximum DC reverse current T
A
=25℃
at rated DC blocking voltage T
A
=100℃
Maximum reverse recovery time (Note 1)
Typical junction capacitance ( Note 2)
Typical thermal resistance ( Note 3)
Operating junction and storage temperature
range
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
CJA
T
J,
T
STG
50
15.0
50.0
-65 to +150
1.0
5.0
50.0
75
UF
4001G
UF
4002G
UF
4003G
UF
4004G
UF
4005G
UF
4006G
UF
4007G
UNIS
V
V
V
A
A
50
35
50
100
70
100
200
140
200
400
280
400
1.0
30.0
600
420
600
800
560
800
1000
700
1000
1.70
V
μA
ns
pF
℃/W
℃
Note: 1. Reverse recovery condition IF=0.5A, IR=1.0A. Irr=0.25A
2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3. Thermal resistance from junction to ambient at 0.375”(9.5mm) lead length, P.C.B mounted.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
UF4001G
THRU
UF4007G
Technical Data
Data Sheet N1660, Rev. B

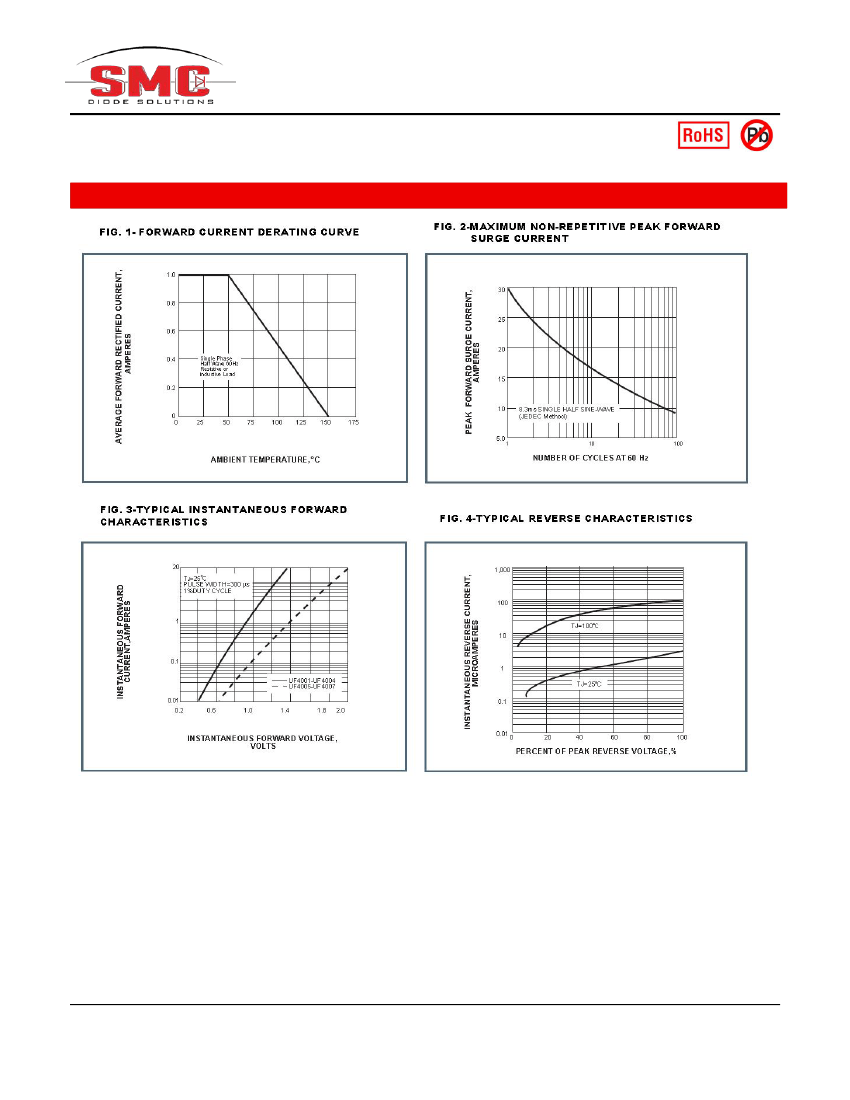

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
UF4001G
THRU
UF4007G
Technical Data
Data Sheet N1660, Rev. B

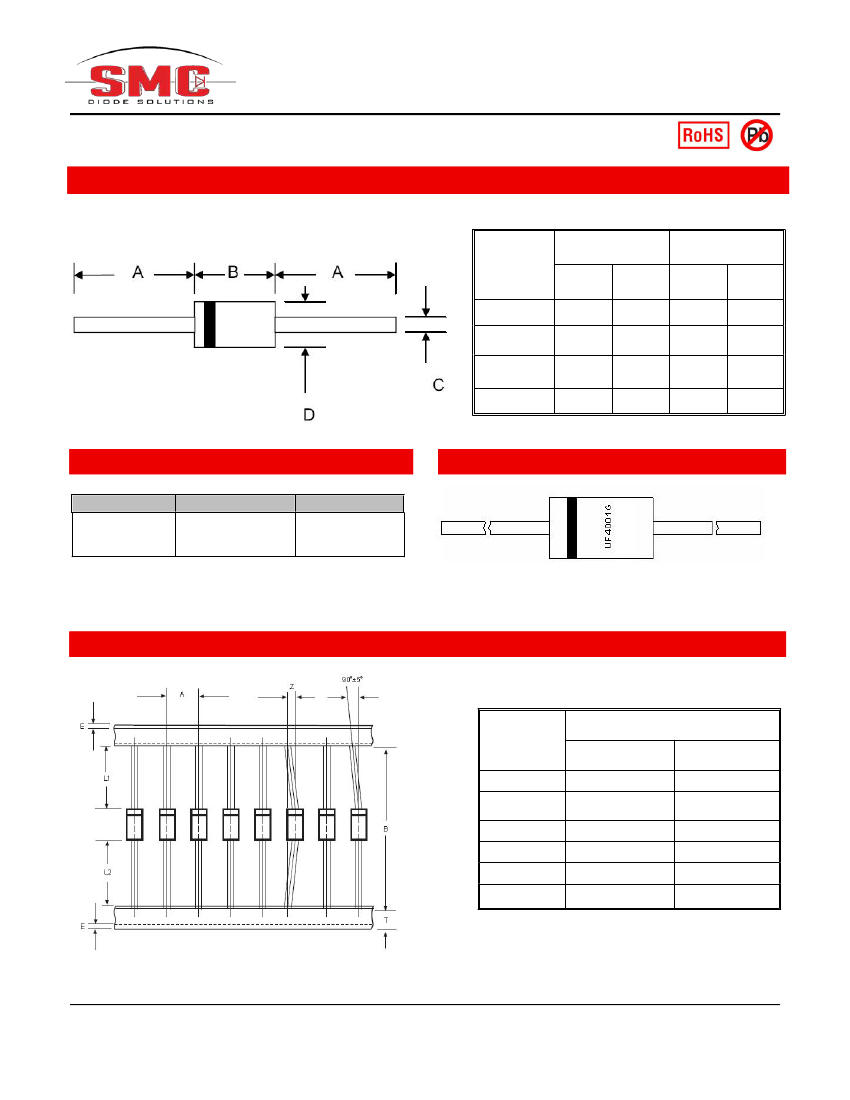

Mechanical Dimensions DO-41
Millimeters
SYMBOL
A
B
C
D
Min.
25.4
4.06
0.71
2.00
Max.
-
5.21
0.864
2.72
Inches
Min.
1.000
0.160
0.028
0.079
Max.
-
0.205
0.034
0.107
Ordering Information
Device
UF4001G
THRU
UF4007G
Marking Diagram
Shipping
5000pcs /Tape
Package
DO-41 (Pb-Free)
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
UF4001G
= Part Name
Carrier Tape Specification DO-41
SYMBOL
A
B
Z
T
E
IL1-L2I
Millimeters
Min.
4.50
50.9
-
5.60
-
-
Max.
5.50
53.9
1.20
6.40
0.80
1.0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
UF4001G
THRU
UF4007G
Technical Data
Data Sheet N1660, Rev. B
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC - Sangdest Microelectronics (Nanjing) Co., Ltd sales
department for the latest version of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any damages that may result from an accident or
any other cause during operation of the user’s units according to the datasheet(s). SMC - Sangdest Microelectronics (Nanjing) Co., Ltd
assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information,
products or circuits described in the datasheets.
4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any failure in a semiconductor device or any
secondary damage resulting from use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC - Sangdest Microelectronics
(Nanjing) Co., Ltd.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC
- Sangdest Microelectronics (Nanjing) Co., Ltd.
