M2024C-8: DescriptionCrossbar Switch, 32-Bit, ECL, PQFP196, LDCC-196; CategoryThe embedded processor and controller Microcontrollers and processors; File Size288KB，10 Pages; ManufacturerApplied Micro Circuits (MACOM)

Download Datasheet Parametric Compare View All

M2024C-8 Overview

Crossbar Switch, 32-Bit, ECL, PQFP196, LDCC-196

M2024C-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	QFP,
Contacts	196
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
boundary scan	NO
External data bus width	32
JESD-30 code	S-PQFP-G196
JESD-609 code	e0
length	34.29 mm
low power mode	NO
Negative supply voltage rating	-5.2 V
Number of terminals	196
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	32
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum slew rate	1589 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	34.29 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CROSSBAR SWITCH
Base Number Matches	1

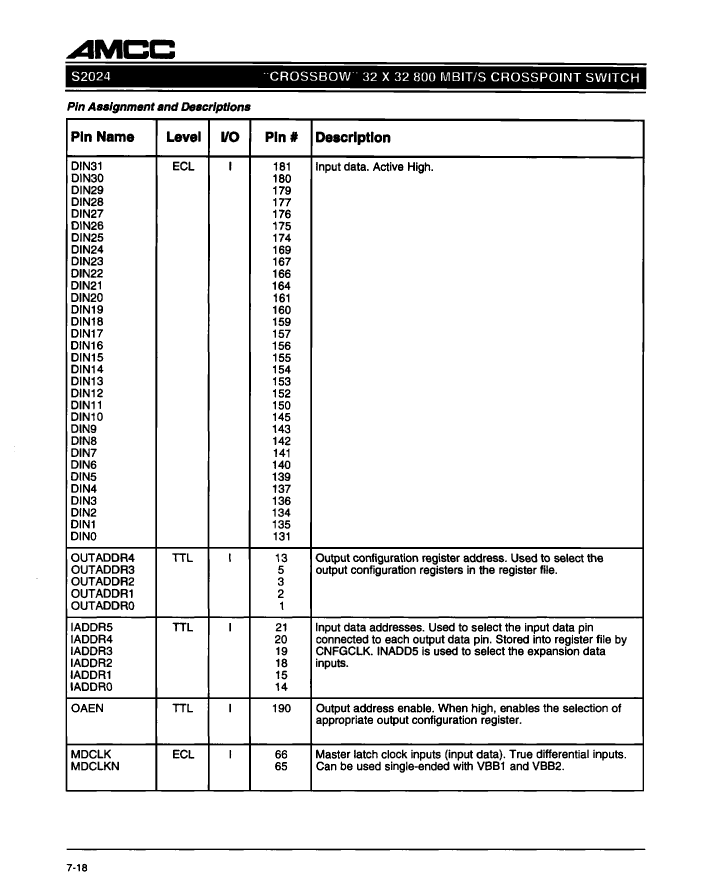

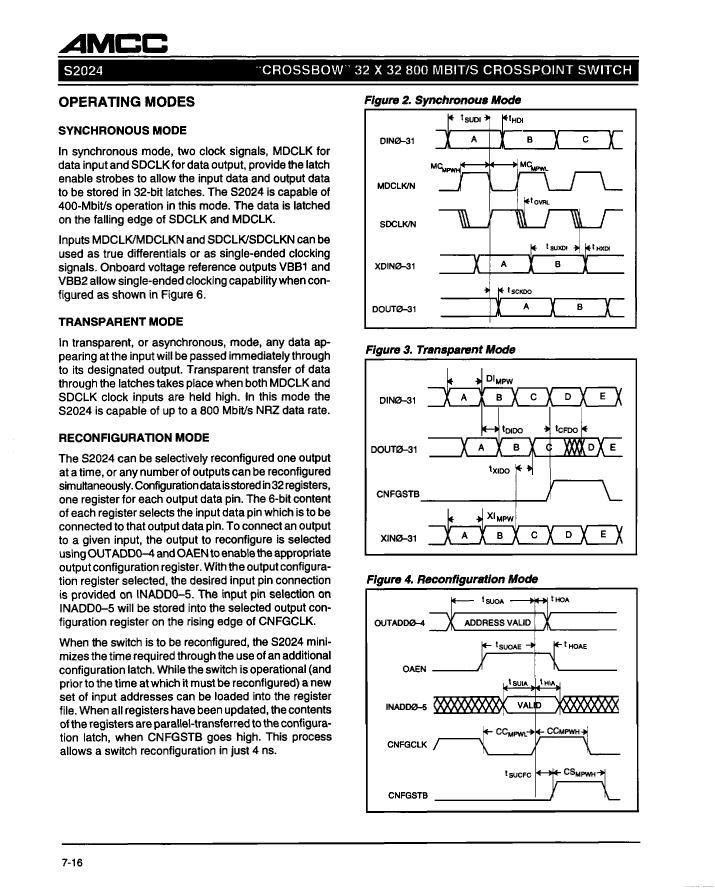

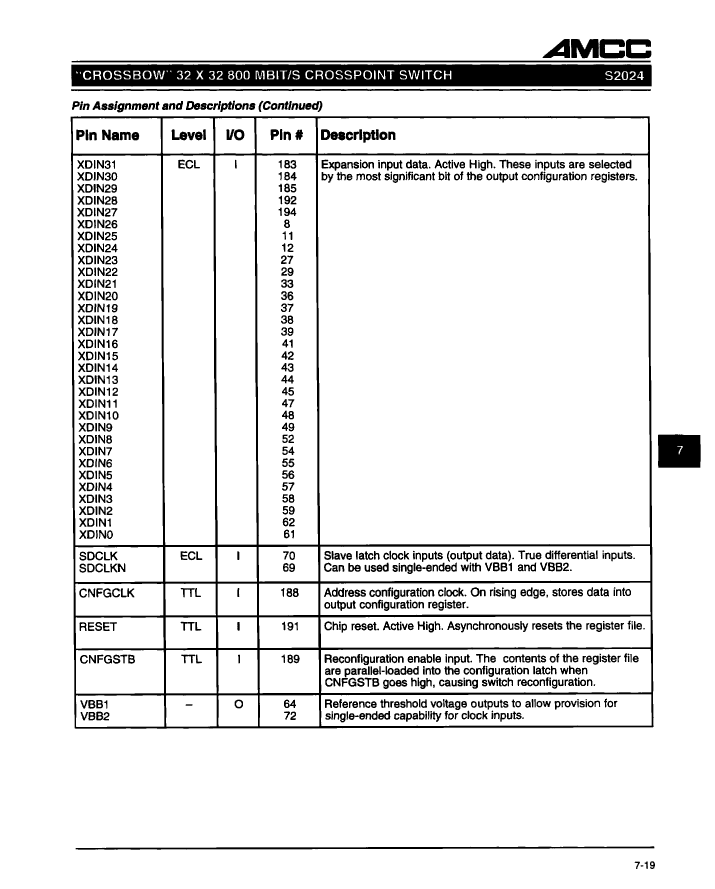

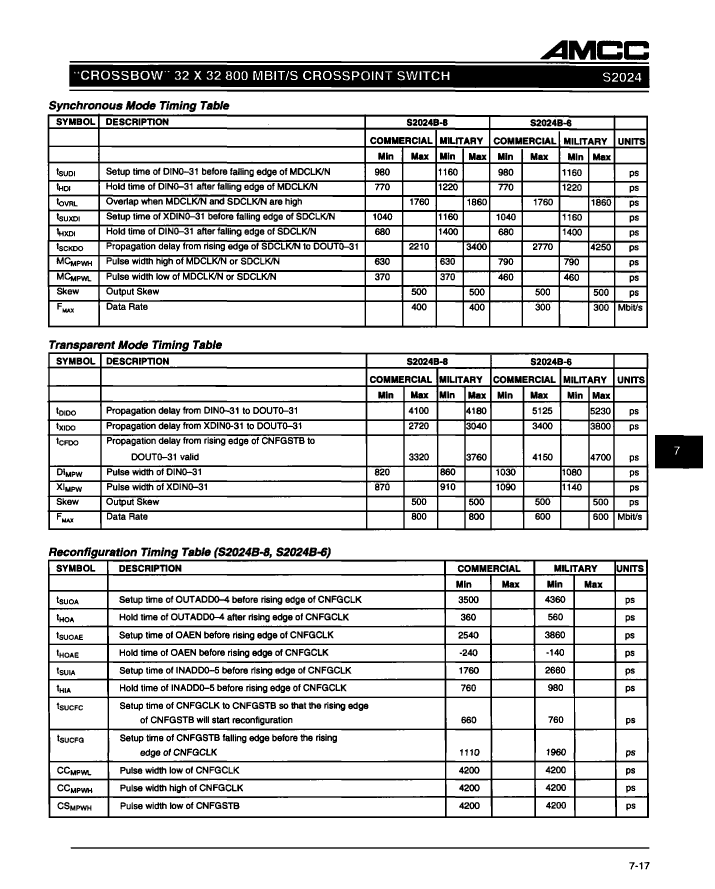

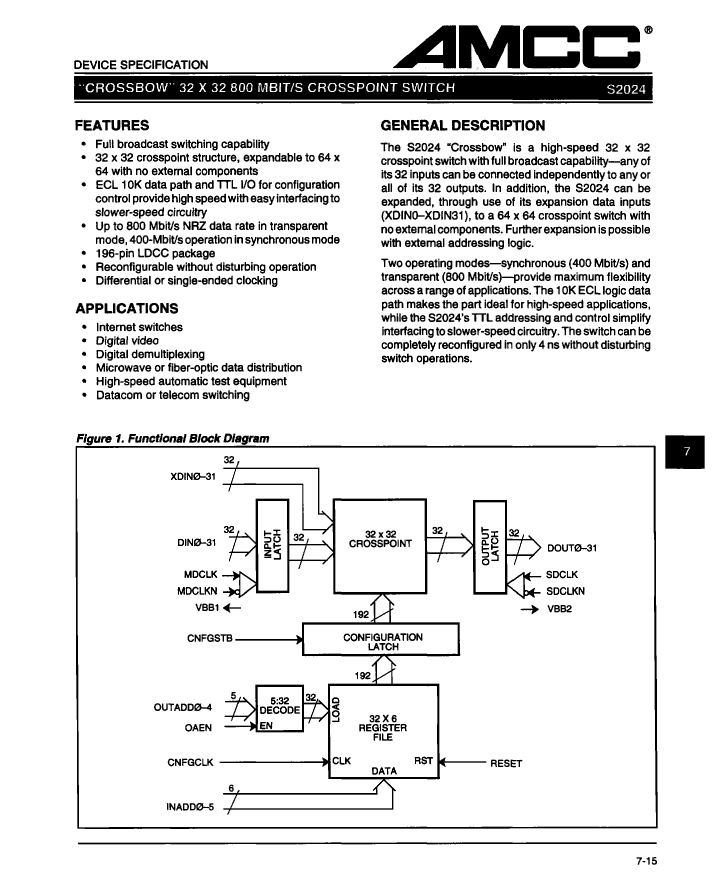

Preview

Download Datasheet

View All

M2024C-8 Related Products

	M2024C-8	M2024B-8	M2024C-6
Description	Crossbar Switch, 32-Bit, ECL, PQFP196, LDCC-196	Crossbar Switch, 32-Bit, ECL, PQFP196, HEAT SINK, NON CONDUCTIVE TIE BAR, LDCC-196	Crossbar Switch, 32-Bit, ECL, PQFP196, LDCC-196
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	QFP	QFP	QFP
package instruction	QFP,	HGQFF,	QFP,
Contacts	196	196	196
Reach Compliance Code	unknow	unknow	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
boundary scan	NO	NO	NO
External data bus width	32	32	32
JESD-30 code	S-PQFP-G196	S-PQFP-F196	S-PQFP-G196
JESD-609 code	e0	e0	e0
length	34.29 mm	34.29 mm	34.29 mm
low power mode	NO	NO	NO
Negative supply voltage rating	-5.2 V	-5.2 V	-5.2 V
Number of terminals	196	196	196
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output data bus width	32	32	32
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	HGQFF	QFP
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK, HEAT SINK/SLUG, GUARD RING	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	1589 mA	1589 mA	1589 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	ECL	ECL	ECL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	FLAT	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm
Terminal location	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	34.29 mm	34.29 mm	34.29 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, CROSSBAR SWITCH	DSP PERIPHERAL, CROSSBAR SWITCH	DSP PERIPHERAL, CROSSBAR SWITCH
Base Number Matches	1	1	-
