CYStech Electronics Corp.
500mW Zener Diode Series
Spec. No. : C190SH
Issued Date : 2013.05.02
Revised Date : 2013.09.04
Page No. : 1/8
ZD46XXSH
Description
The ZD46XXSH series covers zener voltage range from 1.8V to 43V, and is encapsulated in SOD-123 package,
very suitable for low cost, low power voltage regulation application.
Features
•
Ultra small surface mount package
•
General purpose, medium current
•
Planar die construction
•
Pb-free package

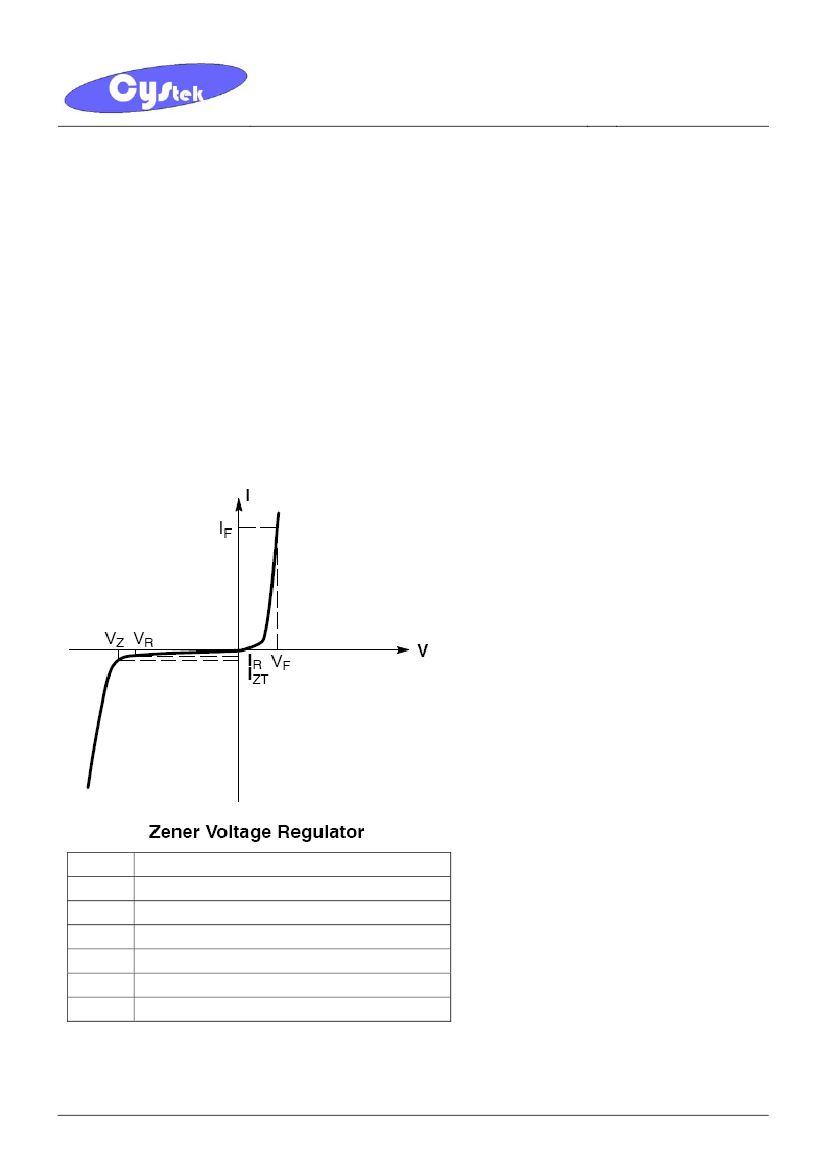

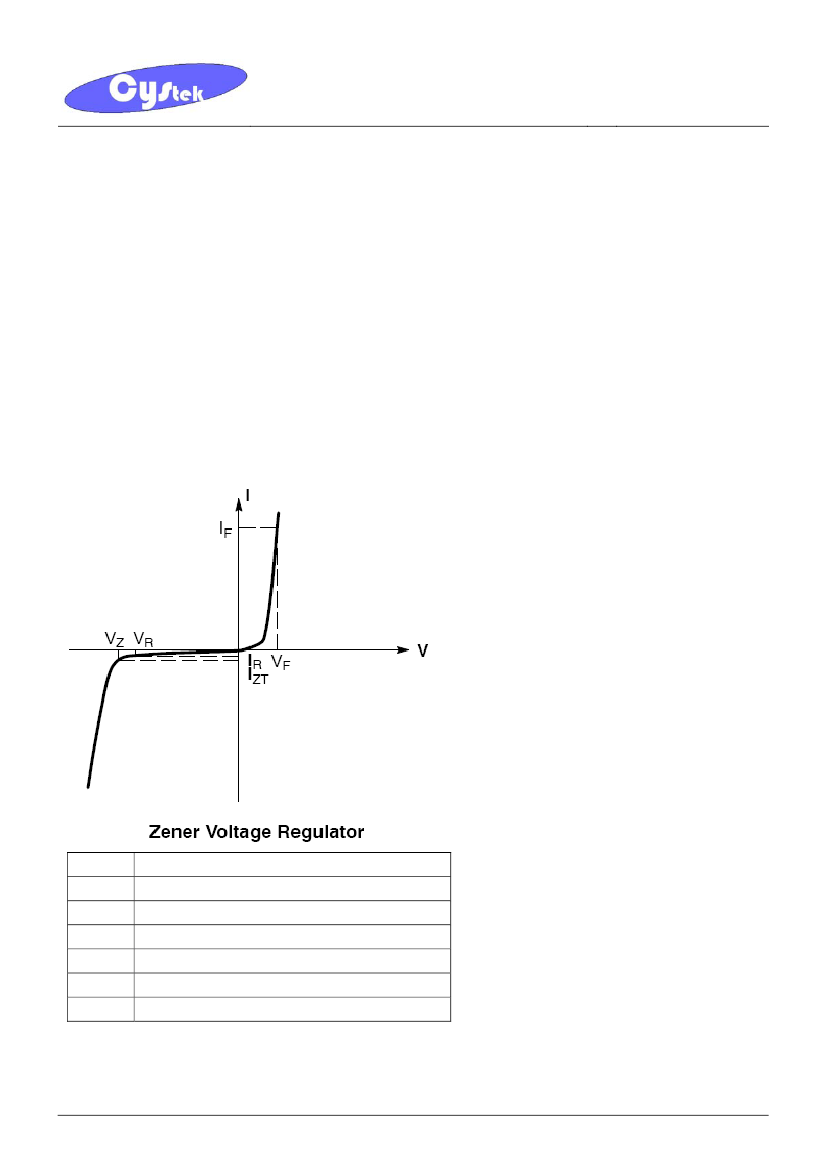

Symbol
Outline
SOD-123
Ordering Information
Device
ZD46XXSH-0-T1-G
Package
SOD-123
(Pb-free lead plating and halogen-free package)
Shipping
3000 pcs / Tape & Reel
ZD46XXSH series
CYStek Product Specification
CYStech Electronics Corp.
Absolute Maximum Ratings
(Tj=25℃, unless otherwise specified)
Spec. No. : C190SH
Issued Date : 2013.05.02
Revised Date : 2013.09.04
Page No. : 2/8
•
Maximum Temperatures
Operating and Storage Temperature Range Tj,Tstg ............................................................. -65~+150
°C
•
Maximum Forward Voltage @ I
F
=10mA ………………………………………………………........0.9V
•
Maximum Power Dissipation
Total Power Dissipation @T
L
=75
°C
Ptot
(Note 1)
……………………………………………500 mW
•
Thermal Resistance, Junction to Ambient Air R
θJL
(Note 1)
……………………………….…….150℃/W
•
Maximum Z-current………………………………………………………………………….. Ptot/V
Z
mA
Note : 1. Parts mounted on FR-5 board with area of 3.5inch
×
1.5inch.
Electrical Characteristic
(Ta=25℃, unless otherwise noted)
Symbol
V
Z
I
ZT
I
R
V
R
I
F
V
F
Reverse current
Parameter
Reverse zener voltage @ I
ZT
Reverse leakage current @ V
R
Reverse voltage
Forward current
Forward voltage @ I
F
ZD46XXSH series
CYStek Product Specification
CYStech Electronics Corp.
Device
ZD4678
ZD4679
ZD4680
ZD4681
ZD4682
ZD4683
ZD4684
ZD4685
ZD4686
ZD4687
ZD4688
ZD4689
ZD4690
ZD4691
ZD4692
ZD4693
ZD4694
ZD4695
ZD4696
ZD4697
ZD4698
ZD4699
ZD4700
ZD4701
ZD4702
ZD4703
ZD4704
ZD4705
ZD4706
ZD4707
ZD4708
ZD4709
ZD4710
ZD4711
ZD4712
ZD4713
ZD4714
ZD4715
ZD4716
ZD4717
Type
Code
CC
CD
CE
CF
CH
CJ
CK
CM
CN
CP
CT
CU
CV
CA
CX
CY
CZ
DC
DD
DE
DF
DH
DJ
DK
DM
DN
DP
DT
DU
DV
DA
DX
DY
EA
EC
ED
EE
EF
EH
EJ
Nom. Zener Voltage
V
Z
@I
ZT
Nom.
Max.
(V)
(V)
1.8
1.89
2.0
2.10
2.2
2.31
2.4
2.52
2.7
2.835
3.0
3.15
3.3
3.47
3.6
3.78
3.9
4.10
4.3
4.52
4.7
4.94
5.1
5.36
5.6
5.88
6.2
6.51
6.8
7.14
7.5
7.88
8.2
8.61
8.7
9.14
9.1
9.56
10
10.5
11
11.55
12
12.60
13
13.65
14
14.70
15
15.75
16
16.80
17
17.85
18
18.90
19
19.95
20
21.00
22
23.10
24
25.20
25
26.25
27
28.35
28
29.40
30
31.50
33
34.65
36
37.80
39
40.95
43
45.15
Spec. No. : C190SH
Issued Date : 2013.05.02
Revised Date : 2013.09.04
Page No. : 3/8
Max. Reverse Leakage Current
I
ZT
(μA)
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
I
R
(μA)
7.5
5
4
2
1
0.8
7.5
7.5
5
4
10
10
10
10
10
10
1
1
1
1
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
V
R
(V)
1
1
1
1
1
1
1.5
2
2
2
3
3
4
5
5.1
5.7
6.2
6.6
6.9
7.6
8.4
9.1
9.8
10.6
11.4
12.1
12.9
13.6
14.4
15.2
16.7
18.2
19.0
20.4
21.2
22.8
25.0
27.3
29.6
32.6
Min.
(V)
1.71
1.90
2.09
2.28
2.565
2.85
3.13
3.42
3.70
4.09
4.47
4.85
5.32
5.89
6.46
7.13
7.79
8.27
8.65
9.50
10.45
11.40
12.35
13.30
14.25
15.20
16.15
17.10
18.05
19.00
20.90
22.80
23.75
25.65
26.60
28.50
31.35
34.20
37.05
40.85
ZD46XXSH series
CYStek Product Specification
CYStech Electronics Corp.
Characteristic Curves
ZD4686
Reverse Leakage Current vs Reverse Voltage
150
Tj=25℃
1000
Instantaneous Forward Current---I
F
(mA)
Pulse width=300μs,
1% Duty cycle
Tj=25°C
Spec. No. : C190SH
Issued Date : 2013.05.02
Revised Date : 2013.09.04
Page No. : 4/8
Forward Current vs Forward Voltage
Reverse Leakage Current---IR(uA)
100
100
10
125°C
50
75°C
1
25°C
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
0.1
0
0.2
Reverse Voltage---VR(V)
0.4
0.6
0.8
1
Forward Voltage---V
F
(V)
1.2
1.4
Junction Capacitance vs Reverse Voltage
1000
Tj=25℃, f=1.0MHz
Junction Capacitance---CJ(pF)
100
10
0.1
1
Reverse Voltage---VR(V)
10
ZD46XXSH series
CYStek Product Specification
CYStech Electronics Corp.
ZD4687
Reverse Leakage Current vs Reverse Voltage
150
Tj=25℃
1000
Instantaneous Forward Current---I
F
(mA)
Pulse width=300μs,
1% Duty cycle
Tj=25°C
Spec. No. : C190SH
Issued Date : 2013.05.02
Revised Date : 2013.09.04
Page No. : 5/8
Forward Current vs Forward Voltage
Reverse Leakage Current---IR(uA)
100
100
10
125°C
50
75°C
1
25°C
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
0.1
0
0.2
Reverse Voltage---VR(V)
Junction Capacitance vs Reverse Voltage
1000
Tj=25℃, f=1.0MHz
0.4
0.6
0.8
1
Forward Voltage---V
F
(V)
1.2
1.4
Junction Capacitance---CJ(pF)
100
10
0.1
1
Reverse Voltage---VR(V)
10
ZD46XXSH series
CYStek Product Specification
