LL1005-FHL7N5J: Description1 ELEMENT, 0.0075 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components; File Size184KB，2 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Compare View All

LL1005-FHL7N5J Overview

1 ELEMENT, 0.0075 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD

Preview

Download Datasheet

View All

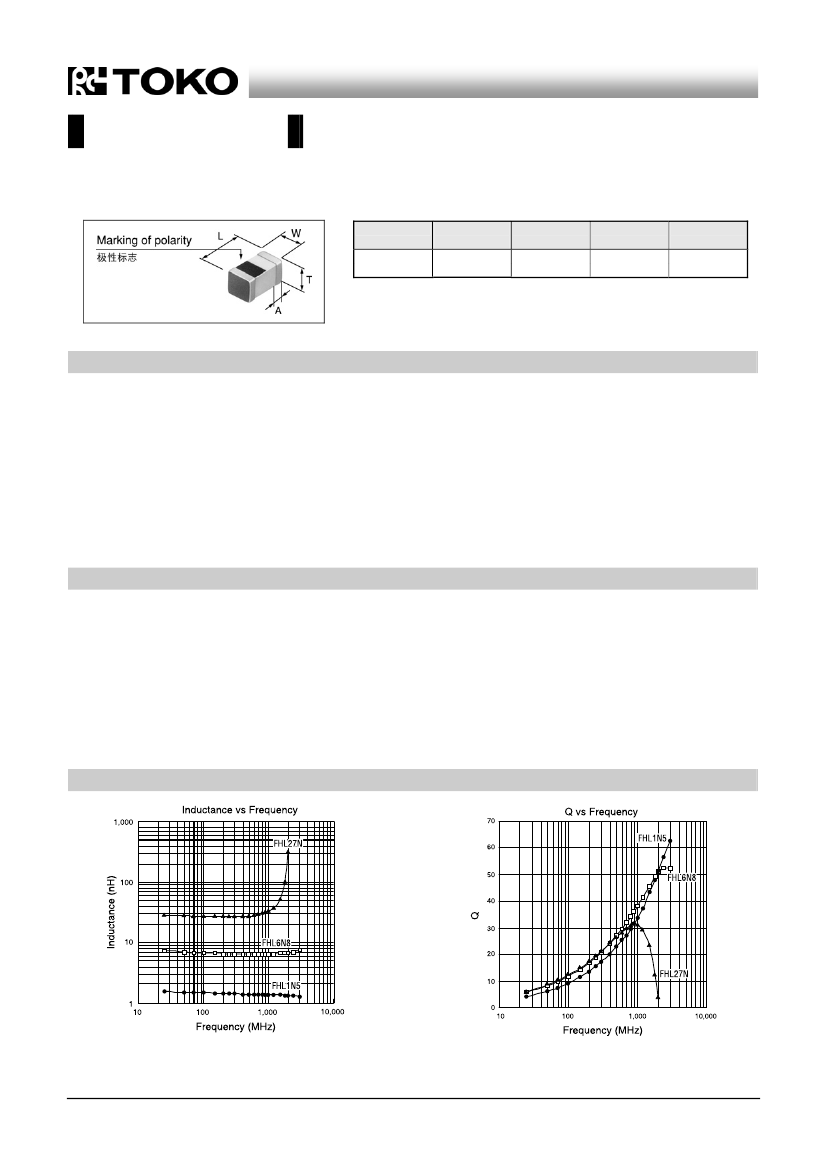

Multilayer Chip Inductors

叠层片式电感器

LL1005-FHL

Inductance Range:

1.0~100nH (E-24 Series)、特殊对应品 order production available (1.1nH, 1.3nH, 1.6nH, 2.0nH, 2.4nH,

3.0nH, 3.6nH, 4.3nH, 5.1nH, 6.2nH, 7.5nH, 9.1nH)

Temperature Coefficient of L:

+ 250ppm/°C (for reference only)

Inductance

1.0 ~ 68nH

82 ~ 100nH

Length

L (mm)

1.0



0.05

1.0



0.05

Width

W (mm)

0.5



0.05

0.5



0.05

Thickness

T (mm)

0.5



0.05

0.5



0.1

Electrode width

A (mm)

0.25



0.1

0.25



0.1



Marking of polarity:

Marking is on the upper Surface of the unit.



极性标志: 标志在单元上部表面。

FEATURES

特点



针对电感值值的双频率标准

缩小物理尺寸公差（±0.05毫米）

支持高温回流焊接（260°C，3次）

扩展工½温度范围（－55°C

~

＋125°C）

扩展适用的频率范围（~

10GHz）

表面贴装设备适用性（支持回流焊接）

可靠性高（陶瓷制品混合结构, 以及电镀电极）

符合RoHS指令



Dual frequency standard for inductance value



Tight tolerance physical dimensions (0.05mm)



Supports high temperature reflow soldering (260°C, 3

times)



Expanding operating temperature range (−55°C~+125°C)



Extended applicable frequency range (~10GHz)



Surface mounting applicability (Supports reflow soldering)



High reliability (ceramic integrated structure, and terminals

plated)



RoHS compliant

ELECTRICAL CHARACTERISTICS



Inductance Range



Inductance Tolerance



电气特性



电感值范围



电感值公差



Q（典型）

额定电流値

电感的感应温度系数(仅供参考)

½用温度范围

储存温度范围

1.0½100nH (E-24系列）

S級;

0.3nH

(1.0½6.2nH)

J級 ;

5%

(6.8½100nH)

15½35 (在800MHz情况下)

200½500mA

＋250ppm/°C

－55°C½＋125°C

1.0~100nH (E-24 Series)

S ;



0.3nH (1.0~6.2nH)

J ;



5% (6.8~100nH)

Q (Typical)

15~35 (at 800MHz)

Rated Current

200~500mA

Inductance Temperature Coefficient +250ppm/°C

(for reference only)

Operating Temperature Range -55°C~+ 125°C

Storage Temperature Range

-55°C~+ 125°C

EXAMPLES OF CHARACTERISTICS

特性范例

continued on next page

接下页

LL1005-FHL7N5J Related Products

	LL1005-FHL7N5J	LL1005-FHL4N3S	LL1005-FHL	LL1005-FHL27NJ	LL1005-FHL5N1S	LL1005-FHL6N2S	LL1005-FHL9N1J
Description	1 ELEMENT, 0.0075 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.0043 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.0043 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.027 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.0051 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.0062 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.0091 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD
Is it Rohs certified?	-	conform to	-	conform to	conform to	conform to	conform to
package instruction	-	0402	-	0402	0402	0402	0402
Reach Compliance Code	-	unknow	-	unknow	unknow	unknow	unknow
ECCN code	-	EAR99	-	-	EAR99	EAR99	EAR99
uppercase and lowercase codes	-	0402	-	0402	0402	0402	0402
structure	-	Multilayer Chi	-	Multilayer Chi	Multilayer Chi	Multilayer Chi	Multilayer Chi
core material	-	CERAMIC	-	CERAMIC	CERAMIC	CERAMIC	CERAMIC
DC Resistance	-	0.18 Ω	-	0.85 Ω	0.2 Ω	0.22 Ω	0.26 Ω
Nominal inductance(L)	-	0.0043 µH	-	0.027 µH	0.0051 µH	0.0062 µH	0.0091 µH
Inductor Applications	-	RF INDUCTOR	-	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	-	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	-	LL1005-FHL	-	LL1005-FHL	LL1005-FHL	LL1005-FHL	LL1005-FHL
Number of functions	-	1	-	1	1	1	1
Number of terminals	-	2	-	2	2	2	2
Maximum operating temperature	-	125 °C	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
Package height	-	0.5 mm	-	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Package length	-	1 mm	-	1 mm	1 mm	1 mm	1 mm
Package form	-	SMT	-	SMT	SMT	SMT	SMT
Package width	-	0.5 mm	-	0.5 mm	0.5 mm	0.5 mm	0.5 mm
method of packing	-	TR	-	TR	TR	TR	TR
Minimum quality factor (at nominal inductance)	-	8	-	10	9	9	9
Maximum rated current	-	0.4 A	-	0.3 A	0.4 A	0.4 A	0.4 A
self resonant frequency	-	6000 MHz	-	1700 MHz	5300 MHz	4700 MHz	3600 MHz
series	-	LL1005-FHL	-	LL1005-FHL	LL1005-FHL	LL1005-FHL	LL1005-FHL
Shape/Size Description	-	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	-	NO	-	NO	NO	NO	NO
surface mount	-	YES	-	YES	YES	YES	YES
Terminal location	-	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	-	WRAPAROUND	-	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	-	100 MHz	-	100 MHz	100 MHz	100 MHz	100 MHz
Maker	-	-	-	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.
