TECHNICAL DATASHEET
MDS Medical AC-DC Open Frame
15V 40W / MDS-040APS15 BA
040APS

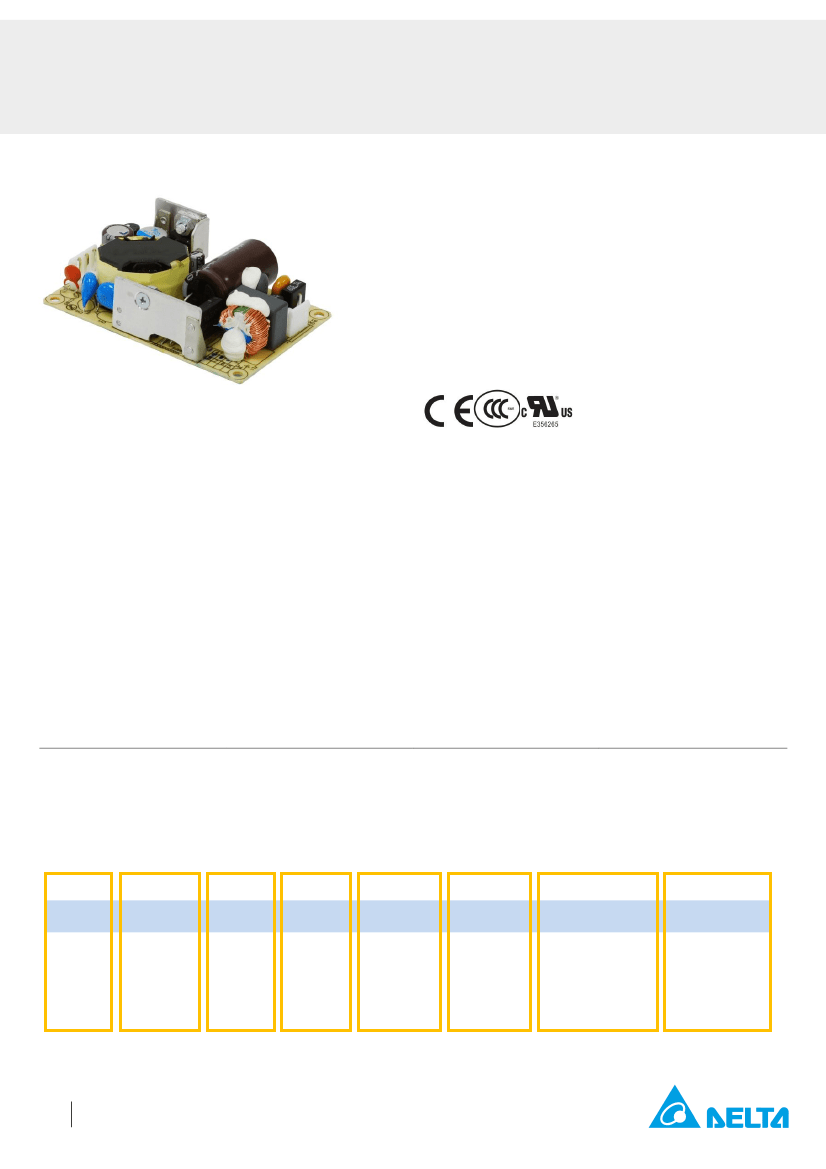

Highlights & Features
–
–
–
–
Compliant to IEC 60601-1 3rd edition
IT and medical safety approvals
Low earth leakage current (<0.1mA)
Overload, over voltage, over temperature and short circuit
protections
– Risk management report available
Safety Standards
CB Certified for worldwide use
Model Number:
MDS-040APS15 BA
Unit Weight:
0.08 kg
Dimensions (W x L x H):
50.8x76.2x23 mm
2x3x0.91 in
General Description
The MDS series of embedded power supply comes with universal AC input at 90Vac to 264Vac. Other features include
low earth leakage, risk management report available and the electric shock protection comply with 2 x MOPP. The MDS
series is certified for EMC standards according to EN 55011 for industrial, scientific and medical (ISM) radio-frequency
equipment and EN 55022 for Information Technology Equipment (ITE) radio-frequency equipment. In addition, only
recognized Japanese capacitors are used.
The MDS series come with both medical and ITE safety approvals including UL/CSA/CQC /CE and CB certification and
are fully compliant with RoHS Directive 2011/65/EU for environmental protection.
Model Information
MDS Medical AC-DC Adapter
Model Number
040APS15 BA
Input Voltage Range
90-264Vac
Output Voltage
15Vdc
Output Current
2.67A
Model Numbering
MDS
Delta Medical
power Supply
040
Max wattage in
the product
Series.
Maybe lower
at some voltage.
060 → 60W
120 →120W
1K2 → 1,200W
A
Family Code
A½ Z
P
Product Type
P: Open Frame
S
Output Code
S: Single Output
2: Dual Output
3: Triple Output
4: Four Output
5: More than
Five Output
15
Output Voltage
Single Output:
- 03 for 3.3V
- 05 for 5V
- 12 for 12V
Multiple Output:
Serial Number
00 to 99
B
Input Connector code
A: Class II, STD Connector
B: Class I, STD Connector
A
Output Connector code
A: STD Connector
1
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (July 2013, Rev. 00)
TECHNICAL DATASHEET
MDS Medical AC-DC Open Frame
15V 40W / MDS-040APS15 BA
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range
Nominal Input Frequency
Input Frequency Range
Input Current (max.)
Efficiency (typ.)
Standby Power (max.)
Inrush Current (typ.)
Earth Leakage Current (max.)
1) NC: normal condition
2) SFC: single fault condition
100-240Vac
90-264Vac
50-60Hz
47-63Hz
0.85A @ 115V/230V
87.2%,
Reference Fig.1
0.3W
30A @ 115Vac, 60A @ 230Vac
0.1mA @ 264Vac NC , 0.3mA @ 264Vac SFC
1)
2)

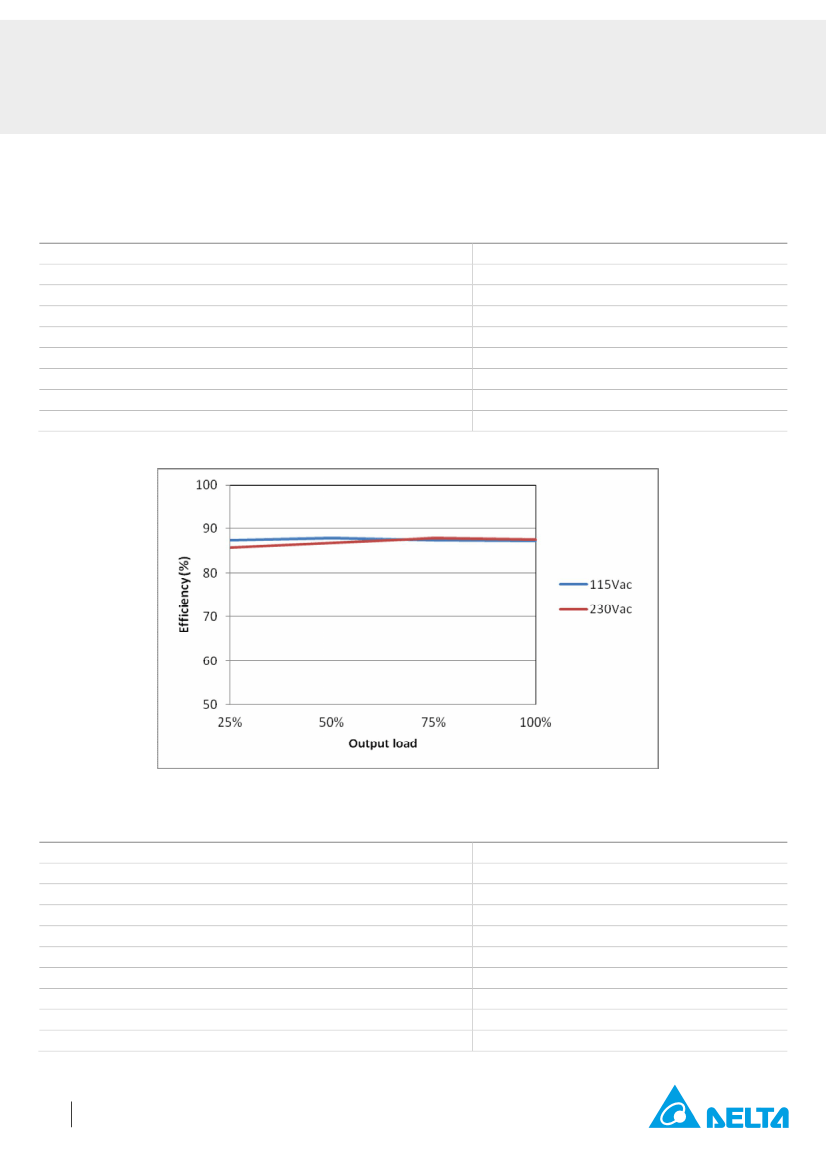

Fig.1 Efficiency versus output load
Output Ratings / Characteristics
Nominal Output Voltage
Output Voltage Tolerance
Output Current
Output Power
Line Regulation (max)
Load Regulation (max)
Ripple & Noise (typ.)
Start-up Time(max)
Hold-up Time(min)
Dynamic Response (Overshoot & Undershoot O/P Voltage)
15Vdc
± 5%
2.67A
40W
±0.5%
±1%
16.4 mV pk-pk@ Full load, Reference Fig. 2
3000ms @ 115Vac
15ms @ 115Vac
± 3% @ 50-100% load
2
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (July 2013, Rev. 00)
TECHNICAL DATASHEET
MDS Medical AC-DC Open Frame
15V 40W / MDS-040APS15 BA

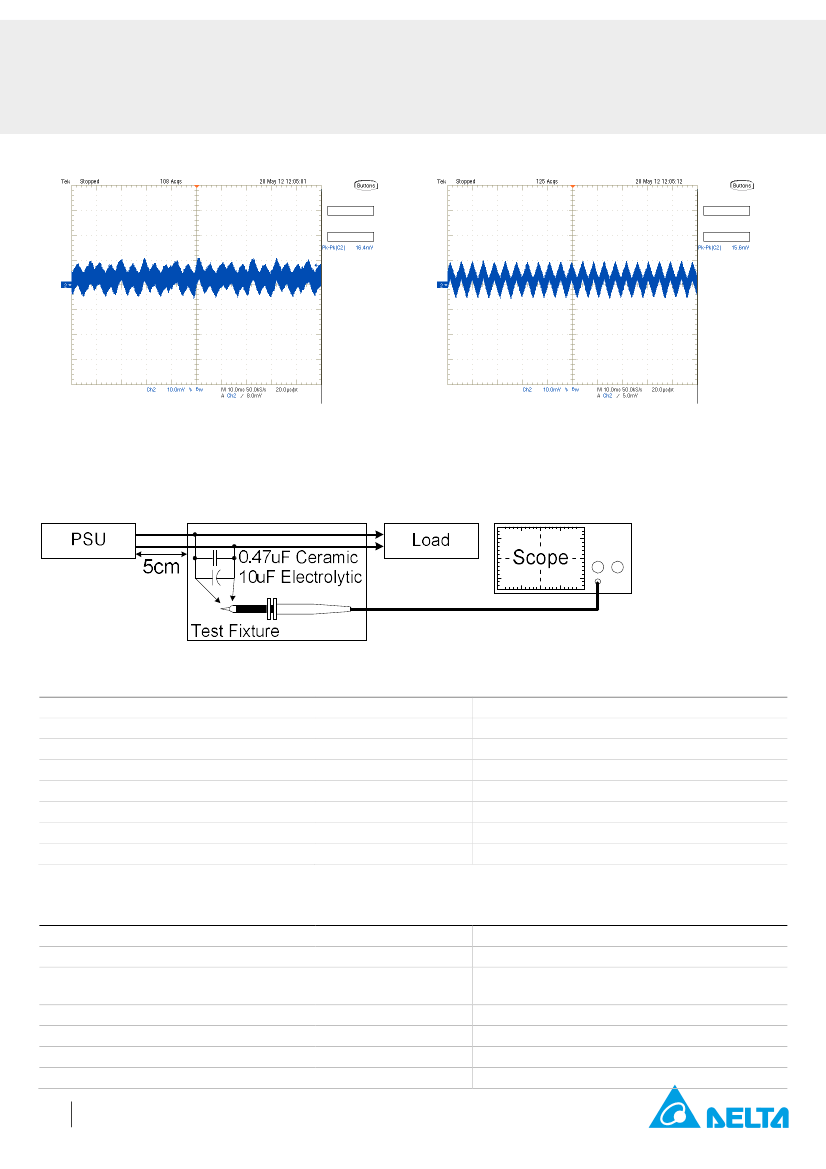

(a) 90V
Fig. 2 Ripple & Noise example, 20MHz BW
(b) 264V
Ripple & Noise measurement circuit
Mechanical
Case Chassis
Case Cover
Dimensions (W x Lx H)
Weight (typ.)
Indicator
Terminal
Wire
Input
Output
NA
NA
50.8x76.2x23 mm(2.0x3.0x0.9
in)
0.08 kg
NA
JST 2P
JST 4P
NA
Environment
Surrounding Air Temperature
Power De-rating
Operating Humidity
Operating Altitude
Shock Test (Non-Operating)
Vibration (Operating)
Operating
Storage
0°C to +40°C
-40°C to +85°C
-10°C to +50°C 100% load
50°C to 70°C de-rate power by 2.5% / °C, See Fig. 3
10-95% RH (Non-Condensing)
3,000 meters
50G, 11ms, 3 shocks for each direction
5-500Hz, 2.09Grms, 20 minute for each three axis
3
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (July 2013, Rev. 00)
TECHNICAL DATASHEET
MDS Medical AC-DC Open Frame
15V 40W / MDS-040APS15 BA
Protections
Over voltage (max)
Over load / Over current
Over Temperature
Short Circuit
Protection Against Shock
*PE: Protective Earth
150%, Latch Mode
150%~210% of rated load current, Hiccup Mode,
(Non-Latching, Auto-Recovery)
Hiccup Mode,
(Non-Latching, Auto-Recovery)
Hiccup Mode,
(Non-Latching, Auto-Recovery)
Class I with PE* connection
Reliability Data
MTBF (typ.)
3705 kHrs based on Telecordia SR-332
Safety Standards / Directives
Medical Safety
IEC60601-1: (Ed.3,2005), EN0601-1:2006, CAN/CSA-
C22.2 No. 60601-1:08, ANSI/AAMI ES60601-1:
(Ed.3,2005)
IEC60950-1 (Ed.2,2005), GB4943.1-2011, GB9254-
2008, GB17625.1-2003
MDD Directive 93/42/EEC
RoHS Directive 2011/65/EU Compliant
Input to Output
Input to Ground
Output to Ground
4000 Vac
1500 Vac
500 Vac
ITE Safety
CE
Material and Parts
Galvanic Isolation
4
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (July 2013, Rev. 00)
TECHNICAL DATASHEET
MDS Medical AC-DC Open Frame
15V 40W / MDS-040APS15 BA
EMC
EMC / Emissions
Immunity to
Voltage Flicker
Electrostatic Discharge
EN61000-3-3
IEC61000-4-2
Level 3 Criteria A
Air Discharge: 8kV
Contact Discharge: 6kV
Level 2 Criteria A
80MHz-1GHz, 3V/M with 1kHz tone / 80% modulation
Level 3 Criteria A
2kV
1)
1)
1)
EN55011, EN55022, FCC Title 47: Class B
Radiated Field
Electrical Fast Transient / Burst
Surge
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
Level 3 Criteria A
2)
Common Mode : 2kV
3)
Differential Mode : 1kV
Level 2 Criteria A
150kHz-80MHz, 3Vrms
Criteria A
Magnetic field strength 3A/Meter
30% 10ms Criteria A ; 60% 100ms and 100% 5000ms
Criteria B
1)
1)
1)
Conducted
Power Frequency Magnetic Fields
Voltage Dips
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11

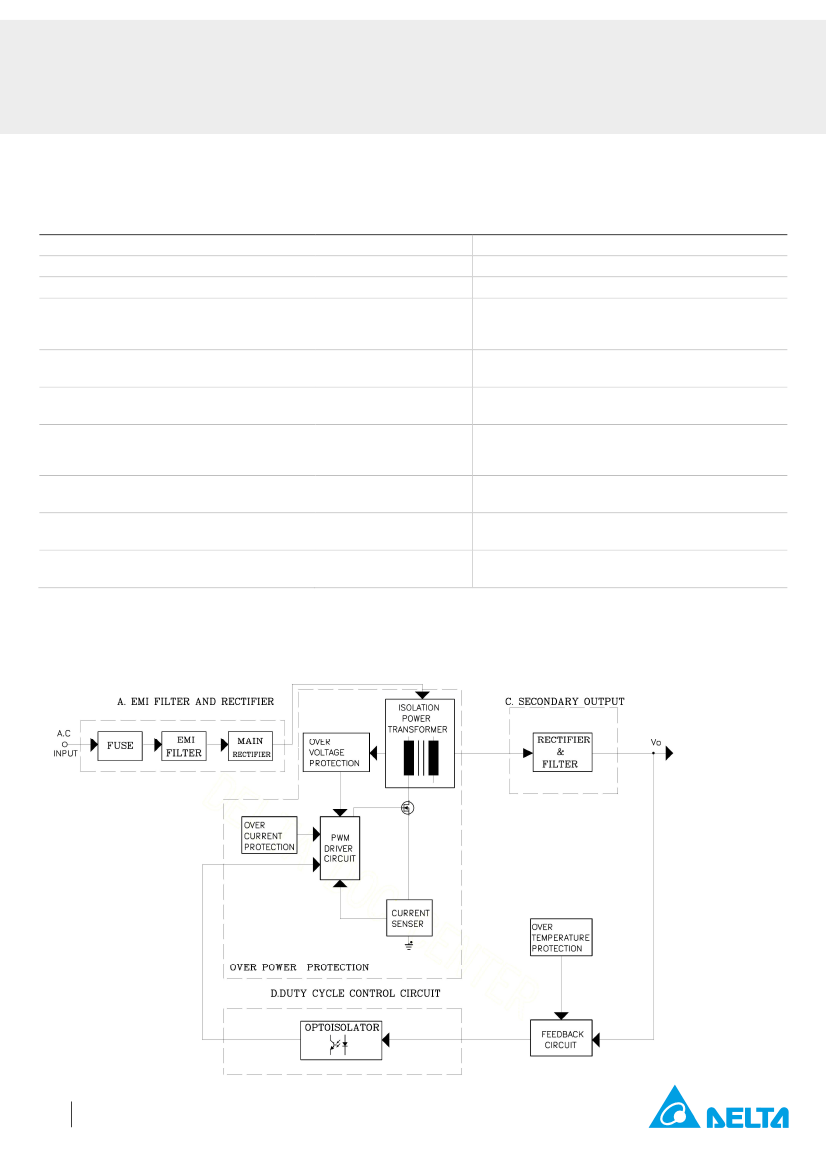

Block Diagram
5
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (July 2013, Rev. 00)
