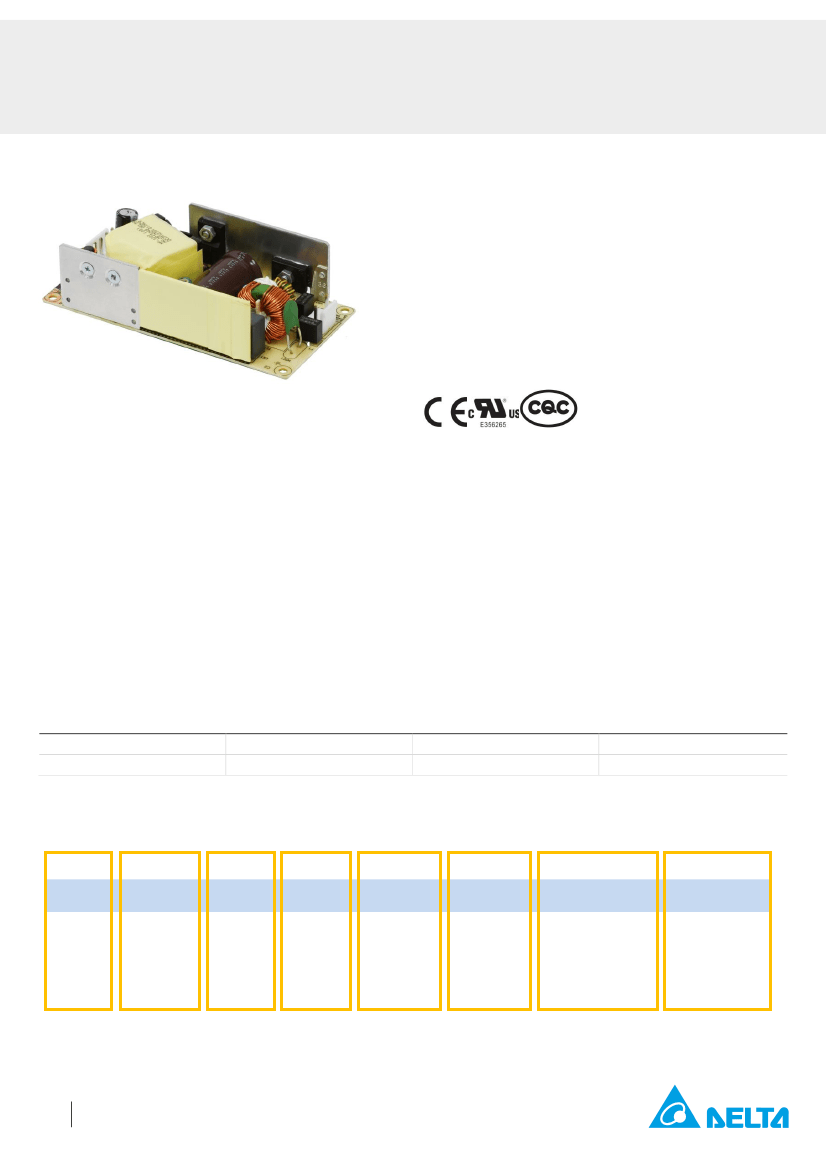

TECHNICAL DATASHEET
MDS Medical AC-DC Open Frame
18V 65W / MDS-065APS18 BA
065 APS
Highlights & Features
–
–
–
–
Compliant to IEC 60601-1 3rd edition
IT and medical safety approvals
Low earth leakage current (<0.1mA)
Overload, over voltage, over temperature and short circuit
protections
– Risk management report available
Safety Standards
CB Certified for worldwide use
Model Number:
MDS-065APS18 BA
Unit Weight:
0.13kg
Dimensions (W x L x H):
50.8x101.6x30.0 mm
2.0x4.0x1.2 in
General Description
The MDS series of embedded power supply comes with universal AC input at 90Vac to 264Vac. Other features include
low earth leakage, risk management report available and the electric shock protection comply with 2 x MOPP. The MDS
series is certified for EMC standards according to EN 55011 for industrial, scientific and medical (ISM) radio-frequency
equipment and EN 55022 for Information Technology Equipment (ITE) radio-frequency equipment. In addition, only
recognized Japanese capacitors are used.
The MDS series come with both medical and ITE safety approvals including UL/CSA/CQC /CE and CB certification and
are fully compliant with RoHS Directive 2011/65/EU for environmental protection.
Model Information
Medical AC-DC Open Frame
Model Number
MDS-065APS18 BA
Input Voltage Range
90-264Vac
Output Voltage
18Vdc
Output Current
3.61A
Model Numbering
MDS
Delta Medical
power Supply
065
Max wattage in
the product
Series.
Maybe lower
at some voltage.
065 → 65W
120 →120W
1K2 → 1,200W
A
Family Code
A½ Z
P
Product Type
P: Open Frame
S
Output Code
S: Single Output
2: Dual Output
3: Triple Output
4: Four Output
5: More than
Five Output
18
Output Voltage
Single Output:
- 03 for 3.3V
- 05 for 5V
- 12 for 12V
Multiple Output:
Serial Number
00 to 99
B
Input Connector code
A: Class II, STD Connector
B: Class I, STD Connector
A
Output Connector code
A: STD Connector
1
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (July 2013, Rev. 00)
TECHNICAL DATASHEET
MDS Medical AC-DC Open Frame
18V 65W / MDS-065APS18 BA
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range
Nominal Input Frequency
Input Frequency Range
Input Current (max)
Efficiency (typ.)
Standby Power (max)
Inrush Current (typ.)
Earth Leakage Current (max)
1) NC: normal condition
2) SFC: single fault condition
100-240Vac
90-264Vac
50-60Hz
47-63Hz
1.5A @ 100Vac, 0.75A @ 240Vac
87.7%, Reference Fig.1
0.3W
30A @ 115Vac, 60 A @ 230Vac
0.1mA @ 264Vac NC , 0.3mA @ 264Vac SFC
1)
2)
100
95
90
E fficiency ( %)
85
80
75
70
65
60
55
50
25%
50%
Ou tp ut loa d
Fig.1 Efficiency versus output load
115Vac Efficiency
230Vac Efficiency
75%
100%
Output Ratings / Characteristics
Nominal Output Voltage
Output Current
Output Power
Output Peak Load
Line Regulation (max)
Load Regulation (max)
Ripple & Noise (typ.)
Start-up Time(max)
Hold-up Time(min)
Dynamic Response (Overshoot & Undershoot O/P Voltage)
18Vdc
3.61A
65W
4.98A*
±0.5%
±1%
34mV pk-pk @ Full load, Reference Fig. 2
3000ms @ 115Vac
15ms @ 115Vac
± 3% @ 50-100% load
*Output peak can last 8 sec with 10% duty cycle, and the output voltage should meet ±5% voltage regulation at normal input voltage
2
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (July 2013, Rev. 00)
TECHNICAL DATASHEET
MDS Medical AC-DC Open Frame
18V 65W / MDS-065APS18 BA
(a) 115V
Fig. 2

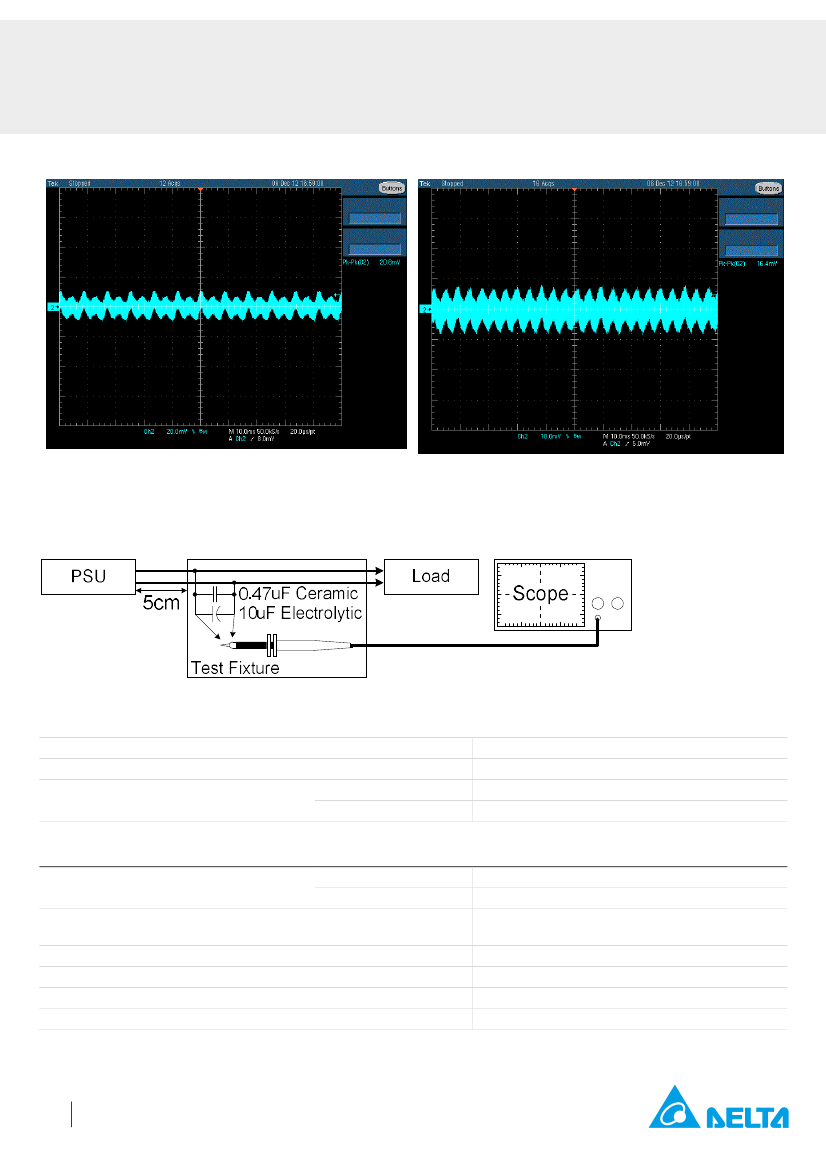

Ripple & Noise example, 20MHz BW
(b) 230V
Ripple & Noise measurement circuit
Mechanical
Dimensions(W x L x H)
Unit Weight
Terminal
Input
Output
50.8 x 101.6 x 30.0 mm(2 x 4 x 1.2 in)
0.13 kg
JST 2P
JST 4P
Environment
Surrounding Air Temperature
Power De-rating
Operating Humidity
Operating Altitude
Shock Test (Non-Operating)
Vibration (Operating)
Operating
Storage
-10°C to +70°C
-40°C to +85°C
-10°C to +50°C 100% load
50°C to 70°C de-rate power by 2.5% / °C, See Fig. 3
10-95% RH (Non-Condensing)
3,000 meters
50G, 11ms, 3 shocks for each direction
5-500Hz, 2.09Grms, 20 minute for each three axis
3
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (July 2013, Rev. 00)
TECHNICAL DATASHEET
MDS Medical AC-DC Open Frame
18V 65W / MDS-065APS18 BA
Protections
Over
Voltage
(max)
Over
Load
/ Over
Current
Over Temperature
150%, Latch Mode
150%~210% of rated load current, Hiccup Mode,
(Non-Latching, Auto-Recovery)
Hiccup Mode,
(Non-Latching, Auto-Recovery)
Hiccup Mode,
(Non-Latching, Auto-Recovery)
Class I with PE* connection
Short Circuit
Protection Against Shock
*PE: Protective Earth
Reliability Data
MTBF
2733k hrs based on Telecordia SR-332
Safety Standards / Directives
IEC60601-1: (Ed.3,2005), EN0601-1:2006, CAN/CSA-
C22.2 No. 60601-1:08, ANSI/AAMI ES60601-1:
(Ed.3,2005)
IEC60950-1 (Ed.2,2005), GB4943.1-2011, GB9254-
2008, GB17625.1-2003
MDD Directive 93/42/EEC
RoHS Directive 2011/65/EU Compliant
Input to Output
Input to Ground
Output to Ground
4000 Vac
1500 Vac
500 Vac
Medical Safety
ITE Safety
CE
Material and Parts
Galvanic Isolation
4
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (July 2013, Rev. 00)
TECHNICAL DATASHEET
MDS Medical AC-DC Open Frame
18V 65W / MDS-065APS18 BA
EMC
EMC / Emissions
Immunity to
Voltage Flicker
Electrostatic Discharge
IEC61000-3-3
IEC61000-4-2
Level 3 Criteria A
Air Discharge: 8kV
Contact Discharge: 6kV
Level 2 Criteria A
80MHz-1GHz, 3V/M with 1kHz tone / 80% modulation
Level 3 Criteria A
2kV
1)
1)
1)
EN55011, EN55022, FCC Title 47: Class B
Radiated Field
Electrical Fast Transient / Burst
Surge
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
Level 3 Criteria A
2)
Common Mode : 2kV
3)
Differential Mode : 1kV
Level 2 Criteria A
150kHz-80MHz, 3Vrms
Criteria A
Magnetic field strength 3A/Meter
30% 10ms Criteria A ; 60% 100ms and 100% 5000ms
Criteria B
1)
1)
1)
Conducted
Power Frequency Magnetic Fields
Voltage Dips
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11

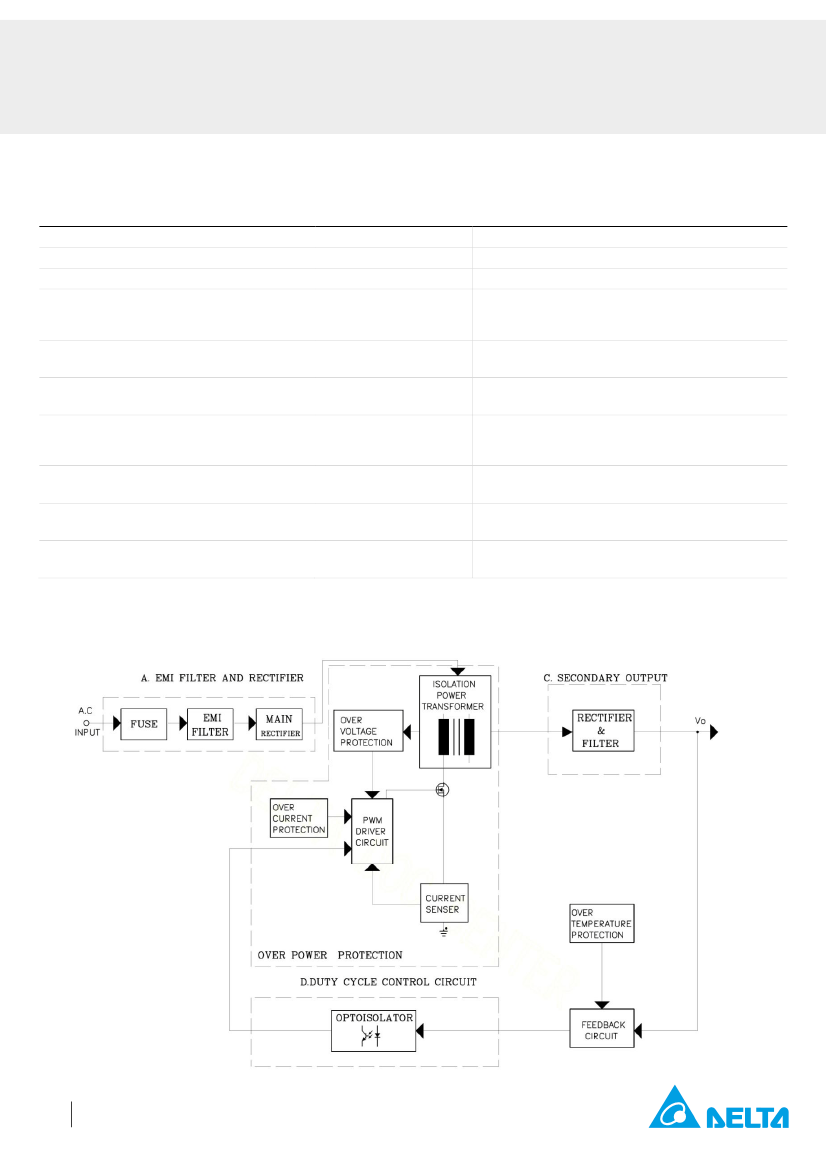

Block Diagram
5
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (July 2013, Rev. 00)
