NC6-P106-05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> NC6-P106-05

NC6-P106-05: Description20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK, ROHS COMPLIANT; CategoryThe connector terminals; File Size337KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

NC6-P106-05 Overview

20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK, ROHS COMPLIANT

NC6-P106-05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLYAMIDE, UL 94V-0
Fastening method	SCREW
Manufacturer's serial number	NC6
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	5
Rated current	20 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	12 AWG

Preview

Download Datasheet

View All

Note:

All part numbers

are RoHS Compliant.

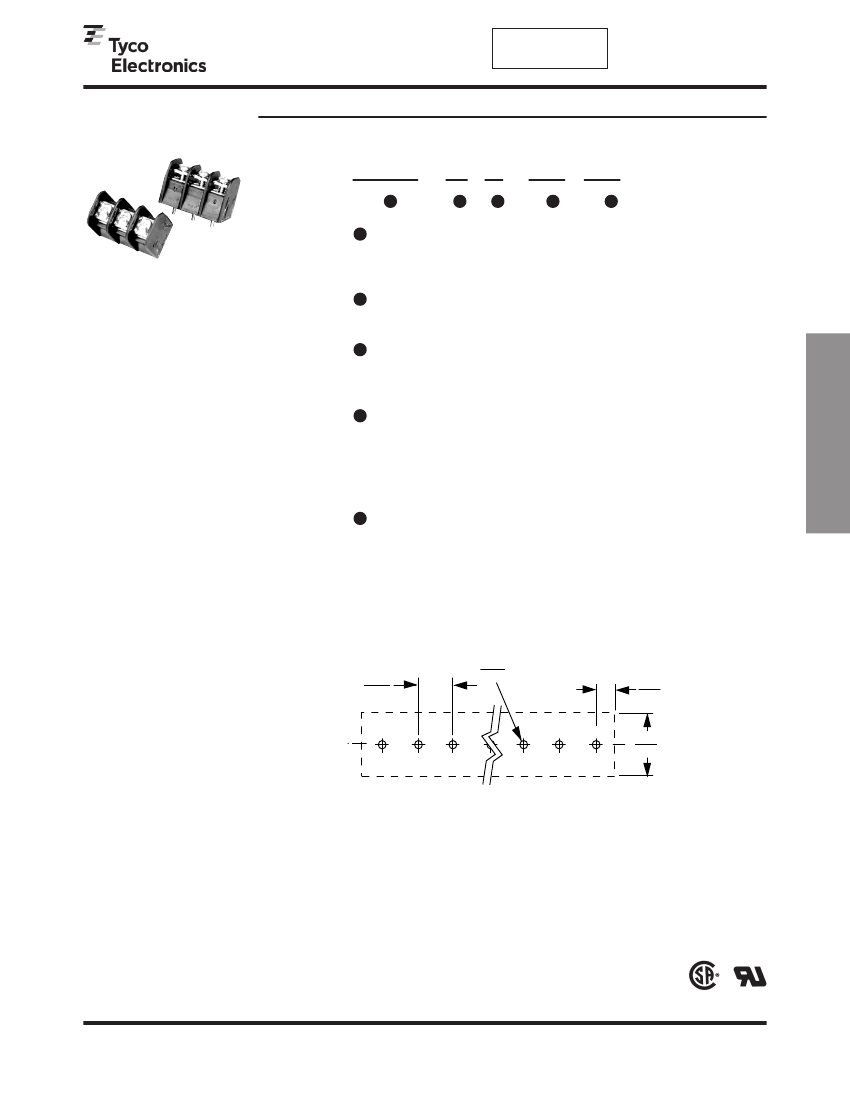

BUCHANAN Terminal Blocks

0.375” [9.53] Pitch, NC6 Series, Low Profile

NC6-P108-03

Ordering Information

NC6 - P 1 08- 04

Series

NC6

= Dual-Barrier, 0.375" Centers,

Low Profile

Terminal Style

19,0

L=A+

(.750)

= Printed Circuit Pin

Material & Finish

Housing Material—Thermoplastic

polyamide

Flammability—UL94V-0

Color—Black

Terminals—Bright

acid tin over

copper alloy

Screws—#6-32

steel, zinc plating with

clear chromate coating. Wire clamping

screws and binding head screws

available.

Block Style

= Flat, all positions filled

= End mounting holes provided

Screw Hardware

9,5

= Brass binding combo head screws

5,5

(.375)

= Brass wire-clamp combo head screws

(.22)

1,5

Typ.

= Steel binding combo head screws

(.06)

= Steel wire-clamp combo head screws

8,0

(.315)

Barrier Strips

15,9

(.63)

Mechanical Properties

Pitch (Terminal Spacing)—

.375" [9.525]

Screw Size—#6-32

steel

Recommended PCB Hole Dia.—

1.8mm [.073"] dia.

6-32 Wire

Clamping

No.

Screw

of Circuits

(Not positions)

through

6-32 Binding

Head Screw

16,4

(.65)

P. C.

1,5

(.06)

Electrical Properties

Ratings—UL

Class C 20 Amps, 300V

CSA Type C 20 Amps, 300V

Wire Range—12-22

AWG

8,9

(.35)

Environmental Properties

Operating Temperature Range—

105°C [221°] max.

Circuit Identification—See

page 179

4,6

(.18)

9,5

(.375)

Typ.

1,8

Dia.

(.073)

0,8

(.032)

1,0

(.04)

Hardware Options

1437651-2—Wire

clamp screw, steel,

see page 178

1437651-5—Wire

clamp screw, brass,

see page 178

1437651-8—Binding

head screw,

steel, see page 178

LO3—Binding

head screw, stainless,

see page 178

5,5

(.22)

15,4

(.625)

RECOMMENDED PCB HOLE LAYOUT

LR30811

E54800

149

Catalog 1308389

Revised 6-07

www.tycoelectronics.com

Dimensions are in millimeters

and inches unless otherwise

specified.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 8706-080-208
