Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

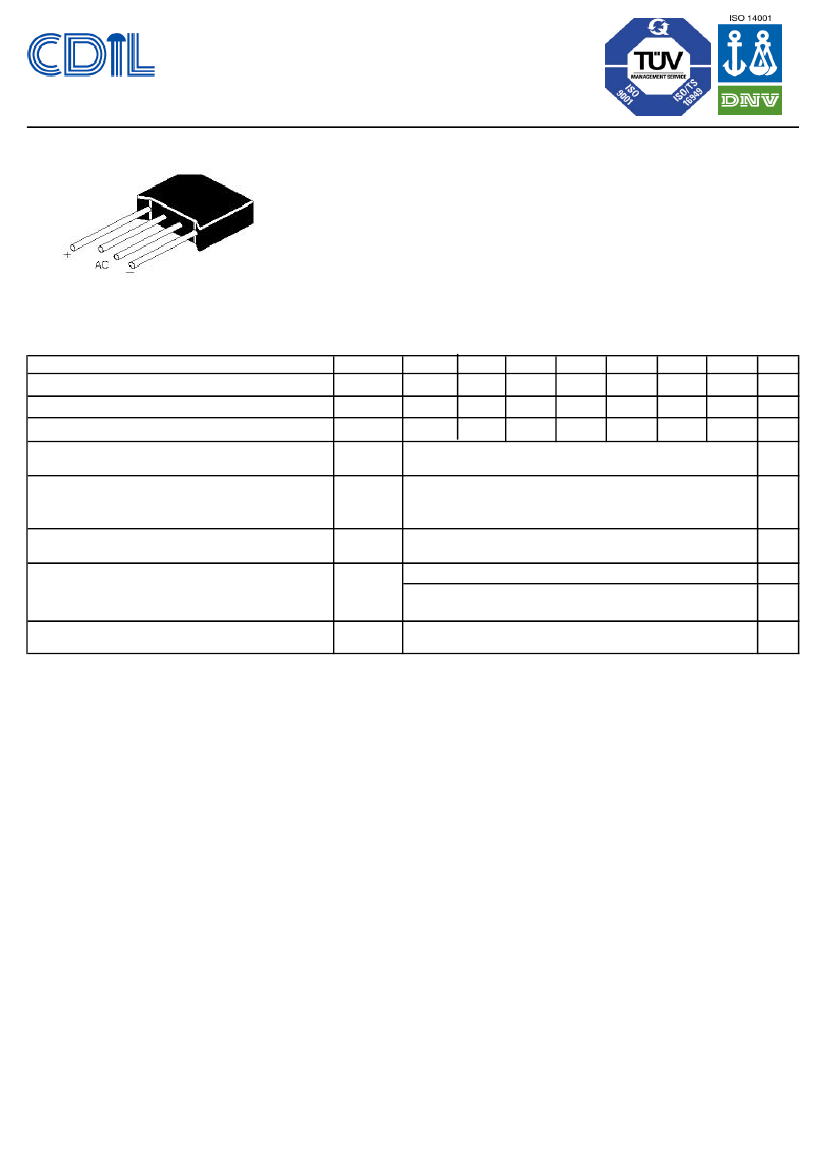

GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIERS
KBL005 - KBL10
KBL

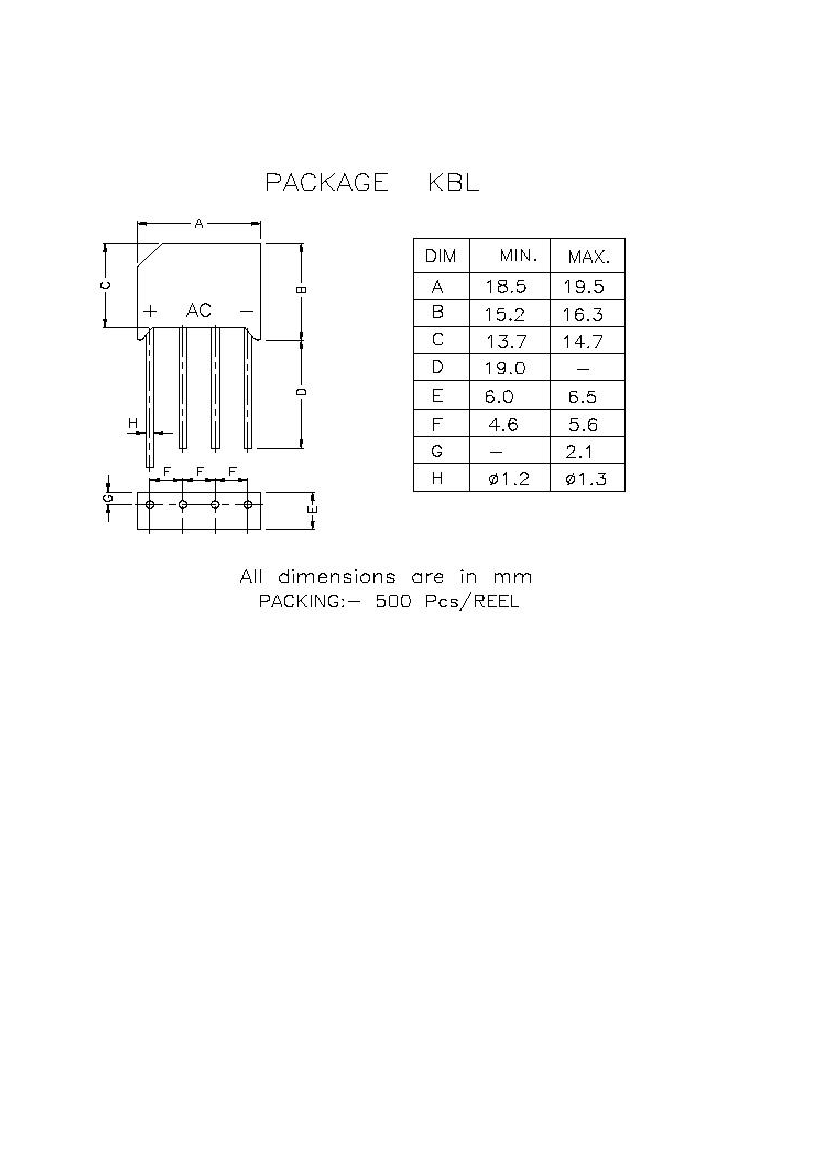

PLASTIC PACKAGE
Ratings at T
a
=25 C Ambient Temperature unless otherwise specified. Single phase, half wave,
60Hz
,
resistive or inductive load. For capacitive load, derate current by 20%
DESCRIPTION
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
a
=50ºC
Peak Forward Surge Current, 8.3ms single
half sine wave superimposed on rated load
(JEDEC method)
Maximum Forward Voltage Drop Per Element
at 1A
Maximum Reverse Current
at T
a
=25
o
C
at Rated DC Blocking Voltage Per Element
o
T
a
=100 C
Operating and Storage Junction
Temperature Range
*Mounting Conditions 0.5" Lead Length Maximum
KBL005_10 Rev141005E
o
SYMBOL KBL005 KBL01 KBL02 KBL04 KBL06 KBL08 KBL10 UNIT
V
RRM
50
100
200
400
600
800
1000
V
V
RMS
35
70
140
280
420
560
700
V
V
DC
50
100
200
400
600
800
1000
V
*I
F(AV)
I
FSM
V
F
I
R
T
j,
T
stg
4.0
200
1.0
10
1.0
- 55 to +150
A
A
V
µA
mA
ºC
Continental Device India Limited
Data Sheet
Page 1 of 3
KBL005 - KBL10
KBL
PLASTIC PACKAGE
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please
dispose as per prevailing Environmental Legislation of their Country.
2.
In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
KBL005_10 Rev141005E
Continental Device India Limited
Data Sheet
Page 2 of 3
Customer Notes
KBL005 - KBL10
KBL
PLASTIC PACKAGE
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s) best suited for
application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as to
confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and on
the CDIL Web Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or
incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any
CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not designed for
use in life saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete
Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do
so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 4141 1112 Fax + 91-11-2579 5290, 4141 1119
email@cdil.com
www.cdilsemi.com
KBL005_10 Rev141005E
Continental Device India Limited
Data Sheet
Page 3 of 3
