HDWM-11-59-G-D-250 datasheet, PDF

Datasheet> All Categories > The connector> The connector> HDWM-11-59-G-D-250

HDWM-11-59-G-D-250: DescriptionBoard Stacking Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder and Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size843KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HDWM-11-59-G-D-250 Overview

Board Stacking Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder and Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

HDWM-11-59-G-D-250 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	HIGH TEMPERATURE
body width	0.196 inch
subject depth	0.25 inch
body length	0.55 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HDWM
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	1.27 mm
Termination type	SOLDER AND SURFACE MOUNT
Total number of contacts	22

Preview

Download Datasheet

View All

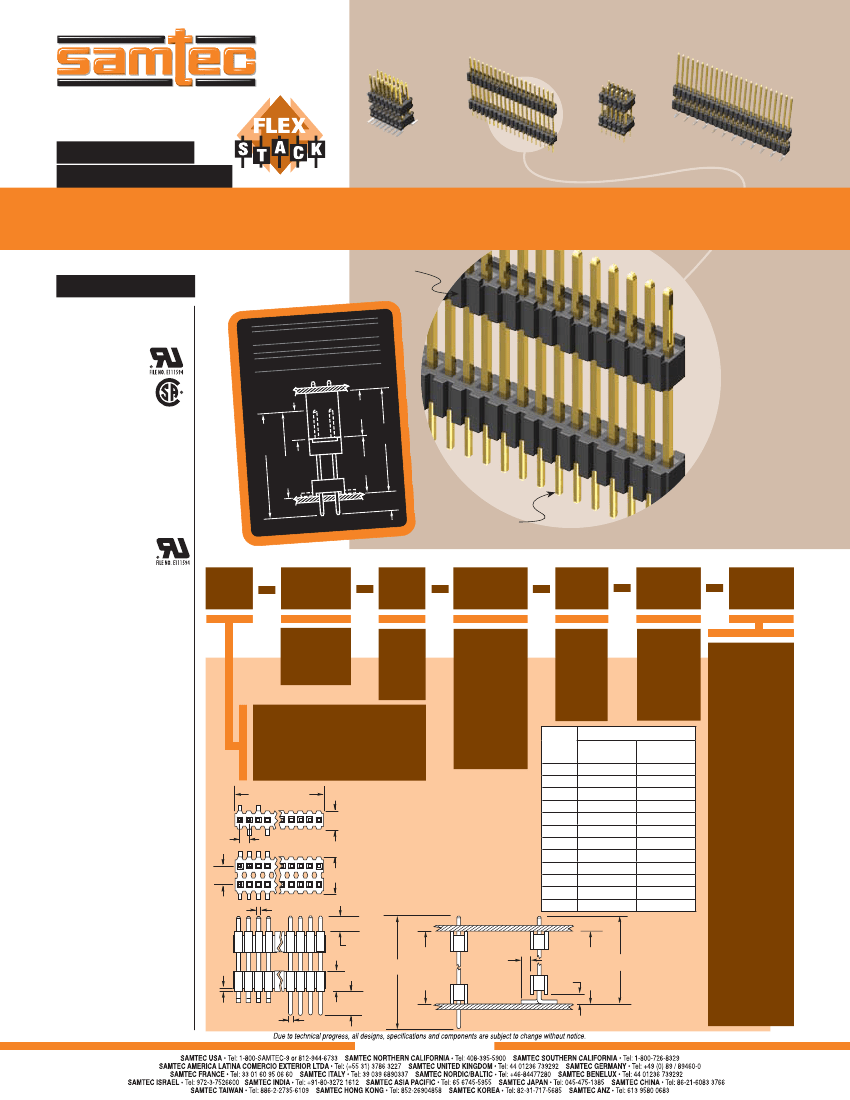

F-212

HDWM–24–59–L–S–300–SM

HDWM–20–58–G–S–427

(1,27mm) .050"

DWM, HDWM SERIES

DWM–08–56–L–D–312-SM

DWM–06–54–G–D–360

MICRO BOARD STACKER

SPECIFICATIONS

Mates with:

SMS, SLM, RSM

Variable

stacker

height

Ideal for high density

“skyscraper”

board stacking

DWM

For complete speciﬁcations

see www.samtec.com?DWM

Insulator Material:

Top: Black LCP

Bottom: Natural

LCP

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Current Rating:

Operating Temp Range:

-55°C to + 105°C with Tin

-55°C to + 125°C with Gold

RoHS Compliant:

Yes

B o a rd

Stacking

SO CK ET

PR OF ILE

OV ER AL L PO ST

T/ H

PI N

(O AL )

OV ER AL L

SM T

PI N

(O AL )

BO AR D

SP AC E

ST AC KE R

HE IG HT

HDWM

TA IL

For complete speciﬁcations

see www.samtec.com?HDWM

Same as DWM except

not CSA rated.

Choice of

Surface

mount or

Through-hole

Processing:

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15mm) .006" max

TYPE

STRIP

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

STACKER

HEIGHT

OTHER

OPTION

thru

DWM

–L

= 10µ" (0,25µm)

Gold contact,

Matte Tin

on tail

–S

= Single

Row

–“XXX”

= Stacker

Height

Example:

–250 =

(6,35mm)

.250"

– “XXX”

= Polarized

Position

(Specify position

of omitted pin)

–D

= Double

Row

LEAD

STYLE THROUGH-

HOLE

(11,43) .450

–01

(10,41) .410

–51

(10,80) .425

–52

(12,83) .505

–53

(14,10) .555

–54

(15,49) .610

–55

(15,88) .625

–56

(16,51) .650

–57

(17,91) .705

–58

(19,18) .755

–59

(20,96) .825

–60

–61

(26,67) 1.050

–G

= 10µ" (0,25µm)

Gold on post,

Gold ﬂash

on tail

= Standard Board Spacer

OAL

SURFACE

MOUNT

(8,38) .330

—

(9,78) .385

(11,05) .435

(12,45) .490

(12,83) .505

(13,46) .530

(14,86) .585

(15,62) .615

—

HDWM

= High Temp Board Spacer

(1,27) .050 X

No. of Positions

= Surface Mount

(Requires HDWM.

02 thru 40

positions only.)

– SM

(2,48)

.098

(1,27) .050 TYP

100

(2,54)

.100

(4,98)

.196

= Alignment Pin

(Requires HDWM.

6 positions min

–D only.)

Metal or plastic at

Samtec discretion

(N/A with –LC)

–A

(0,46) .018 SQ

(0,00)

.000

MIN

(0,51)

.020

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

These Series are

non-standard, non-returnable.

(0,51) .020 DIA

(2,54)

.100

(3,05)

.120

STACKER

HEIGHT

OAL

(5,08)

.200

MIN

(1,27)

.050

TYP

STACKER

HEIGHT

OAL

(6,35)

(1,27) .250

MIN

.050

= Locking Clip

(Requires HDWM.

(5 positions min.

–D only)

(N/A with –A)

(Manual placement

required)

– LC

= Pick & Place Pad

(Requires HDWM)

–P

WWW.SAMTEC.COM
