KBPC-W
and
MP-W
(4
Leads)
Square
Leaded Package
Package Outline
and Packaging Information
KBPC-W_MP-W_Pkg_Drawing Rev051105
Continental Device India Limited
Data Sheet
Page 1 of 4
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

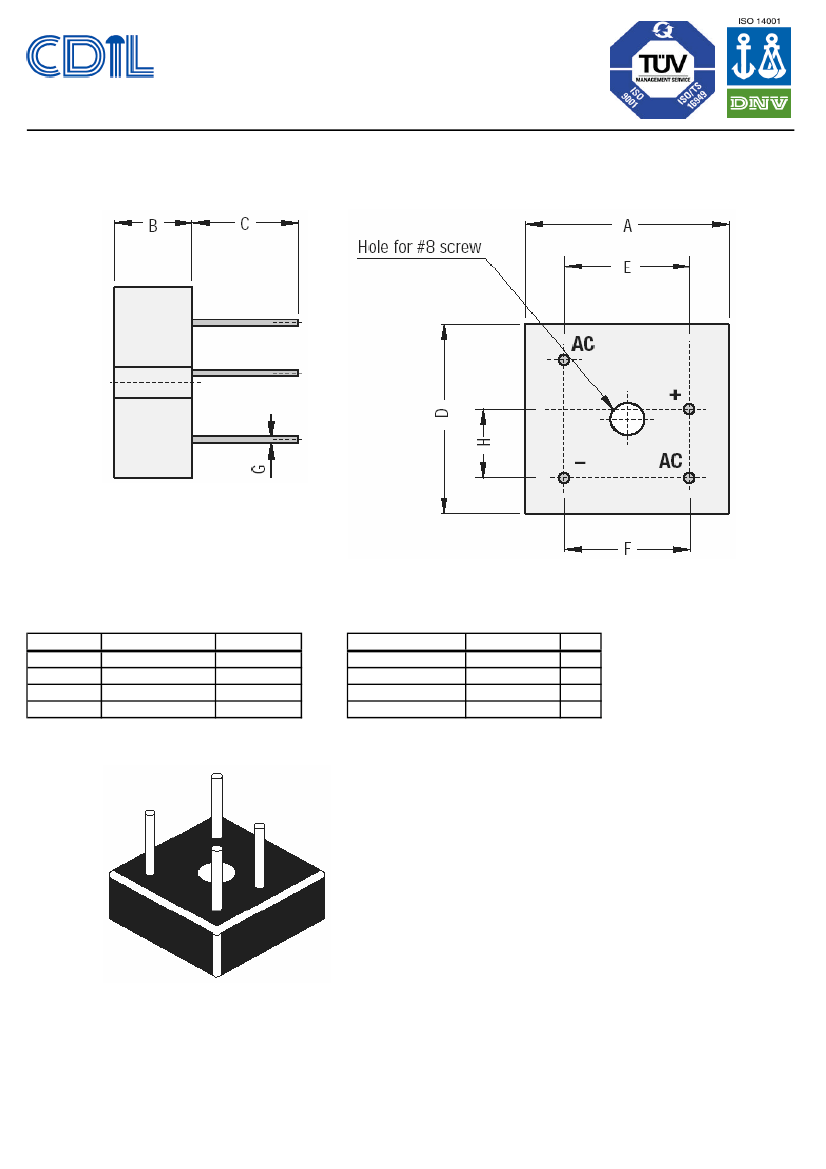

KBPC-W Leaded Plastic Package
DIM
Min
A
28.0
B
C
D
28.00
All Dimensions are in mm
Max
30.0
11.5
15.0
30.0
DIM
E
F
G
H
Min
17.6
17.6
1.1
10.9
Max
18.6
18.6
2.0
11.9
KBPC-W_MP-W_Pkg_Drawing Rev051105
Continental Device India Limited
Data Sheet
Page 2 of 4
KBPC-W/MP-W Package and Packaging
Packaging Information
Package/
Case Type
KBPC-W
MP-W
Packaging Type
Std. Packing
Qty
400
400
Qty
Inner Carton
Size L x W x H
Gross Weight
(cm)
(Kg)
Qty
Outer Carton
Size L x W x H Gross Weight
(cm)
(Kg)
Bulk
Bulk
Bulk: Lose in Poly bags
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please dispose
as per prevailing Environmental Legislation of their Country.
2. In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
Customer Notes
KBPC-W/MP-W Package and Packaging
