Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

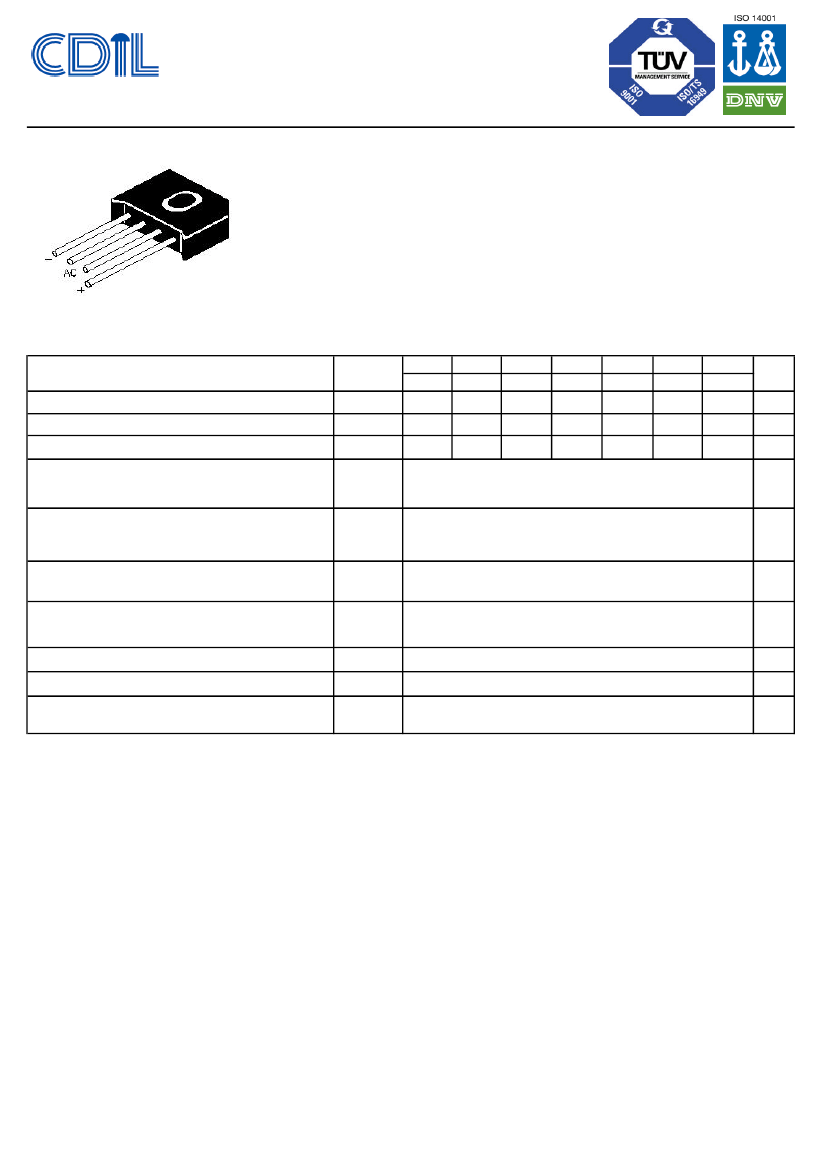

SINGLE PHASE SILICON BRIDGE RECTIFIER
KBU6005 - KBU610
KBU
PLASTIC PACKAGE
Ratings at T
a
=25 C Ambient Temperature unless otherwise specified. Single phase, half wave,
60Hz
,
resistive or inductive load. For capacitive load, derate current by 20%
DESCRIPTION
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
0.375" (9.5mm) Lead Length at T
a
=65ºC
Peak Forward Surge Current, 8.3ms single
half sine wave superimposed on rated load
(JEDEC method)
Maximum Forward Voltage at 6A DC at T
a
=
25ºC
Maximum Reverse Current
at Rated DC Blocking Voltage
Typical Thermal Resistance
Typical Thermal Resistance
Operating and Storage Temperature Range
at T
a
=25
o
C
T
a
=100
o
C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
KBU
6005
50
35
50
KBU
601
100
70
100
KBU
602
200
140
200
KBU
604
400
280
400
6.0
KBU
606
600
420
600
KBU
608
800
560
800
KBU
610
1000
700
1000
UNIT
V
V
V
A
o
I
FSM
V
F
I
R
*R
th (j-a)
*R
th (j-L)
T
J,
T
stg
200
1.0
5.0
500
8.6
3.1
- 55 to +125
o
o
A
V
µA
µA
C/W
C/W
o
C
*Thermal resistance junction to Ambient with units in free air, PCB mounted on "0.5 x 0.5" (12 x 12mm) copper
pads, 0.375"(9.5mm) lead length
KBU6005_610Rev091205E
Continental Device India Limited
Data Sheet
Page 1 of 3

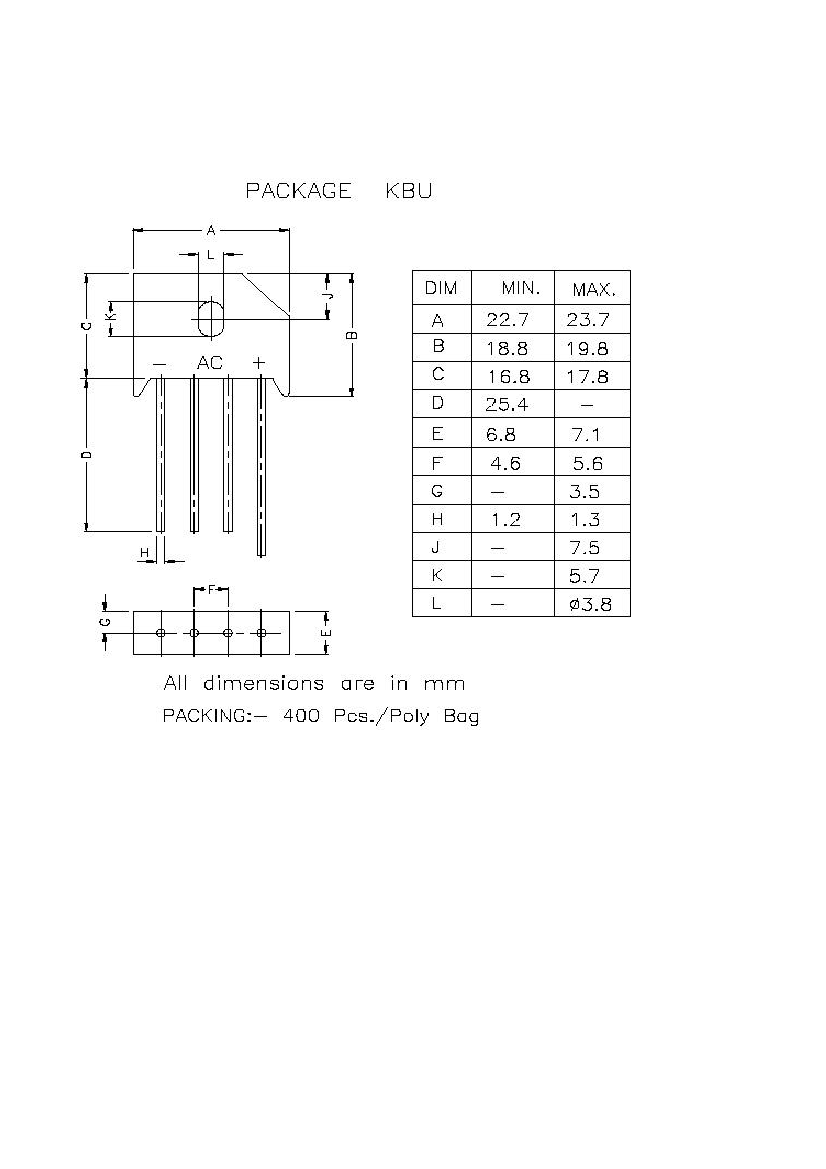

KBU6005 - KBU610
KBU
PLASTIC PACKAGE
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please
dispose as per prevailing Environmental Legislation of their Country.
2.
In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
KBU6005_610Rev091205E
Continental Device India Limited
Data Sheet
Page 2 of 3
Customer Notes
KBU6005 - KBU610
KBU
PLASTIC PACKAGE
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s) best suite for
application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as to
confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and on
the CDIL Web Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or
incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any
CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not designed for
use in life saving/support appliances or systems. CDIL customers selling these products (either as individual Semiconductor
Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do so at their own
risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
notice
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 4141 1112 Fax + 91-11-2579 5290, 4141 1119
email@cdil.com
www.cdilsemi.com
KBU6005_610Rev091205E
Continental Device India Limited
Data Sheet
Page 3 of 3
