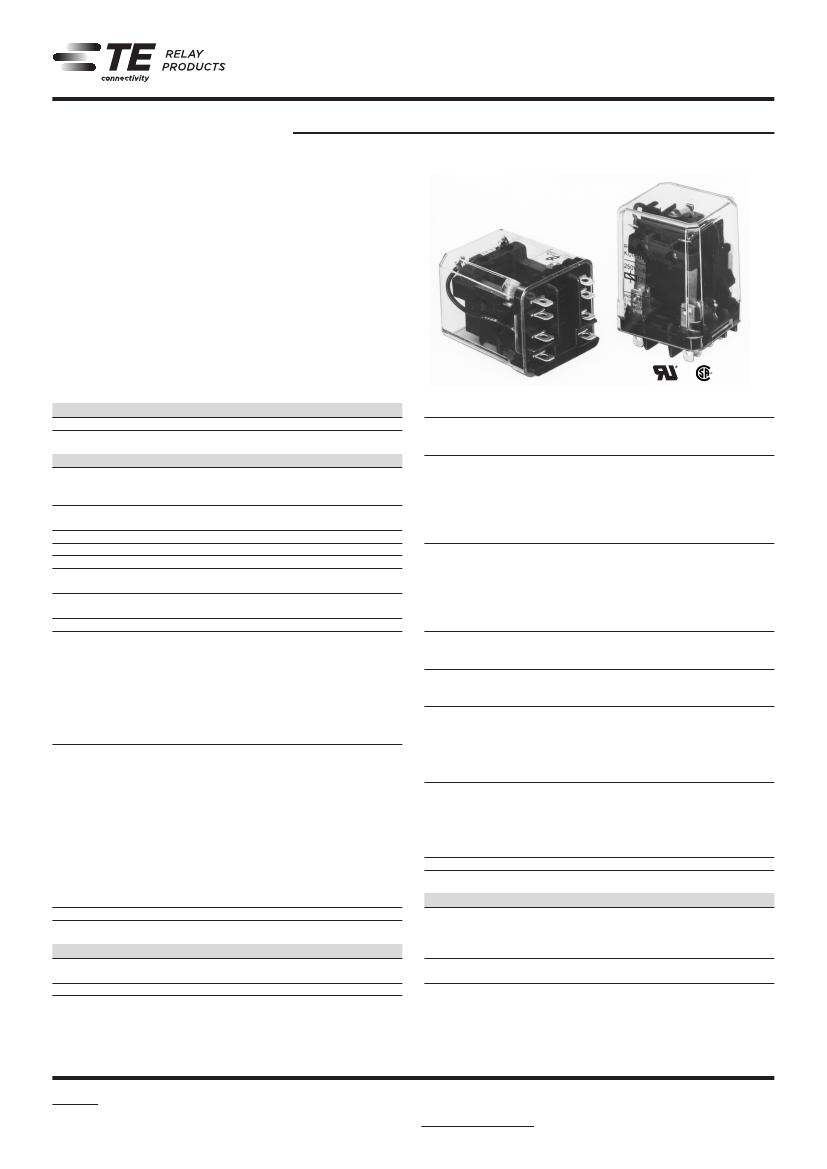

General Purpose Relays
Industrial Relays
KUIP/KUGP Series Panel Plug-in Relay
n
n
n
n
Potter & Brumfield
10 amp rated relays
2 Form A (NO) and 1-3 Form C (CO) contact arrangement
KUIP 8mm coil-to-contact spacing and KUGP 3mm contact gap
Various mounting and socket styles
Typical applications
Voltage control units
Approvals
UL E22575; CSA LR15734
Technical data of approved types on request
Contact Data
Contact arrangement
KUGP:
2 form A (NO); 3 form A (NO)
KUIP:
1 form C (CO), 2 form A (NO), 2 form C (CO), 3 form C (CO)
Rated voltage
240VAC
Rated current
10A
Contact material
Ag
AgCdO
Min recommended contact load
100mA, 12VDC 300mA, 12VDC
Frequency of operation
360 ops./hour
360 ops./hour
Operate/releases time max.
20/15ms
Bounce time max.
20ms
Contact ratings
Type
Load
UL 508
Ag
5A, 240VAC
5A, 28VDC
1/6HP, 120VAC
2.5A, 120VAC, tungsten
1/3HP, 240VAC
0.5A, 120VDC
5FLA, 15LRA, 250VAC
AgCdO
10A, 240VAC
10A, 32VDC
5FLA, 15LRA, 250VAC
1/3HP, 120VAC
5A, 120VAC, tungsten
1/2HP, 250VAC
0.5A, 125VDC
10FLA, 40LRA, 125VAC
3A, 600VAC
1/2HP, 480VAC
1/2HP, 600VAC
1HP, 480VAC, 3 phase
Mechanical endurance
Cycles
Coil versions, DC coil
Coil
Rated
code
voltage
VDC
KUIP
5
5
6
6
12
12
24
24
48
48
110
110
KUGP
5
5
6
6
12
12
24
24
48
48
110
110
Coil versions, AC coil
Coil
Rated
code
voltage
VAC
KUIP 1 and 2 pole
6
6
12
12
24
24
120
120
240
240
KUIP 3 pole, KUGP
6
6
12
12
24
24
120
120
240
240
Operate
voltage
VDC
3.75
4.5
9.0
18.0
36.0
82.5
3.75
4.5
9.0
18.0
36.0
82.5
Coil
resistance
Ω±10%
21
32.1
120
472
1800
10000
14
20
80
320
1250
6720
Rated coil
power
W
1.2
1.125
1.2
1.25
1.3
1.25
1.8
1.8
1.8
1.8
1.85
1.8
All figures are given for coil without preenergization, at ambient temperature +23°C.
Operate
voltage
VAC
5.1
10.2
20.4
102.0
204.0
5.1
10.2
20.4
102.0
204.0
Coil
resistance
Ω±15%
6
24
85
2250
9110
4.2
18
72
1700
7200
Rated coil
power
VA
2.0
2.0
2.0
2.1
2.1
2.8
2.8
2.8
2.9
2.9
All figures are given for coil without preenergization, at ambient temperature +23°C.
10x10
6
ops.
Insulation Data
Coil Data
Coil voltage range
Coil insulation system according UL
6 to 110VDC
6 to 240VAC
Class B
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Initial insulation resistance
between insulated elements
KUIP
1200V
rms
2200V
rms
2200V
rms
KUGP
3500V
rms
3750V
rms
3750V
rms
100MΩ, 500VDC
08-2011, Rev. 0811
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
Industrial Relays
KUIP/KUGP Series Panel Plug-in Relay
(Continued)
Other Data
Accessories
Product Code
27E893
27E121
27E043
27E046
27E067
27E396
Potter & Brumfield
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
DC coil
KUIP: -45ºC to 95ºC
KUGP: -45ºC to 75ºC (1 & 2 pole)
AC coil
KUIP: -45ºC to 70ºC
KUGP: -45ºC to 70ºC (1 & 2 pole)
Category of environmental protection
IEC 61810
RTI - dust protected
Terminal type
Quick connects (QC) .187
PCB-THT
Terminal retention, push force
25 lbs for 3s
Weight
85g
Packaging/unit
tray/25 pcs., box/150pcs.
Dimensions
Plain case
For details see datasheet
Sockets and Accessories, KUP Relays
Description
DIN socket (use 20C318 clip)
Track mount socket (use 20C314 clips)
Chassis mount/solder eyelet socket (use 20C254 clip)
Chassis mount/PCB socket (use 20C254 clip)
Chassis mount/quick connect socket (use 20C254 clip)
Snap-in/quick connect socket (use 20C254 clip)
Bracket mount case
.312
.625 TYP TYP
.
.
(15.88) (7.92)
1.906 MAX.
(48.41)
X
X
X
1.531 MAX.
(38.89)
X
2.90 MAX.
(73.7)
X
.078 R. TYP
.
(1.98)
.75
(19.1)
1.531 MAX.
(38.89)
.375
(9.53)
2.500
(63.50)
X X
.437
(11.10)
1
4
7
A
2
5
8
3
6
9
B
1.406 MAX.
(35.71)
1.406 MAX.
(35.71)
.06
(1.52)
.07
(1.8)
1.906 MAX.
(48.41)
Top flange case
1.518 MAX.
(38.56)
PCB layout
Bottom view on solder pins
.078 TYP
.
(1.98)
3 Form C shown
Omit unncessary holes for other contact forms
.206
(5.23)
1
4
7
A
2
5
8
3
6
9
B
1.713 ± .0 03
(43.51 ± .08)
1.373 ± .010 1.989 ± .0 03
(50.52)
(34.87 ± .25)
.076 DIA. TYP
.
(1.93)
.178 TYP
.
(4.52)
2.248 MAX.
(57.10)
.437
(11.10)
.875
(22.23)
.328
(8.33) .626
(15.90)
X Is For Terminal Dimensions.
See Teminal Drawings.
2
08-2011, Rev. 0811
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
Industrial Relays
KUIP/KUGP Series Panel Plug-in Relay
(Continued)
Terminal dimensions
4.75mm (.187) quick connect
.125
(3.18)
HEADER
.250
.078
(6.35) (1.98)
281 REF.
(7.14)
.020
THICKNESS (.51)
.187±.002
(4.75±.05)
Potter & Brumfield
1.19mm (.047) printed circuit
.156
(3.96)
HEADER
.237
.156
(6.02) (3.96)
.268 REF.
(6.81)
.032
THICKNESS
(.81)
.093
(2.36)
.180
(4.57)
.047
(1.19)
Terminal assignment
1 Form C
2
5
8
A
B
2 Form C
2 Form A (delete 1 & 3)
1
4
7
A
3
6
9
B
3 Form C
3 Form A (delete 1, 2 & 3)
1
4
7
A
2
5
8
3
6
9
B
Product code structure
Type
Typical product code
KUIP
-5
A
5
5
-120
KUIP
Enclosed relay with 8mm contact to coil spacing
KUGP
Enclosed relay with 3mm open contact spacing and 8mm contact to coil spacing (form A only)
Contact arrangement and rating
5
1 form C (1 CO) 1)
7
2 form A (2 NO)
11
2 form C (2 CO) 1)
12
3 form A (3 NO)
14
3 form C (3 CO) 1)
1) not available on KUGP type
Coil Input
A
AC, 50/60Hz
D
DC
Mounting and options
1
Socket mount (plain) case
5
Bracket mount case
T
Top flange case
Terminal and contact material
3
1.19mm (.047in) PCB, Ag
5
4.75mm (.187in) quick connect/solder; AgCdO
7
1.19mm (.047in) PCB, AgCdO
Coil voltage
Coil code: please refer to coil versions table
Product Code
KUGP-7D55-24
KUIP-5A55-120
KUIP-11D55-12
KUIP-11D55-24
KUIP-14A15-120
KUIP-14D15-12
KUIP-14D15-24
Arrangement
2 Form A, 2 NO
1 Form C; 1 CO
2 Form C; 2 CO
3 Form C; 3 CO
Material
AgCdO
Coil
24 VDC
120 VAC
12 VDC
24 VDC
120 VAC
12 VDC
24 VDC
Terminals
4.75mm (.187in) QC
Mounting
Bracket mount case
Part Number
2-1393114-4
2-1393115-0
1-1393115-0
1-1393115-1
1-1393115-4
1-1393115-6
1-1393115-7
Socket mount, plain case
08-2011, Rev. 0811
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
