M2030D4TGN01.5000MHZ

Description
HCMOS Output Clock Oscillator, 1.5MHz Nom, ROHS COMPLIANT, LEADLESS PACKAGE-4
CategoryPassive components    oscillator
File Size507KB,2 Pages
ManufacturerMtronPTI
Websitehttp://www.mtronpti.com
Environmental Compliance
Download Datasheet Parametric View All

M2030D4TGN01.5000MHZ Overview

HCMOS Output Clock Oscillator, 1.5MHz Nom, ROHS COMPLIANT, LEADLESS PACKAGE-4

M2030D4TGN01.5000MHZ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknow
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
Installation featuresSURFACE MOUNT
Nominal operating frequency1.5 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Oscillator typeHCMOS
Output load15 pF
physical size5.0mm x 3.2mm x 1.3mm
longest rise time6 ns
Maximum supply voltage1.9 V
Minimum supply voltage1.7 V
Nominal supply voltage1.8 V
surface mountYES
maximum symmetry40/60 %
Base Number Matches1

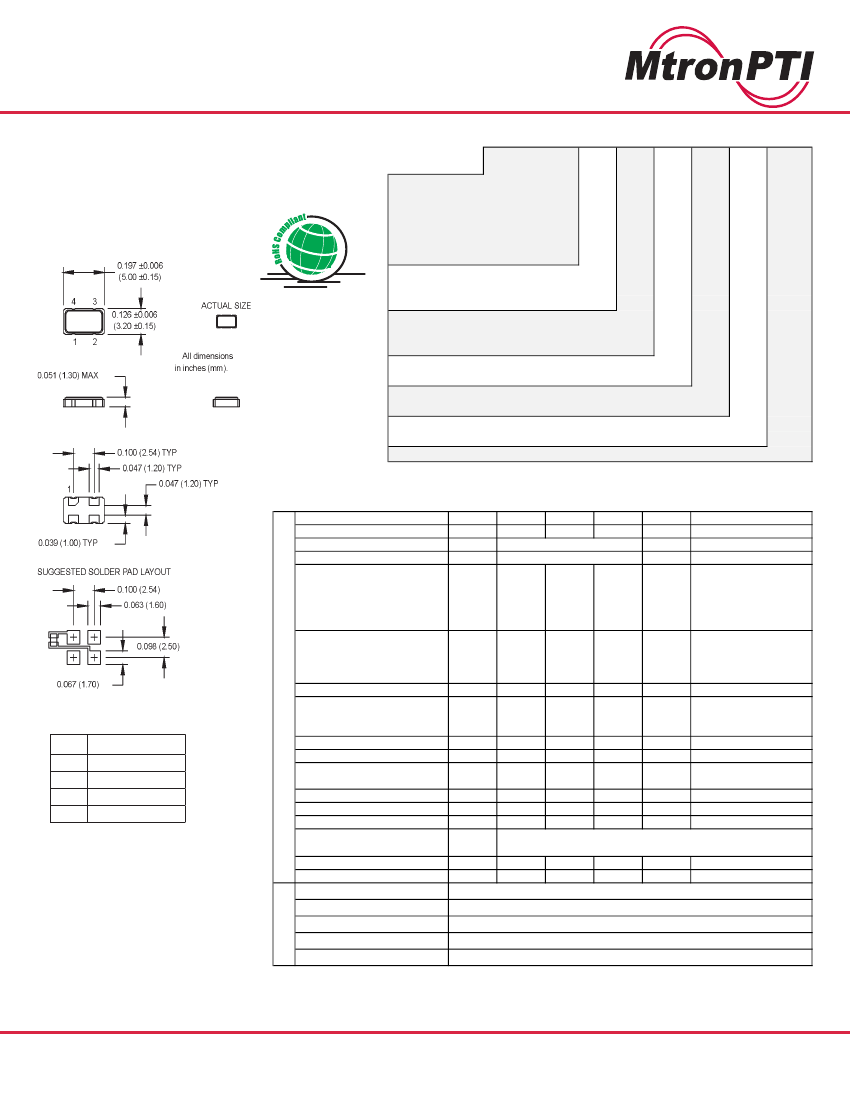

M2030 through M2034 Series
Features
• Down to ±20 ppm stability
• Tristate or Standby function
• Ideal for WLAN and IEEE802.11 Applications
• Low power applications
3.2 x 5.0 x 1.3 mm, HCMOS Compatible, Surface Mount Oscillators
Ordering Information
M2034
Product Series
M2030
= 1.8 V
M2031
= 2.5 V
M2032
= 2.85 V
M2033
= 3.0 V
M2034
= 3.3 V
Temperature Range
D:
-10 °C to +70 °C
6:
-20 °C to +70 °C
Stability
3:
±100 ppm
6:
±25 ppm
Output Type
Q:
Standby Function
C:
45/55 CMOS
N:
Leadless
Frequency (customer specified)
M2030Sxxx, M2031Sxxx, M2032Sxxx, M2033Sxxx & M2034Sxxx - Custom datasheets.
* (-10 °C to +70 °C only)
2
3
T
C
N
00.0000
MHz
2:
-40 °C to +85 °C
4:
±50 ppm
8:
±20 ppm*
T:
Tristate
G:
40/60 CMOS
5:
±35 ppm
Symmetry (Duty Cycle)
Package/Lead Configurations
Frequency Range
Frequency Stability
Operating Temperature
Input Voltage
Bypass Cap (0.01μF) Min.
Parameter
Symbol
F
O
∆F
T
/F
T
A
V
DD
Min.
1.5
80
(See Ordering Information)
(See Ordering Information)
1.8
2.5
2.85
3.0
3.3
Typ.
Max.
Units
MHz
ppm
°C
V
V
V
V
V
mA
mA
mA
%
See Note 1
See Note 2
1.8 V
2.5 V
2.85 V
3.0 V
3.3 V
Conditions
1.7
2.38
2.7
2.85
3.15
1.9
2.62
3.0
3.15
3.45
15
20
45
55
6
4
Pin Connections
PIN
1
2
3
4
Function
Standby/Tristate
Ground
Output
+V
DD
Input Current
1.500 MHz to 20.000 MHz
20.001 MHz to 50.000 MHz
50.001 MHz to 80.000 MHz
Symmetry (Duty Cycle)
Rise/Fall Time
1.5 MHz to 50.0 MHz
> 50.0 MHz
Logic "1" Level
Logic "0" Level
Output Current
Output Load
Startup Time
Standby Current
Standby/Tristate Function
Output Disable Time
Output Enable Time
I
DD
V
DD
= 3.3 V
V
DD
= 3.3 V
V
DD
= 3.3 V
1/2 V
DD
Electrical Specifications
45
T
R
/T
F
50
V
OH
V
OL
I
OH
I
OL
10% to 90% V
DD
ns
10% to 90% V
DD
ns
% V
DD
90
% V
DD
10
-2
mA
+2
mA
15
pF
5
10
ms
µA
10
Pin 1 High (80% V
DD
min) or Floating: Clock Signal Output
Pin 1 Low (20% V
DD
max): Output Disables to High Impedance
150
5
ns
ms
Environmental
Shock
Vibration
Max Soldering Conditions
Solderability
Hermeticity
MIL-STD-202, Method 213, Condition C (100 g)
MIL-STD-202, Methods 201 & 204 (10 g from 10 Hz to 2000 Hz)
+260 °C for 10 seconds maximum
Per EIAJ-STD-002
Per MIL-STD-202, Method 112 (1 x 10
-8
atm.cc/s of helium)
1. Consult factory for available frequencies in this range.
2. Inclusive of calibration, deviation over temperature, supply voltage change, load change, shock, vibration, and aging.
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
Rev: 10/25/2012
