LT317AK: DescriptionAdjustable Positive LDO Regulator; CategoryPower/power management The power supply circuit; File Size549KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LT317AK Overview

Adjustable Positive LDO Regulator

LT317AK Parametric

Parameter Name	Attribute value
Maker	ADI
package instruction	TO-2, 2 PIN
Reach Compliance Code	compliant
Maximum Differential Input-Output Voltage	40 V
Minimum Differential Input-Output Voltage	3 V
JESD-30 code	O-MBFM-P2
Number of functions	1
Number of terminals	2
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	PIN/PEG
Terminal location	BOTTOM

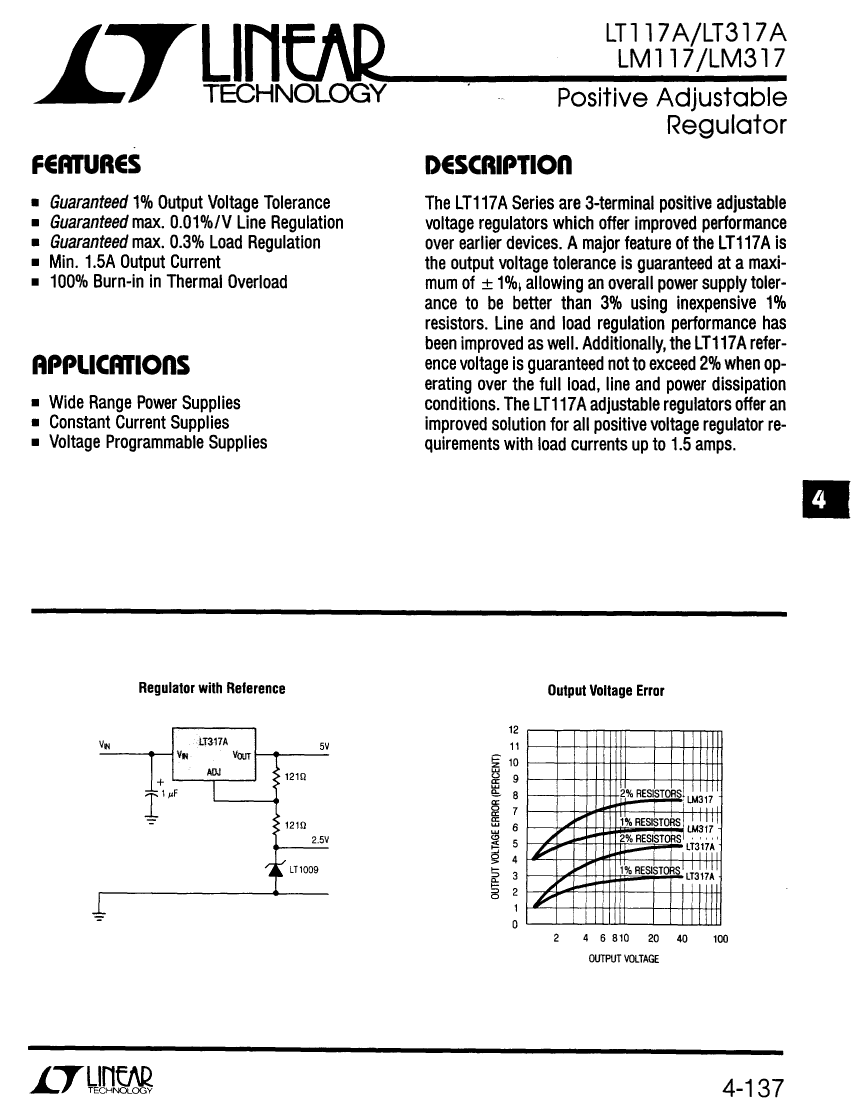

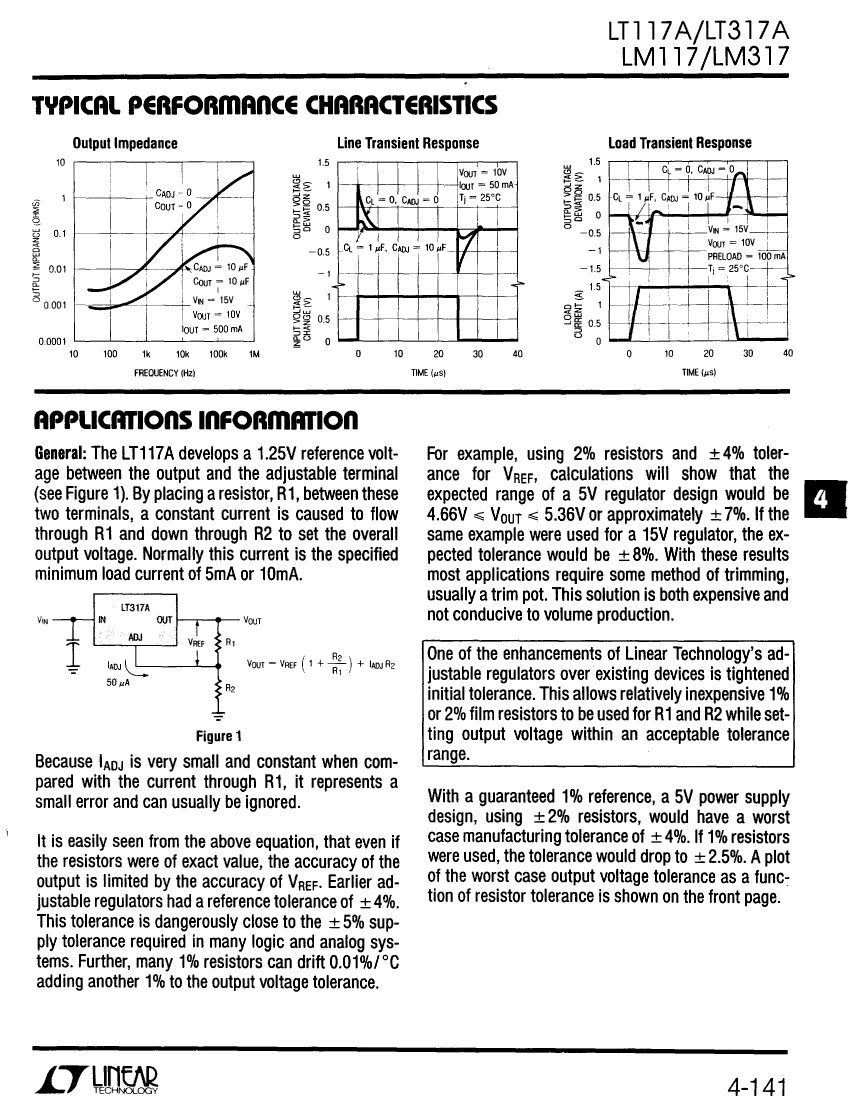

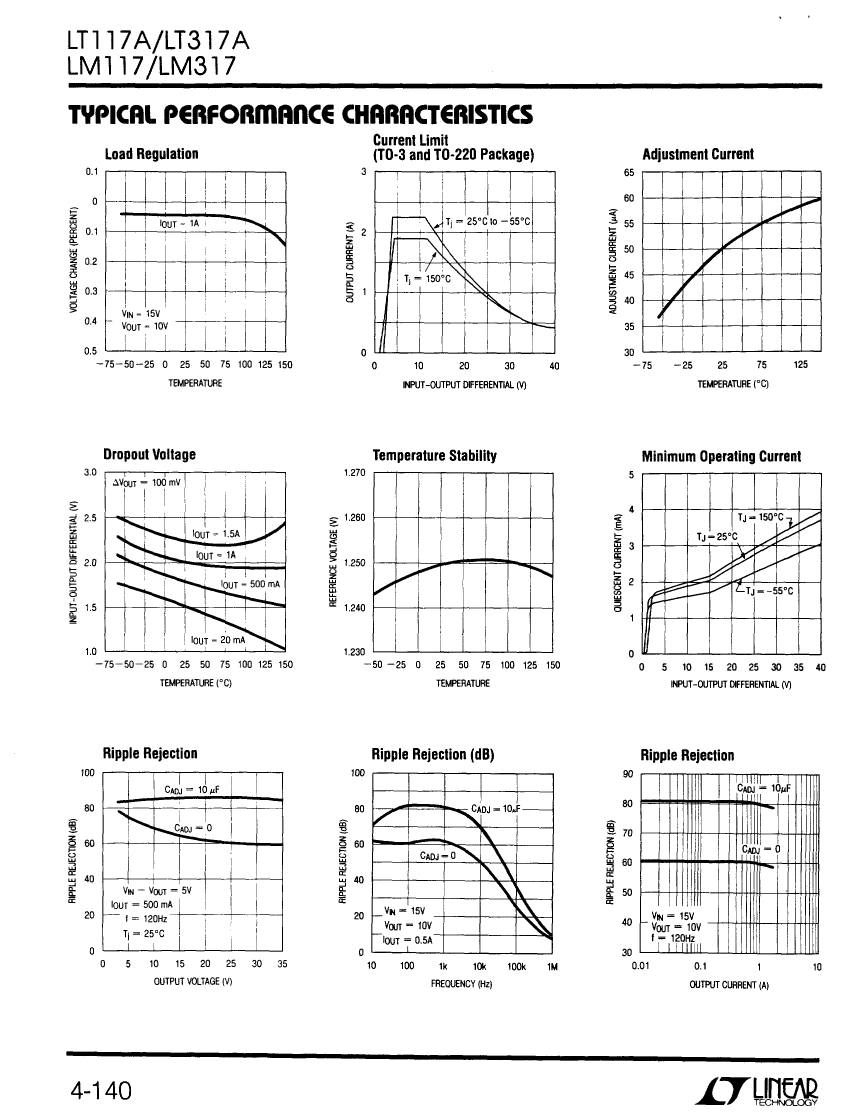

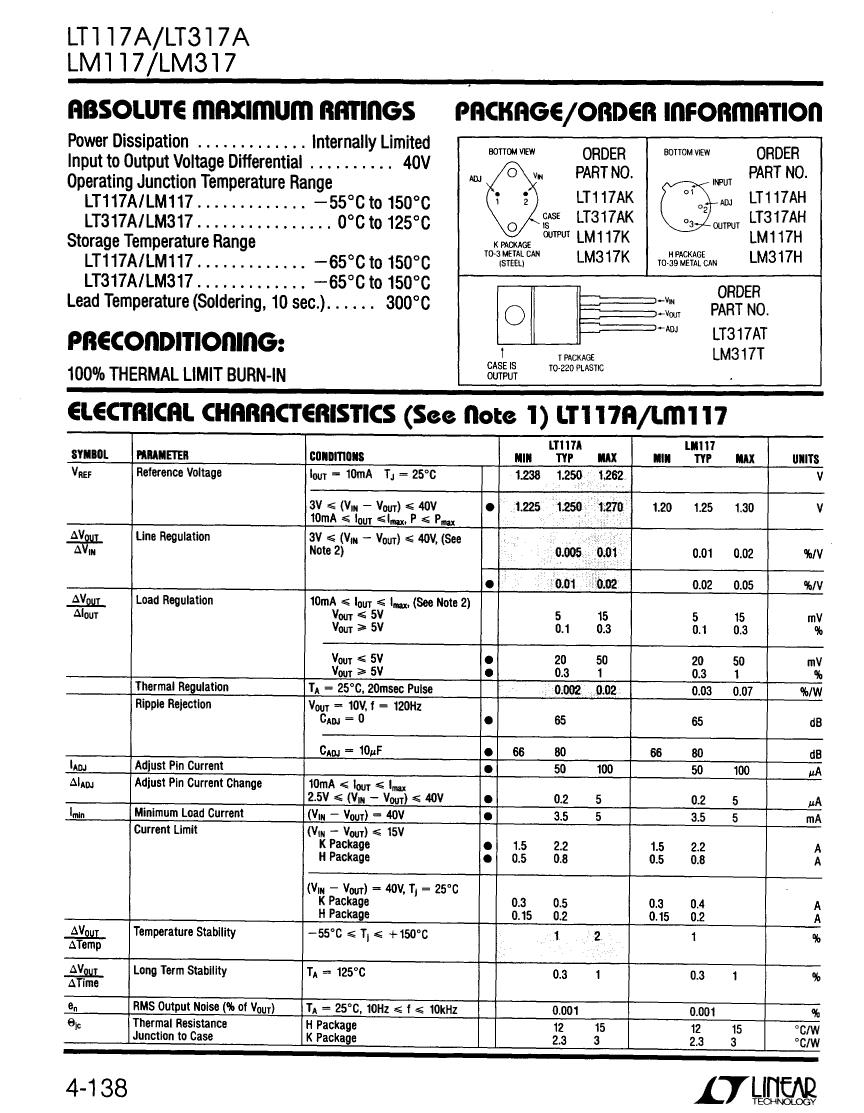

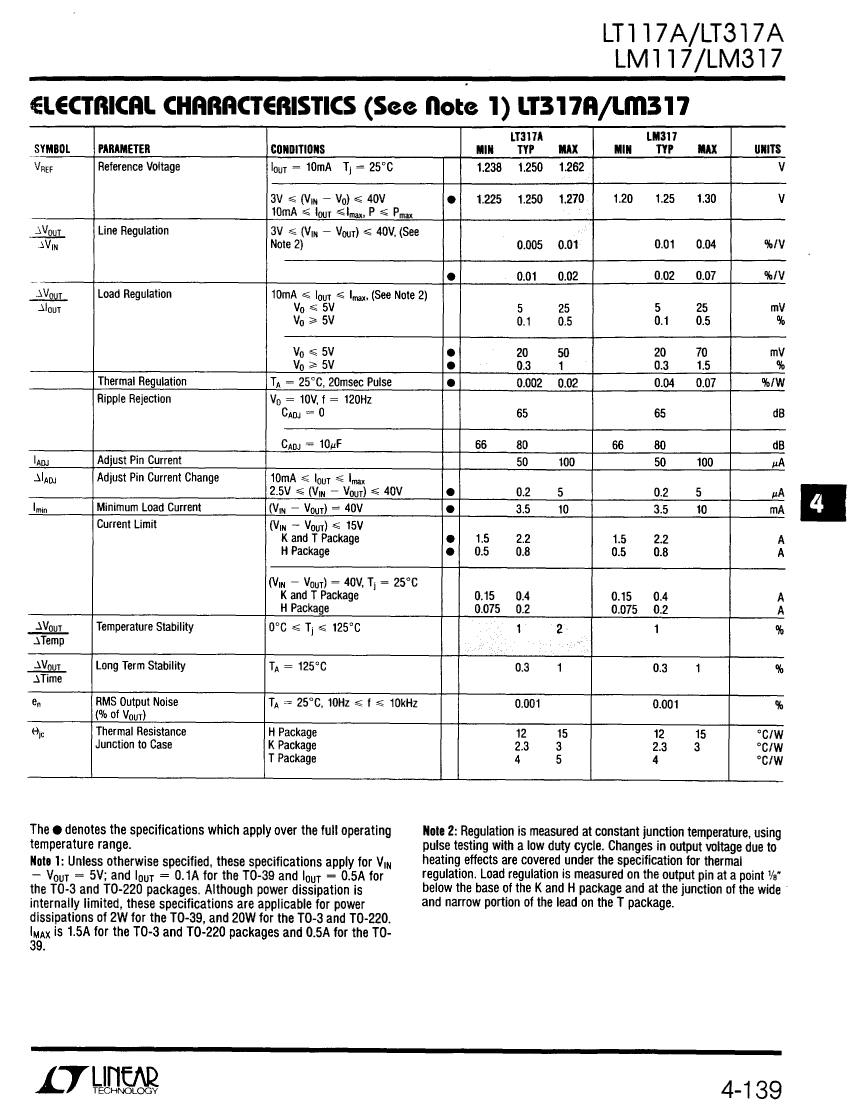

Preview

Download Datasheet

View All

LT317AK Related Products

	LT317AK	LM117K	LT117AK	LT317AH	LM317H	LM117H	LT117AH
Description	Adjustable Positive LDO Regulator	Adjustable Positive LDO Regulator	Adjustable Positive LDO Regulator	Adjustable Positive LDO Regulator	Adjustable Positive LDO Regulator	Adjustable Positive LDO Regulator	Adjustable Positive LDO Regulator
Maker	ADI	ADI	ADI	ADI	ADI	ADI	ADI
package instruction	TO-2, 2 PIN	TO-2, 2 PIN	TO-2, 2 PIN	TO-39, 3 PIN	,	TO-39, 3 PIN	TO-39, 3 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compli	compliant	compliant
Maximum Differential Input-Output Voltage	40 V	40 V	40 V	40 V	40 V	40 V	40 V
Minimum Differential Input-Output Voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	3	3	3	3
Working temperatureTJ-Max	125 °C	150 °C	150 °C	125 °C	125 °C	150 °C	150 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Working temperature TJ-Min	-	-55 °C	-55 °C	-	-	-55 °C	-55 °C
