FST6800QSC

Description
CBT/FST/QS/5C/B SERIES, 10-BIT DRIVER, TRUE OUTPUT, PDSO24, 0.150 INCH, MO-137, QSOP-24
Categorylogic    logic
File Size803KB，6 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

FST6800QSC Online Shopping

Suppliers Part Number Price MOQ In stock
FST6800QSC - - View Buy Now

FST6800QSC Overview

CBT/FST/QS/5C/B SERIES, 10-BIT DRIVER, TRUE OUTPUT, PDSO24, 0.150 INCH, MO-137, QSOP-24

FST6800QSC Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRochester Electronics
Parts packaging codeSSOP
package instructionSSOP,
Contacts24
Reach Compliance Codeunknown
Other featuresTTL COMPATIBLE BUS SWITCH
seriesCBT/FST/QS/5C/B
JESD-30 codeR-PDSO-G24
length8.65 mm
Logic integrated circuit typeBUS DRIVER
Humidity sensitivity levelNOT SPECIFIED
Number of digits10
Number of functions1
Number of ports2
Number of terminals24
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)NOT SPECIFIED
propagation delay (tpd)0.25 ns
Certification statusCOMMERCIAL
Maximum seat height1.75 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4 V
Nominal supply voltage (Vsup)4.5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceNOT SPECIFIED
Terminal formGULL WING
Terminal pitch0.635 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width3.9116 mm

FST6800QSC Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
FST6800 10-Bit Bus Switch with Precharged Outputs
June 1997
Revised November 2000
FST6800
10-Bit Bus Switch with Precharged Outputs
General Description
The Fairchild Switch FST6800 provides 10-bits of high-
speed CMOS TTL-compatible bus switching. The low on
resistance of the switch allows inputs to be connected to
outputs without adding propagation delay or generating
additional ground bounce noise. The device precharges
the B Port to a selectable bias voltage (BiasV) to minimize
live insertion noise.
The device is organized as a 10-bit switch with a bus
enable (OE) signal. When OE is LOW, the switch is ON
and Port A is connected to Port B. When OE is HIGH, the
switch is OPEN and the B Port is precharged to BiasV
through an equivalent 10-k
Ω
resistor.
Features
s
4
Ω
switch connection between two ports.
s
Minimal propagation delay through the switch.
s
Low l
CC
.
s
Zero bounce in flow-through mode.
s
Output precharge to minimize live insertion noise.
s
Control inputs compatible with TTL level.
Ordering Code:
Order Number
FST6800WM
FST6800QSC
FST6800MTC
Package Number
M24B
MQA24
MTC24
Package Description
24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
24-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150 Wide
24-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Diagram
Connection Diagram
Pin Descriptions
Pin Name
OE
A
B
Description
Bus Switch Enable
Bus A
Bus B
Truth Table
OE
L
H
B
0
–B
9
A
0
–A
9
BiasV
Function
Connect
Precharge
© 2000 Fairchild Semiconductor Corporation
DS500022
www.fairchildsemi.com
FST6800
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
CC
)
DC Switch Voltage (V
S
)
Bias V Voltage Range
DC Input Voltage (V
IN
) (Note 2)
DC Input Diode Current (l
IK
) V
IN
<
0V
DC Output (I
OUT
) Sink Current
DC V
CC
/GND Current (I
CC
/I
GND
)
Storage Temperature Range (T
STG
)
−
0.5V to
+
7.0V
−
0.5V to
+
7.0V
−
0.5V to
+
6.0V
−
0.5V to
+
7.0V
−
50mA
128mA
Recommended Operating
Conditions
(Note 3)
Power Supply Operating (V
CC
)
Precharge Supply (BiasV)
Input Voltage (V
IN
)
Output Voltage (V
OUT
)
Input Rise and Fall Time (t
r
, t
f
)
Switch Control Input
Switch I/O
Free Air Operating Temperature (T
A
)
0nS/V to 5nS/V
0nS/V to DC
4.0V to 5.5V
1.5V to V
CC
0V to 5.5V
0V to 5.5V
+
/
−
100mA
−
65
°
C to
+
150
°
C
−
40
°
C to
+
85
°
C
Note 1:
The Absolute Maximum Ratings are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The Recommended Operating Conditions tables will define the conditions
for actual device operation.
Note 2:
The input and output negative voltage ratings may be exceeded if
the input and output diode current ratings are observed.
Note 3:
Unused control inputs must be held HIGH or LOW. They may not
float.
DC Electrical Characteristics
Symbol
V
IK
V
IH
V
IL
I
I
I
O
I
OZ
R
ON
Parameter
Clamp Diode Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
Input Leakage Current
Output Current
OFF-STATE Leakage Current
Switch On Resistance
(Note 5)
V
CC
(V)
4.5
4.0–5.5
4.0–5.5
5.5
4.5
5.5
4.5
4.5
4.5
4.0
I
CC
∆
I
CC
Quiescent Supply Current
Increase in I
CC
per Input
5.5
5.5
4
4
8
11
0.25
±1.0
7
7
15
20
3
2.5
2.0
0.8
±1.0
T
A
= −40 °C
to
+85 °C
Min
Typ
(Note 4)
Max
−1.2
Units
V
V
V
µA
mA
µA
Ω
Ω
Ω
Ω
µA
mA
0≤ V
IN
≤5.5V
BiasV
=
2.4V, B
=
0
0
≤A ≤V
CC
V
IN
=
0V, I
IN
=
64mA
V
IN
=
0V, I
IN
=
30mA
V
IN
=
2.4V, I
IN
=
15mA
V
IN
=
2.4V, I
IN
=
15mA
V
IN
=
V
CC
or GND, I
OUT
=
0
One input at 3.4V
Other inputs at V
CC
or GND
Note 4:
Typical values are at V
CC
=
5.0V and T
A
= +25°C
Note 5:
Measured by the voltage drop between A and B pins at the indicated current through the switch. On resistance is determined by the lower of the
voltages on the two (A or B) pins.
Conditions
I
IN
= −18mA
www.fairchildsemi.com
2
FST6800
AC Electrical Characteristics
T
A
= −40 °C
to
+85 °C,
C
L
=
50pF, RU
=
RD
=
500Ω
Symbol
Parameter
V
CC
=
4.5 – 5.5V
Min
t
PHL
,t
PLH
t
PZH
t
PZL
t
PHZ
t
PLZ
Output Disable Time
Prop Delay Bus to Bus (Note 6)
Output Enable Time
1.5
1.5
1.5
1.5
Max
0.25
6.2
6.2
6.1
7.3
V
CC
=
4.0V
Min
Max
0.25
6.5
6.5
6.5
6.8
ns
ns
ns
ns
ns
V
I
=
OPEN
V
I
=
OPEN, BiasV
=
GND
V
I
=
7V, BiasV
=
3V
V
I
=
OPEN, BiasV
=
GND
V
I
=
7V, BiasV
=
3V
Figures
1, 2
Figures
1, 2
Figures
1, 2
Units
Conditions
Figure
No.
Note 6:
This parameter is guaranteed by design but is not tested. The bus switch contributes no propagation delay other than the RC delay of the typical On
resistance of the switch and the 50pF load capacitance, when driven by an ideal voltage the source (zero output impedance).
Capacitance
Symbol
C
IN
C
I/O
(Note 7)
Parameter
Typ
3
5
Max
Units
pF
pF
Conditions
V
CC
=
5.0V
V
CC
, OE
=
5.0V
Control Pin Input Capacitance
Input/Output Capacitance
Note 7:
T
A
= +25°C,
f
=
1 MHz, Capacitance is characterized but not tested.

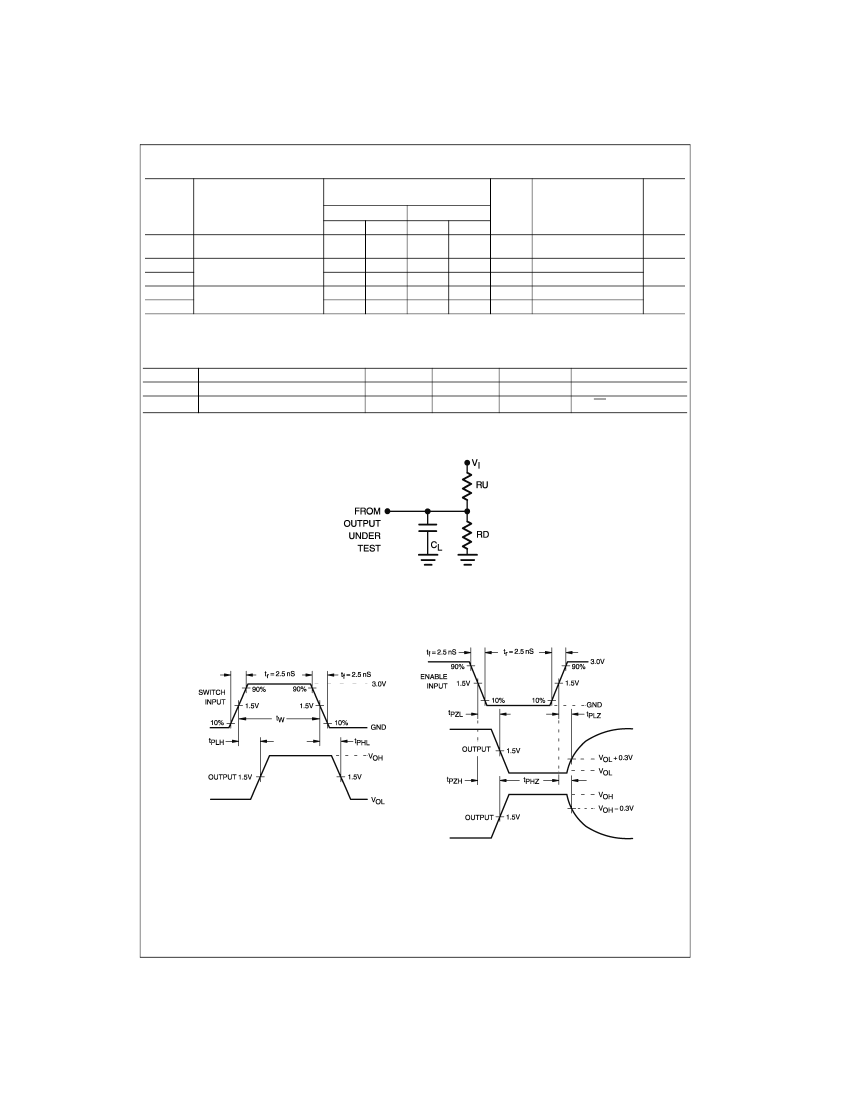

AC Loading and Waveforms
Note:
Input driven by 50
Ω
source terminated in 50
Ω
Note:
C
L
includes load and stray capacitance
Note:
Input PRR
=
1.0 MHz, t
W
=
500 ns
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
3
www.fairchildsemi.com
FST6800
Physical Dimensions
inches (millimeters) unless otherwise noted
24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
Package Number M24B
24-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150 Wide
Package Number MQA24
www.fairchildsemi.com
4
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

FST6800QSC Related Products

FST6800QSC FST6800WM FST6800MTCX
Description CBT/FST/QS/5C/B SERIES, 10-BIT DRIVER, TRUE OUTPUT, PDSO24, 0.150 INCH, MO-137, QSOP-24 CBT/FST/QS/5C/B SERIES, 10-BIT DRIVER, TRUE OUTPUT, PDSO24, 0.300 INCH, MS-013, SOIC-24 CBT/FST/QS/5C/B SERIES, 10-BIT DRIVER, TRUE OUTPUT, PDSO24, 4.40 MM, MO-153, TSSOP-24
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Maker Rochester Electronics Rochester Electronics Rochester Electronics
Parts packaging code SSOP SOIC TSSOP
package instruction SSOP, SOP, TSSOP,
Contacts 24 24 24
Reach Compliance Code unknown unknown unknown
Other features TTL COMPATIBLE BUS SWITCH TTL COMPATIBLE BUS SWITCH TTL COMPATIBLE BUS SWITCH
series CBT/FST/QS/5C/B CBT/FST/QS/5C/B CBT/FST/QS/5C/B
JESD-30 code R-PDSO-G24 R-PDSO-G24 R-PDSO-G24
length 8.65 mm 15.4 mm 7.8 mm
Logic integrated circuit type BUS DRIVER BUS DRIVER BUS DRIVER
Humidity sensitivity level NOT SPECIFIED NOT SPECIFIED 1
Number of digits 10 10 10
Number of functions 1 1 1
Number of ports 2 2 2
Number of terminals 24 24 24
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Output characteristics 3-STATE 3-STATE 3-STATE
Output polarity TRUE TRUE TRUE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SSOP SOP TSSOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, SHRINK PITCH SMALL OUTLINE SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED 260
propagation delay (tpd) 0.25 ns 0.25 ns 0.25 ns
Certification status COMMERCIAL COMMERCIAL COMMERCIAL
Maximum seat height 1.75 mm 2.65 mm 1.2 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4 V 4 V 4 V
Nominal supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
surface mount YES YES YES
technology CMOS CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal surface NOT SPECIFIED NOT SPECIFIED NICKEL PALLADIUM GOLD
Terminal form GULL WING GULL WING GULL WING
Terminal pitch 0.635 mm 1.27 mm 0.65 mm
Terminal location DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED 30
width 3.9116 mm 7.5 mm 4.4 mm

Recommended Resources

Current amplifier circuit structure diagram

Nickel-cadmium battery fast charger circuit diagram

thermistor temperature controller

Temperature measurement circuit using operational amplifier as differential amplifier

Programmable astable multivibrator

Thyristor controlled DC motor forward and reverse circuit

The whole process of ucos-ii development
Now the new project needs to use ucos-ii, but I don't know anything about it. Do I need to download the ucos-ii installer and the borland c++ installer? Also, I would like to know the general process ...
mawei850403 Real-time operating system RTOS
Dot matrix LED simple graphic display technology
[b]1. Experimental task[/b] Display “★”, “●” and heart-shaped images on the 8X8 dot matrix LED, and select the image to be displayed by pressing the button. [b]2. Circuit schematic[/b] [img]http://www...
呱呱 DIY/Open Source Hardware
What did Tang Seng say to Wukong that made Wukong cry?
(Just smile on National Day and be happy!)Disciple, in fact, the master is a monster; 　　Wukong, I am going to marry Zixia, remember to give her a red envelope; 　　Kong'er, tomorrow is your birthday, th...
张无忌1987 Talking
DCO and UART
For low power consumption products, you should not connect XT2 and use DCO directly. I use 149. The product uses UART. I don't know if DCO is stable? The baud rate is 9600.What is the maximum frequenc...
qwer2006 Microcontroller MCU
Communications Power Solutions from Texas Instruments
...
qwqwqw2088 Analogue and Mixed Signal
I want to write a dot matrix screen dynamic program, can you please tell me where is the error in the scanning program???
I want to write a dot matrix screen dynamic program. Please tell me where is the error in the ************ scanning program ************? ? ? Point to the right byte of the 4th word row, then point to...
johnners Embedded System
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. 804-004-00NF7-1SA
  2. 240-0326-21SCC8K2-18S
  3. APTC60AM24SCTG
  4. 12796ATM-X
  5. TMS370C0B6ANMA
  6. G2803S-30-G1
  7. WT231S1D9ZK
  8. MFS1/2DC240G
  9. AME8501CEEVBF18
  10. SMAJ300A
  11. A3961WRB-18P-G20
  12. 0805W8F1695T5E

Popular Articles

  1. New version of classic instrumentation amplifier (PGIA) offers greater design flexibility
  2. STM8S self-study notes-003 GPIO output: light up the LED and marquee special effects
  3. About earphone customization - audiometry and ergonomics (Part 2)
  4. What is the magic of the black technology that auto giants are scrambling for?
  5. PIC microcontroller assembly instruction set
  6. How to use a tablet digital oscilloscope
  7. Essential! Multimeter User Manual
  8. Analysis of s3c2410 and dma related functions in linux-2.6.24.4
  9. Understand this and easily capture the waveform you want to see
  10. What indicators will affect the noise floor (DANL) of the spectrum analyzer?

Technical ResourceMore

  1. Courseware: Power Electronic Circuits in Switching Power Supplies
  2. New Energy Vehicle Simulation Examples Based on MATLAB
  3. AutoTRD Transformer Design Software
  4. Design of DVB-C Channel Demodulation and Decoding Chip GX1001
  5. Design and calculation of electric induction heater
  6. Xilinx_zynq_book (Chinese version) + source code
  7. AAuto Development Environment
  8. Biomedical Measurement and Instruments
  9. Mitsubishi FX PLC communication serial port program
  10. Example of 51 single chip microcomputer clear version 520 pages

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2870  103  227  2032  961  58  3  5  41  20
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
