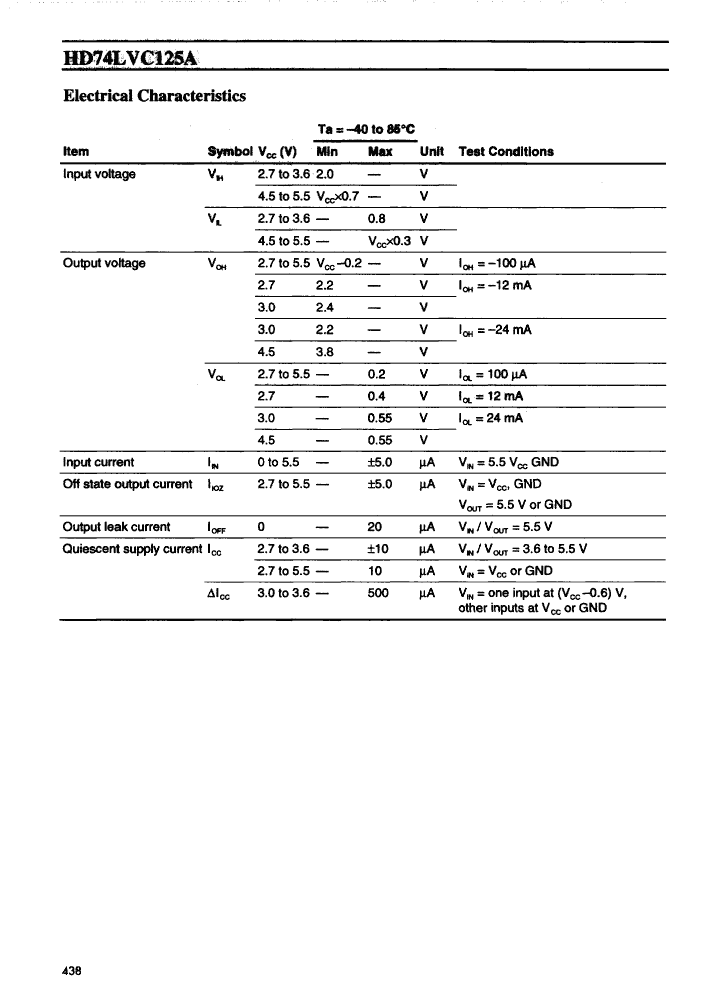

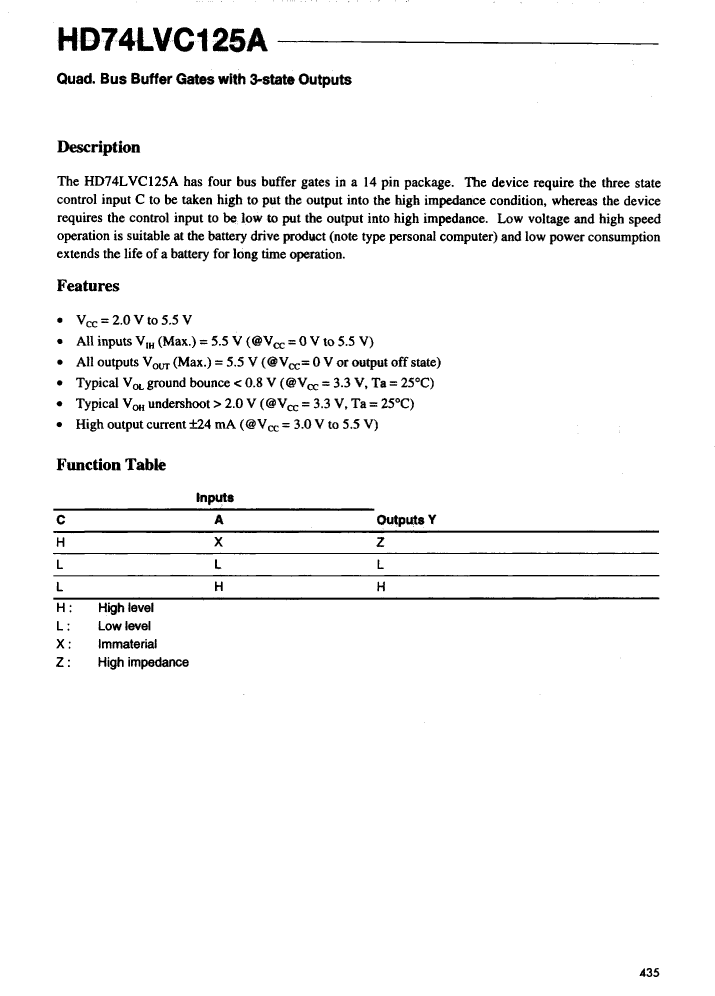

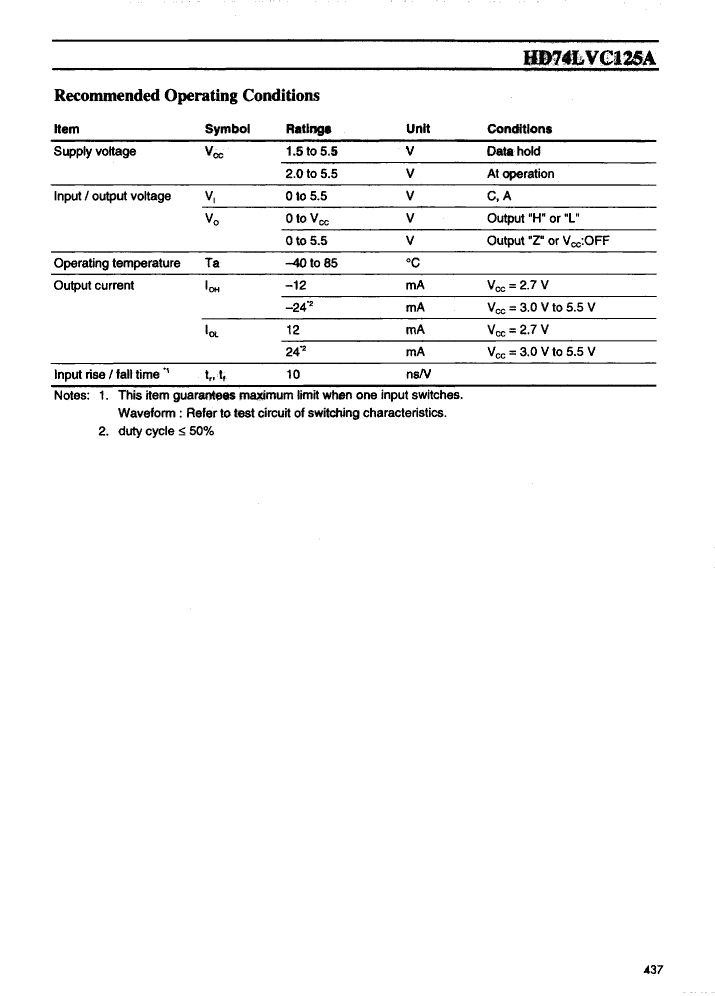

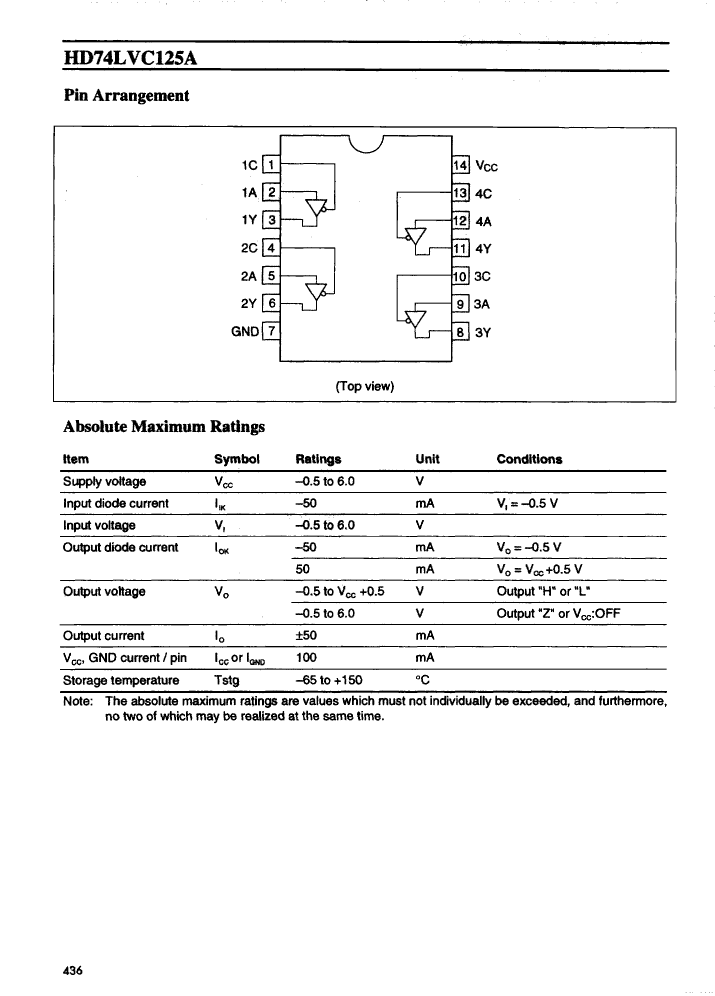

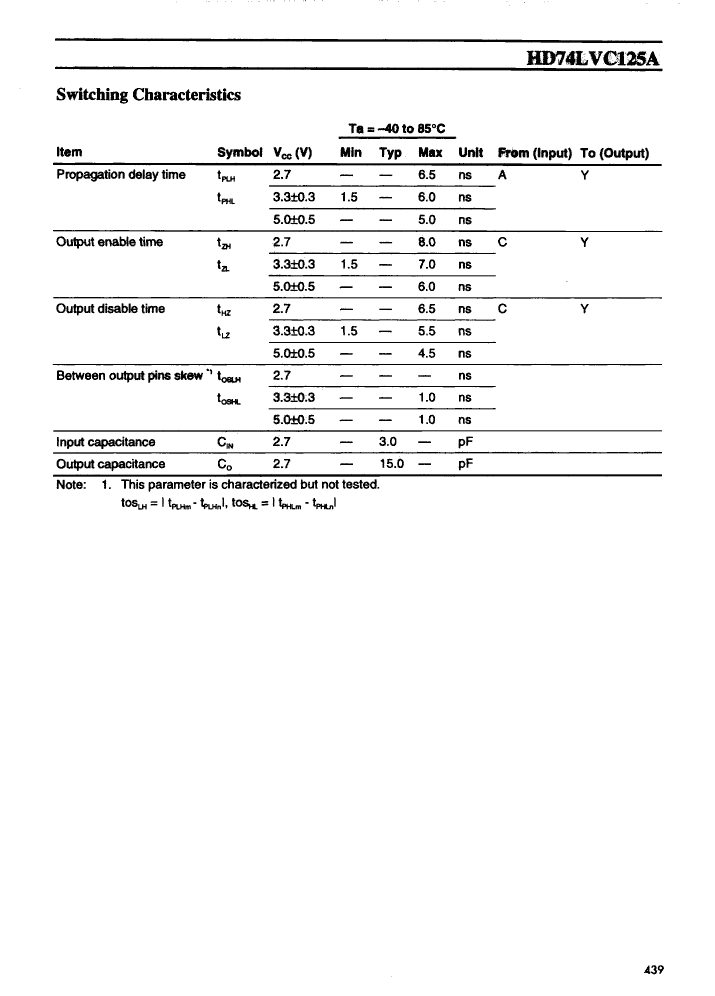

Bus Driver, LVC/LCX/Z Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14, TSSOP-14
| Parameter Name | Attribute value |
| Maker | Hitachi （Renesas ） |
| Parts packaging code | TSSOP |
| package instruction | TSSOP, TSSOP14,.25 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| Control type | ENABLE LOW |
| series | LVC/LCX/Z |
| JESD-30 code | R-PDSO-G14 |
| length | 5 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| MaximumI(ol) | 0.024 A |
| Number of digits | 1 |
| Number of functions | 4 |
| Number of ports | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | TSSOP |
| Encapsulate equivalent code | TSSOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| power supply | 3.3 V |
| Prop。Delay @ Nom-Sup | 6 ns |
| propagation delay (tpd) | 6.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.1 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 2 V |
| Nominal supply voltage (Vsup) | 2.7 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 0.65 mm |
| Terminal location | DUAL |
| width | 4.4 mm |
| HD74LVC125AT | HD74LVC125AFP | HD74LVC125ARP | |
|---|---|---|---|
| Description | Bus Driver, LVC/LCX/Z Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14, TSSOP-14 | Bus Driver, LVC/LCX/Z Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14, EIAJ, SOP-14 | Bus Driver, LVC/LCX/Z Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14, SOP-14 |
| Maker | Hitachi （Renesas ） | Hitachi （Renesas ） | Hitachi （Renesas ） |
| Parts packaging code | TSSOP | SOIC | SOIC |
| package instruction | TSSOP, TSSOP14,.25 | SOP, SOP14,.25 | SOP, |
| Contacts | 14 | 14 | 14 |
| Reach Compliance Code | unknown | unknown | unknown |
| series | LVC/LCX/Z | LVC/LCX/Z | LVC/LCX/Z |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 |
| length | 5 mm | 10.06 mm | 8.65 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 |
| Number of ports | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 14 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | TSSOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE | SMALL OUTLINE |
| propagation delay (tpd) | 6.5 ns | 6.5 ns | 6.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.1 mm | 2.2 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 2 V | 2 V | 2 V |
| surface mount | YES | YES | YES |
| technology | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.65 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| width | 4.4 mm | 5.5 mm | 3.95 mm |
| Control type | ENABLE LOW | ENABLE LOW | - |
| MaximumI(ol) | 0.024 A | 0.024 A | - |
| Encapsulate equivalent code | TSSOP14,.25 | SOP14,.25 | - |
| power supply | 3.3 V | 3.3 V | - |
| Prop。Delay @ Nom-Sup | 6 ns | 6 ns | - |
| Nominal supply voltage (Vsup) | 2.7 V | 2.7 V | - |
