74LVC125DB

Description
LVC/LCX/Z SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14
Categorylogic    logic
File Size160KB,10 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

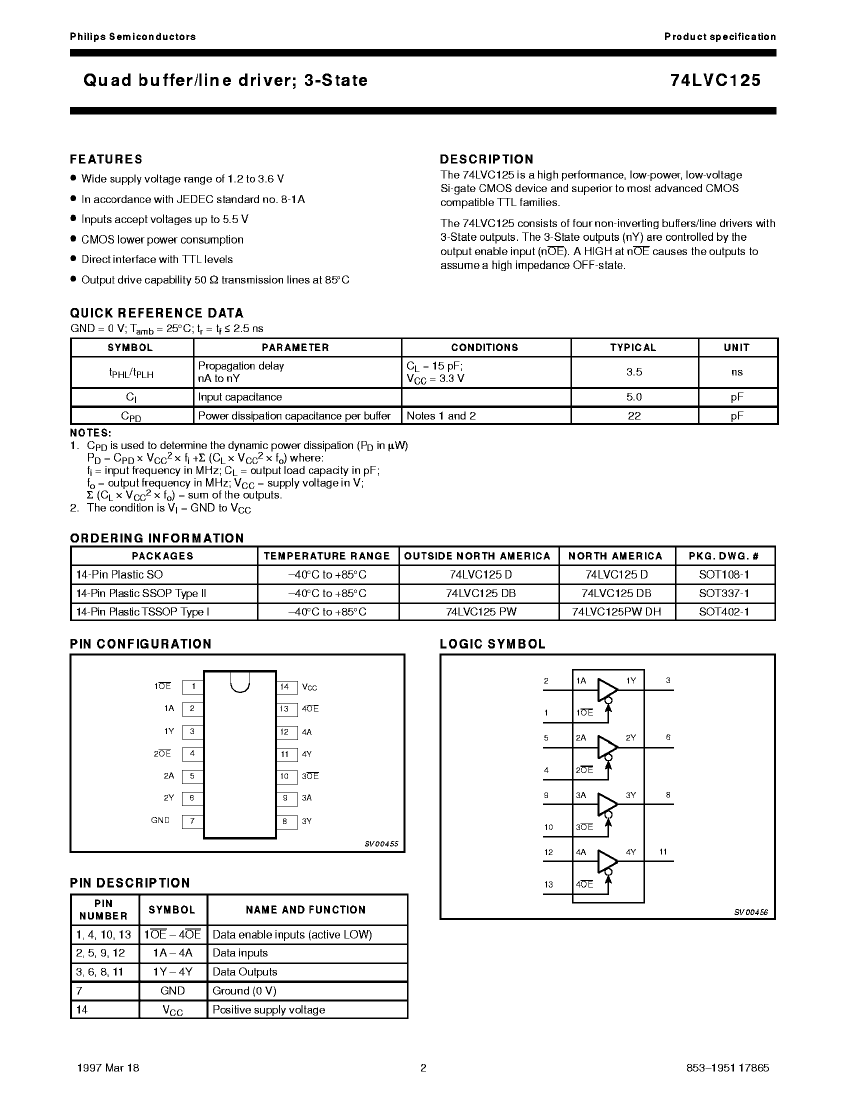

74LVC125DB Overview

LVC/LCX/Z SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, PDSO14

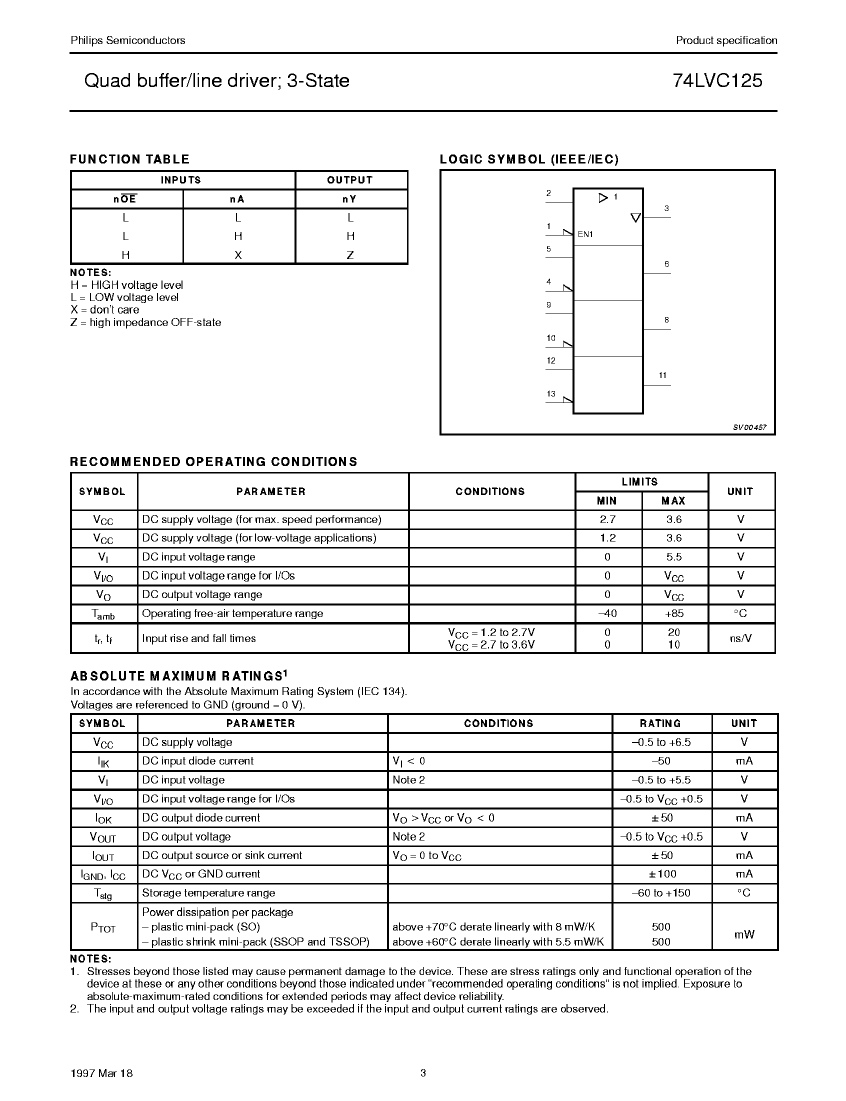

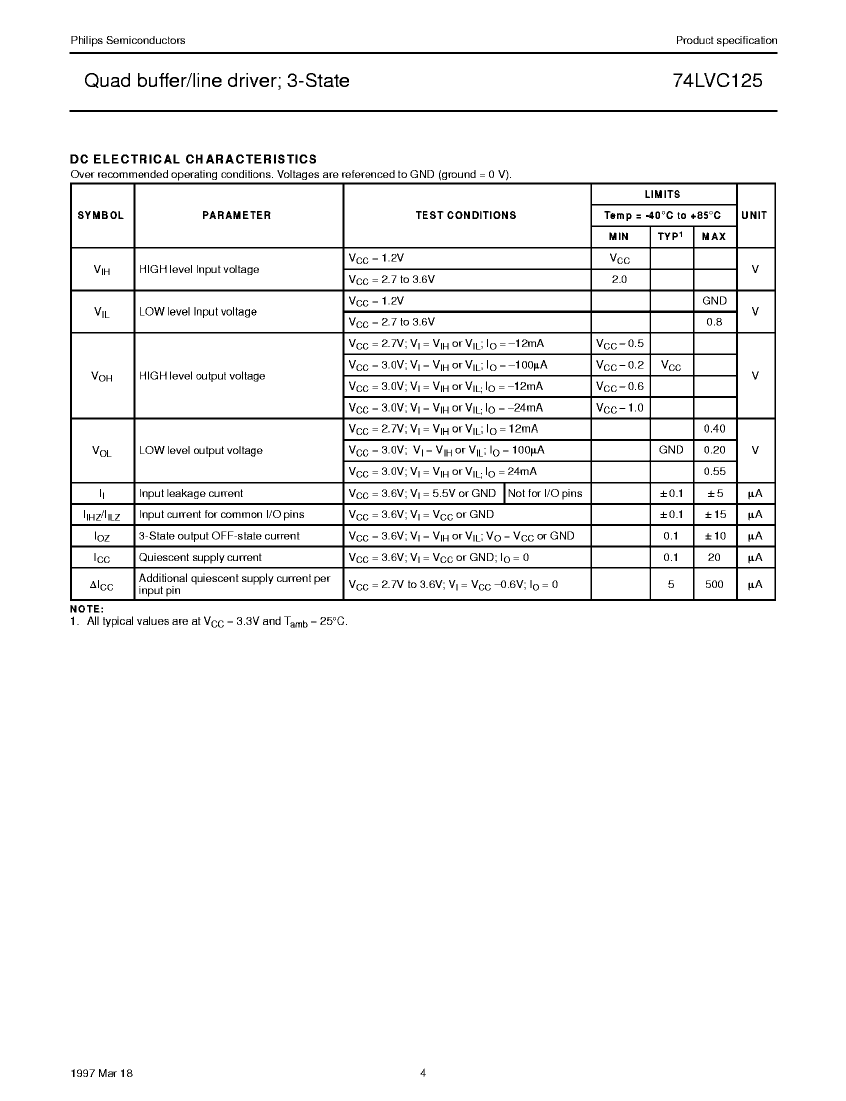

74LVC125DB Parametric

Parameter NameAttribute value
MakerNXP
Reach Compliance Codeunknown
Other featuresINPUTS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS
seriesLVC/LCX/Z
JESD-30 codeR-PDSO-G14
length6.2 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
Number of digits1
Number of functions4
Number of ports2
Number of terminals14
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, SHRINK PITCH

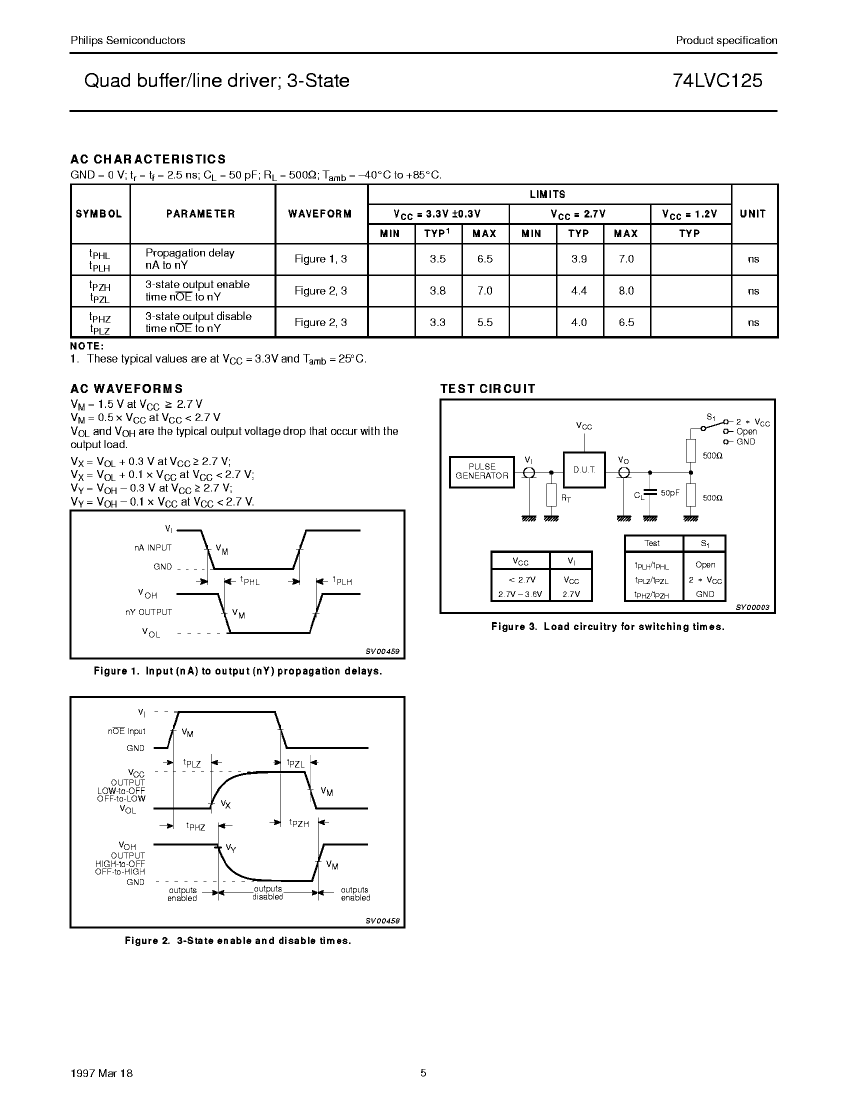

propagation delay (tpd)6.5 ns
Certification statusNot Qualified
Maximum seat height2 mm
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)1.2 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
width5.3 mm
