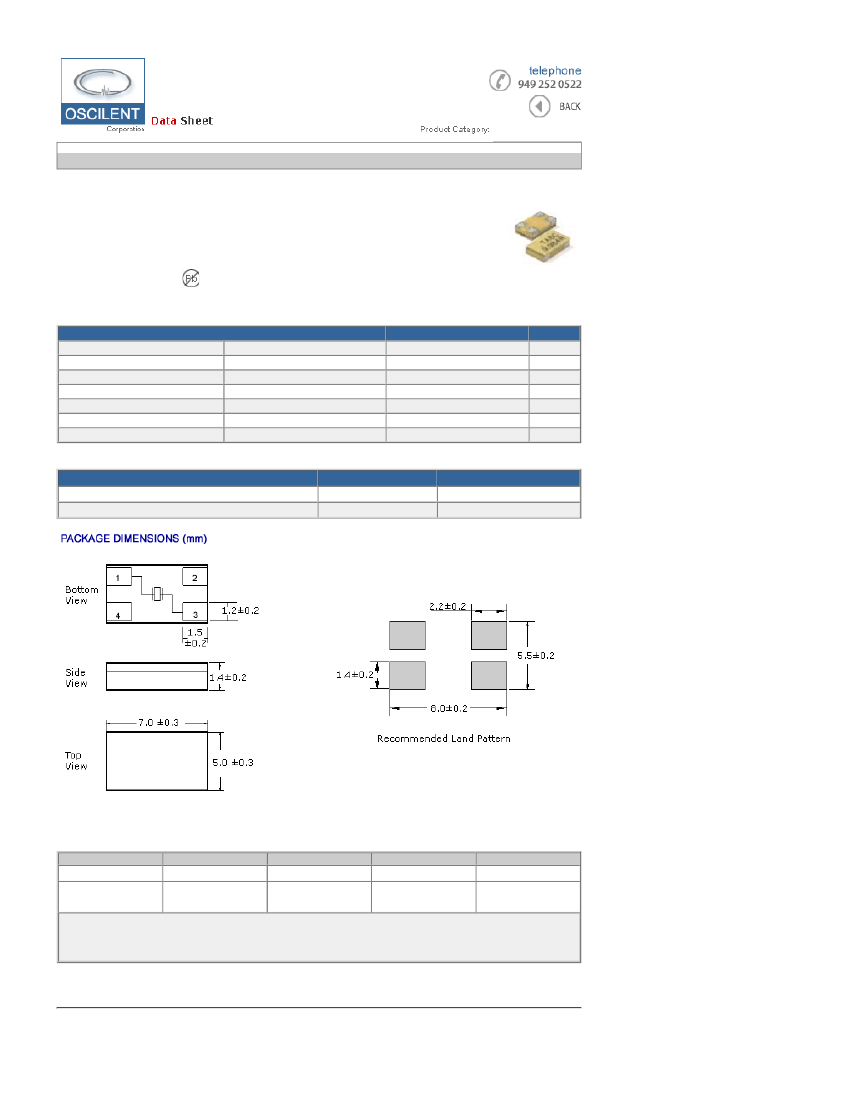

Oscilent Corporation | 264 Series Quartz Crystal
1 of 1
SMD Quartz Crystal
Series Number
Package
Description
Last Modified
264
FEATURES
- 7x5mm Chip Type quartz crystal
- Low profile
- Tight stability / High reliability
- Cost Efficient
- Tape and Reel
- RoHS / Lead Free compliant
7x5mm Chip Type
SMD Quartz Crystal
July 28 2008
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range
Frequency Tolerance
Frequency Stability
Operating Temperature
Storage Temperature
Shunt Capacitance
Load Capacitance
.
fo
@ 25ºC
Ta = -20 +70ºC
TOPR
TSTG
Co
CL (Customer Specified)
CHARACTERISTICS
12.00 ~ 35.00
±30
±50
-20 ~ +70
-40 ~ +85
7.0 max.
18 ~ 30, Series
UNITS
MHz
ppm
ppm
ºC
ºC
pF
pF
EQUIVALENT SERIES RESISTANCE / MODE OF OSCILLATION
FREQUENCY RANGE (MHz)
12.000 ~ 16.000
16.001 ~ 35.000
.
MODE
Fundamental
Fundamental
MAX ESR Ohm
60
40
PART NUMBER GUIDE
Series Number
Frequency
Load Capacitance
Operating Temp ( ºC )
Packaging**
264
Oscilent
- 12.0M
- 20
S=
-S
-20~+70
- TR
Blank* = Bulk
TR = Tape/Reel
Enter frequency
e.g. 12.0M
Enter capacitance
e.g. -20
for 12.000 MHz
for 20pF . Enter -SR for
Series Resonance.
NOTE:
Deviations on all parameters available. Please consult Oscilent for details.
DEFINITIONS:
Click on the characteristic names above for definitions of that particular characteristic.
*STANDARDS:
"Blank" part number selections indicate standard variables for that particular characteristic.
**PACKAGING:
Click on the packaging name above for tape/reel specifications
CALL
949.252.0522
18195 East McDurmott Street . Building D . Irvine . CA 92614 . USA
Fax: 949.252.0599 . E-Mail: Sales@Oscilent.com
Oscilent Corporation
-
Series No.:
264
