20SA15M: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 20V, 15uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size163KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

20SA15M Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 20V, 15uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

20SA15M Parametric

Parameter Name	Attribute value
Maker	SANYO
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ESR MEASURED AT 100KHZ-300KHZ
capacitance	15 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	90 mΩ
leakage current	0.006 mA
length	7.8 mm
Manufacturer's serial number	SA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	20 V
ripple current	15 mA
series	SA(20V)
surface mount	NO
Delta tangent	0.06
Terminal pitch	2.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

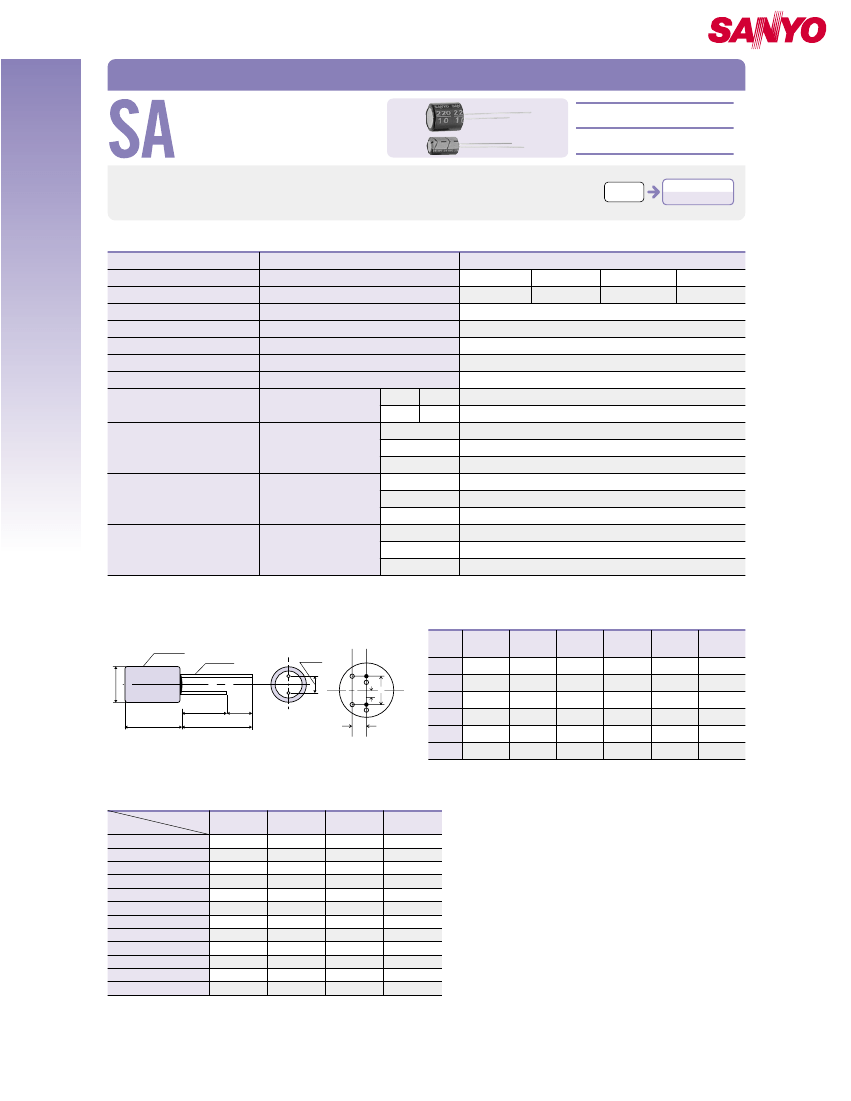

Organic semiconductive electrolyte type / Radial lead type

RoHS compliance

φD

15min

L

19min

4min

B'

C

A'

G

K

F

Aluminum Solid Capacitors with Conductive Polymer

Aluminum Solid Capacitors with Organic Semiconductive Electrolyte

High capacitance

Series

SA series is miniaturized SC series with large capacitance.

Suitable for high frequency switching power

supplies, etc. Lead free-flow is supported.

Small size

SC

(Standard)

Small size

High capacitance

SA

■ Specifications

Items

Rated voltage

Surge voltage

(V)

Condition

−

Room temperature

−

120Hz/20℃

Rated voltage applied, after 2 minutes

100kHz to 300kHz/20℃

Based the value at

100kHz, ＋20℃

−55℃ Z/Z

20℃

＋105℃ Z/Z

20℃

△C/C

6.3

7.2

Specifications

10

11.5

16

18.4

20

23

Category temperature range (℃)

Capacitance tolerance

Dissipation Factor (DF)

Leakage current

※1

Equivalent series resistance (ESR)

Characteristics of impedance

ratio at high temp.

and low temp.

(％)

−55 to ＋105

M : ±20

Please see the attached characteristics list

0.75 to 1.25

Within ±20% of the initial value

Within 1.5 times of the initial limit

Within the initial limit

Within ±10% of the initial value

Within 1.5 times of the initial limit

Within the initial limit (after voltage processing)

Within ±5% of the initial value

Within the initial limit

Within the initial limit (after voltage processing)

Endurance

105℃, 2,000h,

Rated voltage applied

DF

LC

Damp heat(Steady state)

60℃, 90 to 95%RH,

1,000h,

No applied voltage

△C/C

DF

LC

△C/C

Resistance to soldering heat

Flow method

(260±5℃ X 10s)

DF

LC

※1 In case of some problems for measured values, measure after applying rated voltage for 30 minutes at 105℃.

■ Dimensions

Sleeve

Standards of terminal

lead position

(unit : mm)

φd

（＋）

F

B

A

Size φD

＋0.5max

code

C

D

E

F

G

H

6.3

8.0

10.0

12.5

16.0

L max

7.8

10.8

11.5

23.0

26.0

F

2.5

±0.5

2.5

±0.5

3.5

±0.5

5.0

±0.5

±1.0

φd

±0.05

0.45

0.60

0.80

G max

0.5

0.8

K max

0.5

0.8

Mark● ; ideal terminal lead position C;

the middle point of A-A'

7.5

±1.0

■ Size list

μF

15

22

33

47

68

100

150

220

330

470

1,000

2,200

RV

6.3

10

RV : Rated voltage

16

20

C

D

E

F

C

D

E

F

C

D

E

F

G

H

60

20SA15M Related Products

	20SA15M	16SA1000M	6SA150M	16SA150M	6SA2200M	16SA33M	20SA100M	6SA47M
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 20V, 15uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 16V, 1000uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 6.3V, 150uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 150uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 6.3V, 2200uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 16V, 33uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 20V, 100uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 6.3V, 47uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ESR MEASURED AT 100KHZ-300KHZ	ESR MEASURED AT 100KHZ-300KHZ	ESR MEASURED AT 100KHZ-300KHZ	ESR MEASURED AT 100KHZ-300KHZ	ESR MEASURED AT 100KHZ-300KHZ	ESR MEASURED AT 100KHZ-300KHZ	ESR MEASURED AT 100KHZ-300KHZ	ESR MEASURED AT 100KHZ-300KHZ
capacitance	15 µF	1000 µF	150 µF	150 µF	2200 µF	33 µF	100 µF	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)	ALUMINUM (SOLID POLYMER)
ESR	90 mΩ	15 mΩ	30 mΩ	28 mΩ	15 mΩ	70 mΩ	30 mΩ	60 mΩ
leakage current	0.006 mA	0.64 mA	0.0189 mA	0.048 mA	0.5544 mA	0.01056 mA	0.04 mA	0.00592 mA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	20 V	16 V	6.3 V	16 V	6.3 V	16 V	20 V	6.3 V
ripple current	15 mA	121.88 mA	34.75 mA	40.75 mA	121.88 mA	17.13 mA	40.13 mA	17.88 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.06	0.09	0.07	0.06	0.13	0.06	0.06	0.07
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Manufacturer's serial number	SA	SA	SA	-	SA	SA	SA	SA
